2019 SUBARU BRZ Owners Manual

5
When trouble arises
433
5-2. Steps to take in an emergency
BRZ_U
WARNING
TPMS malfunctions may occur for a variety of reasons, including the
installation of replacement or alternate tires or wheels on the vehicle that
prevent the TPMS from functioning properly. Always check the TPMS
malfunction telltale after replacing one or more tires or wheels on your
vehicle to ensure that the replacement or alternate tires and wheels
allow the TPMS to continue to function properly.
CAUTION
■To ensure the tire pressure monitoring system operates properly
(vehicles with a tire pressure monitoring system)
Do not install tires with different specifications or makers, as the tire
pressure monitoring system may not operate properly.

434
5-2. Steps to take in an emergency
BRZ_U

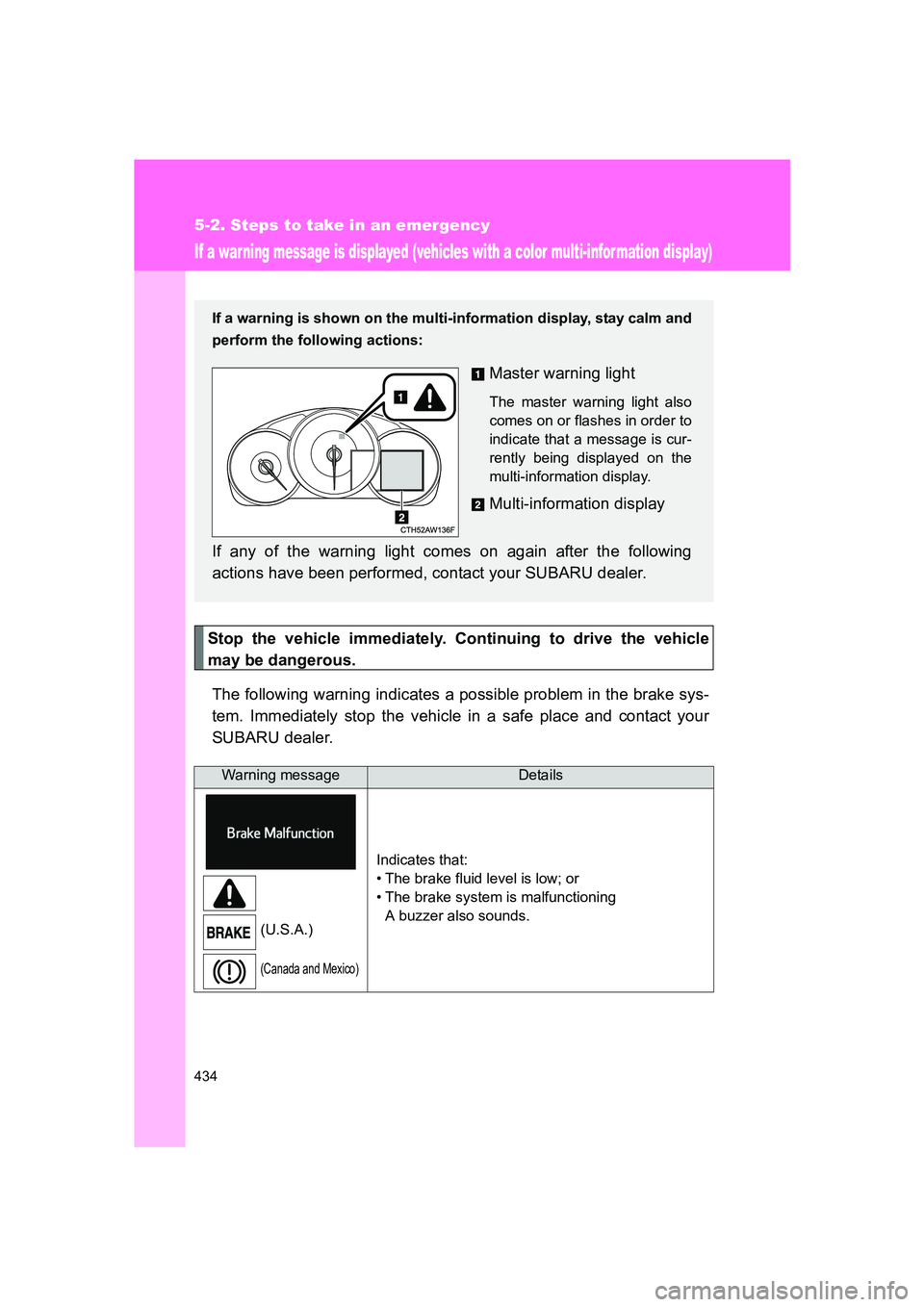

If a warning message is displayed (vehicles with a color multi-infor mation display)
Stop the vehicle immediately. Continuing to drive the vehicle
may be dangerous.The following warning indicates a possible problem in the brake sys-
tem. Immediately stop the vehicle in a safe place and contact your
SUBARU dealer.
Warning messageDetails
(U.S.A.)
(Canada and Mexico)
Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning A buzzer also sounds.
If a warning is shown on the multi-information display, stay calm and
perform the following actions:
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
multi-information display.
Multi-information display
If any of the warning light comes on again after the following
actions have been performed, contact your SUBARU dealer.

5
When trouble arises
435
5-2. Steps to take in an emergency
BRZ_U
Stop the vehicle immediately.
The following warning indicates the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your SUBARU dealer.
Warning messageDetails
(Comes on in red)
Indicates that the engine is almost overheating.
( → P. 479)
A buzzer also sounds.

436 5-2. Steps to take in an emergency
BRZ_U
Have the vehicle inspected immediately.Failure to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your SUBARU dealer immediately.
Warning messageDetails
Indicates a malfunction in:
• The SRS airbag system;
• The seatbelt pretensioner system;
• The front passenger occupant detection system. A buzzer also sounds.
(U.S.A.)
(Canada and Mexico)
Indicates a malfunction in:
• The ABS;
• The brake assist system. A buzzer also sounds.
Indicates a malfunction in the electric power steer-
ing system. A buzzer also sounds.

5
When trouble arises
437
5-2. Steps to take in an emergency
BRZ_U
(Flashes)
(Flashes in yellow)
Indicates a malfunction in the keyless access with
push button start system.
A buzzer also sounds.
Warning messageDetails

438 5-2. Steps to take in an emergency
BRZ_U
Follow the correction procedures.After taking the specified steps to correct the suspected problem,
check that the warning message and light go off.
Warning messageDetailsCorrection procedure
Indicates that one or
more of the doors is
not fully closed The system also indi-
cates which doors are
not fully closed.
If the vehicle reaches
a speed of 3 mph (5
km/h),
flashes to indicate
that the door(s) are
not yet fully closed. Make sure that both
side doors are closed.
Indicates that the trunk
is not fully closed If the vehicle reaches
a speed of 3 mph (5
km/h),
flashes to indicate
that the trunk is not
yet fully closed. Close the trunk.

5
When trouble arises
439
5-2. Steps to take in an emergency
BRZ_U
*: This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that displayed.
(Vehicles with an auto-
matic transmission) Indicates that the auto-
matic transmission fluid
temperature is too
high.
A buzzer also
sounds. Stop the vehicle in a
safe place and shift the
select lever to P.
If the message is
cleared after a little
while, the vehicle can
be driven. If the mes-
sage is not cleared,
contact your SUBARU
dealer.
(Flashes) Indicates that the push-
button ignition switch is
turned off and the
driver’s door is opened
while the lights are
turned on.
A buzzer also
sounds. Turn the lights off.
(Comes on in yellow)
Indicates that remain-
ing fuel is approxi-
mately 1.8 gal. (7.0 L,
1.5 Imp. gal.) or less
The estimated
remaining driving
range will be dis-
played under this
warning message.* Refuel the vehicle.
Roads may be icy due
to the low outside tem-
perature. Drive carefully avoiding
sudden acceleration,
sudden braking, sud-
den deceleration, and
sharp turns.
Warning messageDetailsCorrection procedure

440 5-2. Steps to take in an emergency
BRZ_U
Have the malfunction repaired immediately.After taking the specified steps to correct the suspected problem,
check that the warning message and light go off.
InteriorbuzzerExterior
buzzerWarning messageDetailsCorrection procedure
Once 
(Flashes)
(Flashes in yellow)
Indicates that the
access key is not
present when
attempting to
start the engine. Confirm
the loca-
tion of the
access
key.
Once
3 times
(Flashes)
(Flashes in yellow)
Indicates that a
door other than
the driver’s door
has been opened
and closed with
the push-button
ignition switch in
any mode other
than off and the
access key out-
side of the detec-
tion area. Confirm
the loca-
tion of the
access
key.
