2019 SUBARU BRZ Owners Manual

401
4-3. Do-it-yourself maintenance
4
Maintenance and care
BRZ_U
■
Rear bulb locations
■ Inside bulb locations
Back-up lights License
plate
lights
Interior light
Vanity lights
(if equipped)

402 4-3. Do-it-yourself maintenance
BRZ_U
Replacing light bulbs■ Front side marker lights
Turn the steering wheel in the
opposite direction of the light to
be replaced.
Turn the steering wheel to a point
that allows your hand to easily fit
between the tire and fender liner.
Remove the clips and partly
remove the fender liner.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
Release the light's claw.
Insert the screwdriver into the
hole. While firmly pushing the
screwdriver forward, move it
towards the inside of the vehicle.
To prevent damage to the vehicle,
wrap the tip of the screwdriver
with a tape.
STEP 1
STEP 2
STEP 3

403
4-3. Do-it-yourself maintenance
4
Maintenance and care
BRZ_U
Pull out the lamp and turn the
lens counterclockwise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 4
STEP 5
STEP 6

404 4-3. Do-it-yourself maintenance
BRZ_U■
Back-up lights
Remove the clips.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
STEP 3
STEP 4

405
4-3. Do-it-yourself maintenance
4
Maintenance and care
BRZ_U
■

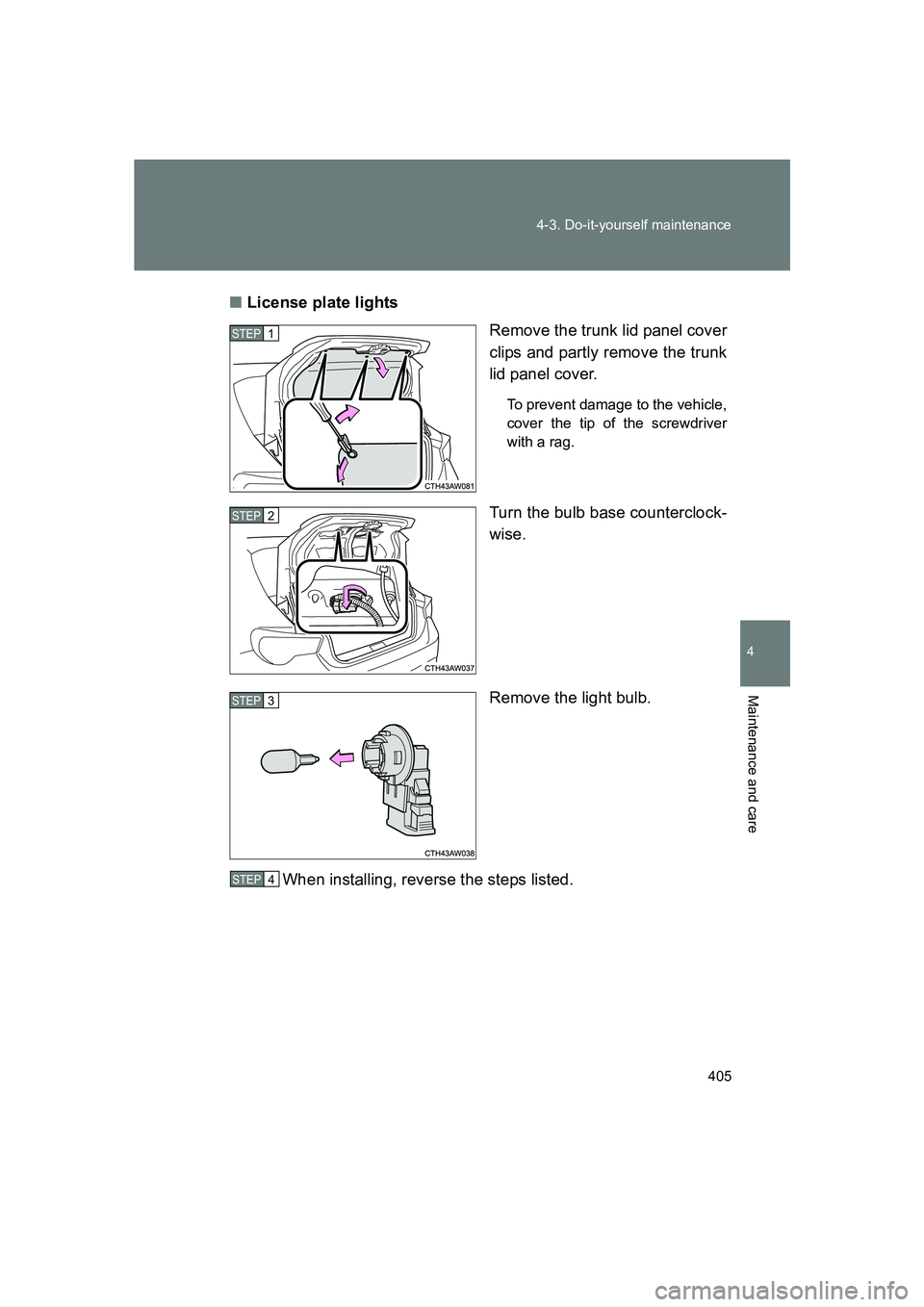

License plate lights
Remove the trunk lid panel cover
clips and partly remove the trunk
lid panel cover.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
STEP 3
STEP 4

406 4-3. Do-it-yourself maintenance
BRZ_U■
Interior light
Remove the lens.
To prevent damage to the interior
light, cover the tip of the screw-
driver with a rag.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
STEP 3

407
4-3. Do-it-yourself maintenance
4
Maintenance and care
BRZ_U
■

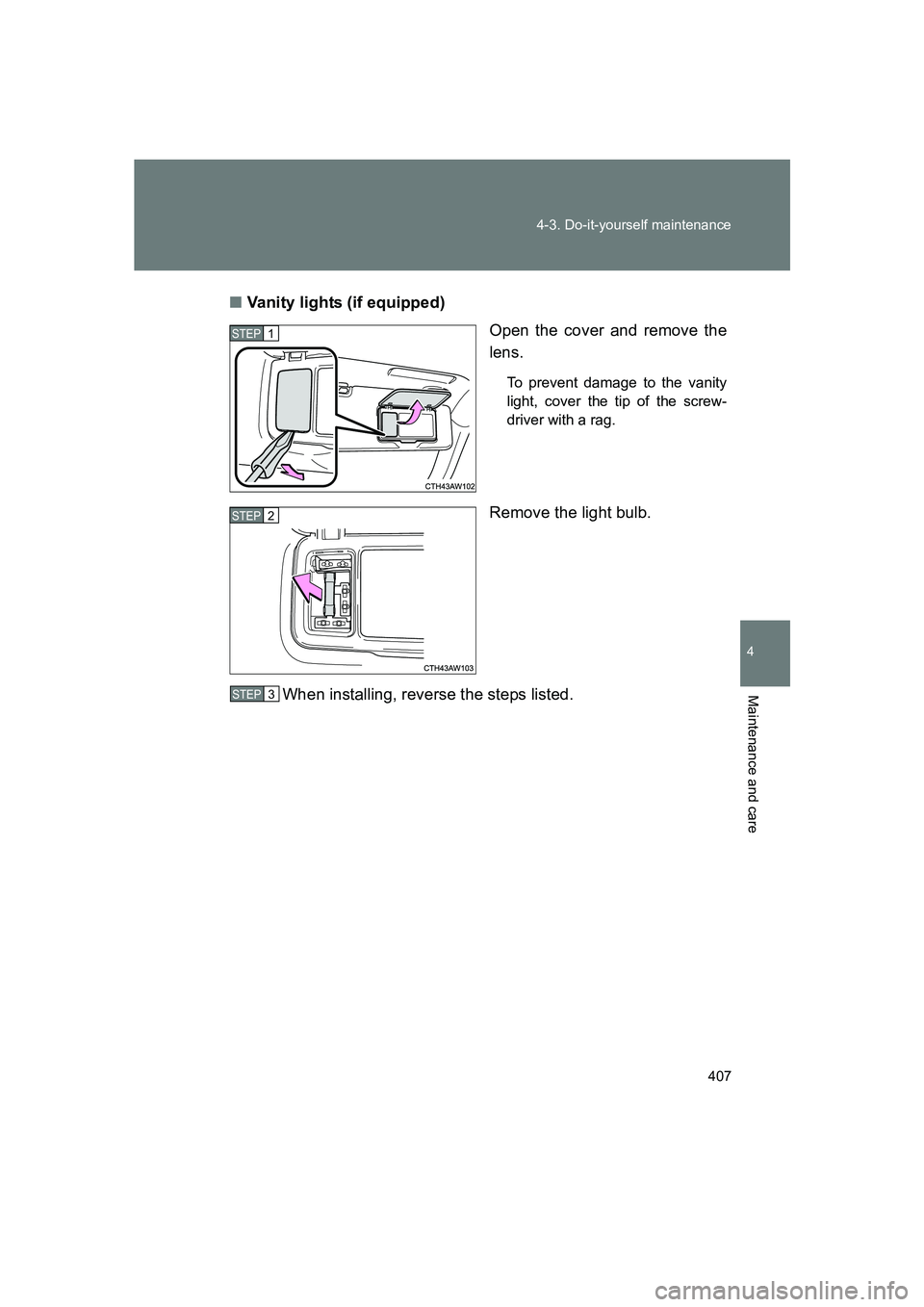

Vanity lights (if equipped)
Open the cover and remove the
lens.
To prevent damage to the vanity
light, cover the tip of the screw-
driver with a rag.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
STEP 3

408 4-3. Do-it-yourself maintenance
BRZ_U■
Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your SUBARU dealer.
● Headlights
● Parking lights/daytime running lights
● Front turn signal lights
● Front fog lights (if equipped)
● Stop/tail lights
● Stop lights
● Rear turn signal lights
● Rear side marker lights
● High mounted stoplight
● Door courtesy lights (if equipped)
● Trunk light
