2-2. Instrument cluster
2
When driving
BRZ_U
■

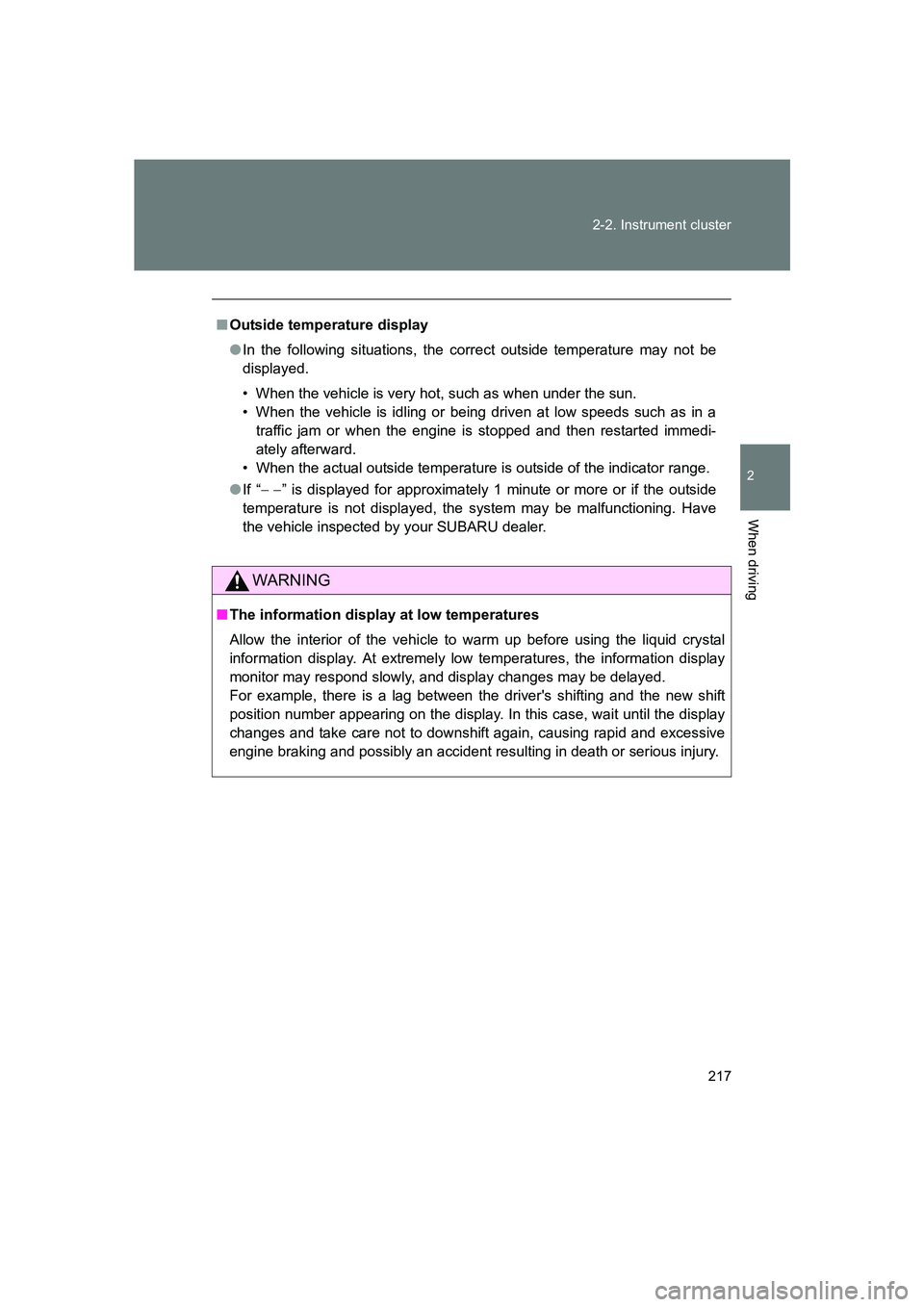

Outside temperature display
● In the following situations, the correct outside temperature may not be
displayed.
• When the vehicle is very hot, such as when under the sun.
• When the vehicle is idling or being driven at low speeds such as in a
traffic jam or when the engine is stopped and then restarted immedi-
ately afterward.
• When the actual outside temperature is outside of the indicator range.
● If “ − − ” is displayed for approximately 1 minute or more or if the outside
temperature is not displayed, the system may be malfunctioning. Have
the vehicle inspected by your SUBARU dealer.
WARNING
■ The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver's shifting and the new shift
position number appearing on the display. In this case, wait until the display
changes and take care not to downshift again, causing rapid and excessive
engine braking and possibly an accident resulting in death or serious injury.

218
2-2. Instrument cluster
BRZ_U
Multi-information display (color display)
Summary of functionsThe multi-information display presents the driver with a variety of driv-
ing-related data, such as the current outside temperature. The multi-
information display can also be used to change the meter settings.
Meter control switches ( →P. 219)
“ODO/TRIP” switch ( →P. 219)
Menu icons ( →P. 220)
The menu icon bar will be displayed momentarily when the meter control
switch is used to change the displayed content.
Content display area
A variety of information can be displa yed by selecting a menu icon. Addi-
tionally, a warning message will be displayed in some situations.
• Menu icon content ( →P. 220)
• Warning message ( →P. 229, 434)
Odometer/trip meter display area ( →P. 230)
Displays the following items:
• Odometer/trip meter
• Outside temperature

219
2-2. Instrument cluster
2
When driving
BRZ_U

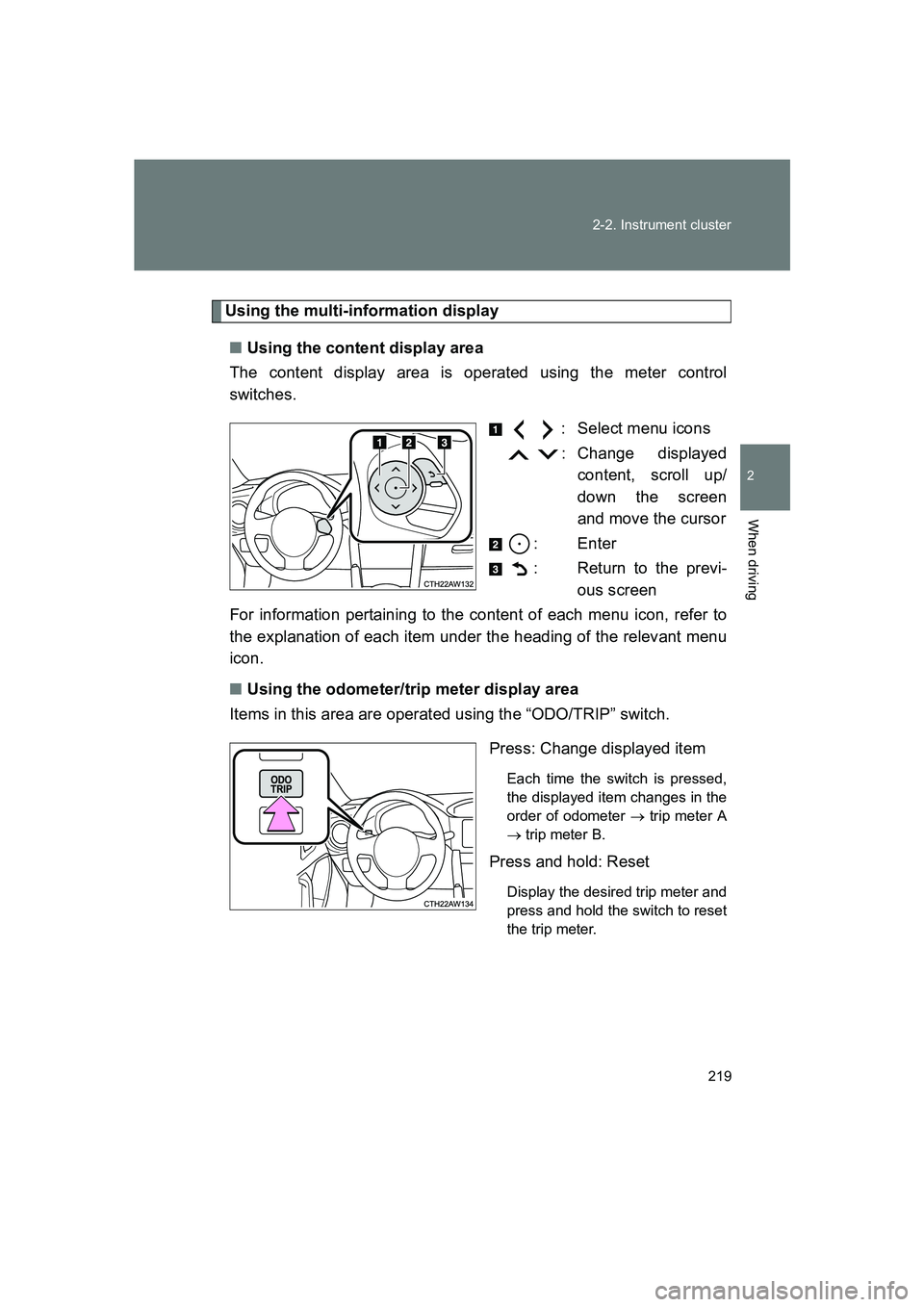

Using the multi-information display
■ Using the content display area
The content display area is operated using the meter control
switches.
: Select menu icons
: Change displayedcontent, scroll up/
down the screen
and move the cursor
: Enter
: Return to the previ- ous screen
For information pertaining to the content of each menu icon, refer to
the explanation of each item under the heading of the relevant menu
icon.
■ Using the odometer/trip meter display area
Items in this area are operated using the “ODO/TRIP” switch.
Press: Change displayed item
Each time the switch is pressed,
the displayed item changes in the
order of odometer → trip meter A
→ trip meter B.
Press and hold: Reset
Display the desired trip meter and
press and hold the switch to reset
the trip meter.

220 2-2. Instrument cluster
BRZ_U
Menu iconsSelect a menu icon to display its content.
Drive information ( →P. 221)
Select to display various drive data.
Exclusive content for BRZ ( →P. 224)
Select to display the G-force display, stopwatch, and other useful
functions for sporty driving.
Settings display ( →P. 228)
Select to change the meter display settings.
Warning message display ( →P. 229, 434)
Select to display warning messages and measures to be taken if a
malfunction is detected.

221
2-2. Instrument cluster
2
When driving
BRZ_U
Drive information ( )
■ Drive information (page 1)
Current fuel consumption
Displays the current rate of fuel
consumption.
Average fuel consumption
Displays the average fuel con-
sumption since the function was
reset.
Driving range
Displays the estimated maximum
distance that can be driven with
the quantity of fuel remaining.
●Pressing and holding will reset the average fuel consump-
tion.
● Use the displayed fuel consumption as a reference.
● This distance is computed based on your average fuel con-
sumption. As a result, the actual distance that can be driven may
differ from that displayed.
● When only a small amount of fuel is added to the tank, the dis-
play may not be updated.
When refueling, turn the push-button ignition switch off. If the
vehicle is refueled without turning the push-button ignition switch
off, the display may not be updated.

222 2-2. Instrument cluster
BRZ_U■
Drive information (page 2)
Average vehicle speed
Displays the average vehicle
speed since display was reset.
Driving time
Displays the cumulative time the
vehicle has been driven since dis-
play was reset.
Driving distance
Displays the cumulative distance
the vehicle has been driven since
display was reset.
●Pressing and holding will reset the average vehicle speed/
driving time/driving distance.

223
2-2. Instrument cluster
2
When driving
BRZ_U
■
Drive information (page 3)
Engine coolant temperature
gauge
Displays the engine coolant tem-
perature.
If the engine coolant temperature
gauge needle/indicator enters the
red zone, a buzzer will sound and
a warning message will be dis-
played.
Engine oil temperature gauge
Displays the engine oil tempera-
ture.
Vo l t m e t e r
Displays the charging voltage.
As voltage displayed may
be different from the actual
battery voltage, use the volt-
meter as a guideline.
●Pressing and holding will turn the range value display on the
engine coolant temperature gauge display on/off.

224 2-2. Instrument cluster
BRZ_U
Exclusive content for BRZ ( )■ G-force
Displays lateral G-forces on the vehicle
Also displays, around the periphery of the G-force display, the left and
right steering amount, accelerator pedal input, and brake fluid pres-
sure
Record of the maximum G-
forces
Accelerator pedal input
Brake fluid pressure
Steering amount
If the steering wheel is turned
completely to the left or right, the
bottom side of the gauge on the
corresponding side will be illumi-
nated in red.
This display is intended for use as a guideline. Depending on factors such
as the road surface condition, temperature and vehicle speed, the display
may not show the actual condition of the vehicle.
● Resetting the record of maximum G-forces
Press and hold to reset the record.
● Changing the acceleration G-force display range
Press and hold to change the range of the acceleration G-
force display between 1.0 G and 0.5 G.
● Screen displayed while driving
While driving, the G-force screen will automatically be changed
to the power and torque curve display. To display the G-force
screen, stop the vehicle in a safe place.
