2019 SUBARU BRZ Owners Manual

497
6-1. Specifications
6
Vehicle specifications
BRZ_U

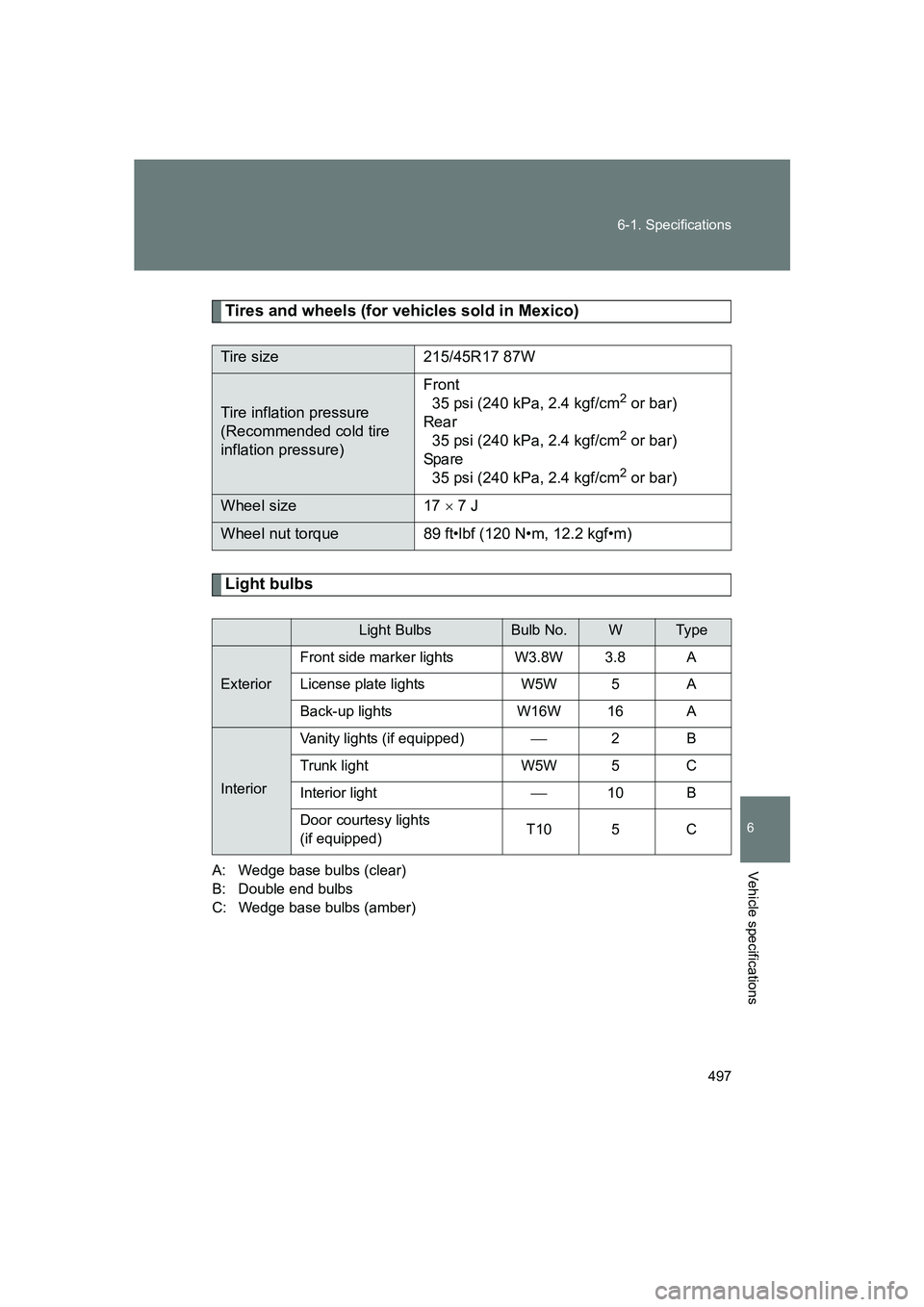

Tires and wheels (for vehicles sold in Mexico)
Light bulbs
A: Wedge base bulbs (clear)
B: Double end bulbs
C: Wedge base bulbs (amber)
Tire size 215/45R17 87W
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front
35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear 35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Spa re 35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Wheel size 17 × 7 J
Wheel nut torque 89 ft•lbf (120 N•m, 12.2 kgf•m)
Light BulbsBulb No.WTyp e
ExteriorFront side marker lights W3.8W 3.8 A
License plate lights W5W 5 A
Back-up lights W16W 16 A
InteriorVanity lights (if equipped)
2B
Trunk light W5W 5 C
Interior light 10 B
Door courtesy lights
(if equipped) T10 5 C

498
6-1. Specifications
BRZ_U
Fuel infor mation
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your SUBARU has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
■ If your engine knocks
●Consult your SUBARU dealer.
● You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
■ Gasoline quality
In very few cases, driveability problems may be caused by the brand of gas-
oline you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your SUBARU dealer.
■ Fuel octane rating
Using a gasoline with a lower octane rating can cause persistent and heavy
knocking, which can damage the engine. Do not be concerned if your vehi-
cle sometimes knocks lightly when you drive up a hill or when you acceler-
ate. Contact your SUBARU dealer if you use a fuel with the specified octane
rating and your vehicle knocks heavily or persistently.
RON
This octane rating is the Research Octane Number.
AKI
This octane rating is the average of the Research Octane and Motor Octane
numbers and is commonly referred to as the Anti Knock Index (AKI). The engine is designed to operate at maximum performance using
unleaded gasoline with an octane rating of 93 AKI (98 RON) or
higher. If 93 AKI (98 RON) fuel is not readily available in your area,
unleaded gasoline with an octane rating of 91 AKI (95 RON) may be
used with no detriment to engine durability or driveability. However,
you may notice a slight decrease in maximum engine performance
and you may hear some knocking (pinging) from the engine while
using 91 AKI (95 RON) fuel. Use of 91 AKI (95 RON) fuel will not affect
your warranty coverage.

499
6-1. Specifications
6
Vehicle specifications
BRZ_U
■
Reformulated Gasoline
SUBARU supports the use of reformulated gasoline when available.
Reformulated gasoline has been blended to burn more cleanly and reduce
vehicle emissions.
■ SUBARU recommends the use of gasoline containing detergent addi-
tives
● SUBARU recommends the use of gasoline that contains detergent addi-
tives to avoid build-up of engine deposits.
● All gasoline sold in the US contains detergent additives to clean and/or
keep clean intake systems.

500 6-1. Specifications
BRZ_U
■SUBARU does not recommend blended gasoline
●If you use gasohol in your SUBARU, be sure that it has an octane rating
no lower than 93 AKI (98 RON).
● SUBARU DOES NOT recommend the use of gasoline containing metha-
nol.
■ SUBARU does not recommend gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
SUBARU DOES NOT recommend the use of gasoline that contains MMT. If
fuel containing MMT is used, your emission control system may be
adversely affected.
The malfunction indicator lamp on the instrument cluster may come on. If
this happens, contact your SUBARU dealer for service. ●
Use only gasoline containing a maxi-
mum of 10% ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 10% etha-
nol, including from any pump labeled
E15, E30, E50, E85 (which are only
some examples of fuel containing more
than 10% ethanol).
DO NOT use gasoline
containing more than 10%
ethanol.
(15% ethanol)
(50% ethanol)
(85% ethanol)

501
6-1. Specifications
6
Vehicle specifications
BRZ_U
CAUTION
■
Notice on fuel quality
● Do not use improper fuels. If improper fuels are used the engine and/or
fuel system will be damaged.
● Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.
● Do not use gasohol other than that stated here.
Other gasohol may cause fuel system damage or vehicle performance
problems.
● Using unleaded gasoline with an octane number or rating lower than the
level previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■ Fuel-related poor driveability
If after using a different type of fuel, poor driveability is encountered (poor
hot starting, vaporization, engine knocking, etc.), discontinue the use of that
type of fuel.
■ When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle's paint.

502
6-1. Specifications
BRZ_U

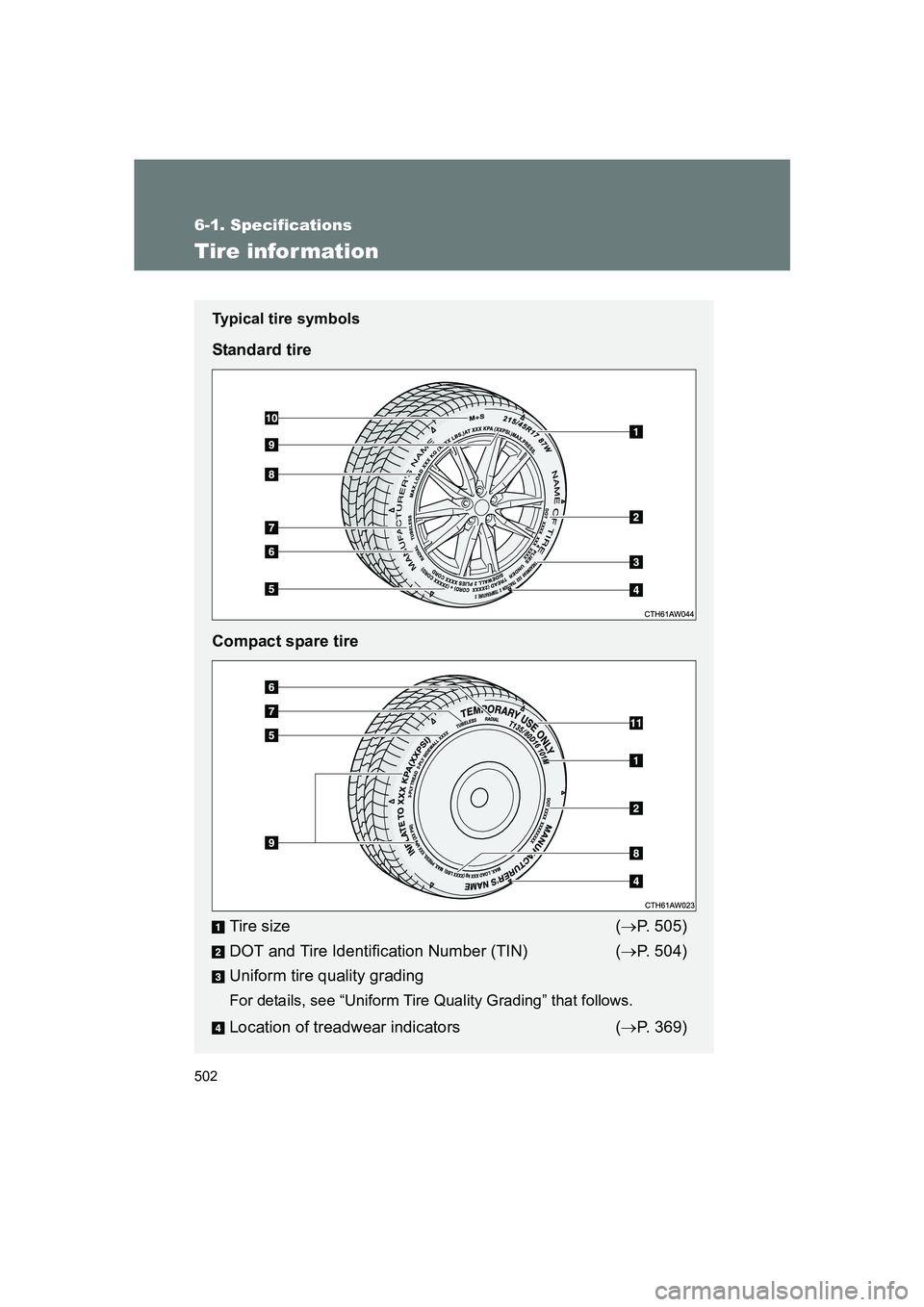

Tire information
Typical tire symbols
Standard tire
Compact spare tireTire size ( →P. 505)
DOT and Tire Identification Number (TIN) ( →P. 504)
Uniform tire quality grading
For details, see “Uniform Tire Quality Grading” that follows.
Location of treadwear indicators ( →P. 369)

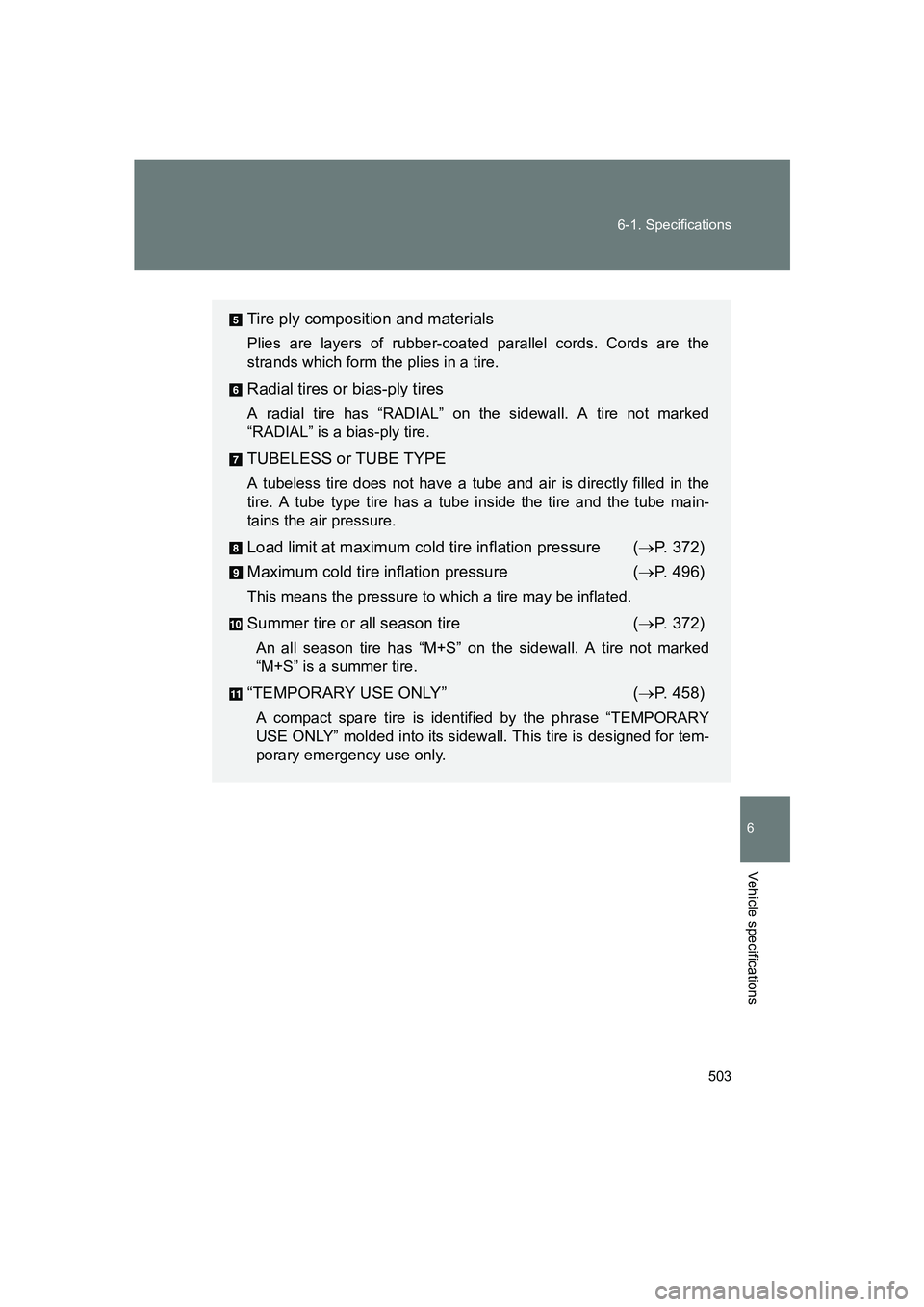

503
6-1. Specifications
6
Vehicle specifications
BRZ_U
Tire ply composition and materials
Plies are layers of rubber-coated parallel cords. Cords are the
strands which form the plies in a tire.
Radial tires or bias-ply tires
A radial tire has “RADIAL” on the sidewall. A tire not marked
“RADIAL” is a bias-ply tire.
TUBELESS or TUBE TYPE
A tubeless tire does not have a tube and air is directly filled in the
tire. A tube type tire has a tube inside the tire and the tube main-
tains the air pressure.
Load limit at maximum cold tire inflation pressure (
→P. 372)
Maximum cold tire inflation pressure ( →P. 496)
This means the pressure to which a tire may be inflated.
Summer tire or all season tire ( →P. 372)
An all season tire has “M+S” on the sidewall. A tire not marked
“M+S” is a summer tire.
“TEMPORARY USE ONLY” ( →P. 458)
A compact spare tire is identified by the phrase “TEMPORARY
USE ONLY” molded into its sidewall. This tire is designed for tem-
porary emergency use only.

504 6-1. Specifications
BRZ_U
Typical DOT and tire identification number (TIN)DOT symbol
*
Tire Identification Number
(TIN)
Tire manufacturer's identifica-
tion mark
Tire size code
Manufacturer's optional tire
type code (3 or 4 letters)
Manufacturing week
Manufacturing year
Manufacturer's code
*: The DOT symbol certifiesthat the tire conforms to
applicable Federal Motor
Vehicle Safety Standards.
Ty p e A
Ty p e B
