2019 SUBARU BRZ Owners Manual

5
When trouble arises
449
5-2. Steps to take in an emergency
BRZ_U
Once

(Flashes)
(Vehicles with a manual transmission) The driver’s door
was opened and
closed with the
push-button igni-
tion switch turned
off and then the
push-button igni-
tion switch was
put in “ACC”
mode twice with-
out the engine
being started.
Press the
push-but-
ton igni-
tion switch
while
depress-
ing the
clutch
pedal.
During an engine
starting proce-
dure in the event
that the access
key was not func-
tioning properly
( → P. 471), the
push-button igni-
tion switch was
touched with the
access key. Press the
push-but-
ton igni-
tion switch
while
depress-
ing the
clutch
pedal
within 10
seconds
of the
buzzer
sounding.
Once 
(Flashes)
(Flashes quickly in green)
Indicates that the
steering lock has
not been
released. Release
the steer-
ing lock.
(
→ P. 179)
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure

450 5-2. Steps to take in an emergency
BRZ_U
Con-
tinu-
ous
(Flashes)
(Vehicles with an auto- matic transmission) The push-button
ignition switch
has been turned
off with the select
lever in a posi-
tion other than P.
Shift the
select
lever to P.
Once 
(Flashes)
(Vehicles with an auto- matic transmission) After the push-
button ignition
switch has been
turned off with the
select lever in a
position other
than P, the select
lever has been
shifted to P.
Turn the
push-but-
ton igni-
tion switch
off.
■ Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure

5
When trouble arises
451
5-2. Steps to take in an emergency
BRZ_U
If you have a flat tire
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
■Before jacking up the vehicle
●Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the select lever to P (vehicles with an automatic trans-
mission) or shift lever to R (vehicles with a manual transmis-
sion).
● Stop the engine.
● Turn on the hazard warning flashers. ( →P. 412)
■ Location of the spare tire, jack and tools
Vehicles with a compact spare tire
*:Vehicles with a T145/70D17 compact spare tire
Jack Jack handle
Spare tire
Towing eyelet
Screwdriver
Wheel nut
wrench
Spacer
*

452 5-2. Steps to take in an emergency
BRZ_U
Vehicles with a spare tire of the same wheel type as the
installed tires
Jack handle
Spa r e t i re
Towing eyelet
Screwdriver
Jack
Wheel nut
wrench

5
When trouble arises
453
5-2. Steps to take in an emergency
BRZ_U
Taking out the spare tire
Vehicles with a compact spare tire Remove the luggage mat.
Remove the cover and loosen
the center fastener that secures
the spare tire.
Vehicles with a spare tire of the same wheel type as the installed
tires Loosen the center fastener that
secures the spare tire.
STEP 1
STEP 2

454 5-2. Steps to take in an emergency
BRZ_U
Replacing a flat tireChock the tires.
STEP 1
Flat tire
Wheel
chock posi- tions
Front Left-
hand
side
Behind the
rear right-
hand side
tire
Right-
hand
side Behind the
rear left-
hand side
tire
Rear Left-
hand
side
In front of
the front
right-hand
side tire
Right-
hand
side In front of
the front
left-hand
side tire

5
When trouble arises
455
5-2. Steps to take in an emergency
BRZ_U
Slightly loosen the wheel nuts
(one turn).
Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
STEP 2
STEP 3
STEP 4
STEP 5

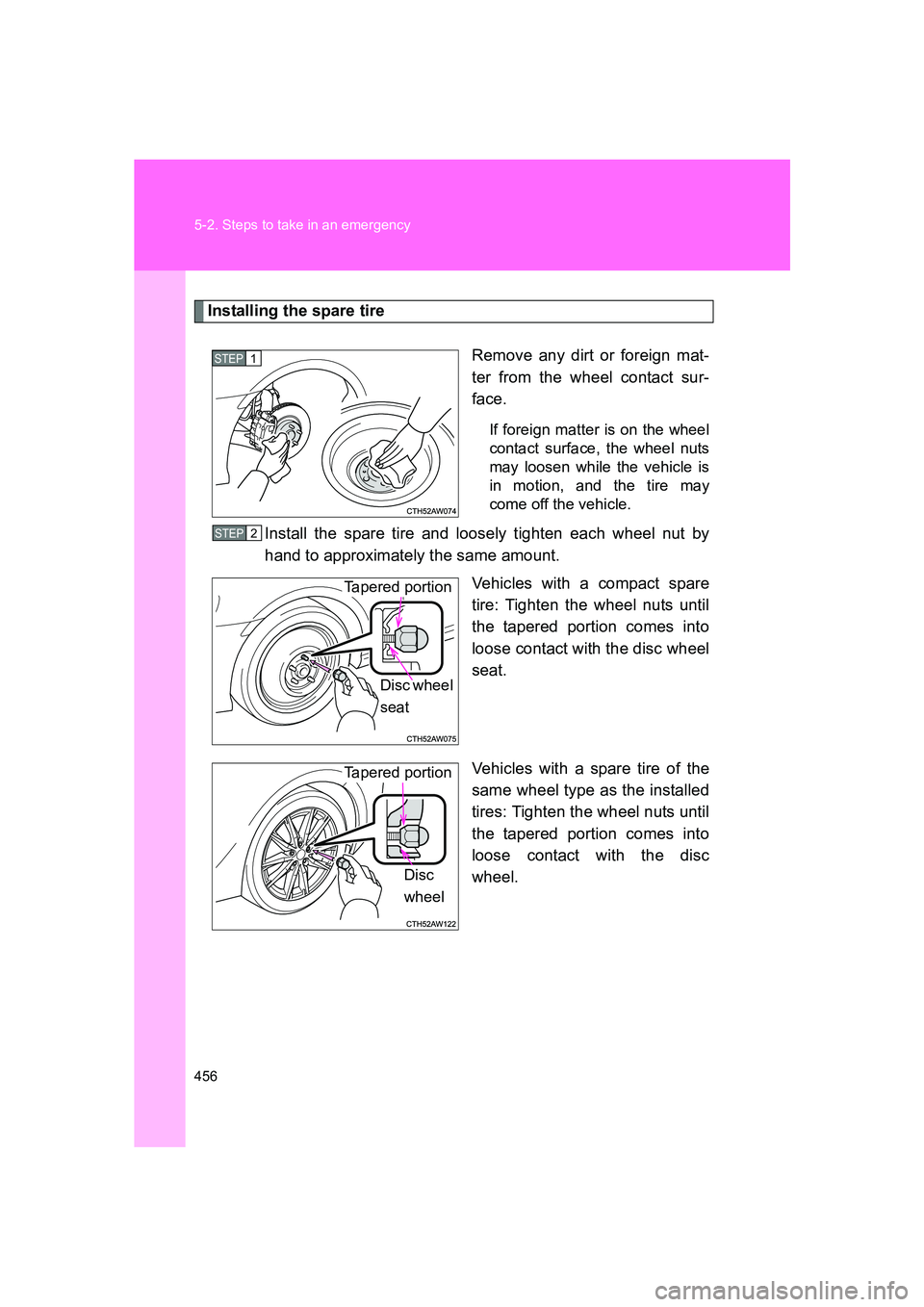

456 5-2. Steps to take in an emergency
BRZ_U
Installing the spare tireRemove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is
in motion, and the tire may
come off the vehicle.
Install the spare tire and loosely tighten each wheel nut by
hand to approximately the same amount.Vehicles with a compact spare
tire: Tighten the wheel nuts until
the tapered portion comes into
loose contact with the disc wheel
seat.
Vehicles with a spare tire of the
same wheel type as the installed
tires: Tighten the wheel nuts until
the tapered portion comes into
loose contact with the disc
wheel.
STEP 1
STEP 2
Tapered portion
Disc wheel
seat
Disc
wheel
Tapered portion
