Page 489 of 560
489
6-1. Specifications
6
Vehicle specifications
BRZ_U
Engine
Fuel
*: If unleaded gasoline with an octane rating of 93 AKI (98 RON) is not avail-
able, unleaded gasoline with an octane rating of 91 AKI (95 RON) may be
used with no detriment to engine durability or driveability.
Model FA20
Ty p e Horizontally opposed, liquid cooled 4 cylinder, 4-
stroke gasoline
Bore and stroke 3.4
× 3.4 in. (86 × 86 mm)
Displacement 122 cu.in. (1998 cm3)
Drive belt tension Automatic adjustment
Fuel type Unleaded gasoline only
Octane rating 93 AKI (98 RON) or higher*
Fuel tank capacity
(Reference) 13.2 gal. (50 L, 11.0 Imp. gal.)
Page 490 of 560
490 6-1. Specifications
BRZ_U
Lubrication system
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■ Engine oil selection
Always use SUBARU approved engine oil. For details, we recom-
mend that you contact your SUBARU dealer.
If approved engine oil is unavailable, another motor oil of matching
quality can also be used.
Oil grade:
ILSAC GF5 multigrade engine oil
API classification SN with the words “RESOURCE CONSERVING”
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil capacity
(Drain and refill
reference*)
• Without filter
• With filter 5.5 qt. (5.2 L, 4.6 Imp. qt.)
5.7 qt. (5.4 L, 4.8 Imp. qt.)
Outside temperature
Page 491 of 560

491
6-1. Specifications
6
Vehicle specifications
BRZ_U
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: The oil quality desig-
nation by API (American Petro-
leum Institute) (SN)
Center portion: The SAE viscosity
grade (SAE 0W-20)
Lower portion: “RESOURCE
CONSERVING” means that the
oil has fuel saving and environ-
mental protection capabilities.
ILSAC Certification Mark
The ILSAC (International Lubri-
cant Specification Advisory Com-
mittee) Certification Mark is
displayed on the front of the con-
tainer.

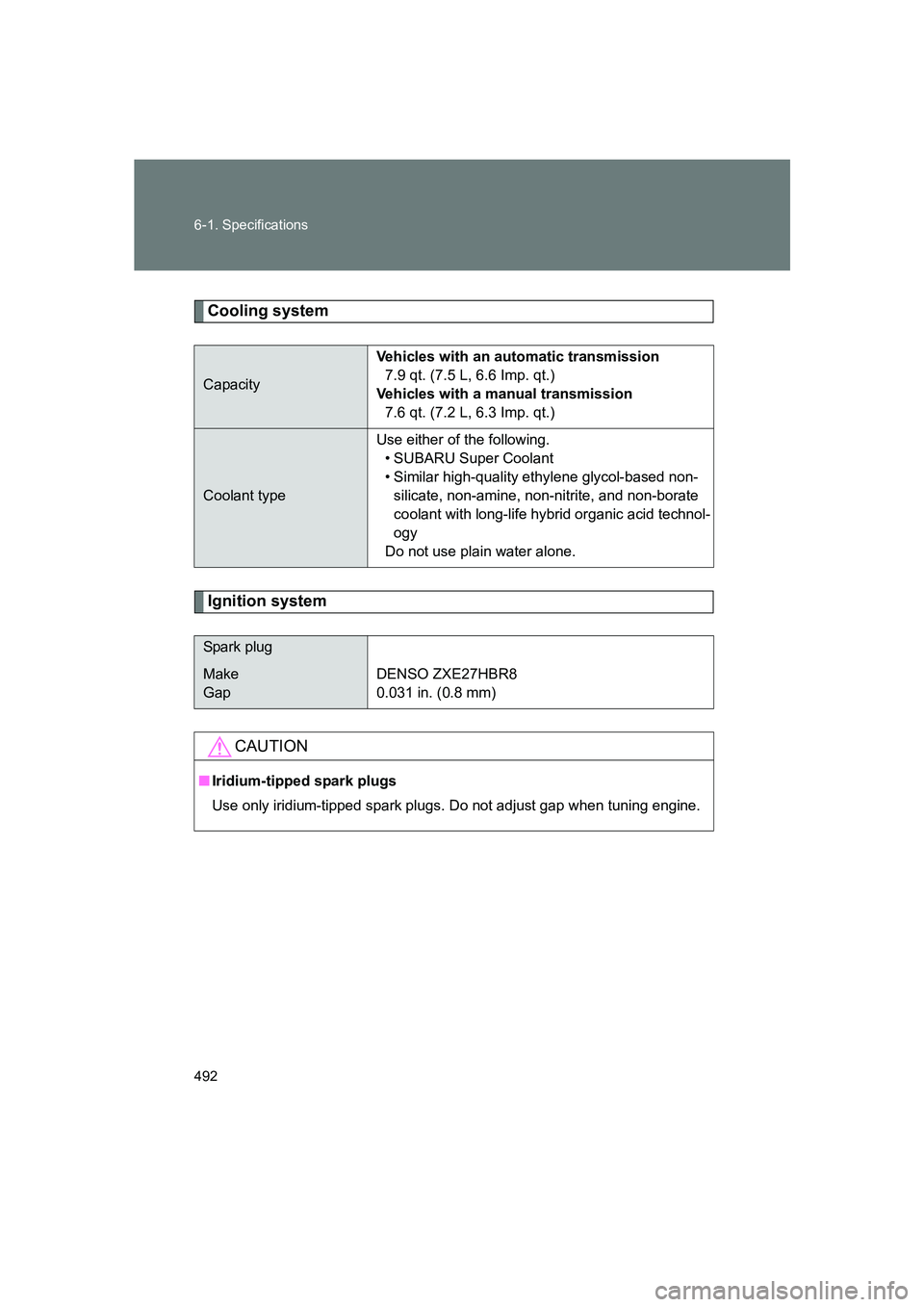

Page 492 of 560
492 6-1. Specifications
BRZ_U
Cooling system
Ignition system
CapacityVehicles with an automatic transmission
7.9 qt. (7.5 L, 6.6 Imp. qt.)
Vehicles with a manual transmission 7.6 qt. (7.2 L, 6.3 Imp. qt.)
Coolant type Use either of the following.
• SUBARU Super Coolant
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.
Spark plug
Make
Gap DENSO ZXE27HBR8
0.031 in. (0.8 mm)
CAUTION
■
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.

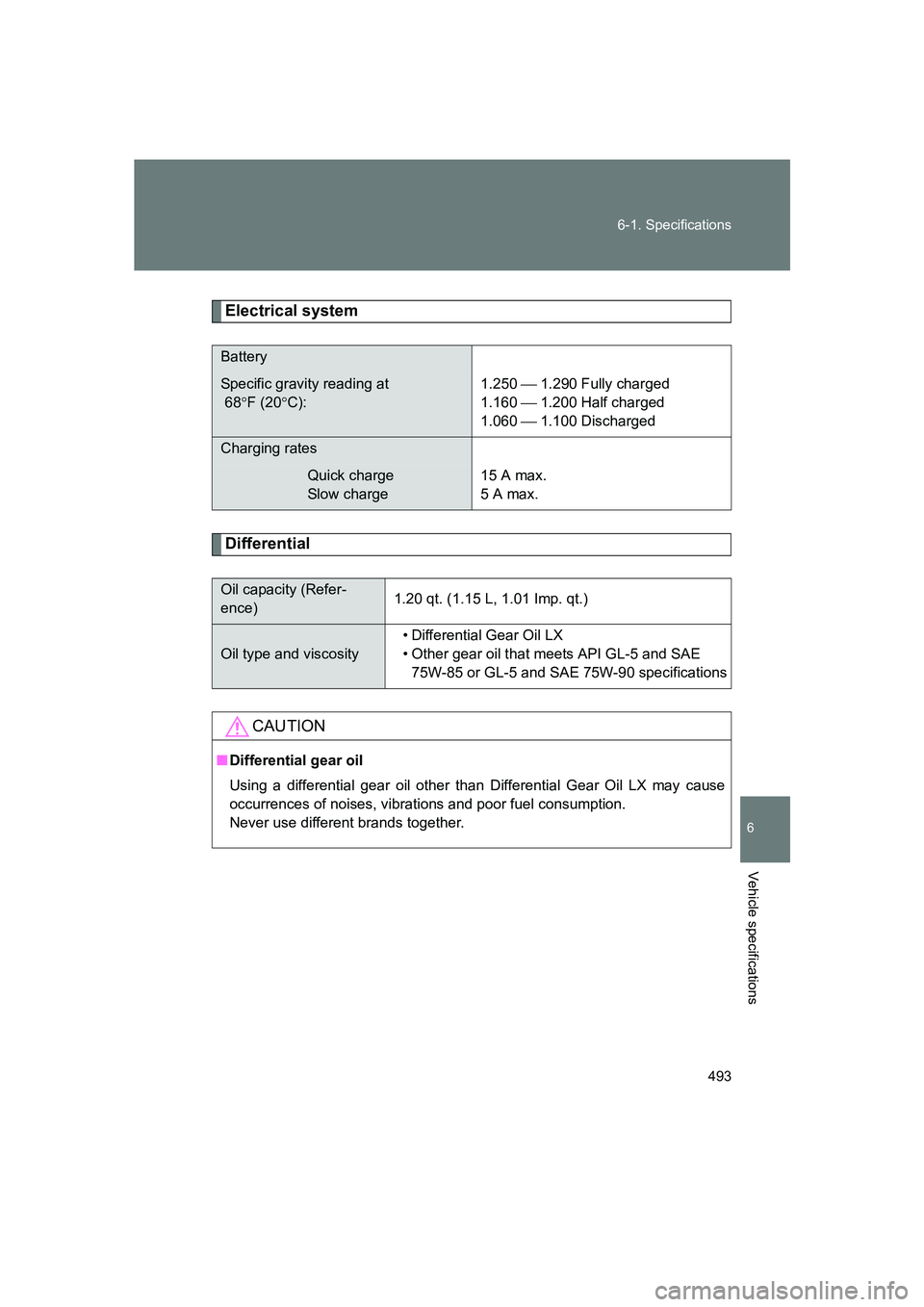

Page 493 of 560
493
6-1. Specifications
6
Vehicle specifications
BRZ_U
Electrical system
Differential
Battery
Specific gravity reading at
68
°F (20 °C): 1.250
1.290 Fully charged
1.160 1.200 Half charged
1.060 1.100 Discharged
Charging rates
Quick charge
Slow charge 15 A max.
5 A max.
Oil capacity (Refer-
ence)
1.20 qt. (1.15 L, 1.01 Imp. qt.)
Oil type and viscosity • Differential Gear Oil LX
• Other gear oil that meets API GL-5 and SAE
75W-85 or GL-5 and SAE 75W-90 specifications
CAUTION
■ Differential gear oil
Using a differential gear oil other than Differential Gear Oil LX may cause
occurrences of noises, vibrations and poor fuel consumption.
Never use different brands together.
Page 494 of 560
494 6-1. Specifications
BRZ_U
Automatic transmission
*: The fluid capacity is provided as a reference. If replacement is necessary,contact your SUBARU dealer.
Manual transmission
Clutch
Fluid capac-
ity* 7.9 qt. (7.5 L, 6.6 Imp. qt.)
Fluid type ATF WS
Gear oil capacity (Reference) 2.3 qt. (2.2 L, 1.9 Imp. qt.)
Gear oil type and viscosity Use either of the following:
• “MG Gear Oil special II”
• Other gear oil that meets API GL-3, GL-4, or GL-5 and SAE 75W-90 specifica-
tions
CAUTION
■ Manual transmission gear oil
If oil other than “MG Gear Oil special II” is used, the following may be experi-
enced:
●The overall performance and function of the transmission may be
adversely affected.
● Rattling noises may occur during idling and fuel consumption may
increase.
Never use different brands together.
Pedal free play 0.2 0.6 in. (5 15 mm)
Fluid type FMVSS No.116 DOT 3 or DOT 4 brake
fluid
Page 495 of 560
495
6-1. Specifications
6
Vehicle specifications
BRZ_U
Brakes
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50
kgf) while the engine is running.
*2: Parking brake lever travel when pulled up with a force of 45.0 lbf (200 N,20.4 kgf).
■ Brake disc
If you need information on the usage limit value of brake discs and
the method for measuring them, we recommend that you consult
your SUBARU dealer.
Pedal clearance*1
2.16 in. (55 mm) Min.
Pedal free play 0.020 0.106 in. (0.5 2.7 mm)
Brake pad wear
limit (vehicles with-
out brembo brake)Front 0.059 in. (1.5 mm)
Rear 0.059 in. (1.5 mm)
Brake pad wear
limit (vehicles with
brembo brake)Front 0.047 in. (1.2 mm)
Rear 0.061 in. (1.55 mm)
Parking brake lining wear limit 0.059 in. (1.5 mm)
Parking brake lever travel*27 8 clicks
Fluid type FMVSS No.116 DOT 3 or DOT 4 brake
fluid
Brake pedal
Pedal
clearance
Carpet
Page 496 of 560
496 6-1. Specifications
BRZ_U
Steering
Tires and wheels (for vehicles sold in the U.S.A. and Canada)Ty p e A
Ty p e B
Free play Less than 1.2 in. (30 mm)
Tire size 215/45R17 87W, T135/80D16 101M
Tire inflation pressure
(Recommended cold tire
inflation pressure) Front
35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear 35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Spare 60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size 17 × 7 J, 16 × 4T (spare)
Wheel nut torque 89 ft•lbf (120 N•m, 12.2 kgf•m)
Tire size 215/45R17 87W, T145/70D17 106M
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front
35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Rear 35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Spare 60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size 17 × 7 1/2 J, 17 × 4T (spare)
Wheel nut torque 89 ft•lbf (120 N•m, 12.2 kgf•m)
