2019 MITSUBISHI OUTLANDER Owner's Manual (in English)

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-31
5
The buzzer answerback function can be turned ON or OFF as required.
N00544601196
The door and liftgate unlock function can beset to the following two conditions. Each time the door and
liftgate unlock func-
tion is set, a chime will
sound to tell you the
condition of the door and liftgate unlock function.
1. Put the operation mode in OFF. 2. Open the driver’s door and turn the com-bination headlights a
nd dimmer switch to
the “OFF” position. 3. Press the LOCK button (1) for 4 to 10 sec-onds and press the UNLOCK button (2) during this time. 4. Release in sequence the LOCK andUNLOCK buttons within 10 seconds of pressing the LOCK button in step 3.
N00579500020
After unlocking the doors and the liftgate, the power liftgate
can be operated
by pressing the
power liftgate button (3). Refer to “Power liftgate” on page 5-38.
N00544701142
If you are near your vehicle and feel threat-ened, you can activate th
e alarm to call atten-
tion as follows: 1. Press the PANIC button (4) for more than 1 second. 2. The headlights will blink on and off andthe horn will sound intermittently for approximately 3 minutes. 3. To turn off the alarm, press any button onthe remote control transmitter.
NOTE
 On a vehicle equipped with the Smartphone Link Display Audio, the functions can beadjusted on the screen. For details, refer tothe separate owner’s manual.
Buzzer deactivation/reactivation
NOTE
 On a vehicle equipped with the Smartphone Link Display Audio, the functions can be adjusted on the screen. For details, refer to aseparate owner’s manual.
Setting of door and liftgate unlock function

Number of chimes
Condition
One chime [Factory setting]
When the UNLOCK button, driver’s or front passenger’s door lock/unlock switch, or liftgate OPEN switch is pressed one time, all doors and the liftgate unlock.
Tw o chimes
When the UNLOCK button or the driver’s door lock/unlock switch is pres
sed one time,
only the driver's door unlocks.When the UNLOCK button or the driver’s door lock/unlock switch is pressed two times in succession, all doors and the liftgate unlock.
NOTE
 On a vehicle equipped with the Smartphone Link Display Audio, the functions can beadjusted on the screen. For details, refer tothe separate owner’s manual.
Operating the power liftgate

Using the panic alarm

NOTE
 The indicator light (5)
comes on each time a
button is pressed.
BK0264300US.book 31 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5-32 Features and controls
5
N00562001062
N00562101119
1. Before replacing the
battery, remove static
electricity from your body by touching a metal grounded object. 2. Remove the emergency key from the key.Refer to “Emergency key” on page 5-27. 3. With the Mitsubishi mark facing you, insert the cloth-covered tip of a flat blade screwdriver into the notch in the case and use it to open the case.
 The F.A.S.T.-key can be used from approxi- mately 40 feet (12 m) away. However, thisdistance may change if
your vehicle is near a
TV transmitting tower,
a power station, or a
radio station.  If the following conditi
ons are observed after
pressing the LOCK (1) or UNLOCK (2) but- ton on the remote control transmitter, thebattery in the F.A.S.T.-key may need to be replaced. • The doors and the lift
gate cannot be locked
or unlocked. • The panic alarm
cannot be operated.
• The indicator light
(5) is dim or does not
come on.
 If you lose your F.A.S.T.
-key, please contact
an authorized Mitsubish
i Motors dealer for a
replacement.  If you wish to obtain an
additional F.A.S.T.-
key, please contact an
authorized Mitsubishi
Motors dealer. A maximu
m of four F.A.S.T.-
key can be programmed for your vehicle.  To use the new remote control transmitters, it is necessary to register
the key with both the
electronic immobilizer
and keyless entry sys-
tem.Also refer to “Electronic immobilizer (Anti- theft starting system): Customer F.A.S.T.- key programming” on page 5-28.NOTE
General information

Your F.A.S.T.-key operates on a radio fre- quency subject to Federal Communications Commission (FCC) Rules
(For vehicles sold
in U.S.A.) and Industry Canada Rules (Forvehicles sold in Canada). This device com- plies with Part 15 of
FCC Rules and Industry
Canada licence-exemp
t RSS standard(s).
Operation is subject to
the following two con-
ditions.
•This device may
not cause harmful
interference. •This device must ac
cept any interference
received, including interference that may cause undesired operation.CAUTION Changes or modifica
tions not expressly
approved by the manufacturer for compli- ance could void the user’s authority to oper- ate the equipment.
Procedure for replacing the remote control transmitter bat-tery
NOTE
 Be sure to perform the procedure with the Mitsubishi mark facing you. If the Mitsubi- shi mark is not facing you when you open thecase, the transmitter may come out.
BK0264300US.book 32 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Door locks
Features and controls 5-33
5
4. Remove the old battery. 5. Install a new battery with the +side (A)up. 6. Close the case firmly. 7. Install the emergency key removed in step 2. 8. Check the keyless entry system to see thatit works.
N00509201544
Turn the key toward the front of the vehicle to lock the door. After checking that the door is locked, turn the key back to the center andremove it.
NOTE
 You may purchase a replacement battery at an electric appliance store.  An authorized Mitsubish
i Motors dealer can
replace the battery for you if you prefer.CAUTION When the remote control transmitter case is opened, be careful to keep water, dust, etc. out. Also, do not touch the internal compo- nents.
+ side - side
Coin type bat- tery CR2032
Door locks
WA R N I N G Make sure all doors ar
e tightly closed and
locked while driving.• Locked doors, in co
mbination with the
use of seat belts, can help reduce the riskof ejection in an accident.• Locked doors can help keep passengers,especially small children, from opening doors and falling out of moving vehicles.• Locked doors can help prevent outsidersfrom gaining access
to your vehicle when
you slow or come to a stop.
 Lock your vehicle whenever you leave it. Children who get into unlocked vehiclesmay not be able to get out. Children trapped inside vehicles can quickly be overcome by heat and suffer seriousinjury or death due to heat stroke. Never leave a child alone in the vehicle. In addition to the risk
of heat stroke, chil-
dren can activate switches and controls, resulting in an injury
or fatal accident.
When closing a door,
make sure that the
door is fully closed and the door-ajarwarning display goes out on the informa- tion screen on the multi-information dis- play. If the door is aj
ar it could
open while
driving and caus
e an accident.
To lock and unlock with the key (driver’s door) 1- Insert or remove the key 2- Lock3- Unlock
BK0264300US.book 33 ページ ２０１８年２月２８日　水曜日　午後５時１６分

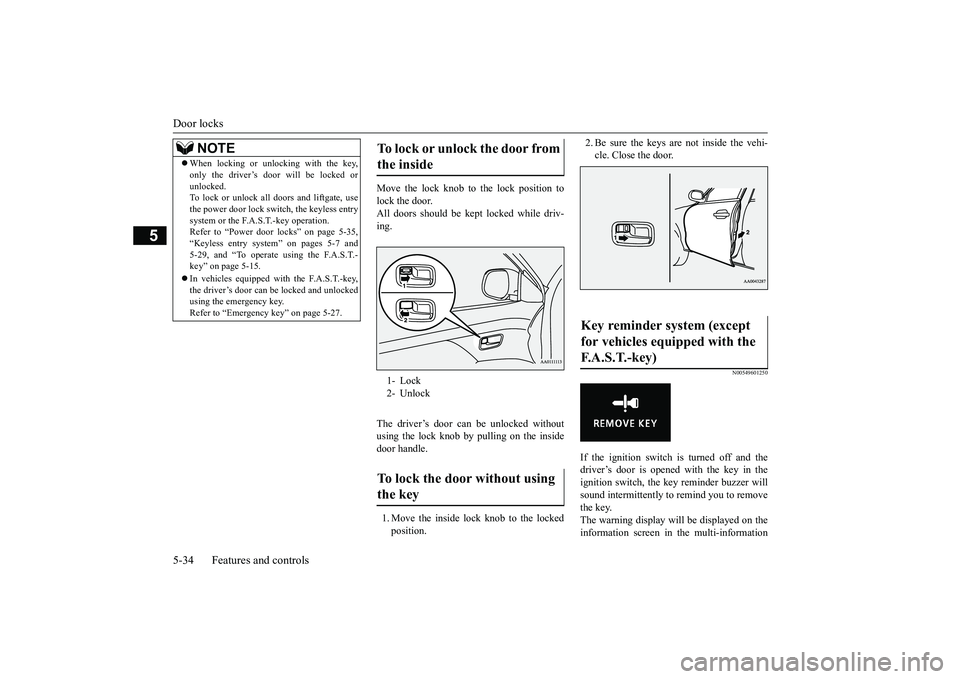

Door locks 5-34 Features and controls
5
Move the lock knob to the lock position to lock the door. All doors should be kept locked while driv-ing. The driver’s door can be unlocked without using the lock knob by pulling on the insidedoor handle. 1. Move the inside lock knob to the locked position.
2. Be sure the keys are not inside the vehi- cle. Close the door.
N00549601250
If the ignition switch is turned off and thedriver’s door is opened with the key in theignition switch, the ke
y reminder buzzer will
sound intermittently to remind you to remove the key.The warning display will be displayed on the information screen in the multi-information
NOTE
 When locking or unlocking with the key, only the driver’s door will be locked orunlocked.To lock or unlock all doors and liftgate, use the power door lock switch, the keyless entry system or the F.A.S.T.-key operation.Refer to “Power door locks” on page 5-35, “Keyless entry system” on pages 5-7 and 5-29, and “To operate using the F.A.S.T.-key” on page 5-15.  In vehicles equipped w
ith the F.A.S.T.-key,
the driver’s door can be locked and unlocked using the emergency key. Refer to “Emergency key” on page 5-27.
To lock or unlock the door from the inside 1- Lock 2- UnlockTo lock the door without using the key
Key reminder system (except for vehicles equipped with the F.A.S.T.-key)
BK0264300US.book 34 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Power door locks
Features and controls 5-35
5
display. (Color liquid crystal display type only)
N00517301052
If the key is in the ignition switch or the oper-ation mode is in any
mode other than OFF,
when you push the lock knob forward with the driver’s door or passenger’s door open, the lock knob will automatically return to the unlocked position.
N00503801157
If the driver’s door is opened while the engineis stopped and the operation mode is in any mode other than OFF, the operation mode ONbuzzer will sound intermittently to remind you put the operation mode in OFF. The warning display will be displayed on theinformation screen in
the multi-information
display. (Color liquid crystal display type only)
N00509301662
All of the doors and the
liftgate can be locked
or unlocked by pressing the power door lockswitch on the driver’s or the front passenger door.
Lock out protection Operation mode ON reminder system (vehicles equipped with F. A . S . T. - k e y )
Power door locks
NOTE
 When locking or unlocking with the key on the driver’s door, only the driver’s door willlock or unlock.  Repeated continuous
operation between lock
and unlock could activate the power door locking system’s built-in
protection circuit,
and prevent the system from operating. Ifthis occurs, wait about
1 minute before oper-
ating the power door lock switch.
To lock and unlock the doors and liftgate Using the power door lock switch 1- Lock 2- Unlock
BK0264300US.book 35 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Child safety locks for rear door 5-36 Features and controls
5
N00563401180
All doors and the liftgate will unlock when the ignition switch is turned to the “OFF” or“LOCK” position or the operation mode is put in OFF.
All doors and the liftgate will unlock when the selector lever is moved to the “P” (PARK) position with the ignition switch or the opera- tion mode in ON.
N00509401298
Child safety locks help prevent rear passen-gers, especially child
ren, from opening the
rear door using the inside door handle. A lock lever for the child safety lock is pro- vided on each rear door.When the lever is in the lock position (1), the rear door cannot be opened using the inside door handle.To open the rear door when the child safety lock lever is in the lock position, pull the out- side door handle.When the lever is in the release position (2), the child safety lock is released and the rear
To unlock the doors and liftgate You can select the functions to unlock the doors and liftgate eith
er using the ignition
switch position or the engine switch, or using the selector lever position. These functions are not
activated when the
vehicle is shipped from the factory. To acti- vate or deactivate
these functions, please
contact your authorized Mitsubishi Motorsdealer.Using the ignition switch or the engine switch
Using the selector lever position
NOTE
 On a vehicle equipped with the Smartphone Link Display Audio, the functions can be adjusted on the screen. For details, refer to aseparate owner’s manual.
Child safety locks for rear door 1- To lock 2- To release
BK0264300US.book 36 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Liftgate (except for
vehicles equipped w
ith the power liftgate)
Features and controls 5-37
5
door can be opened using the inside door han- dle.
N00510101282
1. After unlocking, push the liftgate open switch (A) and raise the liftgate.
WA R N I N G Always keep the door
s tightly closed and
locked when driving. An unlocked door may be accidentally
opened by a passen-
ger, especially by
a child who could fall
out. Also, if the doors are not locked, there is a greater risk of
someone being thrown
from the vehicle
in an accident.
Liftgate (except for vehicles equipped with the power liftgate)
WA R N I N G It is dangerous to drive with the liftgate open since carbon mo
noxide (CO) gas can
enter the passenger compartment. CO is an invisible,
odorless gas that can
cause unconsciousness and even death. When opening and closing the liftgate, make sure that there are no people nearbyand be careful not to hit your head or pinch your hands, neck, etc. If snow or ice has ac
cumulated on the lift-
gate, remove it before
opening the liftgate.
Otherwise the liftgate
may abruptly close
due to the weight of the snow or ice.
 When opening the lift
gate, always fully
open it. A partially opened liftgate canunexpectedly close due to its own weight. When the vehicle is parked on a slope, the effort required to open or close the liftgatemay be greater or less than expected. The liftgate may also open or close more quickly.CAUTION Do not stand behind the exhaust pipe when loading and unloading
luggage. Heat from
the exhaust could lead to burns. To avoid damage to th
e liftgate, make sure
that area above and
behind the liftgate is
clear before opening it.NOTE
 Locking and unlocking the doors by using power door locks (driver and front passenger side), keyless entry system, or F.A.S.T.-keyoperation (vehicles equipped with the F.A.S.T.-key) also locks and unlocks the lift- gate.
To open
WA R N I N G
CAUTION Make sure there is no one standing nearby when opening the liftgate.NOTE
 The liftgate cannot
be raised if it is not raised
immediately after pre
ssing the liftgate open
switch.If this happens, raise the liftgate again after pressing the liftgate open switch.  It is not possible to open the liftgate while the battery is disconnected. If necessary, use the inside liftgate release.  When the battery is reconnected, all doors and the liftgate will be locked. Unlock thembefore trying to
open the liftgate.
BK0264300US.book 37 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Power liftgate (if so equipped) 5-38 Features and controls
5
1. Pull the liftgate grip (B) downward as illustrated and release it before the liftgate closes completely. Gently close the lift- gate from the outside so that it is com-pletely closed.
N00575900026
Before operating the po
wer liftga
te, unlock
the power liftgate by pushing the power doorlock switch or the unlock button on the key- less entry system or F.A.S.T.-key. Refer to “Keyless entry system”, “Free-handAdvanced Security Transmitter (F.A.S.T.- key)” and “Power door locks” on pages 5-7, 5-12 and 5-35 respectively.
N00576000037
 On vehicles equipped wi
th the mirror retrac-
tor switch, the outside rearview mirrors auto-matically extend when the liftgate and alldoors are unlocked using the liftgate open switch (A).
To close
CAUTION To avoid injuring your hand or arm, do not attempt to close the lif
tgate without releasing
the liftgate grip (B).NOTE
 Before starting the vehi
cle, be sure to con-
firm that the liftgate is locked. If the liftgateopens while driving
the vehicle, objects
stored in the luggage compartment could fall out into the road.NOTE
 Gas struts (C) are installed in the locations illustrated in order to
support the liftgate.
Please observe the following in order to pre-vent damage or faulty operation: • Do not touch, push or pull the gas struts when closing the liftgate. • Do not attach any pl
astic material, tape,
etc., to the gas struts. • Do not tie string, etc., around the gas struts.• Do not hang objects on the gas struts.CAUTION
Power liftgate
(if so equipped)
Operating the power liftgate

WA R N I N G The luggage area was
not designed for
people to ride in. Do not let your children ride in or play in
the luggage area. Riding
or playing in the luggage area could result in a serious accide
nt and/or injury.
Before driving, make sure the power lift- gate is securely closed. If you drive with th
e power liftgate open,
exhaust gas may enter the vehicle and cause carbon monoxide poisoning. To avoid injury, the power liftgate should not be operated by children.
BK0264300US.book 38 ページ ２０１８年２月２８日　水曜日　午後５時１６分
