2019 MITSUBISHI OUTLANDER Owner's Manual (in English)

9

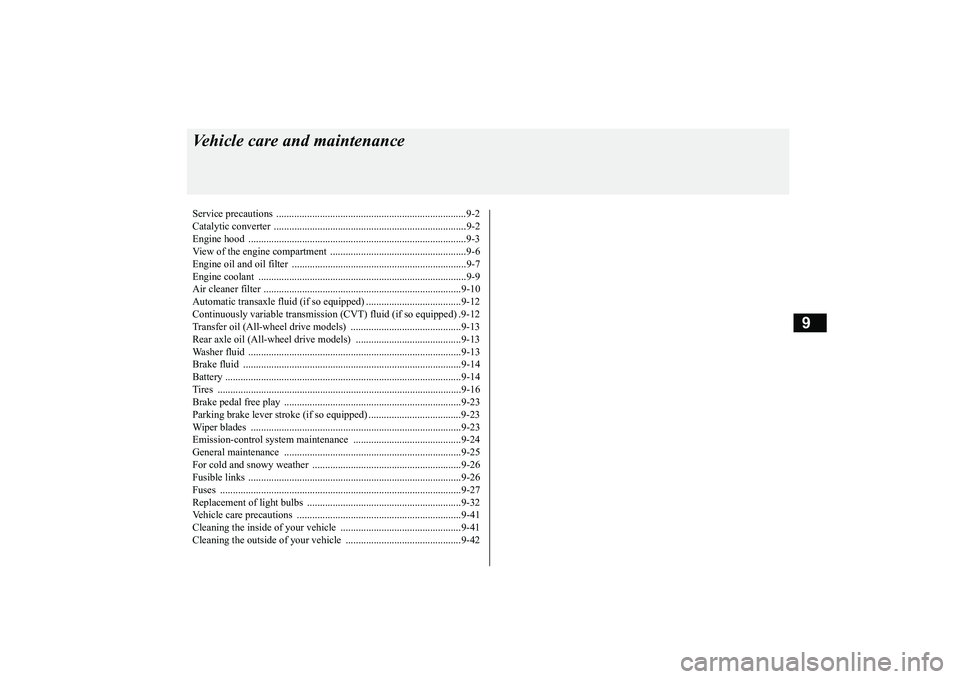

Vehicle care and maintenanceService precautions ..........................................................................9-2 Catalytic converter ...........................................................................9-2 Engine hood .........
...........
...........
............
...........
.........
........
.........
.....9-3
View of the engine compartment .....................................................9-6 Engine oil and oil filter ....................................................................9-7 Engine coolant .................................................................................9-9Air cleaner filter .............................................................................9-10 Automatic transaxle fluid (if so equipped) .....................................9-12 Continuously variable transmission
(CVT) fluid (if so equipped) .9-12
Transfer oil (All-wheel drive models) ...........................................9-13 Rear axle oil (All-wheel drive models) .........................................9-13 Washer fluid ...................................................................................9-13Brake fluid .....................................................................................9-14 Battery ............................................................................................9-14 Tires ...............................................................................................9-16Brake pedal free play .....................................................................9-23 Parking brake lever stroke (if so equipped) ....................................9-23 Wiper blades ..................................................................................9-23Emission-control system maintenance ..........................................9-24 General maintenance .....................................................................9-25 For cold and snowy weather ..........................................................9-26Fusible links ...................................................................................9-26 Fuses ..............................................................................................9-27 Replacement of light bulbs ............................................................9-32Vehicle care precautions ................................................................9-41 Cleaning the inside of your vehicle .......
...........
...........
...........
.......9-41
Cleaning the outside of your vehicle .....
...........
...........
...........
.......9-42
BK0264300US.book 1 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Service precautions 9-2 Vehicle care and maintenance
9
N00937301528
Taking regular care of your vehicle will pre- serve its value and appe
arance as long as pos-
sible. You can do some of the maintenance work yourself, and the rest should only be per- formed by an authorized Mitsubishi Motors dealer or a repair facility of your choice.If you discover a malfunction or other prob- lem, have it corrected by an authorized Mit- subishi Motors dealer or a repair facility of your choice. This section descri
bes the maintenance
inspections that you can do yourself, if you so desire. Follow the instructions and precau- tions for each procedure.
Have you purchased the Mitsubishi Motors Diamond Care Protection Plan? The Plan supplements your new
vehicle warranties.
See your authorized Mitsubishi Motors dealer for details.
N00937401473
The catalytic converter requires you to useunleaded fuel only. Leaded gasoline will
Service precautions A- Cooling fans B- Caution label *: Front of the vehicle
WA R N I N G When checking or servicing the inside of the engine compartment, be sure theengine is stopped and has had a chance tocool down. If you need to work
in the engine compart-
ment with the engine running, be espe- cially careful that your clothing, hair, etc. does not get caught in the cooling fans,drive belts, or other moving parts. After performing the maintenance work, make sure that no tools or cloths are left behind in the engine compartment. If they are left behind, a fire or damage tothe vehicle may occur. The cooling fans can turn on automati- cally even if the engine is not running. Turn the ignition switch to the “LOCK” position to be safe while you work in theengine compartment. Do not smoke or allow open flames around fuel or the battery. The fumes are flamma- ble. Be extremely careful when working around the battery. It
contains poisonous
and corrosive sulfuric acid. Do not get under your ve
hicle while it is on
a jack.Always use properly rated automotive jack stands.
 Handling your vehicle’s parts and materi- als in the wrong way can injure you. Askan authorized Mitsub
ishi Motors dealer
or a repair facility of your choice if you have questions.
Catalytic converter
WA R N I N G
BK0264300US.book 2 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Engine hood
Vehicle care and maintenance 9-3
9
destroy the emission-c
ontrol effectiveness of
the converter. Normally, the catalyti
c converter does not
require maintenance. However, it is important to keep the engine properly tuned for the con- verter to continue to work properly. To reduce the possibili
ty of catalytic con-
verter damage:  Use UNLEADED GASOLINE ONLY of the type of recommended in the “Fuelselection”.
 Do not drive with an extremely low fuel level. Running out of gas could damagethe catalytic converter.  Do not try to start the engine by pushing or towing the vehicle. If the battery isweak or run down, use jumper cables to properly start the engine.  Do not idle the engine with any spark plug wires disconnected or removed, such as when performing
diagnosti
c tests.
 Do not idle the engine
for a long time if it
is idling roughly or otherwise obviously malfunctioning. To prevent the catalytic converter from being damaged from unburned gas, do not race the engine when turning off the igni-tion switch.  Stop driving the vehicle if you think the performance is noticeably low, or theengine has a malfunction such as with the ignition, etc. If you are not able to stop driving immediately,
slow down and drive
for only a short time. Have your vehicle checked at an authorized Mitsubishi Motors dealer or a repair facility of yourchoice as soon
as possible.
 In unusual situations involving major engine problems, a burning odor mayindicate severe a
nd abnormal catalytic
converter overheating. If this occurs, stop in a safe place, shut
the engine off and let
the vehicle cool. Once the engine is cool, immediately take your vehicle to an authorized Mitsubishi Motors dealer or arepair facility of your
choice for service.
N00937501676
Use the engine hood release lever (located under the instrument panel near the driver’s door) to unlock the engine hood. Pull the lever toward you to release the engine hood latch.
CAUTION Damage to the catalyti
c converter can result
if your vehicle is not
kept in proper operating
condition. If the engine
malfunctions or mis-
fires, or if your vehi
cle performance suffers,
have it serviced promptly. Running your vehicle when it is
overheated may result in
damage to the converter and vehicle.WA R N I N G Do not park or run your vehicle in areas where combustible materials such as dry grass or leaves can come
in contact with a
hot exhaust, since a fire could occur. Do not put undercoat paint on the cata- lytic converter.
Engine hood To open
BK0264300US.book 3 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Engine hood 9-4 Vehicle care and maintenance
9
Release the lever and
lift the engine hood.
Support the engine hood with the hood prop. Insert the hood prop securely in the openingunder the hood marked with an arrow.
Unlatch the prop from the engine hood and put it back in its retainer. Slowly lower the engine hood about 8 inches (20 cm), then let it drop from its own weight.
WA R N I N G Never use the release lever to unlatch the engine hood while the
vehicle is in motion.
Do not drive your vehicle unless the engine hood is locked.NOTE
 To prevent damage to the engine hood and wipers, make sure the
wipers are at resting
position when you open the engine hood.
CAUTION Always insert the support prop into the hole specially made for it. Propping the engine hood at any other place
could cause the prop
to slip out and lead
to an accident.
The hood prop can fall out if the hood is lifted by a strong wind.
To close
CAUTION Be careful not to trap your hands or fingers when closing the engine hood. Make sure the engine hood is firmly closed before driving. If you drive without the engine hood com- pletely closed, it c
ould open up while driv-
ing.NOTE
 If this does not clos
e the engine hood prop-
erly, drop it again from a slightly higher position.
BK0264300US.book 4 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Engine hood
Vehicle care and maintenance 9-5
9
 Do not push down strongly on the engine hood. Depending on how strongly or whereyou push down, you could create a dent inthe vehicle body.  On vehicles equipped
with the color liquid
crystal display meter,
if you drive with the
engine hood left open, a warning display is displayed on the information screen in themulti-information display.NOTE
BK0264300US.book 5 ページ ２０１８年２月２８日　水曜日　午後５時１６分

View of the engine compartment 9-6 Vehicle care and maintenance
9
N00937601749
View of the engine compartment
2.4 L models 3.0 L models
1- Engine oil level dipstick 2- Engine oil cap 3- Air cleaner filter4- Brake fluid reservoir 5- Washer fluid reservoir 6- Automatic transaxle
fluid level dipstick
7- Engine coolant reservoir 8- Battery
BK0264300US.book 6 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Engine oil and oil filter
Vehicle care and maintenance 9-7
9
N00937702024
It is normal for an engi
ne to use oil. You may
need to add oil betwee
n the recommended oil
change intervals. Before starting the engine,check the engine oil level. Refill if necessary.
To check the oil level,
remove the dipstick,
wipe it off, and gently reinsert it all the way.Slowly pull the dipsti
ck straight out and
check the oil level by checking the upper sur- face of the dipstick. The oil level must not goabove the line on the dipstick. If the level does not reach the line which shows the minimum am
ount of oil required,
remove the oil filler cap on the engine valve cover, and fill to within the “Good” range.
Engine oil and oil filter To check and refill engine oil
NOTE
 If it is difficult to ve
rify the oil level, wipe
off the dipstick and
reinsert it. Wait a
moment and then recheck the oil level by checking the upper surface of the dipstick.2.4 L models
CAUTION Overfilling will cause
oil aeration and loss of
oil pressure, which coul
d damage the engine.
WA R N I N GUsed engine oil is poisonous, and can dam- age your skin. Prolonged and repeatedcontact may cause serious skin disorders, including dermatitis and cancer. Do not let used oil touch your skin and wash thor-oughly after working with it. Keep used oil out of
the reach of children.
NOTE
Engine oil consumption
is greatly influenced
by payload, engine speed, etc.3.0 L models
BK0264300US.book 7 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Engine oil and oil filter 9-8 Vehicle care and maintenance
9
Mitsubishi Motors recommends using only engine oils with the
ILSAC certification sym-
bol on the front of the container. If you cannot find oils with the ILSAC certi- fication symbol, use an API classification SN oil with the following label.
This mark appears on the top of the oil con- tainer and tells you two important thingsabout the oil. Use engine oil with the proper thickness for the outdoor temperatures where you will bedriving.
Mitsubishi Motors Genuine 0W-20 Synthetic Engine Oil is recomm
ended for optimum fuel
economy and cold weather starting. If Mitsubishi Motors Genuine 0W-20 Syn- thetic Engine Oil is
not available, 5W-20
grade oils displaying the ILSAC certification can be used. However, Mitsubishi Motors Genuine 0W-20Synthetic Engine Oil s
hould be used at the
next oil change to maintain optimum fuel economy and cold weather starting. The oil filter should be
replaced at the time or
mileage specified in
the “WARRANTY AND
MAINTENANCE MANUAL”. Only use high quality
replacement filters on
this vehicle. The manufacturer’s specifica-tions for Mitsubishi Motors Genuine oil fil-
 The engine oil wi
ll deteriorate rapidly if the
vehicle is subjected to
severe conditions (for
example, repeated operation on rough roads,in mountainous regions, on roads with many uphill and downhill grad
ients, or over short
distances). Consequently
, the oil will require
earlier replacement in accordance with the schedule in the “WARRANTY AND MAIN- TENANCE MANUAL”.
Engine oil identification mark
NOTE
ILSAC certification symbol
1- The upper part indicates the quality of
the oil.
2- The center part indicates the SAE grade
of the oil viscosity.
Recommended engine oil vis- cosity API service symbol
To replace the oil filter
