Tire pressure monitoring system
Features and controls 5-143
5
 Wheels whose ID codes are not memo- rized by the vehicle are used. Compact spare tire is fitted as a road wheel.  A window tint that affects the radio wave signals is installed.
N00532900081
If new wheels with new tire inflation pressuresensors are installed,
their ID codes must be
programmed into the tire pressure monitoring system. Have tire and
wheel replacement per-
formed by an authorized Mitsubishi Motorsdealer to avoid the ri
sk of damaging the tire
inflation pressure sensors. If the wheel replacement is not done by an authorizedMitsubishi Motors dealer
, it is not covered by
your warranty.
N00584300068
In case that 2 sets of tire inflation pressure sensor ID are registered in the receiver, the valid tire ID set can be changed by following procedure. [For vehicles equipped with color liquid crys- tal display meter] 1. Operate the multi information display switch to switch the information screen to the menu screen.Refer to “Multi information display switch” on page 5-159. Refer to “Changing the function settings”on page 5-169. 2. Lightly press the multi information dis- play switch to select “ ” (tire ID set change).
3. Hold down the multi information display switch for approximately 3 seconds ormore. The setting changes to the selected tire ID set. 4. The valid tire ID se
t is changed, and the
number of the tire pressure monitoringsystem (TPMS) SET indicator is changed.
[For vehicles equipped
with mono-color liq-
uid crystal display meter] 1. Transit the display by multi information display switch until th
e tire pressure mon-
itoring system (TPMS) SET indicator is displayed.
NOTE
 Tire inflation pressures vary with the ambi- ent temperature. If the
vehicle is subjected to
large variations in ambient temperature, the tire inflation pressures may be under-inflated (causing the warning light / display come on)when the ambient temperature is relatively low. If the warning light / display comes on, adjust the tire inflation pressure.
Whenever the tires and wheels are replaced with new ones
CAUTION The use of non-genuine wheels will prevent the proper fit of the tire inflation pressuresensors, resulting air
leakage or damage of
the sensors.
Tire ID set change
NOTE
 Each time this procedure is done, the tire ID set is changed. (1 - 2 - 1 - 2 …)  The tire ID set is NOT changed, in case that only 1 set of ID is registered.
BK0264300US.book 143 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Rear-view camera (if so equipped) 5-144 Features and controls
5
2. Hold down the multi information display switch for 10 seconds or more. (A beep isheard.) (Although the reset execution starts at holding down the switch for 3 seconds,keep holding down the switch continu- ously.) 3. The valid tire ID set is changed, and the number of the tire
pressure monitoring
system (TPMS) SET i
ndicator is changed.
N00533001233
Your tire pressure monitoring system oper- ates on a radio frequency subject to Federal Communications Comm
ission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For vehicles sold in Canada). This device complies with part 15 of FCCRules and Industry Ca
nada licence-exempt
RSS standard(s). Operation is subject to the following two con- ditions.  This device may not
cause harmful inter-
ference. This device must ac
cept any interference
received, including interference that may cause undesired operation.
N00546201369
When the selector lever is in the “R”(REVERSE) position with the ignition switchin the “ON” position,
or the operation mode
is put in ON, the rear-view image will be dis- played on the screen of the DISPLAYAUDIO or the Smartphone Link Display Audio. When the selector lever is shifted out of the “R” (REVERSE) position, the rear-view image will go off.
NOTE
 Each time this procedure is done, the tire ID set is changed. (1 - 2 - 1 - 2 …)  The tire ID set is NOT changed, in case that only 1 set of ID is registered.
General information
CAUTION Changes or modifica
tions not expressly
approved by the manufacturer for compli- ance could void the user’s authority to oper-ate the equipment.
Rear-view camera
(if so
equipped)
WA R N I N G Never rely solely on the rear-view camera to clear the area behind your vehicle. Always check visua
lly behind and all
around your vehicle fo
r persons, animals,
obstructions or other vehicles. Failure to do so can result in
vehicle damage, serious
injury or death. The rear-view camera is an aid system for backing up, but it is not a substitute for your visual confirmation. The view on the scre
en is limited, and
objects outside the view, such as under the bumper or around either corner of thebumper end, cannot be seen on the screen.
BK0264300US.book 144 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Rear-view camera (if so equipped)
Features and controls 5-145
5
The rear-view camera (A) is in the liftgate, at the left side of
the liftgate handle.
Reference lines and uppe
r surface of the rear
bumper (A) are displayed on the screen.  Red line (B) indicates approximately 20 inches (50 cm) behind the rear bumper.  Two Green lines (C) indicate approxi- mately 8 inches (20 cm) outside of the vehicle body.  Short transverse lines (1
to 3) indicate dis-
tance from the rear bumper.
Location of rear-view camera

CAUTION If the camera lens gets
dirty, a clear image
cannot be obtained. As
necessary, rinse the
lens with clean water a
nd gently wipe with a
clean, soft cloth. To avoid damaging the camera;• Do not rub the cover excessively or polish it by using an abrasive compound. • Do not disassemble the camera.• Do not splash hot wate
r directly on the lens.
• Do not spray the camera and its surround- ings with high-
pressure water.
• Make sure that the liftgate is securely closed when backing up.
Reference lines on the screen

1: Approximately at the rear edge of the
rear bumper (if so equipped)
2: Approximately 39 inches (100 cm) 3: Approximately 79 inches (200 cm)
CAUTION  The rear-view camera uses a wide-angle lens. As a result, images and distances shownon the screen are not exact. Actual distance may be different from dis- tance indicated by the
lines on the screen,
depending on the loadi
ng condition of the
vehicle and road surface condition. The reference lines for distance and vehiclewidth are based on a level, flat road surface. In the following cases, objects shown on the screen will appear to
be farther off than they
actually are.• When the rear of th
e vehicle is weighed
down with the weight of passengers and luggage in the vehicle. (Case 1)• When there is an upward slope at the back.(Case2)
Case 1 A- Actual objects B- Objects shown on the screen
BK0264300US.book 145 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Multi Around Monitor (if so equipped) 5-146 Features and controls
5
N00587200055
The Multi Around Monitor system uses four cameras, “Front-view camera”, “Side-viewcameras (right and le
ft)” and “Rear-view
camera”, and displays
composite views from
those cameras on a screen in the DISPLAYAUDIO or the Smartphone Link Display Audio. The Multi Around Monitor
system wi
ll assist
the driver to park the vehicle in a narrow or parallel parking space.
CAUTION The reference lines for
distance and vehicle
width are intended to i
ndicate the distance to
a flat object such as a level, flat road surface. They may not indicate correct distance depending on the shape of an obstacle.For example, when there is an object behind the vehicle that has u
pper sections projecting
in the direction of the
vehicle, the reference
lines on the screen will
indicate that point A
is the farthest point an
d point B is the closest
point to the vehicle. In
reality, point A and B
are actually the same distance from the vehi- cle, and point C is fa
rther off than point A
and B.Case 2 A- Actual objects B- Objects shown on the screen
NOTE
 Mirror image is displayed on the screen.  On vehicles equipped with Smartphone Link Display Audio, it is possible to change the display language of the screen.For details, please refer to the separated owner’s manual.  Under certain circumst
ances, it may become
difficult to see an image on the screen, even when the system is functioning correctly. • In a dark area, such as at night. • When water drops or
condensation are on
the lens. • When sun light or he
adlights shine directly
into the lens.
Multi Around Monitor
(if so
equipped)
WA R N I N G Before using the Multi Around Monitor system, read this entire section to fully understand the limitations of this system.Failure to follow instructions could result in an accident. The Multi Around Monitor system is an aid system to help observe around the vehicle. It is not a substitute for yourvisual confirmation. Never rely solely on the Multi Around Monitor system. The view on the screen is limited, and objects
outside the view can-
not be seen on the screen.
BK0264300US.book 146 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Multi Around Monitor (if so equipped)
Features and controls 5-147
5
CAUTION Before using the Multi Around Monitor, make sure that all doors and the liftgate areclosed and the outside
mirrors are unfolded.
If an outside mirror is folded and/or if a front door and/or the liftgate
is open, the areas dis-
played on the Multi Around Monitor will notbe appropriate.
Location of each camera

A- Rear-view camera B- Front-view camera C- Side-view cameraCAUTION If the camera lens gets
dirty, a clear image
cannot be obtained. As
necessary, rinse the
lens with clean water a
nd gently wipe with a
clean, soft cloth.
 To avoid damaging the camera;• Do not rub the cover excessively or polish it by using an abrasive compound.• Do not disassemble the camera.• Do not splash hot wate
r directly on the lens.
• Do not spray the camera and its surround- ings with high-pressure water.• Make sure that the liftgate is securelyclosed when backing up.
 Do not attach anythi
ng on the camera and/or
surrounding areas. Doing
so will disturb the
camera.CAUTION
BK0264300US.book 147 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Multi Around Monitor (if so equipped) 5-148 Features and controls
5
N00587300027
The range of view of the Multi Around Monito
r cameras is limited to the area shown in
the illustrations. It
cannot show around
the both sides and
the lower part of the front and rear bumpe
rs, etc. While driving, be sure to vi
sually confirm safety around the vehicle.
Range of view of the Multi Around Monitor

Range of view of the Mult
i Around Monitor cameras

A: Front-view camera B: Side-view camera (Right) C: Side-view camera (Left)D: Rear-view camera
BK0264300US.book 148 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Multi Around Monitor (if so equipped)
Features and controls 5-149
5
N00587400044
Two different types of views are displayed on the left side and the ri
ght side respectively.
Views of the surroundings of the vehicle and behind the vehicl
e are displayed.
Views of the passenger’s side of the vehicle and behind the vehicle are displayed. Views of the surroundings of the vehicle and the front of the vehicle are displayed.
Views of the passenger’s side of the vehicle and the front of the vehicle are displayed.
Types of views of the Multi Around Monitor

Bird’s eye-view/Rear-view mode

Side-view/Rear-view mode

Bird’s eye-view/Front-view mode

Side-view/Front-view mode

CAUTION The camera uses a special lens. As a result, images and distances shown on the screen are not exact.NOTE
 Because the cameras have a special lens, the lines on the ground between parking spaces may not look parall
el on the screen.
 Under certain circumst
ances, it may become
difficult to see an image on the screen, even when the system is functioning correctly. • In a dark area, such as at night.
BK0264300US.book 149 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Multi Around Monitor (if so equipped) 5-150 Features and controls
5
N00587500045

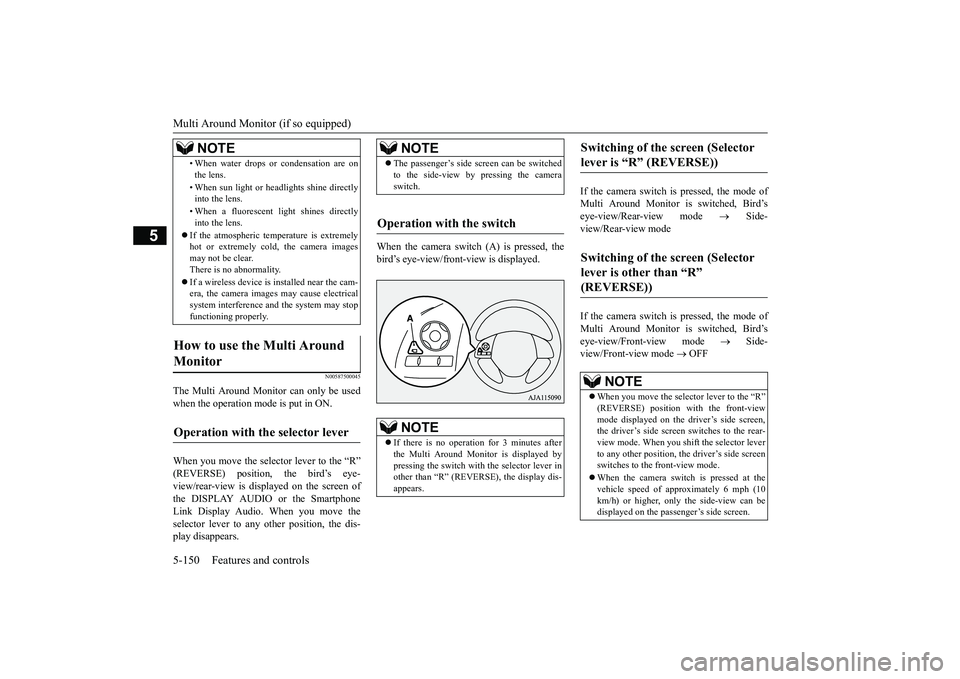

The Multi Around Monitor can only be used when the operation mode is put in ON. When you move the selector lever to the “R” (REVERSE) position, the bird’s eye- view/rear-view is displayed on the screen ofthe DISPLAY AUDIO or the Smartphone Link Display Audio. When you move the selector lever to any
other position, the dis-
play disappears.
When the camera switch (A) is pressed, the bird’s eye-view/front
-view is displayed.
If the camera switch is pressed, the mode of Multi Around Monitor is switched, Bird’s eye-view/Rear-view mode
 Side-
view/Rear-view mode If the camera switch is pressed, the mode of Multi Around Monitor is switched, Bird’s eye-view/Front-view mode
 Side-
view/Front-view mode
 OFF
• When water drops or condensation are on the lens. • When sun light or he
adlights shine directly
into the lens. • When a fluorescent light shines directly into the lens.
 If the atmospheric temperature is extremely hot or extremely cold, the camera images may not be clear.There is no abnormality.  If a wireless device is installed near the cam- era, the camera images may cause electrical system interference and the system may stop functioning properly.
How to use the Multi Around Monitor

Operation with the selector lever

NOTE
NOTE
 The passenger’s side sc
reen can be switched
to the side-view by pressing the cameraswitch.
Operation with the switch

NOTE
 If there is no operation for 3 minutes after the Multi Around Monitor is displayed by pressing the switch with the selector lever in other than “R” (REVERSE), the display dis-appears.
Switching of the screen (Selector lever is “R” (REVERSE))

Switching of the screen (Selector lever is other than “R” (REVERSE))

NOTE
 When you move the selector lever to the “R” (REVERSE) position with the front-view mode displayed on the driver’s side screen, the driver’s side screen switches to the rear-view mode. When you shift the selector lever to any other position, the driver’s side screen switches to the front-view mode.  When the camera switch is pressed at the vehicle speed of appr
oximately 6 mph (10
km/h) or higher, only the side-view can be displayed on the passenger’s side screen.
