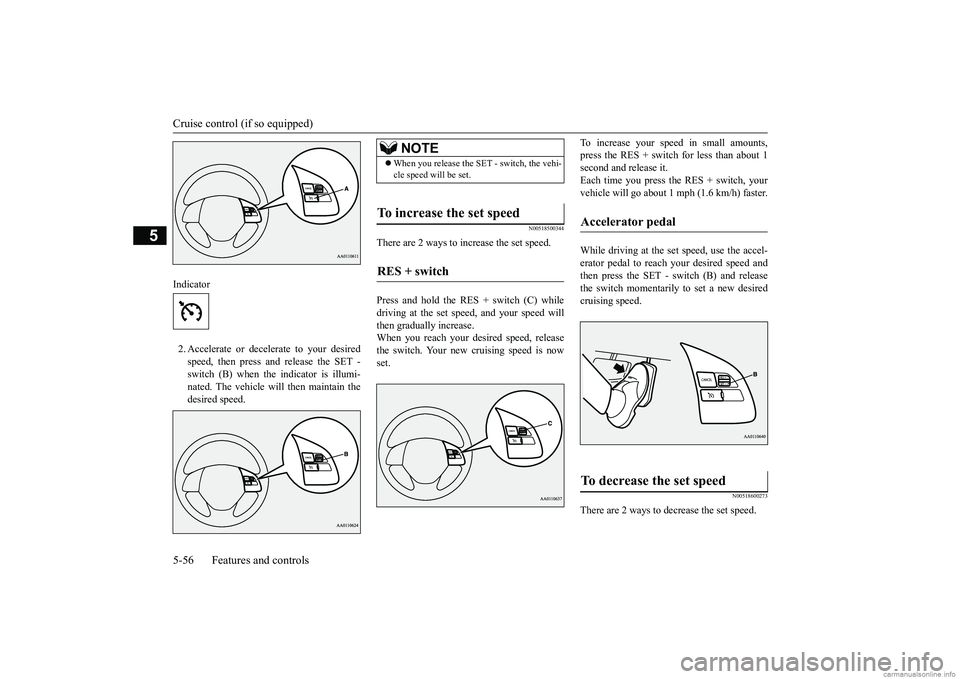

Cruise control (if so equipped) 5-56 Features and controls
5
2. Accelerate or
decelerate to your desired
speed, then press and release the SET - switch (B) when the indicator is illumi-nated. The vehicle will then maintain the desired speed.
N00518500344
There are 2 ways to increase the set speed. Press and hold the RES + switch (C) while driving at the set speed, and your speed will then gradually increase.When you reach your desired speed, release the switch. Your new cruising speed is now set.
To increase your speed in small amounts, press the RES + switch
for less than about 1
second and release it. Each time you press the RES + switch, your vehicle will go about 1 mp
h (1.6 km/h) faster.
While driving at the se
t speed, use the accel-
erator pedal to reach your desired speed and then press the SET - switch (B) and release the switch momentarily to set a new desiredcruising speed.
N00518600273
There are 2 ways to decrease the set speed.
Indicator
NOTE
 When you release the SET - switch, the vehi- cle speed will be set.
To increase the set speed

RES + switch

Accelerator pedal

To decrease the set speed

BK0267800US.book 56 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Cruise control (if so equipped) Features and controls 5-57
5
Press and hold the SET - switch (B) while driving at the set speed, and your speed will slow down gradually.When you reach your desired speed, release the switch. Your new cruising speed is now set. To slow down your speed in small amounts, press the SET - switch for less than about 1 second and release it. Each time you press the SET - switch, yourvehicle will slow down by about 1 mph (1.6 km/h). While driving at the set speed, use the brake pedal, which disengage
s the cruise control,
then press the SET - switch (B) and release the switch momentarily to set a new desiredcruising speed.
N00541700056
Depress the accelerator pedal as you wouldnormally. When you release the pedal, you will return to your set speed.
Depress the brake pedal to decrease the speed. To return to the previously set speed, press the RES + switch (C). Refer to “To resume the set speed” on page5-58.
SET - switch

Brake pedal

To temporarily increase or decrease the speed

To temporarily increase the speed

To temporarily decrease the speed

BK0267800US.book 57 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Cruise control (if so equipped) 5-58 Features and controls
5
N00518801634
The set speed driving can be deactivated as follows:  Press the CRUISE CONTROL ON/OFF switch (A). (Cruise control will be turnedoff.)  Press the CANCEL switch (D).  Depress the brake pedal.
The set speed driving is deactivated automati- cally in any of th
e following ways.
 When you depress the clutch pedal (on vehicles equipped with
manual transaxle).
 When your speed slows to about 10 mph (15 km/h) or more below the set speed because of a hill, etc.  When your speed slows to about 25 mph (40 km/h) or less.
 When the active stability control (ASC) starts operating.Refer to “Active stability control (ASC)” on page 5-52.
Also, the set speed dr
iving may be deacti-
vated automatically when the engine speed rises and approaches
the tachometer’s red
zone (the red-colored
part of the tachometer
dial).
N00518900306
If the set speed driving is deactivated by thecondition described in “To deactivate” on page 5-58, you can resume the previously setspeed by pressing the RES + switch (C) while driving at a speed of about 25 mph (40 km/h) or higher. Under either of the following conditions, however, using the switch does not allow you to resume the previously set speed. In these situations, repeat the speed setting procedure:  The CRUISE CONTROL ON/OFF switch is pressed.  [Except for vehicles
equipped with the
F. A . S . T. - k e y ] Turn the ignition switch to the “OFF” or “ACC” position. [Vehicles equipped with the F.A.S.T.-key]
To deactivate

WA R N I N G On vehicles equipped with continuously variable transmission
(CVT), although the
set speed driving will
be deactivated when
shifting to the “N” (NEUTRAL) position, never move the select
or lever to the “N”
(NEUTRAL) position while driving.You would have no engine braking and could cause a serious accident.CAUTION When the set speed driving is deactivated automatically in any
situation other than
those listed above, th
ere may be a system
malfunction. Press the CRUISE CONTROL ON/OFF switch to turn off the
cruise control and have
your vehicle inspected by an authorized Mitsubishi Motors dealer or a repair facility of your choice.
To resume the set speed

BK0267800US.book 58 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Tire pressure monitoring system (if so equipped)
Features and controls 5-59
5
Put the operation mode in OFF or ACC.  Indicator is turned OFF.
N00530201612
The tire pressure monitoring system uses tire inflation pressure sensors (A) on the wheelsto monitor the tire inflation pressures. The system only indicates when a tire is signifi- cantly under-inflated.
N00532701363
When the ignition switch is turned to the“ON” position or the operation mode is put inON, the tire pressure monitoring system warning light normally
illuminates and goes
off a few seconds later. If one or more of the vehicle tires (except for the spare tire) is significantly under-inflated, the warning light will remain illuminated while the ignition switch or the operationmode is in ON. Refer to “If the warning light illuminates while driving” on page 5-61 and take the nec-essary measures.
Tire pressure monitoring system
(if so equipped)
WA R N I N G The compact spare wheel does not have a tire inflation pressure sensor.When the spare tire is used, the tire pres-sure monitoring system will not work properly. See an authorized
Mitsubishi Motors
dealer as soon as possible to replace or repair the original tire.NOTE
 The tire pressure monitoring system is not a substitute for regularly
checking tire infla-
tion pressures. Be sure to check the tire inflation pressures as described in “Tires” on page 9-12.  The tire inflation pressure sensor (A) is installed in the illustrated location.Replace rubber air valve (B) with a new one when the tire is replaced. For details, please
contact your authorized
Mitsubishi Moto
rs dealer.
Tire pressure monitoring sys- tem warning light

BK0267800US.book 59 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Tire pressure monitoring
system (if so equipped)
5-60 Features and controls
5
Each tire, including the spare, should be checked monthly when cold and inflated tothe inflation pressure recommended by the vehicle manufacturer on
the vehicle placard
or tire inflation pressure label. (If your vehi-cle has tires of a different size than the size indicated on the vehicle
placard or tire infla-
tion pressure label, you should determine theproper tire inflation pre
ssure for those tires.)
As an added safety fe
ature, your vehicle has
been equipped with a ti
re pressure monitoring
system (TPMS) that illuminates a low tire pressure telltale when one or more of yourtires is significan
tly under-inflated.
Accordingly, when the low tire pressure tell- tale illuminates, you should stop and checkyour tires as soon as
possible, and inflate
them to the proper pressure. Driving on a sig- nificantly under-inflated
tire causes the tire to
overheat and can lead to tire failure. Under-inflation also reduces fuel efficiency and tire tread life, and may affect the vehi-cle’s handling and stoppi
ng ability. Please
note that the TPMS is
not a substitute for
proper tire maintenance,
and it is the driver’s
responsibility to
maintain corre
ct tire pres-
sure, even if under-inflation has not reached the level to trigger illumination of the TPMSlow tire pressure telltale. Your vehicle has also
been equipped with a
TPMS malfunction indica
tor to indicate when
the system is not operating properly. The TPMS malfunction indicator is combinedwith the low tire pressure telltale. When the system detects a malfunction, the telltale will flash for approximately one min-ute and then remain continuously illuminated. This sequence will continue upon subsequent vehicle start-ups as
long as the malfunction
exists. When the malfunction indicator is illumi- nated, the system may not
be able to detect or
signal low tire pressure as intended. TPMS malfunctions may
occur for a variety
of reasons, including the installation of replacement or alternate tires or wheels on the vehicle that prevent the TPMS from function-ing properly. Always check the TPMS mal- function telltale after
replacing one or more
tires or wheels on your vehicle to ensure thatthe replacement or alternate tires and wheels allow the TPMS to continue to function prop- erly.
CAUTION If the tire pressure monitoring system warn- ing light does not illumi
nate when the igni-
tion switch is turned to the “ON” position orthe operation mode is put in ON, it means that the tire pressure monitoring system is not working properly. Have the systeminspected by an authorized Mitsubishi Motors dealer. In such situations,
a malfunctioning of the
system may be preventing the monitoring of the tire pressure. Avoid sudden braking, sharp turning and high-speed driving. If a malfunction is detected in the tire pres- sure monitoring system, the tire pressuremonitoring system warn
ing light will blink
for approximately 1 minute and then remain continuously illuminated. The warning lightwill issue further warnings each time the engine is restarted as
long as the malfunction
exists.Check to see whether
the warning light goes
off after few minutes driving. If it then goes off during driving, there is noproblem. However, if the warning light does not go off, or if it blinks again when the engine isrestarted, have the vehicle inspected by an authorized Mitsubishi Motors dealer. In such situations,
a malfunctioning of the
system may be preventing the monitoring of the tire pressure. For safety reasons, when the warning light appears while driving,avoid sudden braking, sharp turning and high-speed driving.
BK0267800US.book 60 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Tire pressure monitoring system (if so equipped)
Features and controls 5-61
5
N00532801566
1. If the tire pressure monitoring system warning light illumi
nates, avoid hard
braking, sharp steering maneuvers and high speeds. You should stop and adjust the tires to the proper inflation pressure assoon as possible. Adjust the spare tire at the same time. Refer to “Tires” on page 9-12.
2. If the tire pressure monitoring system warning light remains illuminated afteryou have been driving for approximately 20 minutes after you adjust the tire infla- tion pressure, one or more of the tires mayhave a puncture. Inspect the tire and if it has a puncture, have it repaired by an authorized Mitsubishi Motors dealer assoon as possible.
The tire pressure monitoring system may not work normally in the following circum- stances:  A wireless facility or device using the same frequency is near the vehicle.  Snow or ice is stuck inside the fenders and/or on the wheels. The tire inflation pres
sure sensor’s battery
is dead.  Wheels other than Mitsubishi Motors Genuine wheels are being used.  Wheels that are not fitted with tire infla- tion pressure sensors are being used. Wheels whose ID codes are not memo- rized by the vehicle are used.  Compact spare tire is fitted on a road wheel.  A window tint that affects the radio wave signals is installed.
If the warning light illuminates while driving

NOTE
 When inspecting or adjusting the tire pres- sure, do not apply excessive force to the valve stem to avoid breakage.  After inspecting or adju
sting the tire pres-
sure, always reinstall the valve cap on thevalve stem. Without the valve cap, dirt or moisture could get into the valve, resulting in damage to thetire inflation pressure sensor.  Do not use metal valve caps, which may cause a metal reaction, resulting in corrosion and damage of the tire inflation pressure sen- sors.  Once adjustments have
been made, the warn-
ing light will go off after a few minutes ofdriving.
WA R N I N G If the warning light illuminates while you are driving, avoid ha
rd braking, sharp
steering maneuvers and high speeds. Driving with an under-inflated tire adversely affects vehicle performance andcan result in an accident.CAUTION The warning light may
not illuminate imme-
diately in the event of
a tire blowout or rapid
leak.NOTE
 To avoid the risk of damage to the tire infla- tion pressure sensors, have any puncturedtire repaired by an authorized Mitsubishi Motors dealer. If the tire repair is not done by an authorized Mitsubishi Motors dealer,damage to the tire infl
ation pressure sensor is
not covered by your warranty.
 Do not use an aerosol puncture-repair spray on any tire.Such a spray could damage the tire inflationpressure sensors. Have any puncture repaired by an authorized Mitsubishi Motors dealer.NOTE
BK0267800US.book 61 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Rear-view camera 5-62 Features and controls
5
N00532900153
If new wheels with new tire inflation pressure sensors are installed, their ID codes must be programmed into the tire pressure monitoring system. Have tire and wheel replacement per-formed by an authorized Mitsubishi Motors dealer to avoid the ri
sk of damaging the tire
inflation pressure sensors. If the wheelreplacement is not done by an authorized Mitsubishi Motors dealer
, it is not covered by
your warranty.
N00533000236
Your tire pressure monitoring system oper- ates on a radio frequency subject to Federal Communications Comm
ission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For vehicles sold in Canada). This device complies with part 15 of FCCRules and Industry Ca
nada licence-exempt
RSS standard(s). Operation is subject to the following two con- ditions.  This device may not
cause harmful inter-
ference This device must ac
cept any interference
received, including interference that may cause undesired operation.
N00546201385
When the gearshift lever or the selector leveris in the “R” position with the ignition switch or the operation mode is in ON, the rear-view
image will be displayed
on the screen of the
DISPLAY AUDIO or the Smartphone LinkDisplay Audio. When the gearshift lever or the selector lever is shifted out of the “R” position, the rear-view image will go off.
NOTE
 Tire inflation pressures vary with the ambi- ent temperature. If the
vehicle is subjected to
large variations in am
bient temperature, the
tire inflation pressures may be under-inflated (causing the warning light come on) when the ambient temperature is relatively low. Ifthe warning light comes on, adjust the tire inflation pressure.
Whenever the tires and wheels are replaced with new ones

CAUTION The use of non-genuine wheels will prevent the proper fit of the tire inflation pressure sensors, resulting air
leakage or damage of
the sensors.
General information

WA R N I N G Changes or modifica
tions not expressly
approved by the manufacturer for compli- ance could void the
user’s authority to
operate the equipment.
Rear-view camera
WA R N I N G Never rely solely on the rear-view camera to clear the area behind your vehicle.Always check visua
lly behind and all
around your vehicle fo
r persons, animals,
obstructions or other vehicles. Failure todo so can result in
vehicle damage, serious
injury or death. The rear-view camera is an aid system for backing up, but it is not a substitute for your visual confirmation. The view on the scre
en is limited, and
objects outside the view, such as under thebumper or around either corner of the bumper, cannot be seen on the screen.
BK0267800US.book 62 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Rear-view camera
Features and controls 5-63
5
The rear-view camera (A
) is built-in to the
trunk lid.
Reference lines and uppe
r surface of the rear
bumper (A) are displayed on the screen.  The red line (B) indicates approximately 20 inches (50 cm) behind the rear bumper.  The Green lines (C) indicate approxi- mately 8 inches (20 cm) outside of the vehicle body.  Short transverse lines (1
to 3) indicate dis-
tance from the rear bumper.
Location of rear-view camera
CAUTION If the camera lens gets
dirty, a clear image
cannot be obtained. As
necessary, rinse the
lens with clean water a
nd gently wipe with a
clean, soft cloth. To avoid damaging the camera;• Do not rub the cover excessively or polish it by using an abrasive compound. • Do not disassemble the camera.• Do not splash hot wate
r directly on the lens.
• Do not spray the camera and its surround- ings with high-
pressure water.
• Make sure that the trunk lid is securely closed when backing up.
Reference lines on the screen 1: Approximately at the rear edge of the
rear bumper
2: Approximately 39 inches (100 cm) 3: Approximately 79 inches (200 cm)
CAUTION The rear-view camera uses a wide-angle lens. As a result, images and distances shownon the screen are not exact. Actual distance may be different from dis- tance indicated by the
lines on the screen,
depending on the loadi
ng condition of the
vehicle and road surface condition. The reference lines for distance and vehiclewidth are based on a level, flat road surface. In the following cases, objects shown on the screen will appear to
be farther off than they
actually are.• When the rear of th
e vehicle is weighed
down with the weight of passengers and luggage in the vehicle. (Case 1)• When there is an upward slope at the back.(Case 2)
Case 1 A- Actual objects B- Objects shown on the screen
BK0267800US.book 63 ページ ２０１８年５月３０日　水曜日　午後４時２４分
