Automatic air conditioning (if so equipped) 7-12 Comfort controls
7
N00731501438
The air conditioning can only be used
while the engine is running.
N00711801624
Automatic air conditioning
(if so equipped)
CAUTIONThe engine speed may increase wh
en the air conditioning is operating.
With an increased engine speed, a CVT vehicle will creep to a gr
eater degree than with a lower
engine speed. Fully depress the
brake pedal to prevent the
vehicle from creeping.

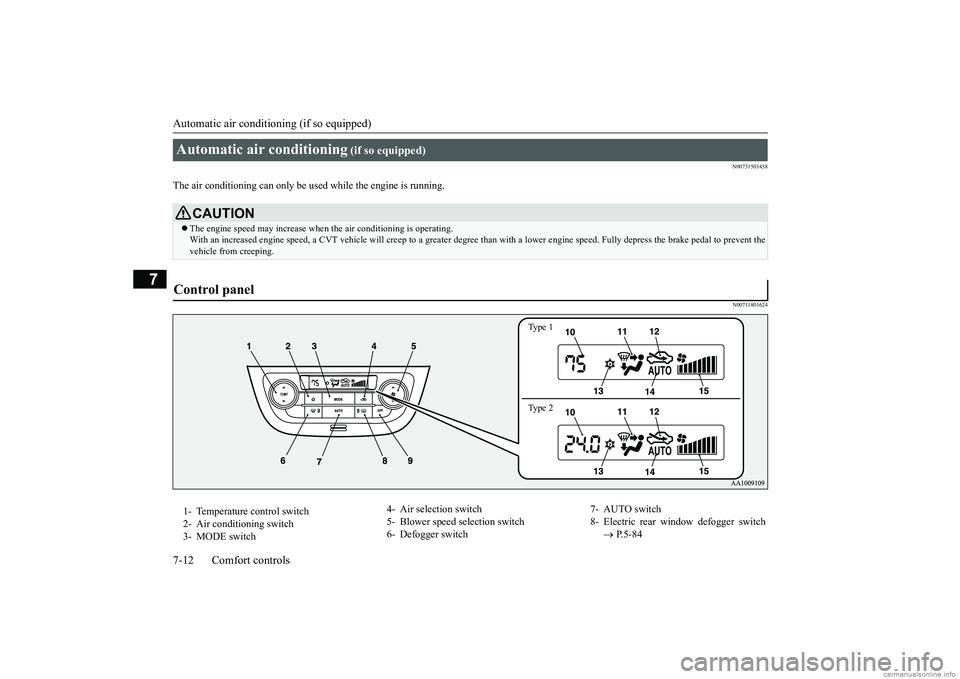

Control panel

Ty p e 1 Ty p e 2
1- Temperature control switch 2- Air conditioning switch 3- MODE switch
4- Air selection switch 5- Blower speed selection switch 6- Defogger switch
7- AUTO switch 8- Electric rear window defogger switch
 P.5-84
BK0267800US.book 12 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Automatic air conditioning (if so equipped)
Comfort controls 7-13
7
N00736900179
Press of the blower speed selection switch to increase the blower speed. Press of the blower speed selection switch to decrease the blower speed.
The selected blower sp
eed will be shown in
the display (A).
N00737001406
Press or of the temperature controlswitch to the desired temperature. The selected temperature will be shown in the display (A).
9- OFF switch 10- Temperature display 11- Mode selection display12- Air selecti
on indicator
13- Air conditioning indicator 14- AUTO indicator15- Blower speed display
NOTE
 There is an interior air temperature sensor (A) in the illustrated position.Never place anything ove
r the sensor, since
doing so will prevent it from functioning properly.  A sound will be made every time you push any of the switches.
Blower speed selection switch

1- Increase 2- Decrease
Temperature control switch

NOTE
 The temperature value
of air conditioning is
switched in conjunction
with outside temper-
ature display unit of the multi informationdisplay. Refer to “Changing the
temperature unit” on
page 5-74.
BK0267800US.book 13 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Automatic air conditioning (if so equipped) 7-14 Comfort controls
7
The above indicates the
factory settings. You
can personalize the air
selection switch and
air conditioning switch to match your per-sonal preferences. Contact your Mitsubishi
Motors dealer or a
repair facility of your choice for assistance.Refer to “Personalizi
ng the air conditioning
switch (Changing the function setting)” on
page7-16. Refer to “Personalizing the air selection(Changing the function setting)” on page7-15.
N00737101247
To change air flow direction, press theMODE switch. Each time the MODE switch is pressed, the mode ch
anges to the next one
in the following sequence: “ ”
 “”

“”
 “”
 “ ”. The selected mode
is shown in the displa
y (A). Refer to “Chang-
ing the mode selection” on page 7-2.
N00703400015
When this switch is pressed, the mode changes to the “ ” mode. The indicator
light (A) will come on. The selected mode is shown in the display (B). Refer to “Changingthe mode selection” on page 7-2.
N00737200368
Normally, use the outside air position to keepthe windshield and side windows clear and to quickly remove fog or frost from the wind- shield.
 While the engine coolant temperature is low, the temperature of the air from the heaterwill be cool/cold until
the engine warms up,
even if you have selected warm air with the switch. To prevent the windshield and windows fromfogging up, the vent mode
will be changed to
“ ” and the blower sp
eed will be reduced.
 When the temperature is set to the highest or the lowest setting under the AUTO opera- tion, the air selection
and the air conditioning
will be automatically changed as follows. • Quick Heating (When th
e temperature is set
to the highest setting) Outside air will be introduced and the air conditioning will stop.If the air selection
and the air conditioning
are operated ma
nually after an automatic
changeover, manual
operation will be
selected. • Quick Cooling (When th
e temperature is set
to the lowest setting) Inside air will be recirculated and the air conditioning wi
ll operate.
NOTE
MODE switch

Defogger switch

NOTE
When the defogger switch is pressed, the air conditioning system au
tomatically operates
and outside air (as oppos
ed to recirculated
air) is selected.Refer to “Defrosting or defogging (wind- shield, door windows)” on page 7-17.
Air selection switch

BK0267800US.book 14 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Automatic air conditioning (if so equipped)
Comfort controls 7-15
7
To change the air selection, simply press the air selection switch.The selected position will be shown in the display (A).  Outside air: “ ” indicator is ON Outside air is introduced into the passen- ger compartment.  Recirculated air: “ ” indicator is ON Air is recirculated
inside the passenger
compartment.
When the air conditioning turns on, the air selection is controlled automatically. Whenthe air conditioning turns off, the air selection automatically goes back to the outside air position.If high cooling performan
ce is desired, or if
the outside air is dusty or contaminated in some way, use the recirculation position.Switch to the outside
air position every now
and then to keep the windows from fogging up.
N00760000089
You can change the following functions tomatch your preference.  Enable automatic air control: When the AUTO switch is pressed, the air selection switch will also be automaticallycontrolled.  Disable automatic air control: Even when the AUTO switch is pressed, the air selection switch will not be auto-matically controlled.  Changing the settings
Press the air selecti
on switch for about 10
seconds or longer.When the setting has changed, the system will beep and the “ ” indicator will flash. • When the setting has changed fromenabled to disabled, the system will beep three times and the indicator will flash three times. • When the setting has changed from dis- abled to enabled,the system will beep two times and the indicator will flash three times.
CAUTION Using recirculated air for a long time may cause the windows to fog up.NOTE
 If you press the AUTO switch to select auto- matic control after ma
nual operation, the air
selection switch will also be automaticallycontrolled.
Personalizing the air selection (Changing the function setting)

NOTE
 The factory setting is
“Enable automatic air
control”.  When the defogger switch
is pressed, the air
selection will automatically change to theoutside air position, even if the system is set to “Disable automatic air control”, in order to prevent windows from fogging up.
BK0267800US.book 15 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Automatic air conditioning (if so equipped) 7-16 Comfort controls
7
N00737301409
Push the switch, and the air conditioning compressor will turn on. The “ ” indicator will be shown in the display (A). Push the switch again and the air condition- ing compressor will stop and the indicator goes off.
N00759800090
You can change the following functions tomatch your preference.  Enable automatic air conditioning control:
When the AUTO switch is pressed, or when the temperature control switch hasbeen set to the minimum temperature, the air conditioning switch
is automatically
controlled.  Disable automatic air conditioning con- trol: The air conditioning switch is not auto- matically controlled, unless the air condi-tioning switch is used.  Changing the settings Press the air conditi
oning switch for about
10 seconds or longer. When the setting has changed, the system will beep and the “ ” indicator will flash.• When the setting has changed from enabled to disabled, the system will beep three times and theindicator will flash three times. • When the setting has changed from dis- abled to enabled,the system will beep two times and the indicator will flash three times.
N00703500016
When the AUTO switch is pressed, the modeselection, blower spee
d adjustment, recircu-
lated/outside air sele
ction, temperature
adjustment, and air conditioner ON/OFF sta- tus are all controlled automatically. The “AUTO” indicator
will be shown in the
display (A).
Air conditioning switch

Personalizing the air conditioning switch (Changing the function set- ting)

NOTE
 The factory setting is
“Enable automatic air
conditioning control”.
 When the defogger switch is pressed, the air conditioning will run au
tomatically, even if
the system is set to “Disable automatic airconditioning control”, in order to prevent windows from fogging up.
AUTO switch

NOTE
BK0267800US.book 16 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Automatic air conditioning (if so equipped)
Comfort controls 7-17
7
N00703600017
Push the switch to turn off the air condition- ing system.
N00731701544
In normal conditions, use the system in the AUTO mode and follow these procedures: 1. Push the AUTO switch. 2. Set the temperature control switch to the desired temperature. The temperature can be set within a range of around 61 to 89(Type 1) or 17 to 31 (Type 2).
The vents, recirculati
on/outside air, blower
speed, temperature ad
justment and ON/OFF
of air conditioning will be controlled auto- matically.
N00731801167
Blower speed and vent mode may be con- trolled manually by setting the blower speedselection switch and the MODE switch to the desired positions. To return to automatic operation, press the AUTO switch.
N00732401522
To remove frost or mist from the windshieldand door windows, use the MODE switch or defogger switch (“ ” or “ ”). For ordinary defrosting Use this setting to ke
ep the windshield and
door windows clear of mist, and to keep the leg area heated (when driving in rain or snow). 1. Set the MODE switch to the “ ” posi- tion.
OFF switch

Operating the air conditioning system (automatic mode)

NOTE
 Set the temperature at about 75 (Type 1) or 24 (Type 2) under normal conditions.
Operating the ai
r conditioning
system (manual mode)

Defrosting or defogging (wind- shield, door windows)

CAUTION For safety, make sure you have a clear view through all the windows.
BK0267800US.book 17 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Important air condit
ioning operating tips
7-18 Comfort controls
7
2. Set the air selection switch to the outside air position.3. Select your desired blower speed by pressing the blower speed selection switch.4. Select your desired temperature by press- ing the temperature control switch. 5. Push the air conditioning switch. For quick defrosting 1. Push the defogger switch to change to the “ ” position. 2. Set your blower to the maximum speed.3. Set the temperature to the highest posi- tion.
N00733700336
1. Park the vehicle in the shade whenever possible. Parking in the hot sun makes the vehicle interior extremely hot which then requires more time to cool. If it is neces-sary to park in the sun, open the windows for the first few minutes of air condition- ing to expel the hot air.2. Afterwards, keep the windows closed when the air conditioning is in use. The entry of outside air through open windowswill reduce cooling efficiency.
3. When running the air conditioning, make sure the air intake, which is located infront of the windshield, is free of obstruc- tions such as leaves. Leaves collected in the air-intake chamber may reduce airflow and plug the water drains.
If the air conditioning seems less effective than usual, the cause might be a refrigerant leak. Have the system inspected by your authorizedMitsubishi Motors dealer
or a repair facility
of your choice.
NOTE
 While the mode selection is set “ ” posi- tion, the air conditioning
compressor will run
automatically. The out
side air position will
also be selected automatically.
 If the mode selection is set “ ” position, you cannot turn the air conditioning off orselect the recirculati
on position. This pre-
vents the windows from fogging up.  To defog quickly, direct the air flow from the side vents toward the door windows.  When defrosting, do not set the temperature to the maximum cool position. This will blow cool air on the window glass and fog it up.
Important air conditioning operating tips
NOTE
Air conditioning system refrig- erant and lubricant recommen- dations
BK0267800US.book 18 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Air purifier (if so equipped) Comfort controls 7-19
7
The air conditioning should be operated for at least five minutes each week, even in cold weather. This includes the quick defrostingmode. Operating the
air condition system
weekly maintains lubrication of the compres- sor internal parts to keep the air conditioningin the best operating condition.
N00733800180
The air conditioning system is equipped withan air filter to re
move pollen
and dust.
The air filter’s ability to collect pollen and dirt is reduced as it be
comes dirty, so replace
it periodically. For the maintenance interval,refer to the “WARRANTY AND MAINTE- NANCE MANUAL”.
N00734201553
Turn the pole (A) counterclockwise. Screw the pole (A) clockwise into the base (B) until it is securely retained.
CAUTION The air conditioning system in your vehicle must be charged with the refrigerant HFC-134a and the lubricant ZXL 200PG.Use of any other refrigerant or lubricant will cause severe damage a
nd may require replac-
ing your vehicle’s en
tire air conditioning
system. The release of refrigerant into the atmo- sphere is not recommended.The new refrigerant HFC-134a in your vehi- cle is designed not to harm the earth’s ozone layer. However, it may contribute slightly toglobal warming. It is recommended that the old refrigerant be saved and recycled for future use.
During a long period of disuse
Air purifier
(if so equipped)
NOTE
 Operation in certain conditions such as driv- ing on a dusty road and frequent use of the air conditioning ca
n lead to reduction of ser-
vice life of the filter. When you feel that the air flow is lower than normal or when the windshield or windows st
art to fog up easily,
replace the air filter. Contact your Mitsubishi
Motors dealer or a
repair facility of your
choice for assistance.
Antenna To remove To install
NOTE
 Be sure to remove the roof antenna in the following cases: • When using an automatic car wash• When covering your ve
hicle with a car
cover
