2019 MITSUBISHI MIRAGE G4 Owner's Manual (in English)

HomeLink® Wireless Control System (if so equipped) 5-88 Features and controls
5
N00584600029
 Some garage door ope
ners manufactured
after 1995 have “rolling code protection”. To program a garage door openerequipped with “rolli
ng code protection”;
you will need to access the garage door opener motor to press the motor’s “Learn”or “Smart” buttons. Fo
r convenience, use
a ladder and another person to assist you.  It is recommended that a new battery be placed in the hand-held transmitter of the device being programmed to HomeLink
®
for quicker training and accurate trans- mission of the radio-frequency signal.
N00584700020
To program HomeLink
® to operate a garage
door, gate, or entry door opener, home oroffice lighting, you need to be at the same location as the device. 1. Press the HomeLink
® button that you
would like to progra
m. The indicator light
(A) will flash
orange slowly.
During programming, your garage door or gate may open or close. Make sure thatpeople and objects ar
e clear of the garage
door or gate that
you are programming.
NOTE
Once HomeLink
® is programmed, retain the
original transmitter for future programming procedures (for exam
ple, new vehicle pur-
chases). Upon sale of the vehicle, the pro- grammed HomeLink
® buttons should be
erased for security purposes. Refer to “Cleaning the programmed information” on page 5-91.  You can program a maximum of 3 devices. To change or replace
any of the 3 devices
after it has been in
itially programmed, you
must first erase the current settings. See “Cleaning the programmed information”on page 5-91 or “Reprogramming a single HomeLink
® button” on page 5-92.
WA R N I N G
1-
HomeLink
® button 1
2-
HomeLink
® button 2
3-
HomeLink
® button 3
Before programming Home- Link
®
Programming a new Home- Link
®
NOTE
 You do not need to continue holding the HomeLink
® button.
 If the indicator light doe
s not flash, refer to
“Cleaning the programmed information” on page 5-91.
BK0267800US.book 88 ページ ２０１８年５月３０日　水曜日　午後４時２４分

HomeLink® Wireless Control System (if so equipped)
Features and controls 5-89
5
2. Position the end of your hand-held trans- mitter (B) 1 to 3 inches (2 to 8 cm) away from the HomeLink
® button while keep-
ing the indicator light in view. 3. Press and hold the hand-held transmitter button while watching the indicator light (A). Continue pressing the button until the indicator light (A)
changes from slowly
flashing orange to e
ither rapidly flashing
green (rolling code) or continuously lit green (fixed code). Now you may releasethe hand-held transmitter button.
4. Press the HomeLink
® button that was just
programmed and observe the indicator light.• If the indicator light
continuously illumi-
nates green, programming is complete and your device shoul
d operate when the
HomeLink
® button is pressed and
released. • If the indicator light rapidly flashes green, firmly press, hold for 2 seconds and release the programmed HomeLink
®
button. Repeat the “press/hold/release” sequence a second tim
e, and, depending
on the brand of the garage door opener(or other rolling c
ode equipped device),
repeat this sequence a third time to com- plete the programming
process. At this
point if your device operates, program- ming is complete.
• If the device does not operate, continue with “Programming a new HomeLink
®”
steps 5 to 7 to complete the program- ming of a rolling code equipped device.
5. At the garage door opener receiver(motor-head unit) in the garage, locate the “Learn” or “Smart” but
ton. This can usu-
ally be found where the hanging antennawire is attached to the motor-head unit (see the garage
door opener manual to
identify the “Learn” button.) 6. Firmly press and release the “Learn” or “Smart” button. (The name and color ofthe button may vary by manufacturer.) There are typically 30
seconds to initiate
step 7.7. Return to the vehi
cle and firmly press,
hold for 2 seconds and release the pro- grammed HomeLink
® button. Repeat the
“press/hold/release”
sequence a second
time, and, depending on the brand of the garage door opener (or other rolling codeequipped device), repe
at this sequence a
third time to complete the programming process. HomeLink
® should now activate your
rolling code equipped device.
NOTE
 Some hand-held transmitters may actually train better from a distance of 6 to 12 inches (15 to 20 cm). Keep this in mind if you havedifficulty with th
e programming process.
NOTE
Some devices may requi
re you to replace this
“Programming a new HomeLink
®” step 3
with procedures noted in
the “Gate operator /
Canadian programming”
section. If the indi-
cator light does not ch
ange to rapidly flash-
ing green or continuously lit green after performing these step
s, contact HomeLink
®
at www.homelink.com
BK0267800US.book 89 ページ ２０１８年５月３０日　水曜日　午後４時２４分

HomeLink® Wireless Control System (if so equipped) 5-90 Features and controls
5
N00584800021
Canadian radio-frequenc
y laws require trans-
mitter signals to “time-out” (or quit) afterseveral seconds of tr
ansmission - which may
not be long enough for HomeLink
® to pick
up the signal during programming. Similar to this Canadian law, some U.S. gate operators are designed to “time-
out” in the same man-
ner. The indicator LED on the hand-held transmit- ter will go off when th
e device time
s out indi-
cating that it has finished transmitting. If you live in Canada or you are having diffi- culties programming a gate operator orgarage door opener by using the “Program- ming” procedures, replace “Programming a new HomeLink
®” step 3 with the following:
3. Press and release - every 2 seconds (“cycle”) your hand-held transmitter until the HomeLink
® indicator light changes from
slowly flashing orange to either rapidly flash- ing green (rolling code
) or continuously lit
green (fixed code). Now you may release the hand-held transmitter button. Proceed with “Programming a new Home- Link
®” step 4 to complete.
N00584900022
The HomeLink
® has the capability of receiv-
ing garage door status from compatiblegarage door opener systems. Check your garage door opener manual for the available feature and HomeLink
® compatibility. Also
for a listing of compatible systems contact HomeLink
® at: www.homelink.com
1. Within 5 seconds after successfully pro- gramming the garage door opener (refer to “Programming a new HomeLink
®”
section), both garage
door operation indi-
cators (A) will flash
rapidly green indicat-
ing that the garage door feedback has been enabled. If the indicators do not flash, performsteps 2 and 3 while pressing the Home- Link
® button up to the first 10 times after
successful programming.2. Press and release
the programmed Home-
Link
® button to activate the door. You
now have 1 minute in which to completestep 3.
NOTE
 In the event that there are still programming difficulties or quest
ions, additional Home-
Link
® information and programming videos
can be found online at www.homelink.com,www.youtube.com/HomeLinkGentex, or by calling the HomeLink
® Hotline.
Gate operator/Canadian pro- gramming

NOTE
 If programming a garage door opener or gate operator, it is advise
d to unplug the device
during the “cycling” pr
ocess to prevent pos-
sible overheating.
Additional steps for program- ming a door system with feed- back

BK0267800US.book 90 ページ ２０１８年５月３０日　水曜日　午後４時２４分

HomeLink® Wireless Control System (if so equipped)
Features and controls 5-91
5
3. Once the door has stopped, press and release the “Learn” or “Smart” button onthe garage door opener (refer to your garage door opener owner’s manual for the location of the “Learn” button). Both the HomeLink
® garage door operation
indicators will fl
ash rapidly green upon
successful synchronization with the dooropener (within 5 seconds).
N00585000020
To operate, simply press and release the pro- grammed HomeLink
® button. Activation will
now occur for the trained device (i.e. garagedoor opener, gate opera
tor, security system,
entry door lock, home/office lighting, etc.). For convenience, the ha
nd-held transmitter of
the device may also be
used at any time.
N00585200022
The HomeLink
® has the capability of receiv-
ing garage door status from compatible garage door opener systems. Refer to “Addi- tional steps for programming a door systemwith feedback” on page 5-90. Garage door status is
then displayed with
indicators (A).
The indicators will illuminate/blink in response to the following conditions: : Blinking : Illuminates
The HomeLink
® has the capability of listen-
ing to these messages at a range up to 820.2feet (250 m) (open line of sight), but range may be reduced by obstacles such as houses or trees. You may have
to slow your vehicle
speed to receive the CLOSED or OPENED message feedback from the garage door opener. If the unit is out of range beforereceiving either the UP or DOWN message from the door opener, both the UP and DOWN indicators will fl
ash red followed by
a continuous lit orange
indicator in the direc-
tion the door was last moving.Recall of the door stat
e after initial feedback
is possible by simultane
ously pressing either
HomeLink
® buttons 1 and 2 or buttons 2 and
3 for 2 seconds. The la
st recorded message
will be displayed for 3
seconds, again follow-
ing the garage door st
atus indication of the
figure above.
N00585300023
To erase programming from the 3 buttons (individual buttons cannot
be erased but can
be “reprogrammed” as
outlined below), fol-
low the steps noted:
Operating HomeLink
®
Garage door feedback

Garage door opener closing
(orange)
Garage door opener closed
(green)
Out of range
(red)
Garage door opener opening
(orange)
Garage door opener opened
(green)
Out of range
(red)
Clearing the programmed information

BK0267800US.book 91 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Interior lights 5-92 Features and controls
5
1. Press and hold the 2 outer HomeLink
®
buttons for at least
10 seconds. The indi-
cator will change
from continuous yellow
to rapidly flashing green. 2. Release both buttons. 3. HomeLink
® is now in the train (or learn-
ing) mode and can be programmed at anytime beginning with
“Programming a new
HomeLink
®” step 1.
N00585400024
To reprogram a HomeLink
® button, complete
the following. 1. Press and hold the desired HomeLink
®
button. Do not release the button. 2. The indicator light will begin to slowly flash orange after 20
seconds. The Home-
Link
® button can be released at this point.
Proceed with “P
rogramming a new
HomeLink
®” step 2.
N00585600026
Your HomeLink
® system operates on a radio
frequency subject to
Federal Communica-
tions Commission (FCC)
Rules (For vehicles
sold in U.S.A.) and Industry Canada Rules (For vehicles sold in Canada). This devicecomplies with Part 15 of the FCC Rules and RSS- 210 of the Industry Canada Rules. Operation is subject to the following two con-ditions.  This device may not
cause harmful inter-
ference.  This device must ac
cept any interference
that may be received, including interfer- ence that may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End Users must follow the spe- cific operating instruc
tions for satisfying RF
exposure compliance. This transmitter must be at least 12 inches (20 cm) from the user and must not be co-located or operating inconjunction with any other antenna or trans- mitter. The term “IC:” before the certification/regis-tration number only signi
fies that Industry
Canada technical spec
ifications were met.
N00525301644
NOTE
Do not hold for longer than 20 seconds.
Reprogramming a single HomeLink
® button

NOTE
 If you do not complete the programming of a new device to the button,
it will revert to the
previously stored programming.For questions or comments, visit www.homelink.com, www.youtube.com/HomeLinkGentex, or by calling the HomeLink
® Hotline.
General information

CAUTION The transmitter has been tested and complies with FCC and IC rules.Changes or modifica
tions not expressly
approved by the party responsible for com- pliance could void the
user’s authority to
operate the device.
Interior lights
NOTE
 Be aware that leaving the light illuminated with the engine off may run the batterydown. Never leave the vehi
cle without checking
that the light is off.
BK0267800US.book 92 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Storage spaces
Features and controls 5-93
5
N00525801391
1- ( ) The light illuminates regardless of whether a door is open or closed. 2- (•)Delayed off function The light illuminates when a door is opened. It goes off approximately 30 sec-onds after the door is closed. However, the light goes off immediately with all doors closed
in the following
cases: • When the ignition switch is turned to the “ON” position or the operation mode isput in ON. • When the power door lock function is used to lock the vehicle.
• When the remote control transmitter of the keyless entry system or the F.A.S.T.-key is used to lock the vehicle. • When the door lock/unlock switch is pressed to lock the vehicle while carry-ing the F.A.S.T.-key. Auto cut-out function If the light is left switched on with theignition switch in the “OFF” or “ACC” position or the opera
tion mode in OFF or
ACC, and a door is opened, it goes off automatically after approximately 30 min- utes.The light will illuminate again after it automatically goes off in the following cases:• When the ignition switch is turned to the “ON” position or th
e operation mode is
put in ON.• When the keyless entry system or the F.A.S.T.-key is operated. • When all doors are closed.
3- ( ) The light goes off regardless of whether a door is open or closed.
N00526400528
Dome light
NOTE
 When the key was used to start the engine: if the key is removed while the doors areclosed, the light is illuminated and after approximately 30 seconds it goes off.  When the F.A.S.T.-key was used to start the engine: if the operation
mode is put in OFF
while the doors are closed, the light illumi-nates and after approxi
mately 30 seconds it
goes off.
 The time until the light goes off (delayed off) can be adjusted. See your authorizedMitsubishi Motors de
aler for details.
 The auto cut-out function cannot be operated when the dome light switch is in the “ ” position. Also, this function can be deactivated. See your authorized Mitsubish
i Motors dealer for
details.
Storage spaces
CAUTION Never leave lighters,
carbonated drink cans,
or spectacles in the cabin when parking the vehicle in hot suns
hine. The cabin will
become extremely hot,
so lighters and other
flammable items may catch fire and unopened drink cans (i
ncluding beer cans)
may rupture. The heat may also deform orcrack plastic spectacle
lenses and other spec-
tacle parts that are made of plastic. Keep the lids of storage spaces closed while driving the vehicle. A li
d or the contents of a
storage space could otherwise cause injuriesduring a sudden stop.NOTE
BK0267800US.book 93 ページ ２０１８年５月３０日　水曜日　午後４時２４分

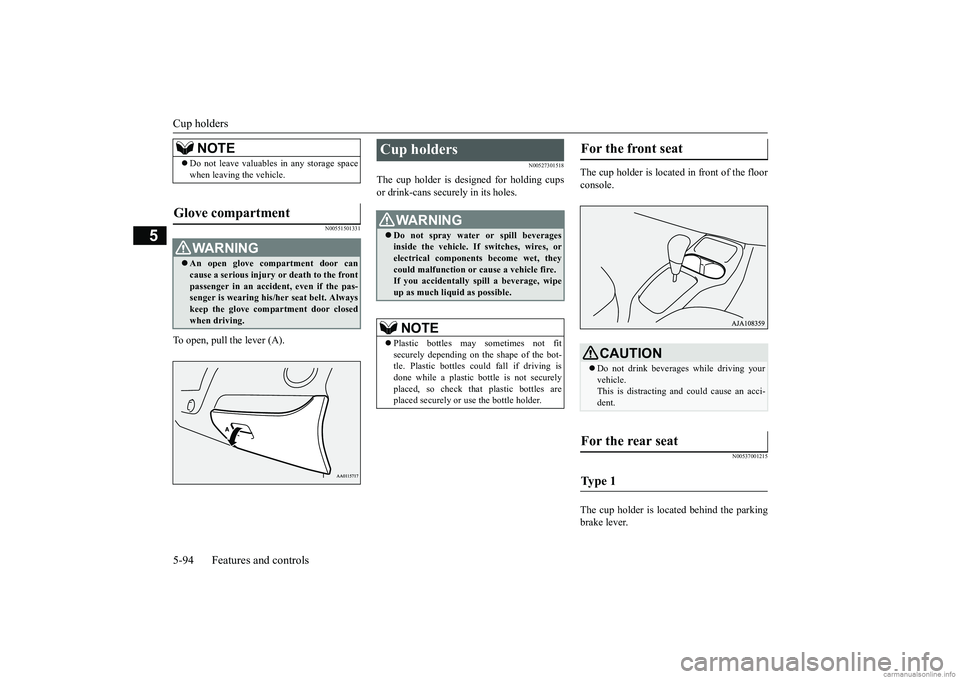

Cup holders 5-94 Features and controls
5
N00551501331
To open, pull the lever (A).
N00527301518
The cup holder is designed for holding cups or drink-cans secu
rely in its holes.
The cup holder is located in front of the floor console.
N00537001215
The cup holder is located behind the parkingbrake lever.
NOTE
 Do not leave valuables in any storage space when leaving the vehicle.
Glove compartment
WA R N I N G An open glove comp
artment door can
cause a serious injury or death to the frontpassenger in an accident, even if the pas- senger is wearing his/
her seat be
lt. Always
keep the glove comp
artment door closed
when driving.
Cup holders
WA R N I N G Do not spray water
or spill beverages
inside the vehicle. If switches, wires, or electrical components become wet, theycould malfunction or cause a vehicle fire. If you accidentally
spill a beve
rage, wipe
up as much liquid as possible.NOTE
 Plastic bottles may sometimes not fit securely depending on the shape of the bot- tle. Plastic bottles could fall if driving is done while a plastic bot
tle is not securely
placed, so check that plastic bottles are placed securely or
use the bottle holder.
For the front seat
CAUTIONDo not drink beverages while driving your vehicle. This is distracting a
nd could cause an acci-
dent.
For the rear seat Ty p e 1
BK0267800US.book 94 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Bottle holders
Features and controls 5-95
5
In order to use cup holder, allow the arm rest to drop down.
N00502801105
There are bottle holders
located on the front
doors.
N00574700014
Convenience hook is lo
cated on the seatback
of the passenger’s seat.
Ty p e 2
Bottle holders
WA R N I N G Do not spray water
or spill beverages
inside the vehicle. If switches, wires, orelectrical components become wet, they could malfunction or cause a vehicle fire. If you accidentally
spill a beverage, wipe
up as much liquid as possible.CAUTION Drinking beverages whil
e driving your vehi-
cle is distracting and can cause an accident. Vibration and shaking while driving may cause beverages to
spill. Be very careful, as
spilling hot beverage
s could cause burns.
NOTE
Do not store cup or drink can in the bottle holder.  Make sure all lids are tightly closed when storing beverages that
are in plastic bottles,
etc.  Some beverages may not
be stored, depend-
ing on the size and shape of the plastic bot-tles, etc.
Convenience hook
NOTE
 To avoid damage to
the convenience hook,
do not hang objects that
weight more than 9
pounds (4 kg).
BK0267800US.book 95 ページ ２０１８年５月３０日　水曜日　午後４時２４分
