Instruments and controls 1-1
1
Overview
N00100202876
Instruments and controls
Instrument cluster P.5-64
Hazard warning flasher switch P.5-82
Combination headlights and dimmer switch P.5-79 Turn-signal lever P.5-81 Front fog light switch (if so equipped) P.5-82
Wiper and washer switch P.5-82
Cruise control switches (if so equipped) P.5-55
Engine switch (if so equipped) P.5-13
Ignition switch (if so equipped) P.5-37
Active stability control (ASC) OFF switch P.5-53 Electric remote-controlled outside rearview mirror switch P.5-36
Supplemental restraint system (SRS)-air- bag (for driver) P.4-22, 4-28 Horn switch P.5-85
Steering wheel height adjustment lever P.5-34
Steering wheel remote control switches [Refer to the separate owner’s manual.]
Supplemental restraint system (SRS)-driver’s knee airbag P.4-22, 4-29
Fuses P.9-22
BK0267800US.book 1 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Interior 1-3 Overview
1
N00100302561
Interior
Bottle holders P.5-95
Power window lock switch P.5-30
Sun visors P.5-86 Vanity mirror P.5-86 Card holder P.5-86
Power door lock switch (if so equipped) P.5-26
Dome light P.5-93, 9-28
Inside rearview mirror P.5-34
Head restraints P.4-5
Power window switch P.5-30
Seat belts P.4-7
Supplemental restraint system (SRS)- curtain airbags P.4-22, 4-33 Manual window control (if so equipped) P.5-30
Tether anchorages for child restraint system P.4-17
Front seats P.4-2
Supplemental restraint system (SRS)-side airbags (for front seat) P.4-22, 4-33
Arm rest P.4-5
Jack P.8-5
Rear seat P.4-5
Cup holder (for the rear seat) P.5-94
Assist grips P.5-96
Arm rest (Driver’s seat only, if so equipped) P. 4-4
Microphone [Refer to the separate owner’s manual.]
Trunk-through lid P.4-5
Convenience hook P.5-95
BK0267800US.book 3 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Outside 1-5 Overview
1
N00100602867
Outside
Power window P.5-30
Windshield wipers P.5-82
Outside rearview mirrors P.5-36
Fuel tank filler P.3-3
Engine hood P.9-4
F.A.S.T.-key (Free-hand Advanced Security Transmitter) (if so equipped) P. 5 - 9 Keyless entry system (if so equipped) P. 5 - 6 Locking and unlocking P.5-25
Side turn signal lights (if so equipped)P.5-81, 9-27
Front side- marker lights P.5-79, 9-27, 9-29
Front fog lights (if so equipped) P.5-82, 9-27, 9-30
Front turn signal lights/Parking lights P.5-81, 9-27, 9-29 Headlights/Daytime running lights (if so equipped) P.5-79, 9-27, 9-29
BK0267800US.book 5 ページ ２０１８年５月３０日　水曜日　午後４時２４分

5
Features and controlsBreak-in recommendations ..............................................................5-2 Keys .................................................................................................5-2 Electronic immobilizer (Anti-theft starting system) ........................5-3Keyless entry system (if so equipped) ..............................................5-6 Free-hand Advanced Security
Transmitter (F.A.S.T.-key)
(if so equipped) ............................................................................5-9Door locks ......................................................................................5-25 Power door locks ......
...........
...........
...........
...........
...........
.........
.....5-26
Child safety locks for rear door ..........
...........
.........
.........
.........
.....5-27
Trunk lid ................
............
...........
...........
...........
...........
...........
.....5-28
Inside emergency trunk lid release ................................................5-29 Manual window control (if so equipped)........................................5-30Power window control ...................................................................5-30 Parking brake .................................................................................5-33 Steering wheel height adjustment ..................................................5-34Inside rearview mirror ...................................................................5-34 Outside rearview mirrors ...............................................................5-36 Ignition switch ...............................................................................5-37Starting the engine .........................................................................5-38 Manual transaxle (if so equipped) ..................................................5-40 Continuously variable transmission
(CVT) (if so equipped)..........5-42
Service brake .................................................................................5-47 Hill start assist ................................................................................5-48 Brake assist system ........................................................................5-49Anti-lock braking system ...............................................................5-50 Electric power steering system (EPS) ............................................5-51 Active stability control (ASC) .......................................................5-52Cruise control (if so equipped) .......................................................5-55
Tire pressure monitoring system (if so equipped) .......................... 5-59 Rear-view camera .......................................................................... 5-62 Instrument cluster .......................................................................... 5-64Multi-information display ............................................................. 5-65 Indicator and warning light package ............................................. 5-75 Indicators ....................................................................................... 5-76Warning lights ................................................................................ 5-76 Combination headlights and dimmer switch ................................. 5-79 Turn signal lever ............................................................................ 5-81Hazard warning flasher switch ...................................................... 5-82 Front fog light switch (if so equipped) .......................................... 5-82 Wiper and washer switch ............................................................... 5-82Electric rear window defogger switch ....
...........
...........
...........
...... 5-84
Horn switch ................................................................................... 5-85 Link System (if so equipped) ......................................................... 5-85USB input terminal ....
...........
...........
...........
...........
...........
............. 5-85
Sun visors ...................................................................................... 5-86 12 V power outlets ......................................................................... 5-87 HomeLink
® Wireless Control System (if so equipped) ................. 5-87
Interior lights ................................................................................. 5-92 Storage spaces ................................................................................ 5-93Cup holders .................................................................................... 5-94 Bottle holders ................................................................................. 5-95 Convenience hook ............
...........
...........
...........
...........
...........
...... 5-95
Assist grips .................................................................................... 5-96
BK0267800US.book 1 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Steering wheel height adjustment 5-34 Features and controls
5
N00511500231
To adjust the steering wheel to the desired position, move the lever upward or down-ward while moving the steering wheel to the desired level.
N00511601402
Adjust the inside rearview mirror only aftermaking any seat adjustme
nts so as to have a
clear view to the rear of the vehicle. Adjust the inside mirror to maximize the view through the rear window.
CAUTION Before driving, be sure that the parking brake is fully released and brake warninglight is off.If you drive without the parking brake fully released, the warning lamp will illuminate and a buzzer sounds when the vehicle speedexceeds 5 mph (8 km/h). If a vehicle is driven without releasing the parking brake, the brakes will be overheated,resulting in ineffectiv
e braking and possible
brake failure.
Steering wheel height adjustment
A- Wheel lock B- ReleaseWA R N I N G After adjusting, make sure the lever is secured in the locked (A) position. Do not attempt to adjust the steering wheel while driving. This can be danger-ous. When releasing the leve
r (moving it to the
position (B)), be sure to hold the steering wheel firmly. Otherwise, the steering wheel may slip down too suddenly.
Inside rearview mirror
WA R N I N G Do not attempt to adjust the inside rear- view mirror while driving. This can bedangerous. Be sure to adjust the mirror before driv- ing.Type 1 Type 2
BK0267800US.book 34 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Inside rearview mirror
Features and controls 5-35
5

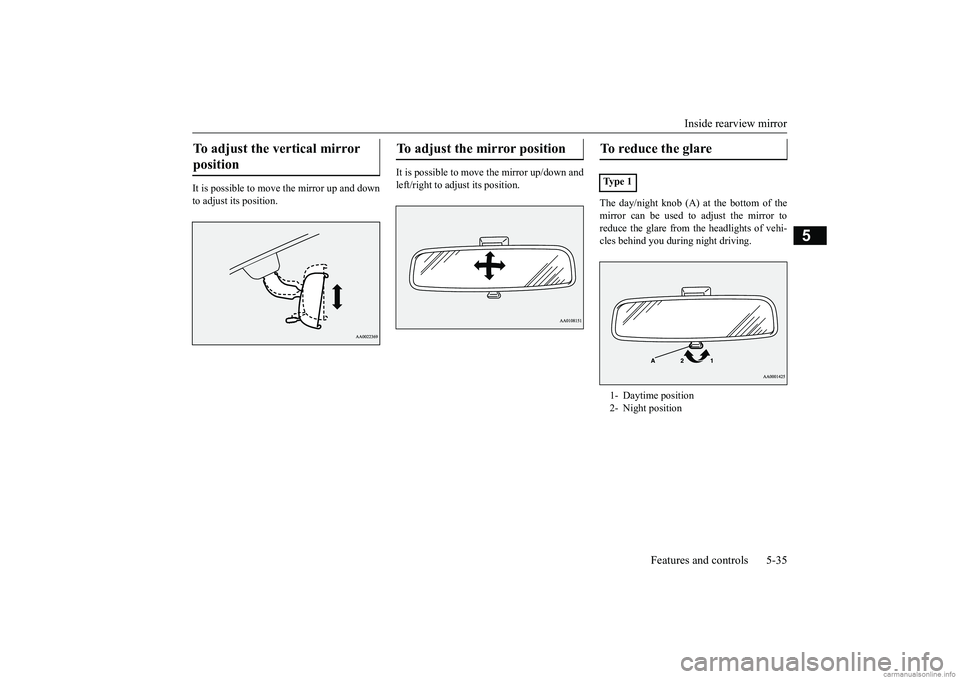

It is possible to move
the mirror up and down
to adjust its position.
It is possible to move the mirror up/down and left/right to adjust its position.
The day/night knob (A) at
the bottom of the
mirror can be used to adjust the mirror to reduce the glare from the headlights of vehi- cles behind you during night driving.
To adjust the vertical mirror position
To adjust the mirror position
To reduce the glare Ty p e 1 1- Daytime position 2- Night position
BK0267800US.book 35 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Outside rearview mirrors 5-36 Features and controls
5
When the headlights of the vehicles behind you are very bright, the reflection factor ofthe rearview mirror is automatically changed to reduce the glare. Normally, use the automatic mode. When the ignition switch is turned to the “ON” position or the operation mode is put in ON, the greenindicator (1) illuminates and the reflection factor of the mirror is automatically changed.
N00512200206
Adjust the outside rearview mirrors only after making any seat adjustme
nts so as to have a
clear view to the rear of the vehicle.
N00549100144
The outside rearview mirrors can be adjustedwhen the ignition switch or the operation mode is in ON or ACC.Move the lever (A) to the same side as the mirror you wish to adjust. Press the switch (B) to adjust the mirror posi- tion.
Ty p e 2
NOTE
 Do not hang items on, or
spray glass cleaner
on the sensors (2), as reduced sensitivitycould result.
 If you want to stop automatic mode, press the switch (3) and the
indicator (1) will go
off.To return to automatic mode, press the switch again. Or turn the ignition switch to the “ON” position or put the operation modein ON, after turning the ignition switch to the “LOCK” position or
putting the operation
mode in OFF.
Outside rearview mirrors
WA R N I N G Do not attempt to adjust the outside rear- view mirrors while driving. This can bedangerous. Be sure to adjust the mirrors before driv- ing. Your passenger’s side mirror is convex. The objects you see in the mirror will looksmaller and farthe
r away than they
appear in a regular flat mirror. Do not use this mirror to estimate the dis- tance of vehicles following you whenchanging lanes.NOTE
To adjust the mirror position L- Left outside mirror adjustment R- Right outside mirror adjustment 1- Up 2- Down 3- Right 4- Left
BK0267800US.book 36 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Ignition switch
Features and controls 5-37
5
N00549200099
The outside mirror can be manually folded in towards the side window to prevent damagewhen parking in tight locations.
N00549301286
When the rear window defogger switch ispressed with the engine running, the outside rearview mirrors are defogged or defrosted. Current will flow thr
ough the heater element
inside the mirrors, thus clearing away frost or condensation.The indicator light (A) will illuminate while the defogger is on. The heater will be turned off automatically inabout 20 minutes.
N00512401739
[For vehicles equipped with the Free-handAdvanced Security Transmitter (F.A.S.T.-key)] For information on operations for vehicles equipped with the Free-hand Advanced Secu-rity Transmitter (F.A.S.T.-key), refer to “Free-hand Advanced Se
curity Transmitter
(F.A.S.T.-key):Engine switch” on page 5-13.
[Except for vehicles equipped with the Free-hand Advanced Security Transmit-ter (F.A.S.T.-key)] The engine is off. The key can be inserted and removed only when the switch is in this posi-tion. Allows operation of some
electrical accesso-
ries with the engine off.
NOTE
 After adjusting, return the lever to the “•” (OFF) position (C).
To fold the mirror Door mirror heater
(if so equipped)
Ignition switch
OFF ACC
