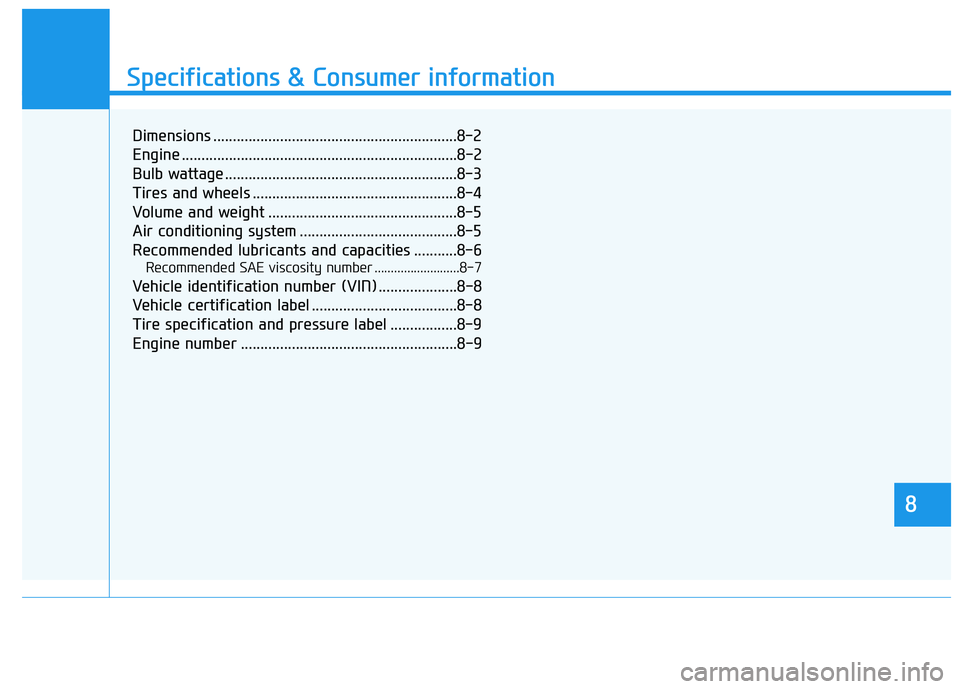

Specifications & Consumer information
8
Specifications & Consumer information
8
Dimensions ..............................................................8-2
Engine ......................................................................8-2
Bulb wattage ...........................................................8-3
Tires and wheels ....................................................8-4
Volume and weight ................................................8-5
Air conditioning system ........................................8-5
Recommended lubricants and capacities ...........8-6Recommended SAE viscosity number ..........................8-7
Vehicle identification number (VIN) ....................8-8
Vehicle certification label .....................................8-8
Tire specification and pressure label .................8-9
Engine number .......................................................8-9

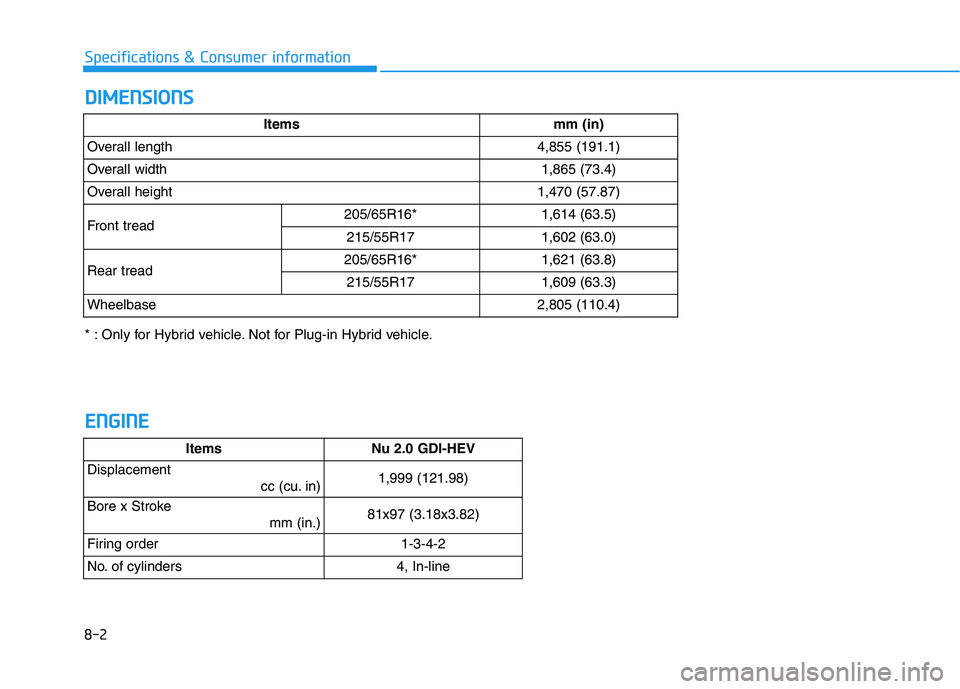

DDIIMM EENN SSIIOO NNSS
8-2
Specifications & Consumer information
E
E NN GGIINN EE
Itemsmm (in)
Overall length4,855 (191.1)
Overall width1,865 (73.4)
Overall height1,470 (57.87)
Front tread205/65R16*1,614 (63.5)
215/55R171,602 (63.0)
Rear tread 205/65R16*1,621 (63.8)
215/55R171,609 (63.3)
Wheelbase2,805 (110.4)
Items Nu 2.0 GDI-HEV
Displacement
cc (cu. in)1,999 (121.98)
Bore x Stroke mm (in.)81x97 (3.18x3.82)
Firing order1-3-4-2
No. of cylinders4, In-line
* : Only for Hybrid vehicle. Not for Plug-in Hybrid vehicle.

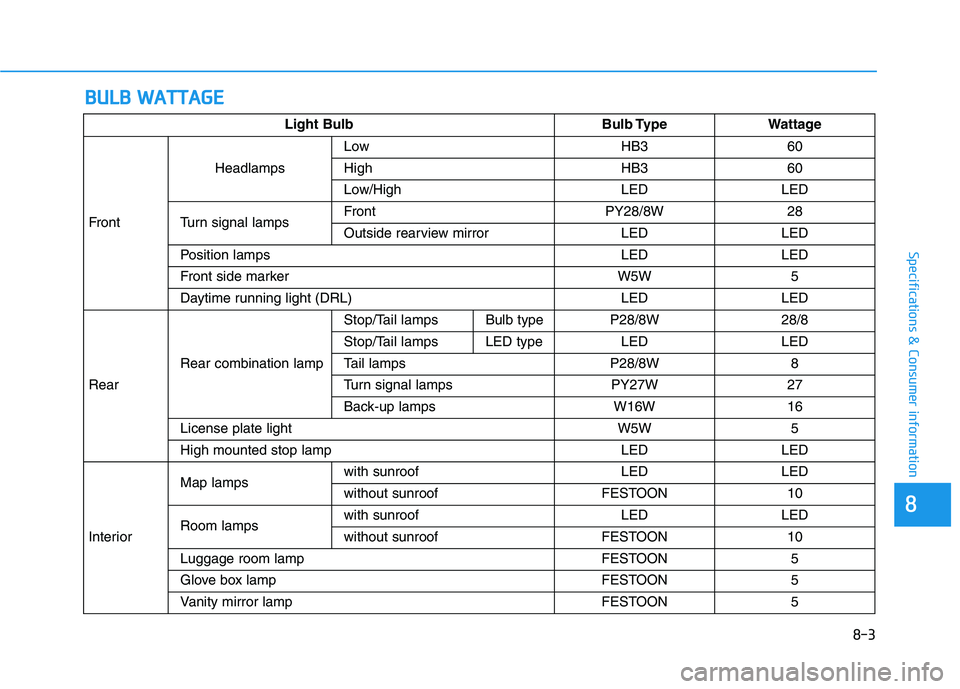

BBUU LLBB WW AATTTTAA GG EE
8-3
88
Specifications & Consumer information
Light BulbBulb TypeWattage
Front
Headlamps
Low HB360
HighHB360
Low/HighLEDLED
Turn signal lampsFrontPY28/8W28
Outside rearview mirrorLEDLED
Position lampsLEDLED
Front side markerW5W5
Daytime running light (DRL)LEDLED
Rear
Rear combination lamp
Stop/Tail lampsBulb typeP28/8W28/8
Stop/Tail lampsLED typeLEDLED
Tail lampsP28/8W8
Turn signal lampsPY27W27
Back-up lampsW16W16
License plate lightW5W5
High mounted stop lampLEDLED
Interior
Map lampswith sunroofLEDLED
without sunroofFESTOON10
Room lampswith sunroofLEDLED
without sunroofFESTOON10
Luggage room lampFESTOON5
Glove box lampFESTOON5
Vanity mirror lampFESTOON5

8-4
Specifications & Consumer information T

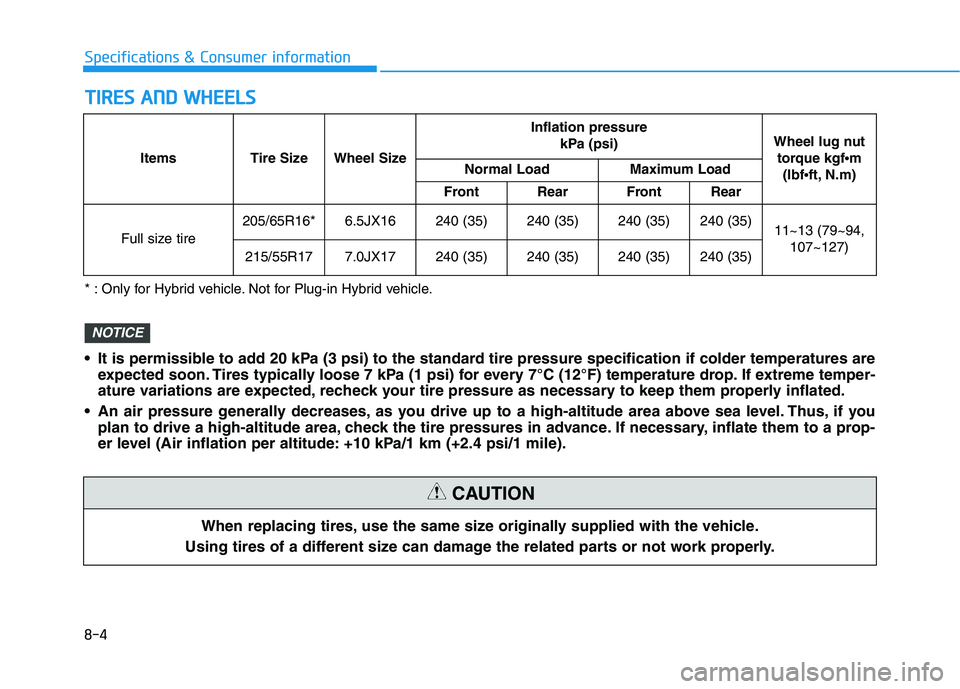

T IIRR EESS AA NN DD WW HHEEEELLSS
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
CAUTION
Items Tire SizeWheel Size
Inflation pressure kPa (psi)Wheel lug nuttorque kgf •m
(lbf ft, N.m)
Normal LoadMaximum Load
FrontRearFrontRear
Full size tire
205/65R16*6.5JX16240 (35)240 (35)240 (35)240 (35)11~13 (79~94,
107~127)
215/55R177.0JX17240 (35)240 (35)240 (35)240 (35)
* : Only for Hybrid vehicle. Not for Plug-in Hybrid vehicle.
• It is permissible to add 20 kPa (3 psi) to the standard tire pressure specification if colder temperatures areexpected soon. Tires typically loose 7 kPa (1 psi) for every 7°C (12°F) temperature drop. If extreme temper-
ature variations are expected, recheck your tire pressure as necessary to keep them properly inflated.
An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a prop-
er level (Air inflation per altitude: +10 kPa/1 km (+2.4 psi/1 mile).
NOTICE

VVOO LLUU MM EE AA NN DD WW EEIIGG HH TT
8-5
88
Specifications & Consumer information
AAIIRR CC OO NNDDIITT IIOO NNIINN GG SS YY SSTT EEMM
Contact an authorized HYUNDAI dealer for more details.
ItemsWeight of VolumeClassification
Refrigerant
g (oz.) 650 ± 25 (22.9 ± 0.8) R-134a
Compressor lubricantcc (oz.) 130 ± 10 (4.59 ± 0.35)POE (RB100EV)
ItemsHybridPlug-in hybrid
Gross vehicle weightkg (lbs.)2,100 (4,630)2,170 (4,784)
Luggage volume l(cu ft)380 (13.42)280 (9.89)

8-6
Specifications & Consumer information
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.

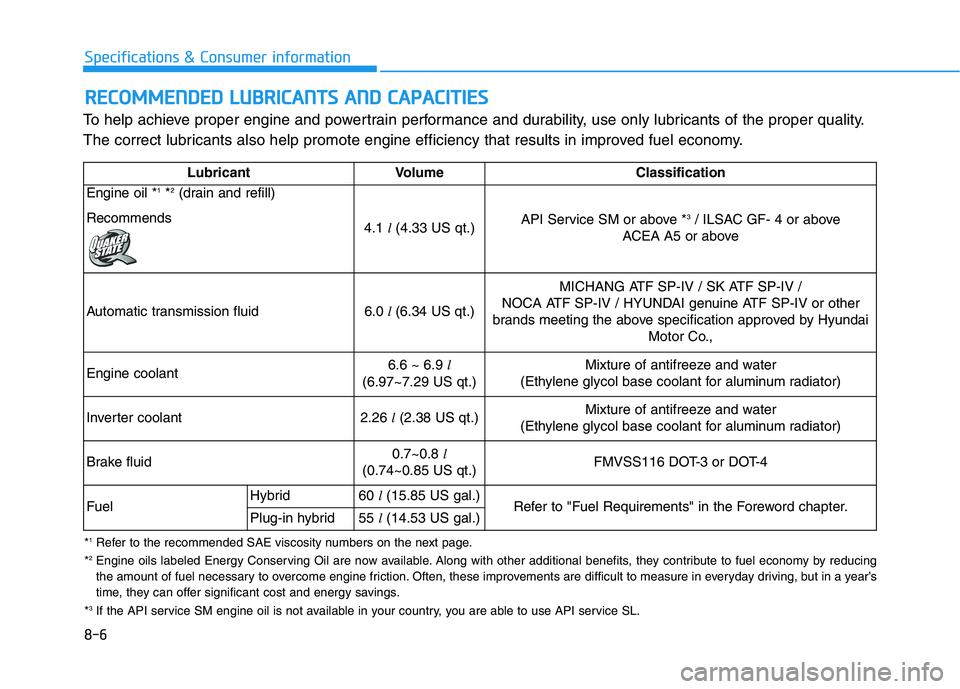

RREECCOO MM MMEENN DDEEDD LL UU BBRRIICC AA NN TTSS AA NN DD CC AA PPAA CCIITT IIEE SS
*1
Refer to the recommended SAE viscosity numbers on the next page.
* 2
Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econo my by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
* 3
If the API service SM engine oil is not available in your country, you are able to use API service SL. Lubricant
Volume Classification
Engine oil * 1
*2
(drain and refill)
Recommends
4.1 l(4.33 US qt.) API Service SM or above *
3
/ ILSAC GF- 4 or above
ACEA A5 or above
Automatic transmission fluid
6.0 l (6.34 US qt.) MICHANG ATF SP-IV / SK ATF SP-IV /
NOCA ATF SP-IV / HYUNDAI genuine ATF SP-IV or other
brands meeting the above specification approved by Hyundai Motor Co.,
Engine coolant6.6 ~ 6.9 l
(6.97~7.29 US qt.)Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminum radiator)
Inverter coolant
2.26 l(2.38 US qt.) Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminum radiator)
Brake fluid
0.7~0.8 l
(0.74~0.85 US qt.) FMVSS116 DOT-3 or DOT-4
FuelHybrid60
l(15.85 US gal.)Refer to "Fuel Requirements" in the Foreword chapter.Plug-in hybrid55 l(14.53 US gal.)

Recommended SAE viscosity
number
Always be sure to clean the area
around any filler plug, drain
plug, or dipstick before check-
ing or draining any lubricant.
This is especially important in
dusty or sandy areas and when
the vehicle is used on unpaved
roads. Cleaning the plug and
dipstick areas will prevent dirt
and grit from entering the
engine and other mechanisms
that could be damaged.
CAUTION
Engine oil viscosity (thickness) has an effect on fuel economy and cold
weather operating (engine start and engine oil flowability). Lower viscosity
engine oils can provide better fuel economy and cold weather performance,
however, higher viscosity engine oils are required for satisfactory lubrication
in hot weather. Using oils of any viscosity other than those recommended
could result in engine damage.
When choosing an oil, consider the range of temperature your vehicle will be
operated in before the next oil change. Proceed to select the recommended
oil viscosity from the chart.

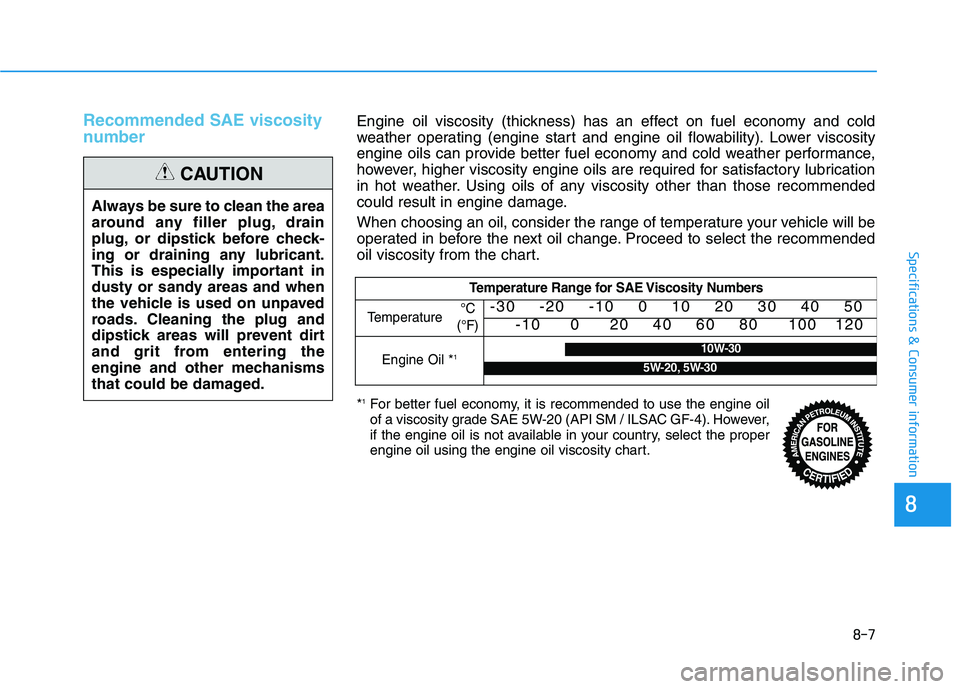

Temperature Range for SAE Viscosity Numbers
Temperature -30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Engine Oil *110W-30
5W-20, 5W-30
°C
(°F)
* 1
For better fuel economy, it is recommended to use the engine oil
of a viscosity grade SAE 5W-20 (API SM / ILSAC GF-4). However,
if the engine oil is not available in your country, select the proper
engine oil using the engine oil viscosity chart.
8-7
88
Specifications & Consumer information

8-8
Specifications & Consumer information V
VEEHH IICC LLEE CC EE RR TTIIFF IICC AA TTIIOO NN
L
L AA BBEELL
The vehicle identification number
(VIN) is the number used in register-
ing your car and in all legal matters
pertaining to its ownership, etc.
The number is punched on the floor
under the passenger seat. To check
the number, open the cover. The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily beseen through the windshield from
outside.
The vehicle certification label
attached on the driver’s side center
pillar gives the Vehicle IdentificationNumber (VIN).
VV
EEHH IICC LLEE IIDD EENN TTIIFF IICC AA TTIIOO NN NN UU MM BBEERR (( VV IINN ))
OLF084006N
■VIN label (if equipped)
OLF084001
■ Frame number
OLFH085002N
