2019 HYUNDAI SONATA HYBRID Owners Manual

3-33
Convenient features of your vehicle
3
Auto up/down window (if equipped)
Pressing or pulling up the power win-
dow switch momentarily to the sec-ond detent position (6) completely
lowers or lifts the window even when
the switch is released. To stop the
window at the desired position while
the window is in operation, pull up or
press down and release the switch.
To reset the power windows
If the power windows do not operate
normally, the automatic power win-
dow system must be reset as follows:
1. Place engine Start/Stop button is in the ON position.
2. Close the window and continue pulling up on the power window
switch for at least one second.
If the power windows do not operate
properly after resetting, have the
system checked by an authorized
HYUNDAI dealer.
Automatic reverse (if equipped)
If a window senses any obstacle while
it is closing automatically, it will stop
and lower approximately 30 cm (12
inches) to allow the object to becleared.
If the window detects the resistance
while the power window switch is
pulled up continuously, the window
will stop upward movement then
lower approximately 2.5 cm (1 inch).
If the power window switch is pulled
up continuously again within 5 sec-
onds after the window is lowered by
the automatic window reversal fea-
ture, the automatic window reversal
will not operate. Information
The automatic reverse feature is only
active when the "Auto Up" feature is
used by fully pulling up the switch to
the second detent.
i
OLF044032 Make sure body parts or other
objects are safely out of the way
before closing the windows to
avoid injuries or vehicle dam-
age. Objects less than 4 mm (0.16
inch) in diameter caught
between the window glass and
the upper window channel may
not be detected by the automat-
ic reverse window and the win-
dow will not stop and reversedirection.
WARNING

3-34
Convenient features of your vehicle

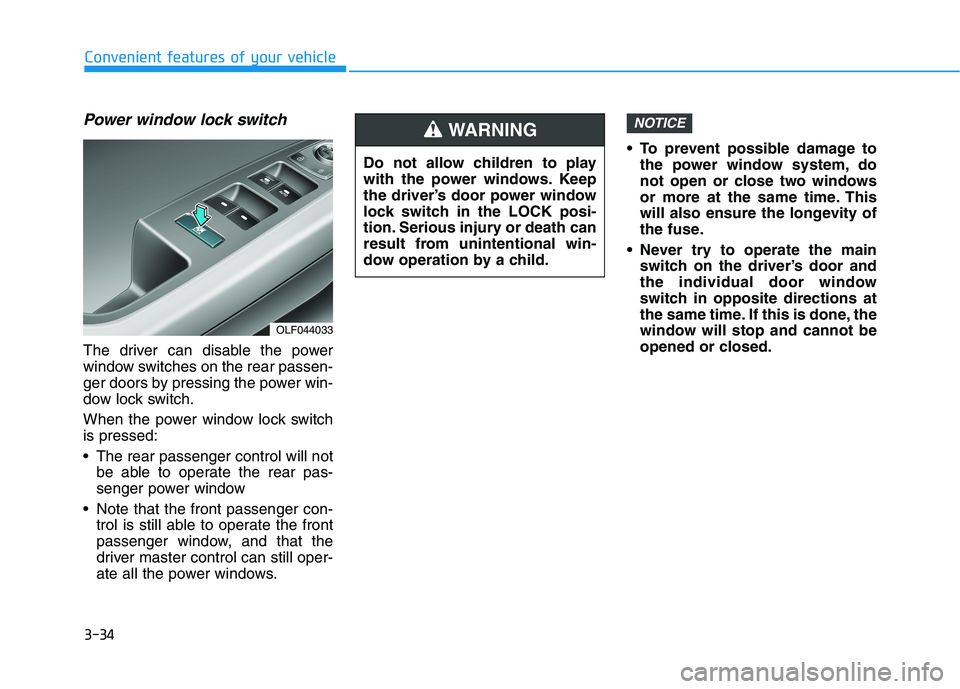

Power window lock switch
The driver can disable the power
window switches on the rear passen-
ger doors by pressing the power win-
dow lock switch.
When the power window lock switch is pressed:
The rear passenger control will notbe able to operate the rear pas-
senger power window
Note that the front passenger con- trol is still able to operate the front
passenger window, and that the
driver master control can still oper-
ate all the power windows. To prevent possible damage to
the power window system, do
not open or close two windows
or more at the same time. This
will also ensure the longevity of
the fuse.
Never try to operate the main switch on the driver’s door and
the individual door window
switch in opposite directions at
the same time. If this is done, the
window will stop and cannot be
opened or closed.
NOTICE
OLF044033 Do not allow children to play
with the power windows. Keep
the driver’s door power window
lock switch in the LOCK posi-
tion. Serious injury or death can
result from unintentional win-
dow operation by a child.
WARNING

3-35
Convenient features of your vehicle
3
If your vehicle is equipped with a
sunroof, you can slide or tilt your
sunroof with the sunroof control lever
located on the overhead console.
The Engine Start/Stop button must
be in the ON position before you can
open or close the sunroof.
The sunroof can be operated for
approximately 30 seconds after the
ignition key is removed or turned to
the ACC or LOCK (or OFF) position.
However, if the front doors are opened, the sunroof cannot be oper-
ated even within the 30 seconds.Information
 In cold and wet climates, the sun- roof may not work properly due to
freezing conditions.
 After the vehicle is washed or in a rainstorm, be sure to wipe off any
water that is on the sunroof before
operating it.
Do not continue to move the sun-roof control lever after the sun-
roof is fully opened, closed, or
tilted. Damage to the motor or
system components could occur.
Make sure the sunroof is closed fully when leaving your vehicle.
If the sunroof is open, rain or
snow may leak through the sun-
roof and wet the interior as well
as allow theft.
NOTICE
i
PPAA NN OO RRAA MM AA SS UU NNRROO OOFF (( IIFF EE QQ UUIIPP PP EEDD ))
OLF047034
Never adjust the sunroof or
sunshade while driving. This
could result in loss of control
and an accident that may
cause death, serious injury, or
property damage.
Make sure heads, other body
parts or objects are out of the
way before using the sunroof.
Do not extend your head, arms
or body outside the sunroof
while driving, to avoid serious
injury.
Do not leave the engine run-
ning and the key in your vehi-
cle with unsupervised children.
(Continued)
(Continued)
Unattended children could
operate the sunroof, which
could result in serious injury.
The panorama sunroof is made
of glass, subject to break in
case of accident. Passengers
without the appropriate protec-
tion(e.g. seat belt, CRS, etc.) on
may project out through the
broken glasses and get seri-
ously injured or even result indeath.
Do not sit on the top of the
vehicle. It may cause injuries or
vehicle damage.
WARNING

3-36
Convenient features of your vehicle

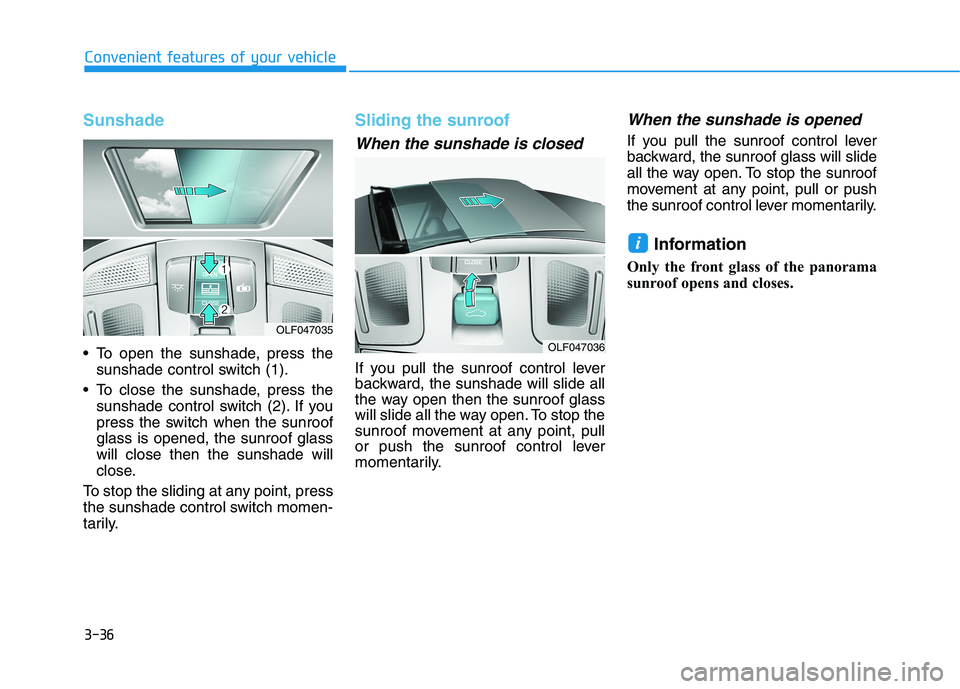

Sunshade
To open the sunshade, press thesunshade control switch (1).
To close the sunshade, press the sunshade control switch (2). If you
press the switch when the sunroofglass is opened, the sunroof glasswill close then the sunshade will
close.
To stop the sliding at any point, press
the sunshade control switch momen-
tarily.
Sliding the sunroof
When the sunshade is closed
If you pull the sunroof control lever
backward, the sunshade will slide all
the way open then the sunroof glass
will slide all the way open. To stop the
sunroof movement at any point, pull
or push the sunroof control lever
momentarily.
When the sunshade is opened
If you pull the sunroof control lever
backward, the sunroof glass will slide
all the way open. To stop the sunroof
movement at any point, pull or push
the sunroof control lever momentarily.
Information
Only the front glass of the panorama
sunroof opens and closes.
i
OLF047035
OLF047036

3-37
Convenient features of your vehicle
3
Tilting the sunroof
When the sunshade is closed
If you push the sunroof control lever
upward, the sunshade will slide openthen the sunroof glass will tilt.
To stop the sunroof movement at any point, pull or push the sunroof control
lever momentarily.
When the sunshade is opened
If you push the sunroof control lever
upward, the sunroof glass will tilt.
To stop the sunroof movement at any point, pull or push the sunroof control
lever momentarily.
Closing the sunroof
Press the sunshade CLOSE button. The sunroof glass will close then the
sunshade will close. To stop the sun-
roof movement at any point, press the
sunshade control switch momentarily.
If you want to close the sunroof glass
only, push the sunroof control lever.The sunroof glass will close and the
sunshade will not close. To stop the
sunroof movement at any point, pull
or push the sunroof control lever
momentarily.
Automatic reverse
If an object or part of the body isdetected while the sunroof glass or
sunshade is closing automatically, it
will reverse the direction, and then
stop.
The auto reverse function does not
work if a tiny obstacle is between thesliding glass or sunshade and the
sunroof sash. You should always
check that all passengers and
objects are away from the sunroof
before closing it.
OLF047038
OLF047037
ODH043039

3-38
Convenient features of your vehicle
Periodically remove any dirt thatmay accumulate on the sunroof guide rail or between the sun-
roof and roof panel, which can
make a noise.
Do not try to open the sunroof when the temperature is below
freezing or when the sunroof is
covered with snow or ice, other-wise the motor could be dam-
aged. In cold and wet climates,
the sunroof may not work prop-
erly.

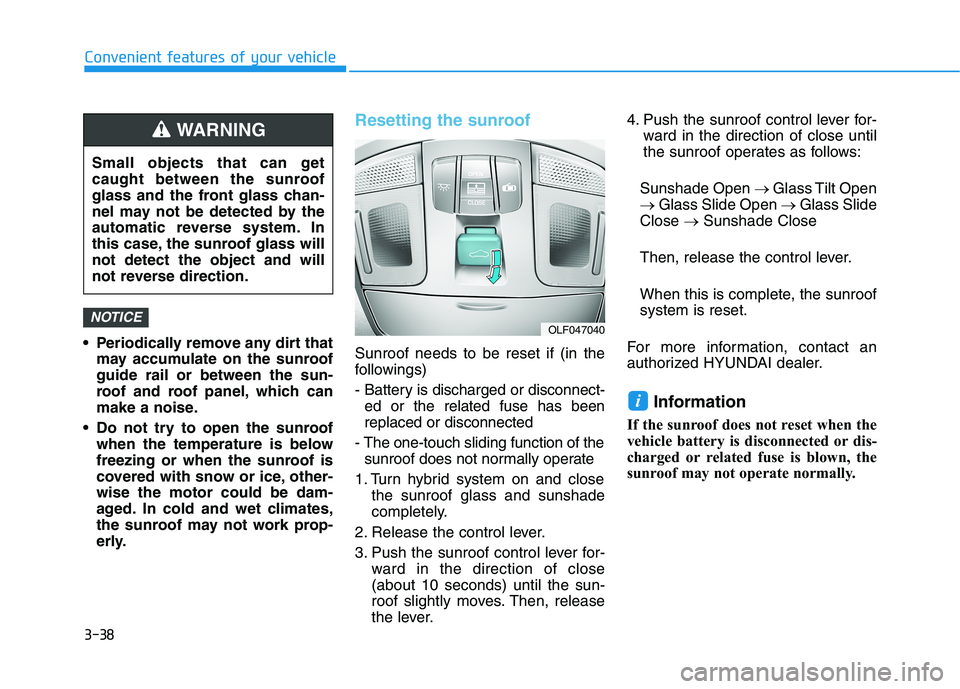

Resetting the sunroof
Sunroof needs to be reset if (in the
followings)
- Battery is discharged or disconnect-ed or the related fuse has been replaced or disconnected
- The one-touch sliding function of the sunroof does not normally operate
1. Turn hybrid system on and close the sunroof glass and sunshade
completely.
2. Release the control lever.
3. Push the sunroof control lever for- ward in the direction of close (about 10 seconds) until the sun-
roof slightly moves. Then, release
the lever. 4. Push the sunroof control lever for-
ward in the direction of close until
the sunroof operates as follows:
Sunshade Open Glass Tilt Open
Glass Slide Open Glass Slide
Close Sunshade Close
Then, release the control lever.
When this is complete, the sunroof system is reset.
For more information, contact an
authorized HYUNDAI dealer.
Information
If the sunroof does not reset when the
vehicle battery is disconnected or dis-
charged or related fuse is blown, the
sunroof may not operate normally.
i
NOTICE
Small objects that can get
caught between the sunroof
glass and the front glass chan-
nel may not be detected by the
automatic reverse system. In
this case, the sunroof glass willnot detect the object and will
not reverse direction.
WARNING
OLF047040

3-39
Convenient features of your vehicle
3

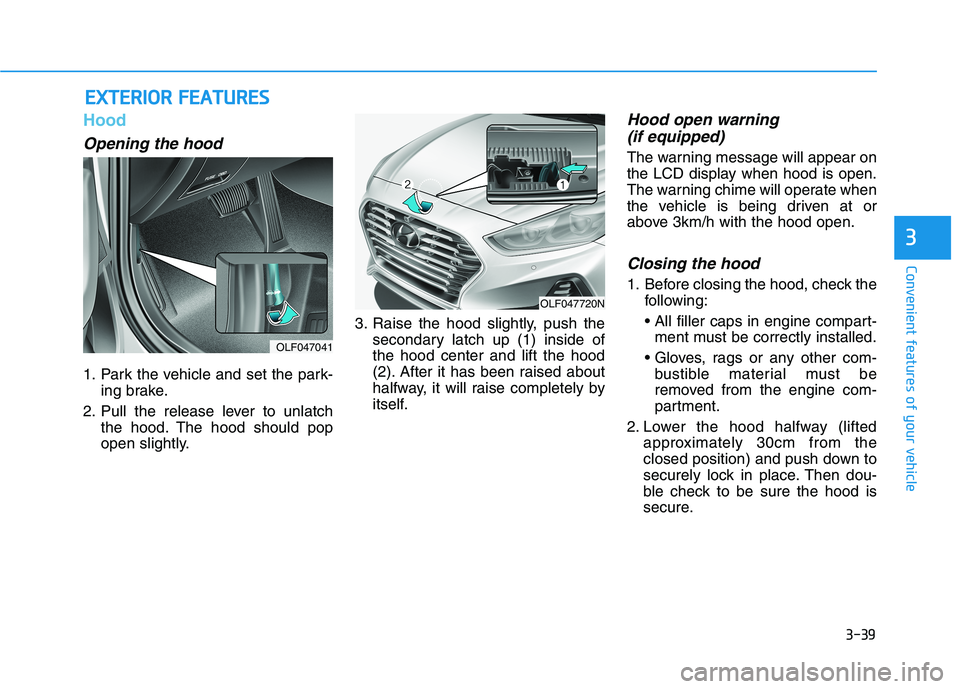

Hood
Opening the hood
1. Park the vehicle and set the park-ing brake.
2. Pull the release lever to unlatch the hood. The hood should pop
open slightly. 3. Raise the hood slightly, push the
secondary latch up (1) inside ofthe hood center and lift the hood
(2). After it has been raised about
halfway, it will raise completely by
itself.
Hood open warning
(if equipped)
The warning message will appear on
the LCD display when hood is open.
The warning chime will operate when
the vehicle is being driven at or
above 3km/h with the hood open.
Closing the hood
1. Before closing the hood, check the following:
ment must be correctly installed.
bustible material must be
removed from the engine com-
partment.
2. Lower the hood halfway (lifted approximately 30cm from the
closed position) and push down to
securely lock in place. Then dou-
ble check to be sure the hood is
secure.
EEXX TTEERR IIOO RR FF EE AA TTUU RREESS
OLF047041
OLF047720N

3-40
Convenient features of your vehicle

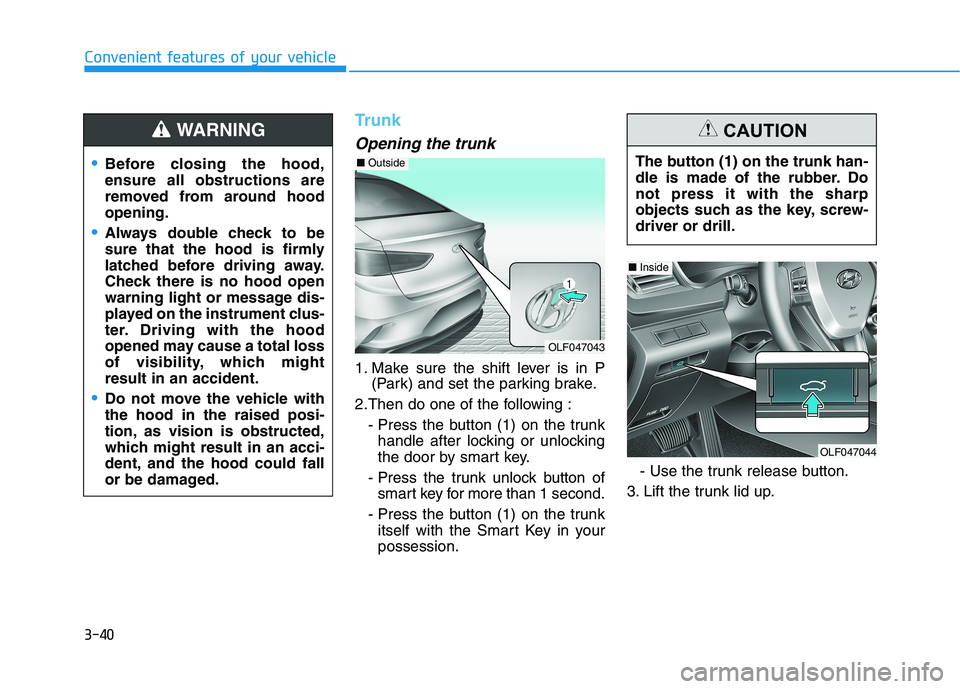

Trunk
Opening the trunk
1. Make sure the shift lever is in P(Park) and set the parking brake.
2.Then do one of the following : - Press the button (1) on the trunkhandle after locking or unlocking
the door by smart key.
- Press the trunk unlock button of smart key for more than 1 second.
- Press the button (1) on the trunk itself with the Smart Key in yourpossession. - Use the trunk release button.
3. Lift the trunk lid up.
Before closing the hood, ensure all obstructions are
removed from around hoodopening.
Always double check to be
sure that the hood is firmly
latched before driving away.
Check there is no hood open
warning light or message dis-
played on the instrument clus-
ter. Driving with the hood
opened may cause a total loss
of visibility, which mightresult in an accident.
Do not move the vehicle with the hood in the raised posi-
tion, as vision is obstructed,
which might result in an acci-
dent, and the hood could fall
or be damaged.
WARNING
OLF047043
■ Outside
The button (1) on the trunk han-
dle is made of the rubber. Donot press it with the sharp
objects such as the key, screw-driver or drill.
CAUTION
OLF047044
■Inside
