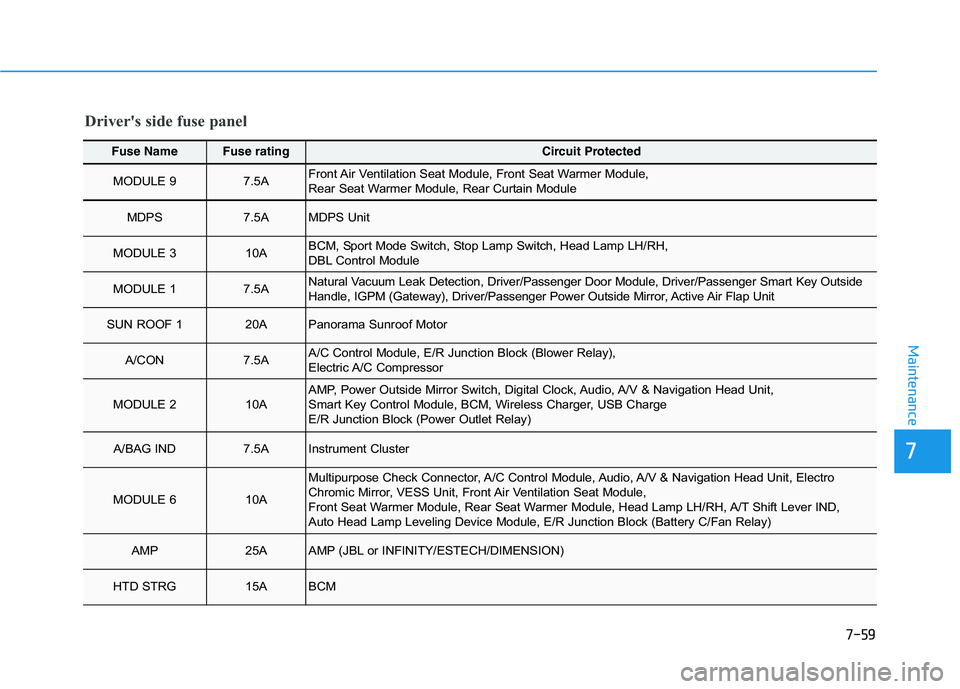

2019 HYUNDAI SONATA HYBRID Owners Manual

7-59
7
Maintenance
Fuse NameFuse ratingCircuit Protected
MODULE 9 7.5AFront Air Ventilation Seat Module, Front Seat Warmer Module,
Rear Seat Warmer Module, Rear Curtain Module
MDPS 7.5AMDPS Unit
MODULE 3 10ABCM, Sport Mode Switch, Stop Lamp Switch, Head Lamp LH/RH,
DBL Control Module
MODULE 1 7.5ANatural Vacuum Leak Detection, Driver/Passenger Door Module, Driver/Passenger Smart Key Outside
Handle, IGPM (Gateway), Driver/Passenger Power Outside Mirror, Active Air Flap Unit
SUN ROOF 1 20APanorama Sunroof Motor
A/CON 7.5AA/C Control Module, E/R Junction Block (Blower Relay),
Electric A/C Compressor
MODULE 2 10AAMP, Power Outside Mirror Switch, Digital Clock, Audio, A/V & Navigation Head Unit,
Smart Key Control Module, BCM, Wireless Charger, USB Charge
E/R Junction Block (Power Outlet Relay)
A/BAG IND 7.5AInstrument Cluster
MODULE 610A
Multipurpose Check Connector, A/C Control Module, Audio, A/V & N avigation Head Unit, Electro
Chromic Mirror, VESS Unit, Front Air Ventilation Seat Module,
Front Seat Warmer Module, Rear Seat Warmer Module, Head Lamp LH/ RH, A/T Shift Lever IND,
Auto Head Lamp Leveling Device Module, E/R Junction Block (Battery C/Fan Relay)
AMP25AAMP (JBL or INFINITY/ESTECH/DIMENSION)
HTD STRG 15ABCM
Driver's side fuse panel

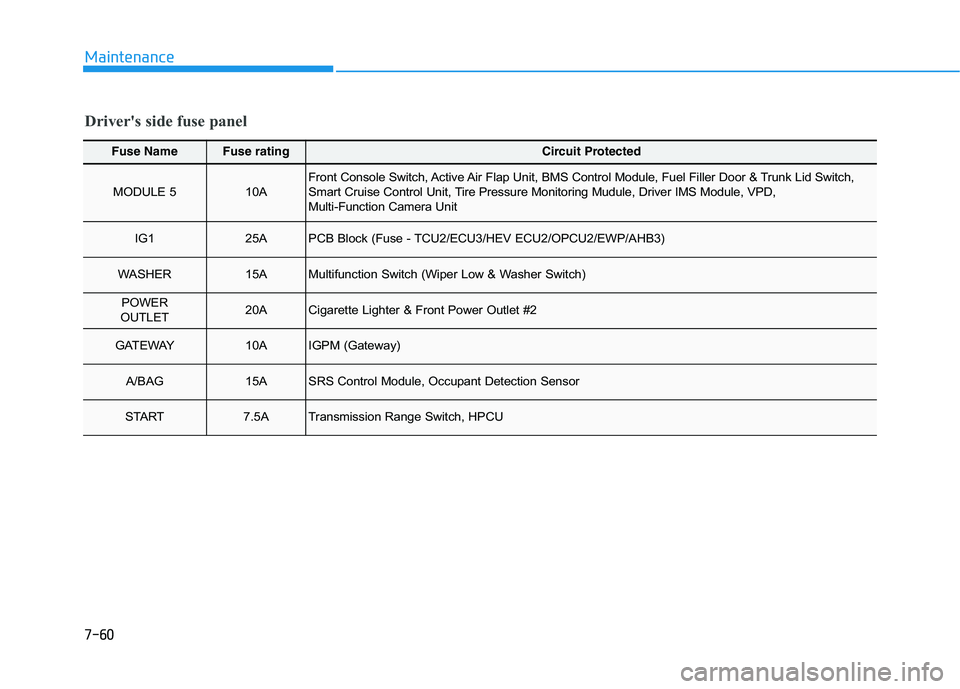

7-60
Maintenance
Fuse NameFuse ratingCircuit Protected
MODULE 510AFront Console Switch, Active Air Flap Unit, BMS Control Module, Fuel Filler Door & Trunk Lid Switch,
Smart Cruise Control Unit, Tire Pressure Monitoring Mudule, Driver IMS Module, VPD,
Multi-Function Camera Unit
IG1 25APCB Block (Fuse - TCU2/ECU3/HEV ECU2/OPCU2/EWP/AHB3)
WASHER 15AMultifunction Switch (Wiper Low & Washer Switch)
POWER
OUTLET20ACigarette Lighter & Front Power Outlet #2
GATEWAY10AIGPM (Gateway)
A/BAG 15ASRS Control Module, Occupant Detection Sensor
START7.5ATransmission Range Switch, HPCU
Driver's side fuse panel

Instrument panel fuse (Plug-in hybrid)
Inside the fuse/relay box cover, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse box on your vehicle, refer to
the fuse box label.
i
7-61
7
MaintenanceOLF074027
OLFP077120N

Engine compartment fuse panel(Hybrid)
Inside the fuse/relay box cover, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse panel in your vehicle, refer to
the fuse panel label.
i
7-62
Maintenance
OLFH077132N
OLFH074016

7-63
7
Maintenance
Engine compartment main fuse panel
Fuse No.Fuse NameFuse RatingCircuit Protected
MULTI FUSE(TYPE A)
IG230APCB Block (IG2 Relay)
BLOWER40ABlower Relay
2AHB40AIntegrated Brake Actuation Unit, Multipurpose Check Connector
1AHB40AIntegrated Brake Actuation Unit, Multipurpose Check Connector
REAR HEATED50ARear Heated Relay
3B+50AIGPM (IPS2 (4CH), IPS3 (4CH), Fuse - STOP LAMP/MODULE 1)
5
B+50APCM Block
(Fuse - WIPER1/HORN/BATTERY C/FAN/AMS/TCU1/ECU2/Engine Control Relay)
EEWP60AElectric Water Pump
MDPS 180AMDPS Unit
MULTI FUSE
(TYPE B)
IG140APCB Block (IG1Relay)
3POWER
OUTLET
40APower Outlet Relay

7-64
Maintenance
Engine compartment main fuse panel
Fuse No.Fuse NameFuse RatingCircuit Protected
MULTI FUSE(TYPE B)
2B+50AIGPM (IPS1 (4CH), IPS4 (1CH), IPS5 (4CH), IPS6 (2CH), IPS7 (1CH), Fuse - AMP)
1B+60AIGPM (Fuse - P/SEAT DRV/P/SEAT PASS/S/HEATER RR/SUNROOF1/SUNROOF2/
SAFETY POWER WINDOW LH/ SAFETY POWER WINDOW RH/TRUNK/CURTAIN/
MODULE1/Power Window Relay)
COOLING
FA N60ACooling Fan Relay
FUSE
FUEL PUMP20AFuel Pump Relay
1OPCU20AElectric Oil Pump Unit
1
HEV ECU10AHPCU
H/LAMP HI20AHead Lamp High Relay
4B+40AIGPM (Leak Current Autocut Device Fuse - INTERIOR LAMP/MEMORY1/MEMORY2/
MULTI MEDIA, 40A Fuse -BRAKE SWITCH/SMART KEY/S/HEATER FRT/
BATTERY MANAGEMENT/DR LOCK)
2EPB30AElectric Parking Brake Module
1
EPB30AElectric Parking Brake Module

7-65
7
Maintenance
Fuse NameRelay NameType
E42Cooling Fan Relay3725 MINI
E45Battery C/FAN RelayISO MICRO
E46Fuel Pump RelayISO MICRO
E47Head Lamp High RelayISO MICRO
E48H/LAMP Washer RelayISO MICRO
E49Blower RelayISO MICRO
E50Power Outlet RelayISO MICRO
E52Rear Heated Relay3725 MINI
Engine compartment main fuse panel - E/R Junction Block

7-66
Maintenance
Engine compartment main fuse panel - PCB Block
Fuse NameFuse ratingCircuit Protected
ECU 310APCM
HEV ECU 210AHPCU
POWER
OUTLET 120AFront Power Outlet #1
HORN20AHorn Relay, ICM Relay Box (Burglar Alarm Horn Relay)
WIPER 130AWiper Power Relay
BATTERY C/FAN15AE/R Junction Block (Battery C/Fan Relay)
TCU 215ATransmission Range Switch, Electric Water Pump (Engine)
AHB 310AIntegrated Brake Actuation Unit
POWER
OUTLET 220ARear Power Outlet
B/UP LAMP10APCM, Transmission Range Switch, Electro Chromic Mirror, Rear Combination Lamp (In) LH/RH
SENSOR 115AOxygen Sensor (Up)/(Down)
