2019 HYUNDAI SONATA HYBRID Owners Manual

H14
CCHH AARRGG IINN GG TT HH EE PP LLUU GG--IINN HH YY BBRRIIDD VV EEHH IICC LLEE (( CC OO NNTT..))

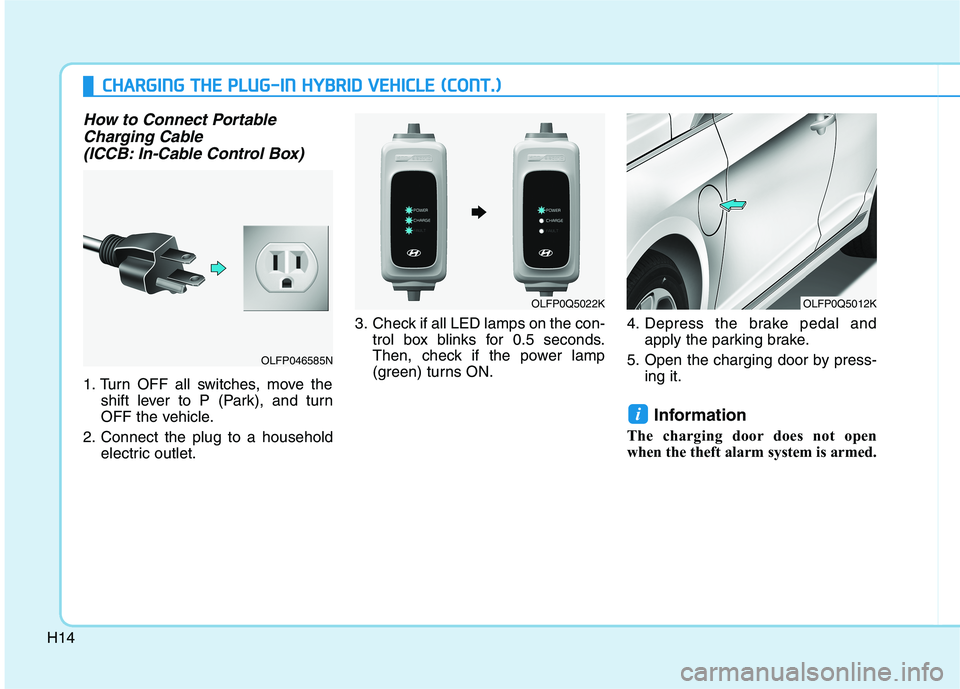

How to Connect Portable
Charging Cable
(ICCB: In-Cable Control Box)
1. Turn OFF all switches, move the shift lever to P (Park), and turn
OFF the vehicle.
2. Connect the plug to a household electric outlet. 3. Check if all LED lamps on the con-
trol box blinks for 0.5 seconds.
Then, check if the power lamp
(green) turns ON. 4. Depress the brake pedal and
apply the parking brake.
5. Open the charging door by press- ing it.
Information
The charging door does not open
when the theft alarm system is armed.
i
OLFP0Q5022KOLFP0Q5012K
OLFP046585N

H15

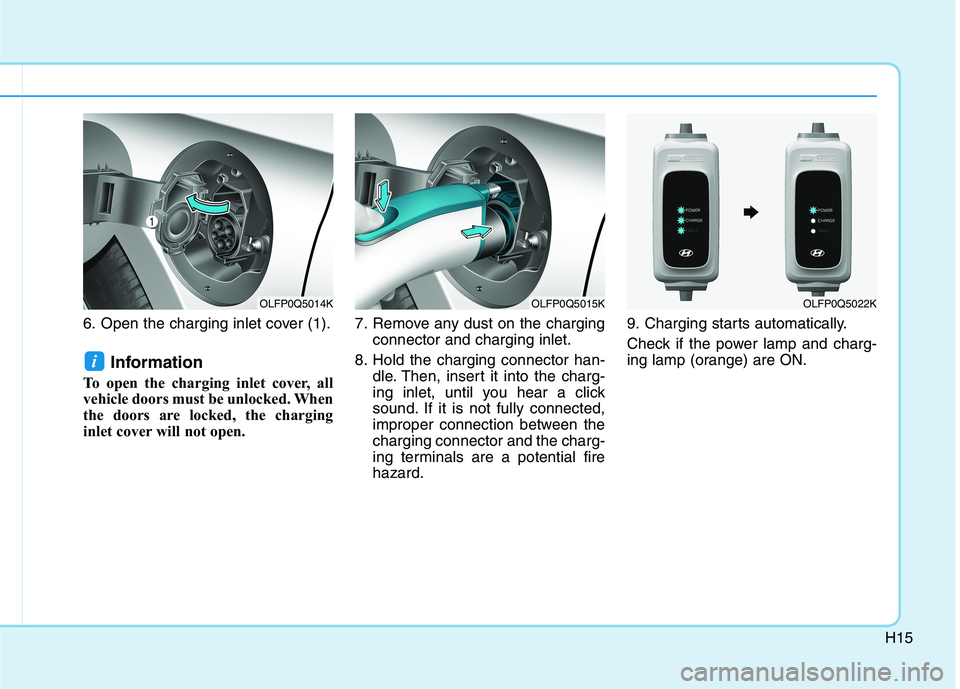

6. Open the charging inlet cover (1).Information
To open the charging inlet cover, all
vehicle doors must be unlocked. When
the doors are locked, the charging
inlet cover will not open. 7. Remove any dust on the charging
connector and charging inlet.
8. Hold the charging connector han- dle. Then, insert it into the charg-
ing inlet, until you hear a click
sound. If it is not fully connected,
improper connection between thecharging connector and the charg-
ing terminals are a potential firehazard. 9. Charging starts automatically.
Check if the power lamp and charg-
ing lamp (orange) are ON.
i
OLFP0Q5015KOLFP0Q5022KOLFP0Q5014K

H16
CCHH AARRGG IINN GG TT HH EE PP LLUU GG--IINN HH YY BBRRIIDD VV EEHH IICC LLEE (( CC OO NNTT..))

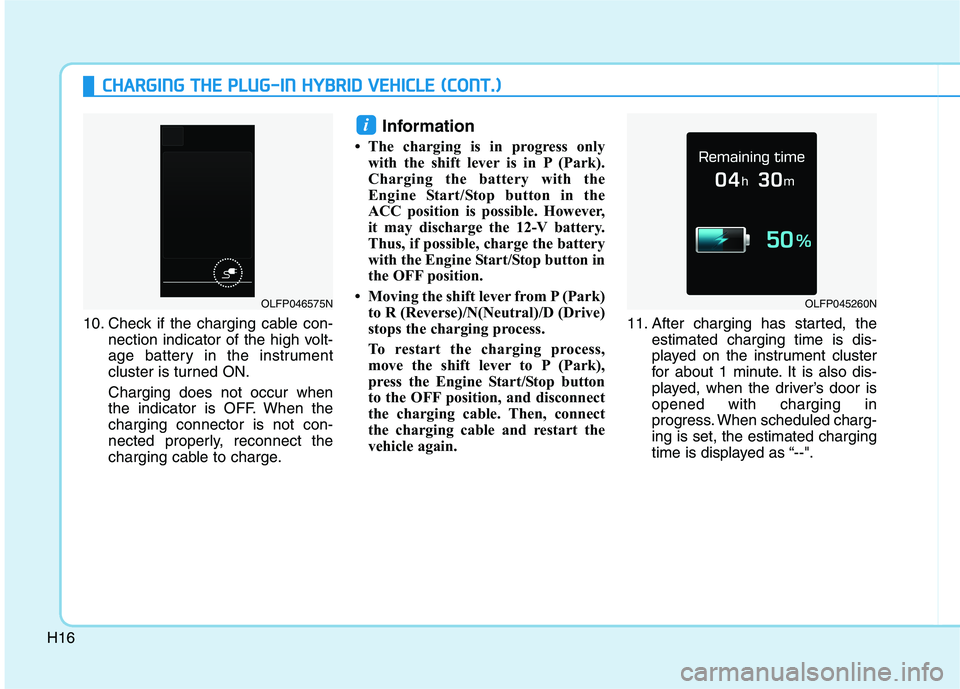

10. Check if the charging cable con-
nection indicator of the high volt-
age battery in the instrument
cluster is turned ON.
Charging does not occur when
the indicator is OFF. When thecharging connector is not con-
nected properly, reconnect the
charging cable to charge. Information
 The charging is in progress only with the shift lever is in P (Park).
Charging the battery with the
Engine Start/Stop button in the
ACC position is possible. However,
it may discharge the 12-V battery.
Thus, if possible, charge the battery
with the Engine Start/Stop button in
the OFF position.
 Moving the shift lever from P (Park) to R (Reverse)/N(Neutral)/D (Drive)
stops the charging process.
To restart the charging process,
move the shift lever to P (Park),
press the Engine Start/Stop button
to the OFF position, and disconnect
the charging cable. Then, connect
the charging cable and restart the
vehicle again. 11. After charging has started, the
estimated charging time is dis-
played on the instrument cluster
for about 1 minute. It is also dis-
played, when the driver’s door isopened with charging in
progress. When scheduled charg-ing is set, the estimated charging
time is displayed as “--".
i
OLFP045260NOLFP046575N

H17

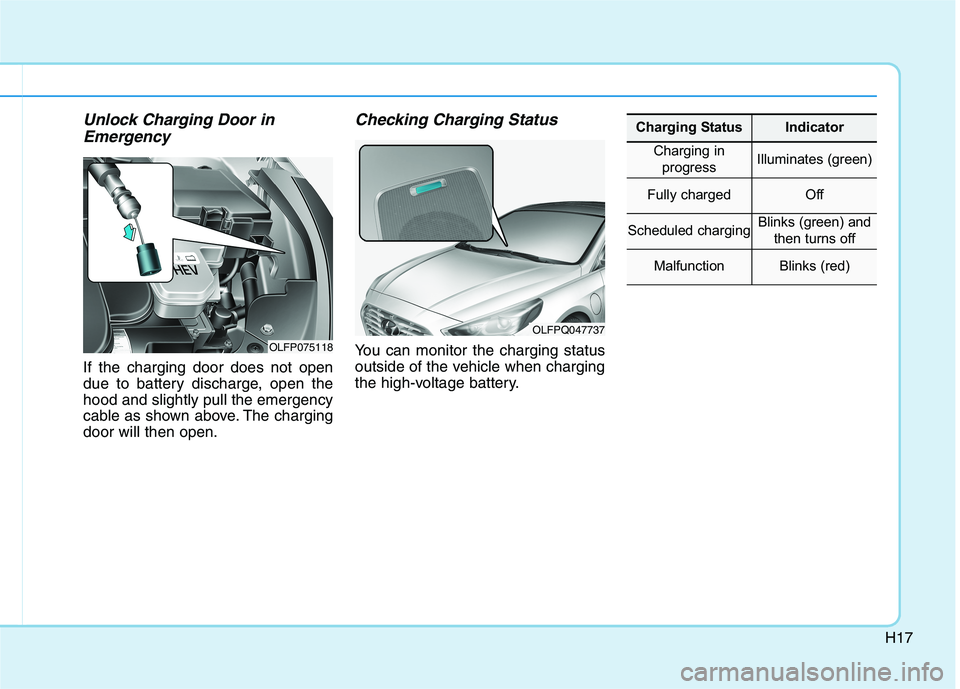

Unlock Charging Door inEmergency
If the charging door does not open
due to battery discharge, open thehood and slightly pull the emergency
cable as shown above. The chargingdoor will then open.
Checking Charging Status
You can monitor the charging status
outside of the vehicle when charging
the high-voltage battery.OLFP075118
OLFPQ047737
Charging StatusIndicator
Charging in progressIlluminates (green)
Fully chargedOff
Scheduled chargingBlinks (green) and then turns off
MalfunctionBlinks (red)

H18
CCHH AARRGG IINN GG TT HH EE PP LLUU GG--IINN HH YY BBRRIIDD VV EEHH IICC LLEE (( CC OO NNTT..))
Charger StatusControl Box
ON/OFF StatusPowerChargeFaultStatus / Diagnosis / Countermeasure
Initial Preparation ModeWhen applying power to the initial ICCB wall
Charging Preparation
Mode--
When ICCB charging connector is not connected
to the vehicle, or connected but charging status
is in Standby mode
Charging Mode-Charging
Failure
ICCCB failure or
electrical leak-
age detected-
Stop charging immediately and contact an
authorized HYUNDAI dealer for ICCB check.
-
CategoryLamp ONLamp OFFBlinking
LED Status-
Charging Status Indicator Lamp for Portable Charging Cable
OLFP0Q5025K
OLFP0Q5024K
OLFP0Q5023K
OLFP0Q5026K

H19

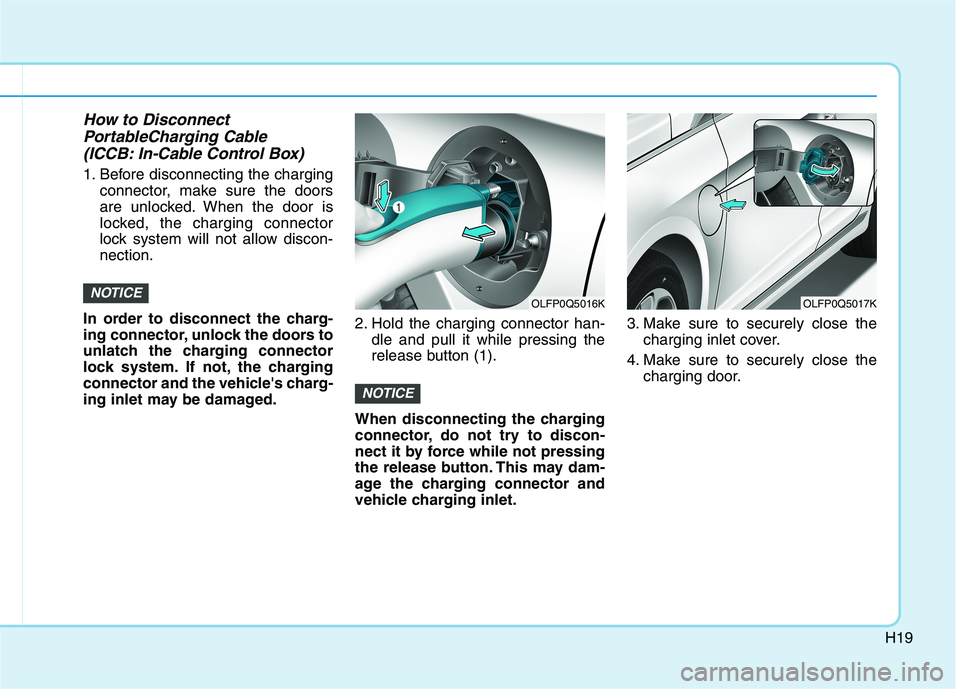

How to DisconnectPortableCharging Cable
(ICCB: In-Cable Control Box)
1. Before disconnecting the charging connector, make sure the doors
are unlocked. When the door is
locked, the charging connector
lock system will not allow discon-nection.
In order to disconnect the charg-
ing connector, unlock the doors to
unlatch the charging connector
lock system. If not, the charging
connector and the vehicle's charg-
ing inlet may be damaged. 2. Hold the charging connector han-
dle and pull it while pressing the
release button (1).
When disconnecting the charging
connector, do not try to discon-
nect it by force while not pressing
the release button. This may dam-
age the charging connector and
vehicle charging inlet. 3. Make sure to securely close the
charging inlet cover.
4. Make sure to securely close the charging door.
NOTICE
NOTICEOLFP0Q5016KOLFP0Q5017K

H20
CCHH AARRGG IINN GG TT HH EE PP LLUU GG--IINN HH YY BBRRIIDD VV EEHH IICC LLEE (( CC OO NNTT..))

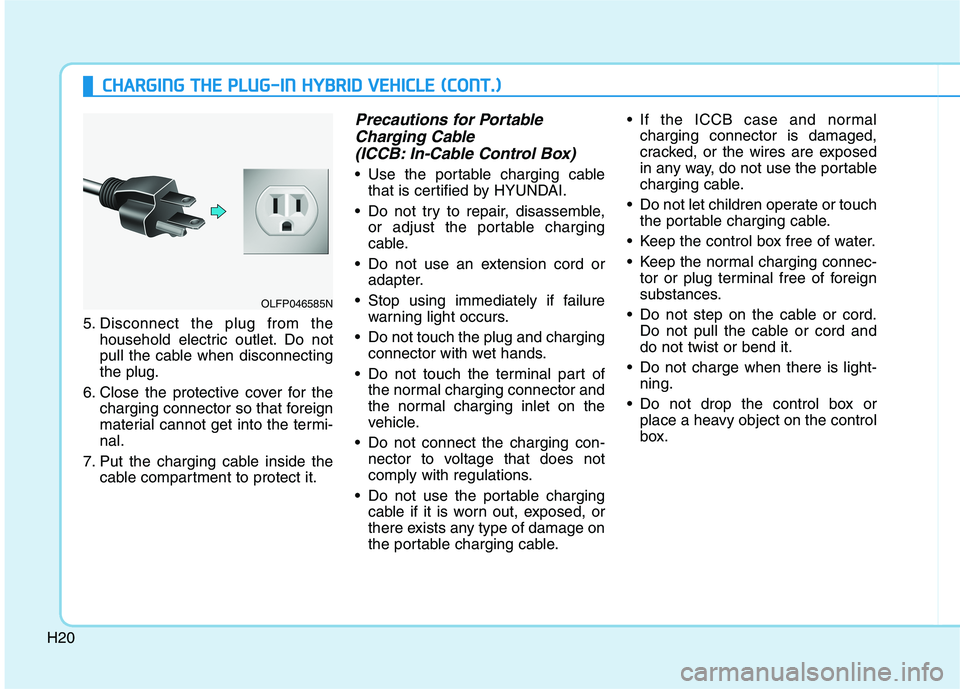

5. Disconnect the plug from the
household electric outlet. Do not
pull the cable when disconnectingthe plug.
6. Close the protective cover for the charging connector so that foreign
material cannot get into the termi-nal.
7. Put the charging cable inside the cable compartment to protect it.
Precautions for Portable
Charging Cable
(ICCB: In-Cable Control Box)
Use the portable charging cable that is certified by HYUNDAI.
Do not try to repair, disassemble, or adjust the portable charging
cable.
Do not use an extension cord or adapter.
Stop using immediately if failure warning light occurs.
Do not touch the plug and charging connector with wet hands.
Do not touch the terminal part of the normal charging connector and
the normal charging inlet on the
vehicle.
Do not connect the charging con- nector to voltage that does not
comply with regulations.
Do not use the portable charging cable if it is worn out, exposed, or
there exists any type of damage on
the portable charging cable. If the ICCB case and normal
charging connector is damaged,
cracked, or the wires are exposed
in any way, do not use the portable
charging cable.
Do not let children operate or touch the portable charging cable.
Keep the control box free of water.
Keep the normal charging connec- tor or plug terminal free of foreign
substances.
Do not step on the cable or cord. Do not pull the cable or cord anddo not twist or bend it.
Do not charge when there is light- ning.
Do not drop the control box or place a heavy object on the control
box.
OLFP046585N

H21

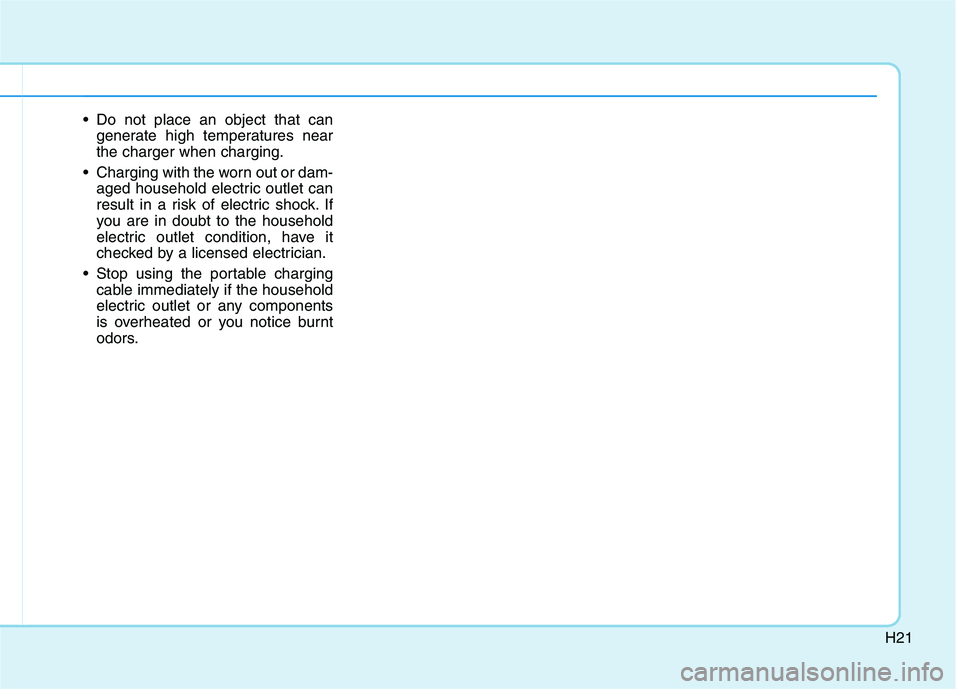

Do not place an object that cangenerate high temperatures near the charger when charging.
Charging with the worn out or dam- aged household electric outlet can
result in a risk of electric shock. If
you are in doubt to the household
electric outlet condition, have it
checked by a licensed electrician.
Stop using the portable charging cable immediately if the household
electric outlet or any components
is overheated or you notice burnt
odors.
