2019 HYUNDAI SONATA HYBRID Owners Manual

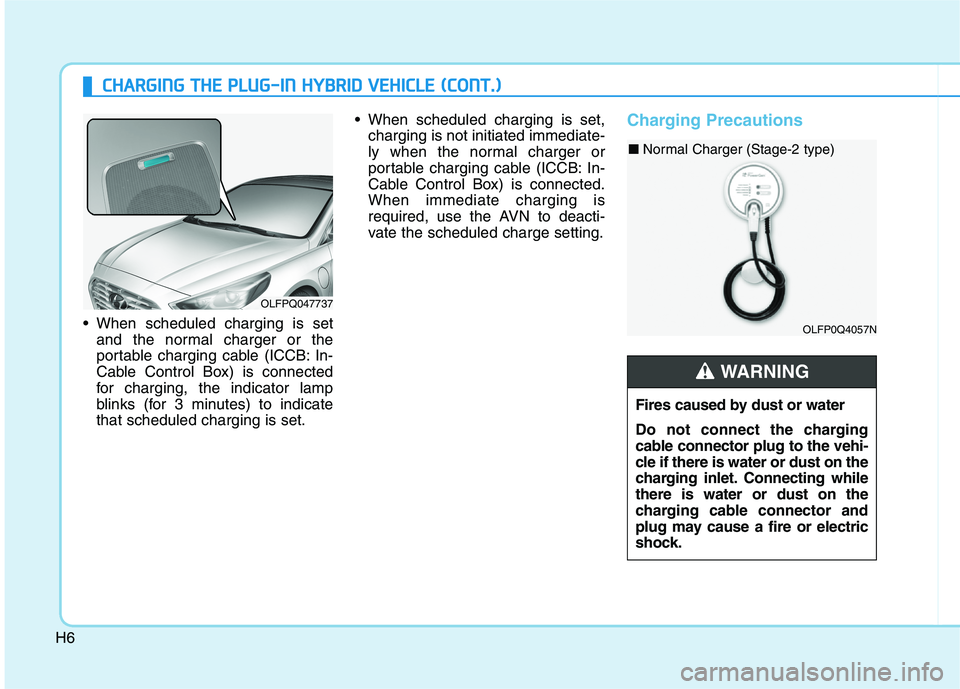

H6
CCHH AARRGG IINN GG TT HH EE PP LLUU GG--IINN HH YY BBRRIIDD VV EEHH IICC LLEE (( CC OO NNTT..))
When scheduled charging is set
and the normal charger or the
portable charging cable (ICCB: In-
Cable Control Box) is connected
for charging, the indicator lamp
blinks (for 3 minutes) to indicatethat scheduled charging is set. When scheduled charging is set,
charging is not initiated immediate-
ly when the normal charger or
portable charging cable (ICCB: In-
Cable Control Box) is connected.When immediate charging is
required, use the AVN to deacti-
vate the scheduled charge setting.
Charging Precautions
OLFP0Q4057N
■
Normal Charger (Stage-2 type)
Fires caused by dust or water
Do not connect the charging
cable connector plug to the vehi-
cle if there is water or dust on the
charging inlet. Connecting whilethere is water or dust on the
charging cable connector and
plug may cause a fire or electric
shock.
WARNING
OLFPQ047737

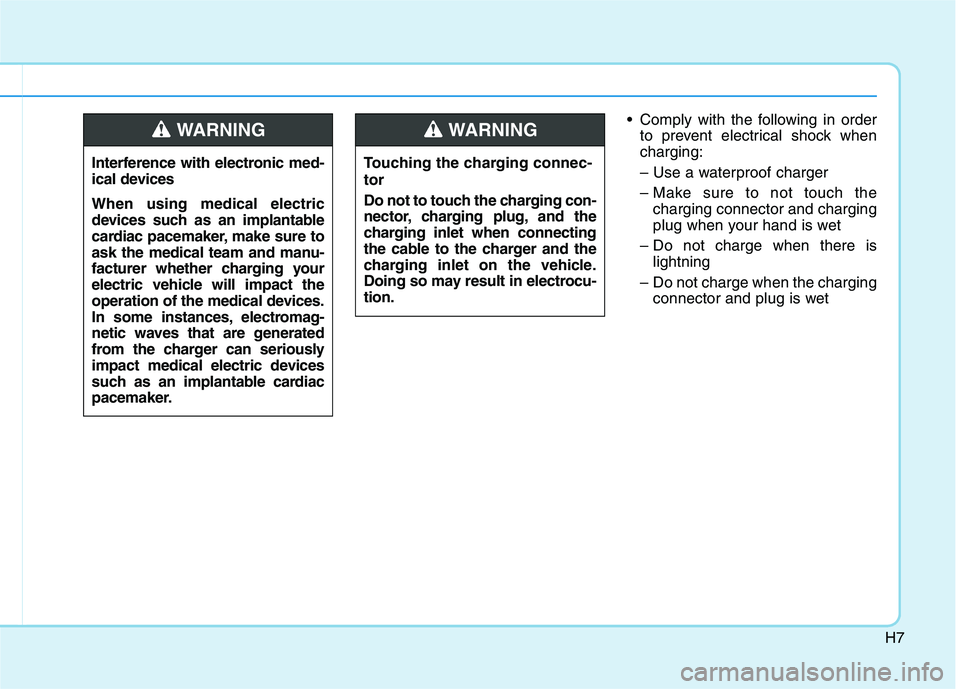

H7
Comply with the following in orderto prevent electrical shock when charging:
– Use a waterproof charger
– Make sure to not touch thecharging connector and charging
plug when your hand is wet
– Do not charge when there is lightning
– Do not charge when the charging connector and plug is wet
Touching the charging connec- tor
Do not to touch the charging con-
nector, charging plug, and the
charging inlet when connecting
the cable to the charger and the
charging inlet on the vehicle.
Doing so may result in electrocu-tion.WARNING
Interference with electronic med-
ical devices When using medical electric
devices such as an implantable
cardiac pacemaker, make sure to
ask the medical team and manu-
facturer whether charging your
electric vehicle will impact the
operation of the medical devices.
In some instances, electromag-
netic waves that are generated
from the charger can seriously
impact medical electric devices
such as an implantable cardiac
pacemaker.
WARNING

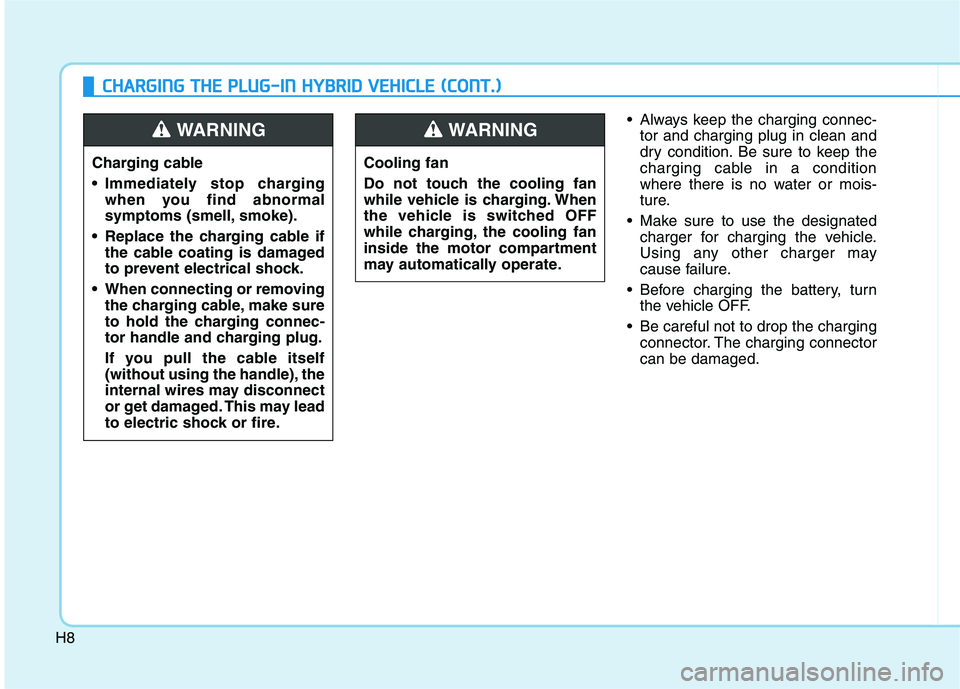

H8
CCHH AARRGG IINN GG TT HH EE PP LLUU GG--IINN HH YY BBRRIIDD VV EEHH IICC LLEE (( CC OO NNTT..))
Always keep the charging connec-
tor and charging plug in clean and
dry condition. Be sure to keep the
charging cable in a condition
where there is no water or mois-
ture.
Make sure to use the designated charger for charging the vehicle.
Using any other charger may
cause failure.
Before charging the battery, turn the vehicle OFF.
Be careful not to drop the charging connector. The charging connectorcan be damaged.
Cooling fan
Do not touch the cooling fan
while vehicle is charging. When
the vehicle is switched OFF
while charging, the cooling fan
inside the motor compartment
may automatically operate.WARNING
Charging cable
Immediately stop charging
when you find abnormal
symptoms (smell, smoke).
Replace the charging cable if the cable coating is damaged
to prevent electrical shock.
When connecting or removing the charging cable, make sure
to hold the charging connec-
tor handle and charging plug.
If you pull the cable itself
(without using the handle), the
internal wires may disconnect
or get damaged. This may lead
to electric shock or fire.
WARNING

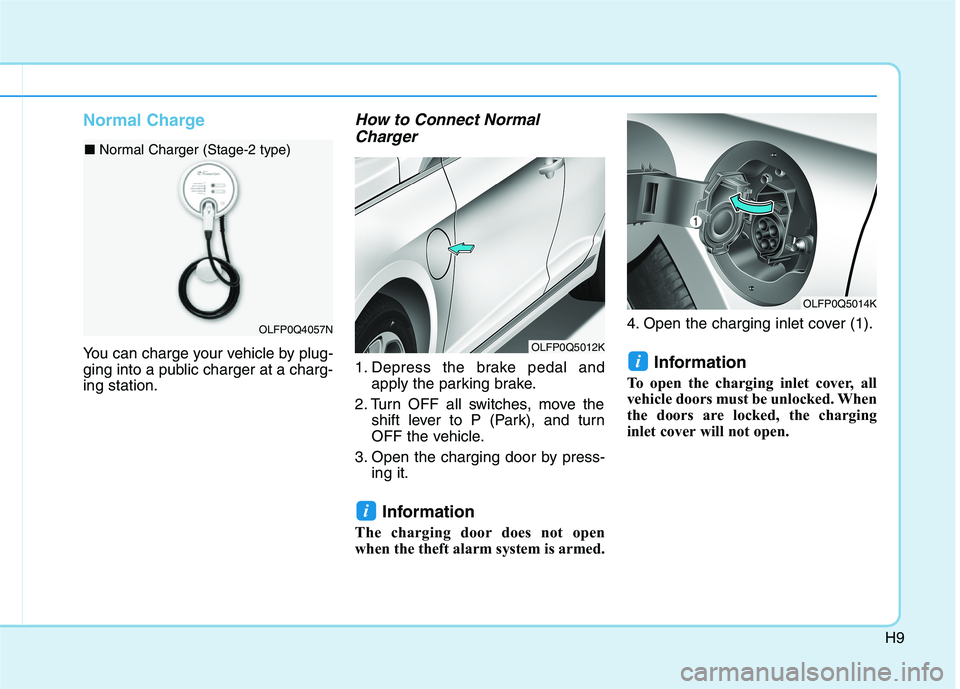

H9
Normal Charge
You can charge your vehicle by plug-
ging into a public charger at a charg-ing station.
How to Connect NormalCharger
1. Depress the brake pedal and apply the parking brake.
2. Turn OFF all switches, move the shift lever to P (Park), and turn
OFF the vehicle.
3. Open the charging door by press- ing it.
Information
The charging door does not open
when the theft alarm system is armed. 4. Open the charging inlet cover (1).
Information
To open the charging inlet cover, all
vehicle doors must be unlocked. When
the doors are locked, the charging
inlet cover will not open. i
i
OLFP0Q4057N
■
Normal Charger (Stage-2 type)
OLFP0Q5012K
OLFP0Q5014K

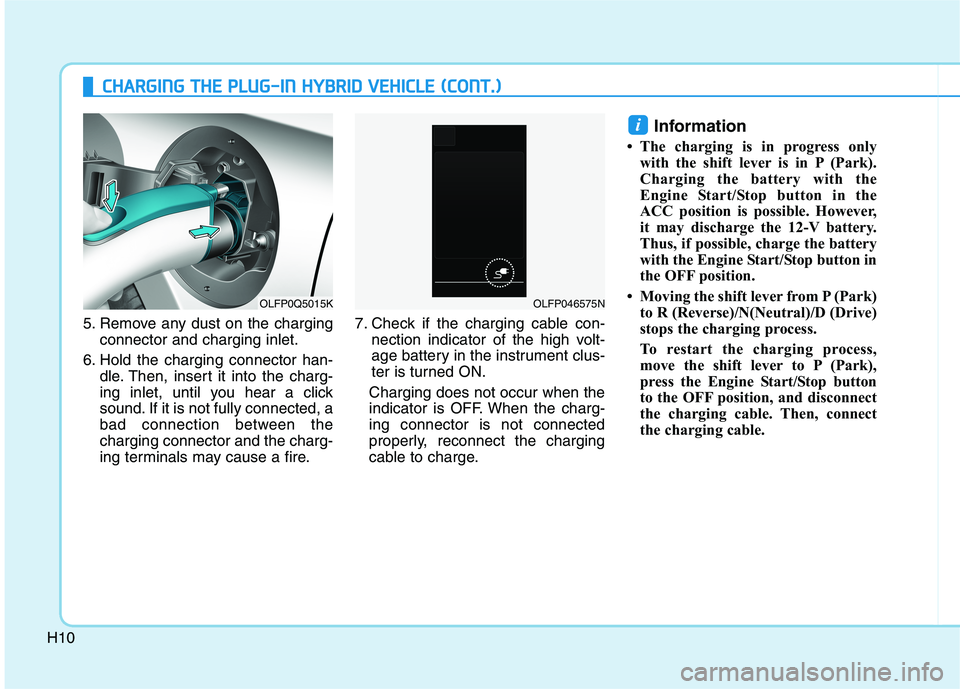

H10
CCHH AARRGG IINN GG TT HH EE PP LLUU GG--IINN HH YY BBRRIIDD VV EEHH IICC LLEE (( CC OO NNTT..))
5. Remove any dust on the charging
connector and charging inlet.
6. Hold the charging connector han- dle. Then, insert it into the charg-
ing inlet, until you hear a click
sound. If it is not fully connected, a
bad connection between thecharging connector and the charg-
ing terminals may cause a fire. 7. Check if the charging cable con-
nection indicator of the high volt-
age battery in the instrument clus-
ter is turned ON.
Charging does not occur when the
indicator is OFF. When the charg-ing connector is not connected
properly, reconnect the charging
cable to charge. Information
 The charging is in progress only with the shift lever is in P (Park).
Charging the battery with the
Engine Start/Stop button in the
ACC position is possible. However,
it may discharge the 12-V battery.
Thus, if possible, charge the battery
with the Engine Start/Stop button in
the OFF position.
 Moving the shift lever from P (Park) to R (Reverse)/N(Neutral)/D (Drive)
stops the charging process.
To restart the charging process,
move the shift lever to P (Park),
press the Engine Start/Stop button
to the OFF position, and disconnect
the charging cable. Then, connect
the charging cable.
i
OLFP0Q5015KOLFP046575N

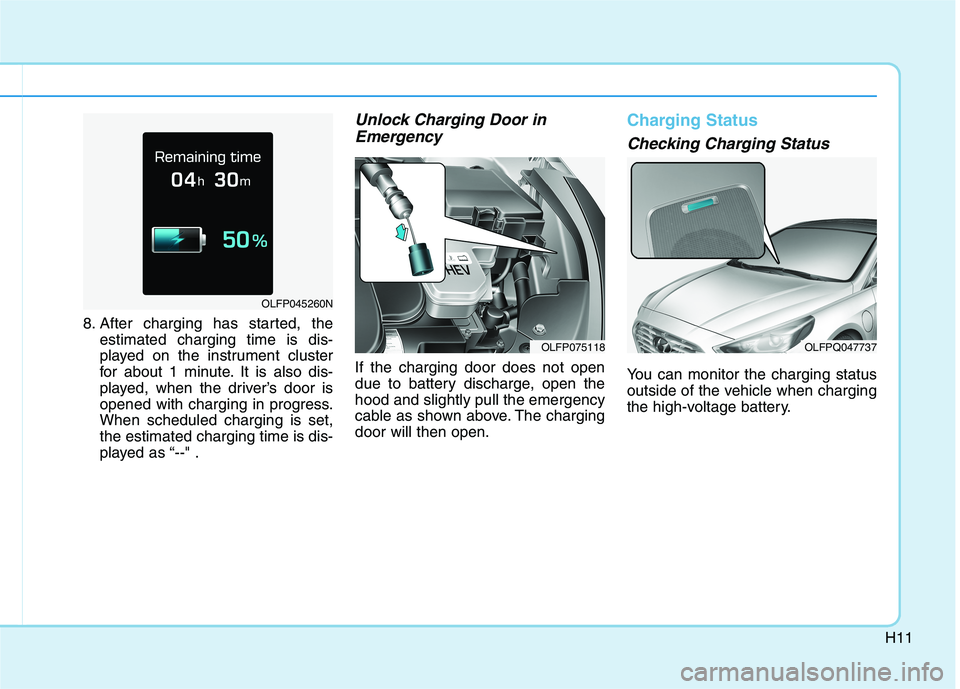

H11
8. After charging has started, theestimated charging time is dis-
played on the instrument cluster
for about 1 minute. It is also dis-
played, when the driver’s door is
opened with charging in progress.When scheduled charging is set,the estimated charging time is dis-
played as “--" .
Unlock Charging Door in
Emergency
If the charging door does not open
due to battery discharge, open thehood and slightly pull the emergency
cable as shown above. The chargingdoor will then open.
Charging Status
Checking Charging Status
You can monitor the charging status
outside of the vehicle when charging
the high-voltage battery.
OLFP075118
OLFP045260N
OLFPQ047737

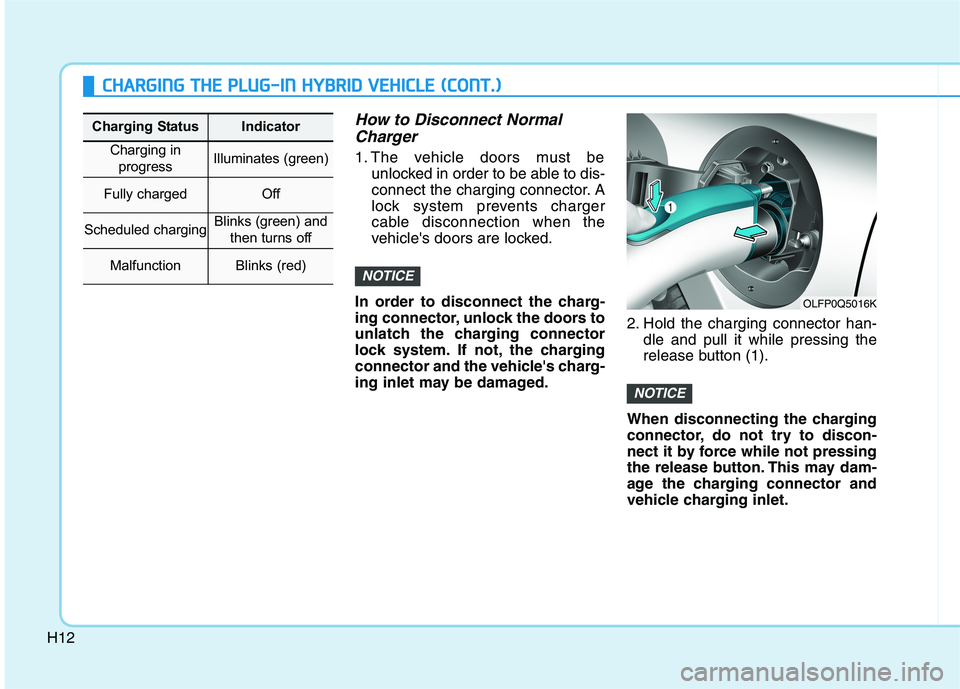

H12
CCHH AARRGG IINN GG TT HH EE PP LLUU GG--IINN HH YY BBRRIIDD VV EEHH IICC LLEE (( CC OO NNTT..))
How to Disconnect Normal
Charger
1. The vehicle doors must be unlocked in order to be able to dis-
connect the charging connector. A
lock system prevents charger
cable disconnection when the
vehicle's doors are locked.
In order to disconnect the charg-
ing connector, unlock the doors to
unlatch the charging connector
lock system. If not, the charging
connector and the vehicle's charg-
ing inlet may be damaged. 2. Hold the charging connector han-
dle and pull it while pressing the
release button (1).
When disconnecting the charging
connector, do not try to discon-
nect it by force while not pressing
the release button. This may dam-
age the charging connector and
vehicle charging inlet.
NOTICE
NOTICE
OLFP0Q5016K
Charging StatusIndicator
Charging in progressIlluminates (green)
Fully chargedOff
Scheduled chargingBlinks (green) and then turns off
MalfunctionBlinks (red)

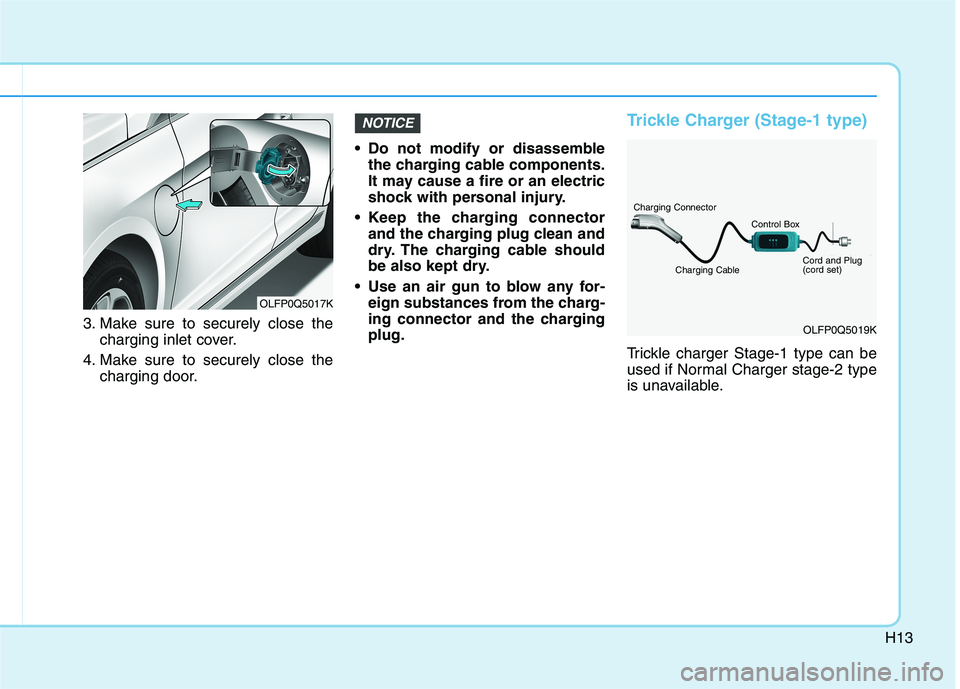

H13
3. Make sure to securely close thecharging inlet cover.
4. Make sure to securely close the charging door. Do not modify or disassemble
the charging cable components.
It may cause a fire or an electric
shock with personal injury.
Keep the charging connector and the charging plug clean and
dry. The charging cable should
be also kept dry.
Use an air gun to blow any for- eign substances from the charg-
ing connector and the chargingplug.
Trickle Charger (Stage-1 type)
Trickle charger Stage-1 type can be
used if Normal Charger stage-2 type
is unavailable.
NOTICE
OLFP0Q5019K
Charging Connector
Charging Cable
Control Box
Cord and Plug (cord set)
OLFP0Q5017K
