Page 57 of 526

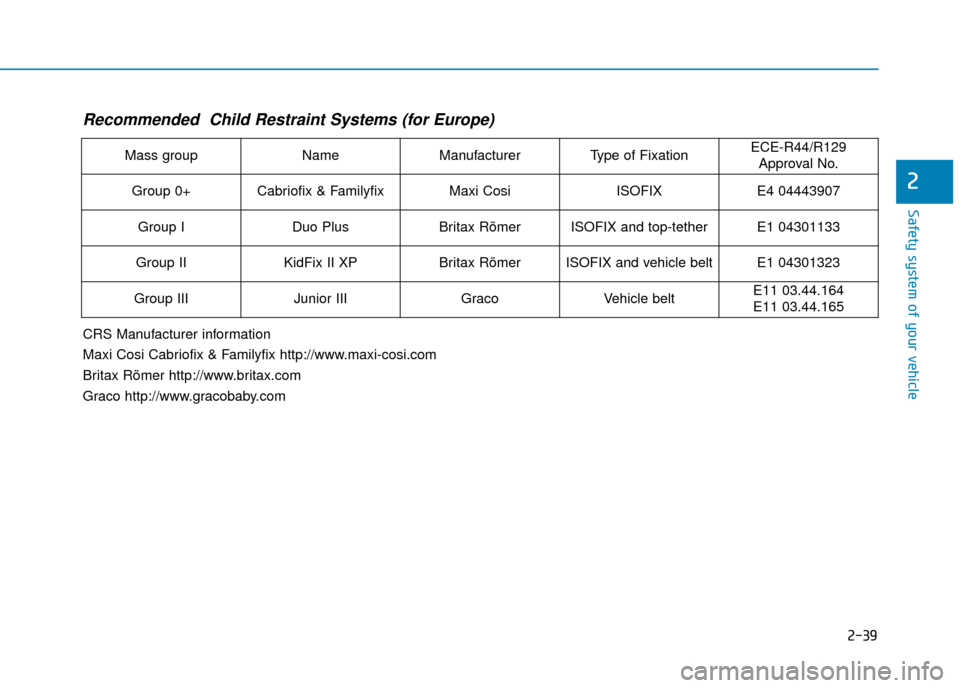

2-39
Safety system of your vehicle
2
Recommended Child Restraint Systems (for Europe)
Mass groupNameManufacturerType of FixationECE-R44/R129Approval No.
Group 0+Cabriofix & FamilyfixMaxi CosiISOFIXE4 04443907
Group IDuo PlusBritax RömerISOFIX and top-tetherE1 04301133
Group IIKidFix II XP Britax RömerISOFIX and vehicle beltE1 04301323
Group IIIJunior IIIGracoVehicle beltE11 03.44.164
E11 03.44.165
CRS Manufacturer information
Maxi Cosi Cabriofix & Familyfix http://www.maxi-cosi.com
Britax Römer http://www.britax.com
Graco http://www.gracobaby.com
Page 58 of 526

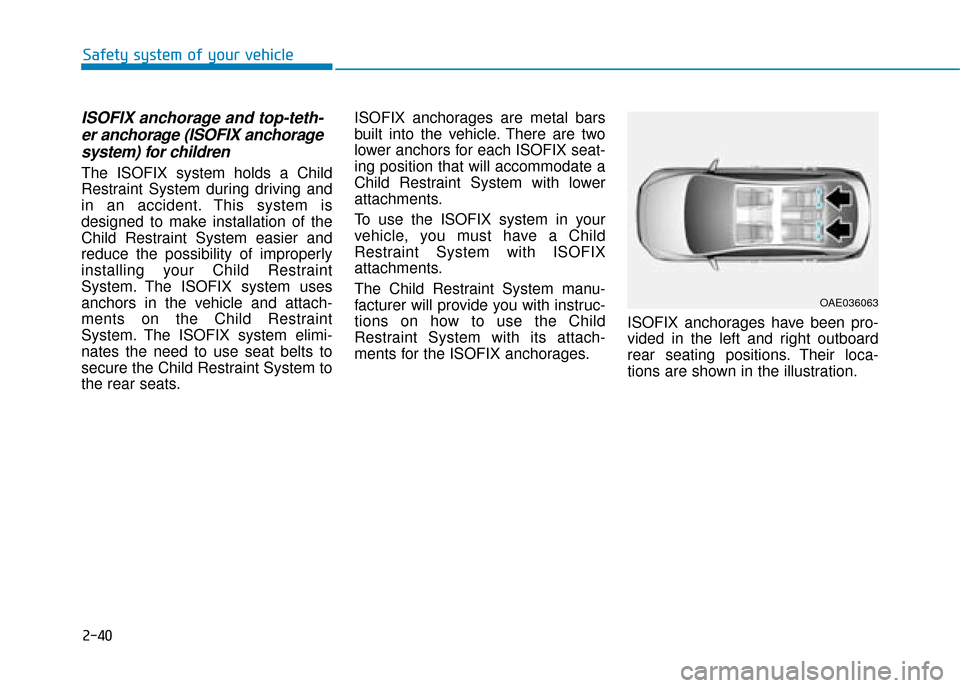

2-40
Safety system of your vehicle
ISOFIX anchorage and top-teth-er anchorage (ISOFIX anchoragesystem) for children
The ISOFIX system holds a Child
Restraint System during driving and
in an accident. This system is
designed to make installation of the
Child Restraint System easier and
reduce the possibility of improperly
installing your Child Restraint
System. The ISOFIX system uses
anchors in the vehicle and attach-
ments on the Child Restraint
System. The ISOFIX system elimi-
nates the need to use seat belts to
secure the Child Restraint System to
the rear seats. ISOFIX anchorages are metal bars
built into the vehicle. There are two
lower anchors for each ISOFIX seat-
ing position that will accommodate a
Child Restraint System with lower
attachments.
To use the ISOFIX system in your
vehicle, you must have a Child
Restraint System with ISOFIX
attachments.
The Child Restraint System manu-
facturer will provide you with instruc-
tions on how to use the Child
Restraint System with its attach-
ments for the ISOFIX anchorages.
ISOFIX anchorages have been pro-
vided in the left and right outboard
rear seating positions. Their loca-
tions are shown in the illustration.
OAE036063
Page 59 of 526
![Hyundai Kona 2019 Owners Manual - RHD (UK, Australia) 2-41
Safety system of your vehicle
2
[A] : ISOFIX Anchorage Position Indicator,
[B] : ISOFIX Anchorage
ISOFIX anchorages are located
between the seatback and the seat
cushion of the rear seat left an Hyundai Kona 2019 Owners Manual - RHD (UK, Australia) 2-41
Safety system of your vehicle
2
[A] : ISOFIX Anchorage Position Indicator,
[B] : ISOFIX Anchorage
ISOFIX anchorages are located
between the seatback and the seat
cushion of the rear seat left an](/manual-img/35/16225/w960_16225-58.png)

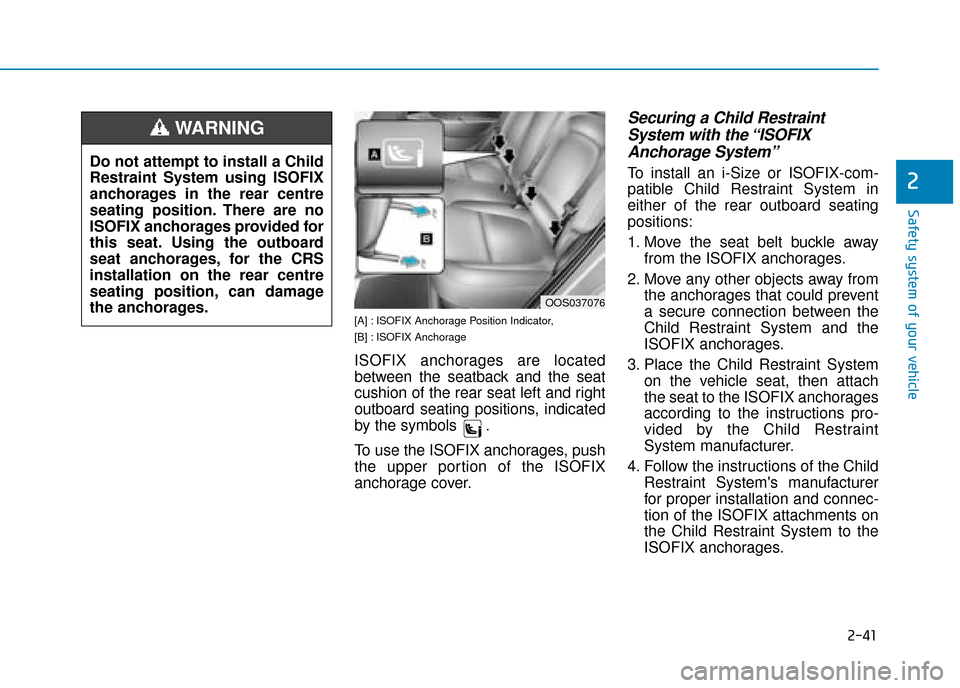

2-41
Safety system of your vehicle
2
[A] : ISOFIX Anchorage Position Indicator,
[B] : ISOFIX Anchorage
ISOFIX anchorages are located
between the seatback and the seat
cushion of the rear seat left and right
outboard seating positions, indicated
by the symbols .
To use the ISOFIX anchorages, push
the upper portion of the ISOFIX
anchorage cover.
Securing a Child RestraintSystem with the “ISOFIXAnchorage System”
To install an i-Size or ISOFIX-com-
patible Child Restraint System in
either of the rear outboard seating
positions:
1. Move the seat belt buckle away
from the ISOFIX anchorages.
2. Move any other objects away from the anchorages that could prevent
a secure connection between the
Child Restraint System and the
ISOFIX anchorages.
3. Place the Child Restraint System on the vehicle seat, then attach
the seat to the ISOFIX anchorages
according to the instructions pro-
vided by the Child Restraint
System manufacturer.
4. Follow the instructions of the Child Restraint System's manufacturer
for proper installation and connec-
tion of the ISOFIX attachments on
the Child Restraint System to the
ISOFIX anchorages.
OOS037076
Do not attempt to install a Child
Restraint System using ISOFIX
anchorages in the rear centre
seating position. There are no
ISOFIX anchorages provided for
this seat. Using the outboard
seat anchorages, for the CRS
installation on the rear centre
seating position, can damage
the anchorages.
WARNING
Page 60 of 526

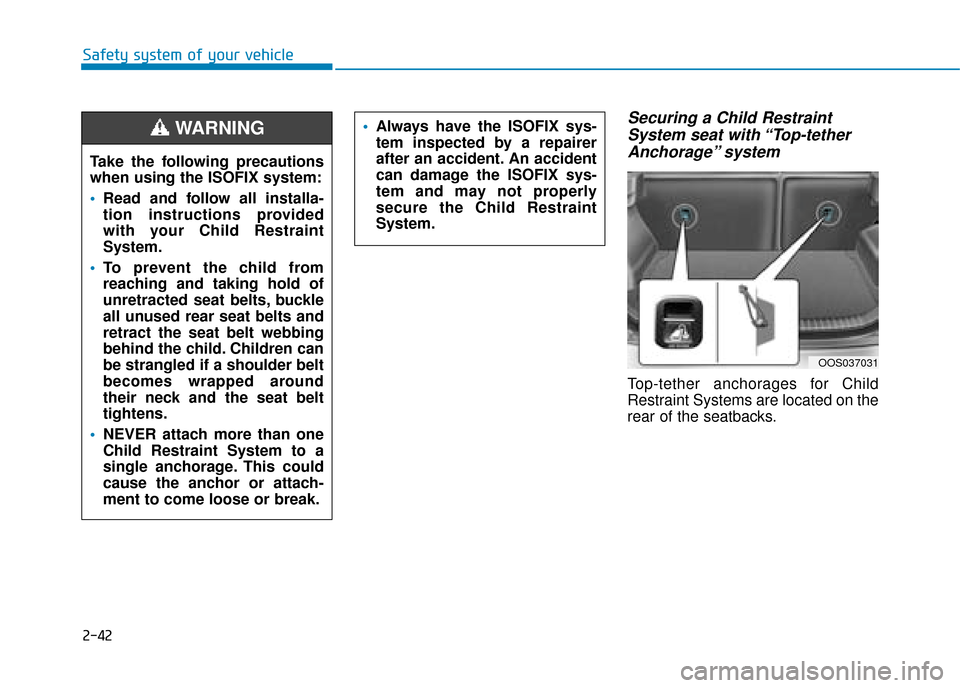

2-42
Safety system of your vehicle
Securing a Child RestraintSystem seat with “Top-tetherAnchorage” system
Top-tether anchorages for Child
Restraint Systems are located on the
rear of the seatbacks.
OOS037031
Take the following precautions
when using the ISOFIX system:
Read and follow all installa-
tion instructions provided
with your Child Restraint
System.
To prevent the child from
reaching and taking hold of
unretracted seat belts, buckle
all unused rear seat belts and
retract the seat belt webbing
behind the child. Children can
be strangled if a shoulder belt
becomes wrapped around
their neck and the seat belt
tightens.
NEVER attach more than one
Child Restraint System to a
single anchorage. This could
cause the anchor or attach-
ment to come loose or break.
WARNING Always have the ISOFIX sys-
tem inspected by a repairer
after an accident. An accident
can damage the ISOFIX sys-
tem and may not properly
secure the Child Restraint
System.
Page 61 of 526

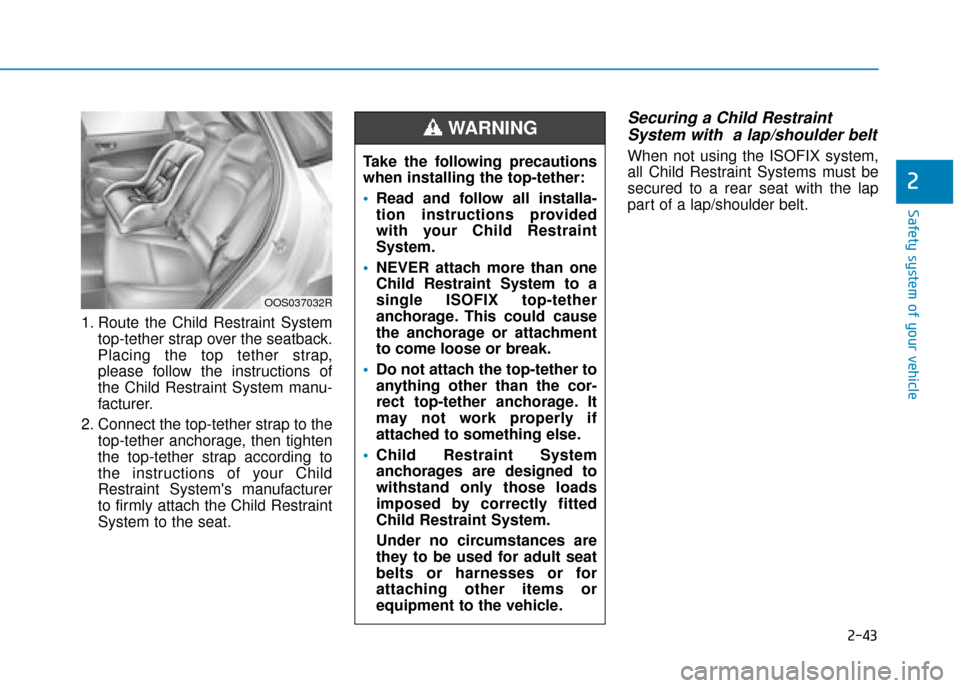

2-43
Safety system of your vehicle
2
1. Route the Child Restraint Systemtop-tether strap over the seatback.
Placing the top tether strap,
please follow the instructions of
the Child Restraint System manu-
facturer.
2. Connect the top-tether strap to the top-tether anchorage, then tighten
the top-tether strap according to
the instructions of your Child
Restraint System's manufacturer
to firmly attach the Child Restraint
System to the seat.
Securing a Child RestraintSystem with a lap/shoulder belt
When not using the ISOFIX system,
all Child Restraint Systems must be
secured to a rear seat with the lap
part of a lap/shoulder belt.
OOS037032R
Take the following precautions
when installing the top-tether:
Read and follow all installa-
tion instructions provided
with your Child Restraint
System.
NEVER attach more than one
Child Restraint System to a
single ISOFIX top-tether
anchorage. This could cause
the anchorage or attachment
to come loose or break.
Do not attach the top-tether to
anything other than the cor-
rect top-tether anchorage. It
may not work properly if
attached to something else.
Child Restraint System
anchorages are designed to
withstand only those loads
imposed by correctly fitted
Child Restraint System.
Under no circumstances are
they to be used for adult seat
belts or harnesses or for
attaching other items or
equipment to the vehicle.
WARNING
Page 62 of 526

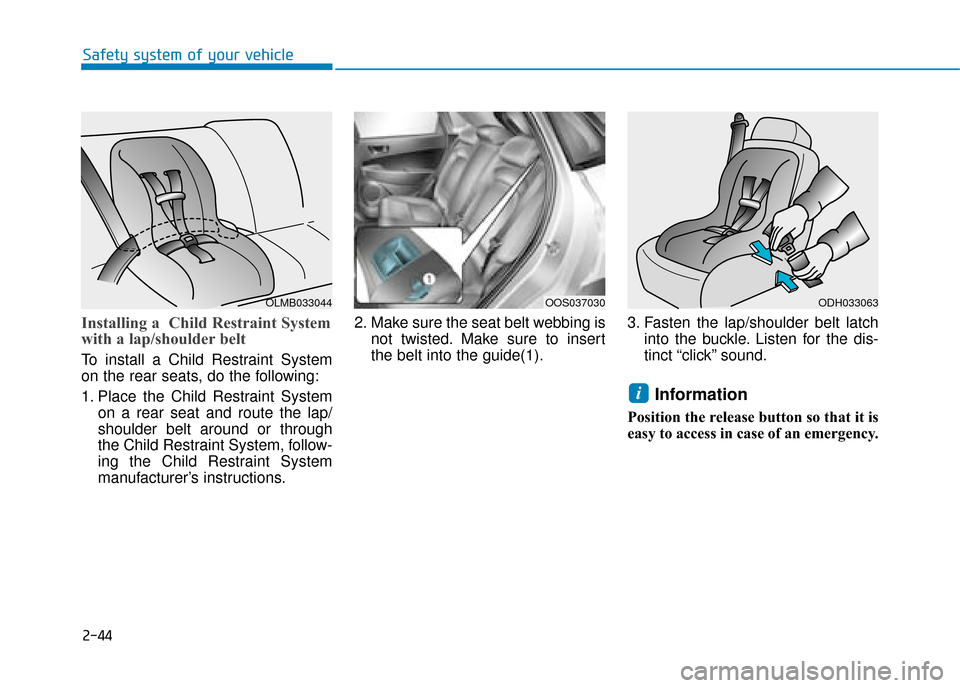

2-44
Safety system of your vehicle
Installing a Child Restraint System
with a lap/shoulder belt
To install a Child Restraint System
on the rear seats, do the following:
1. Place the Child Restraint Systemon a rear seat and route the lap/
shoulder belt around or through
the Child Restraint System, follow-
ing the Child Restraint System
manufacturer’s instructions. 2. Make sure the seat belt webbing is
not twisted. Make sure to insert
the belt into the guide(1). 3. Fasten the lap/shoulder belt latch
into the buckle. Listen for the dis-
tinct “click” sound.
Information
Position the release button so that it is
easy to access in case of an emergency.
i
OLMB033044OOS037030ODH033063
Page 63 of 526

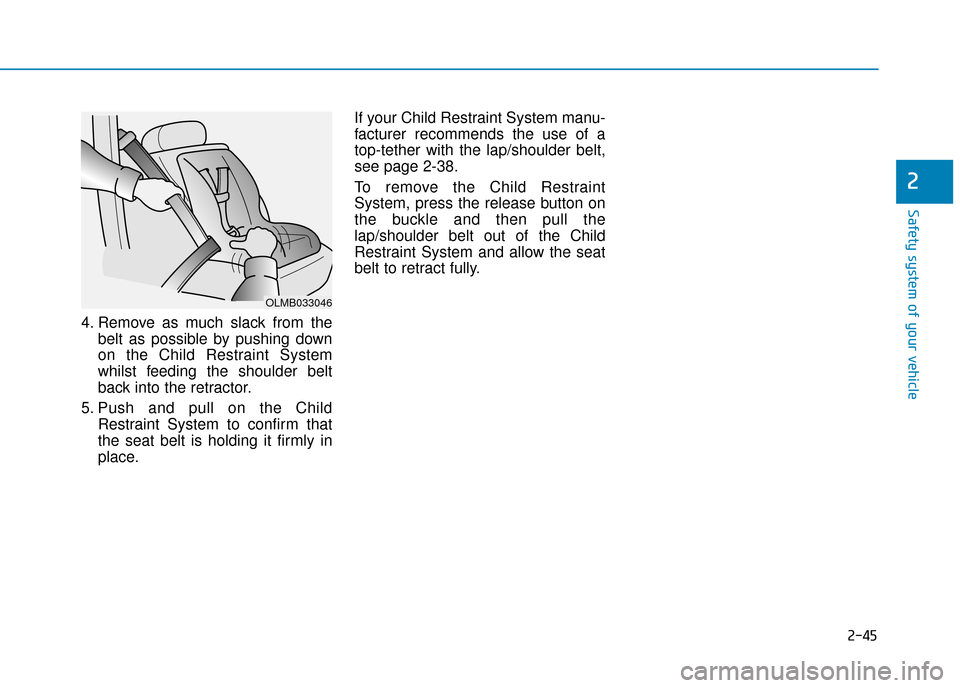

2-45
Safety system of your vehicle
2
4. Remove as much slack from thebelt as possible by pushing down
on the Child Restraint System
whilst feeding the shoulder belt
back into the retractor.
5. Push and pull on the Child Restraint System to confirm that
the seat belt is holding it firmly in
place. If your Child Restraint System manu-
facturer recommends the use of a
top-tether with the lap/shoulder belt,
see page 2-38.
To remove the Child Restraint
System, press the release button on
the buckle and then pull the
lap/shoulder belt out of the Child
Restraint System and allow the seat
belt to retract fully.
OLMB033046
Page 64 of 526

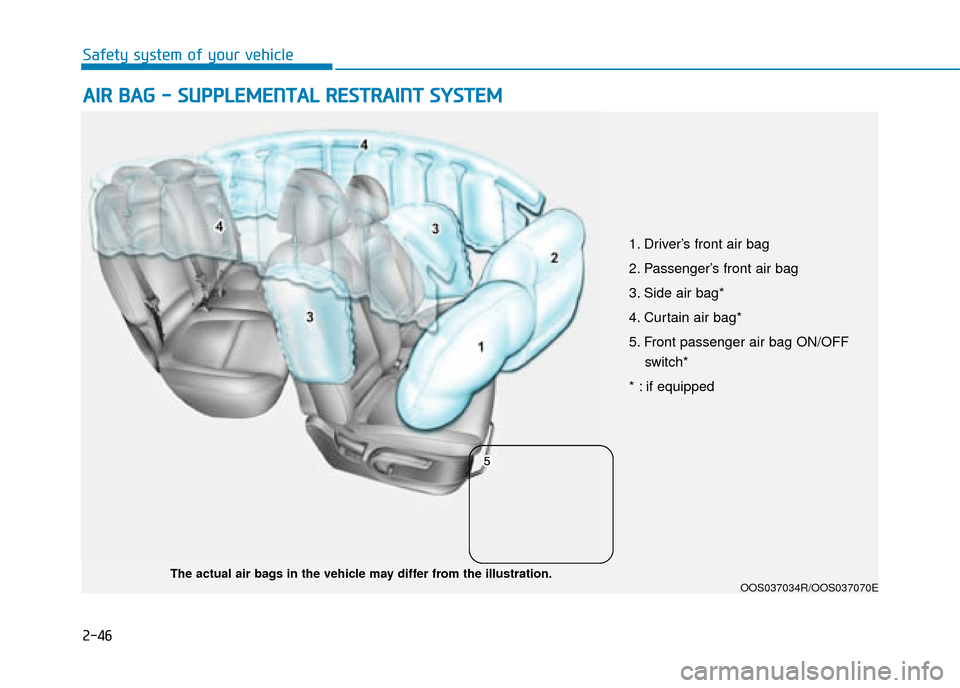

2-46
Safety system of your vehicle
A
AI
IR
R
B
B A
A G
G
-
-
S
S U
U P
PP
PL
LE
E M
M E
EN
N T
TA
A L
L
R
R E
ES
ST
T R
R A
A I
IN
N T
T
S
S Y
Y S
ST
T E
EM
M
OOS037034R/OOS037070EThe actual air bags in the vehicle may differ from the illustration.
1. Driver’s front air bag
2. Passenger’s front air bag
3. Side air bag*
4. Curtain air bag*
5. Front passenger air bag ON/OFF
switch*
* : if equipped
