2019 Hyundai Kona Owner's Manual - RHD (UK, Australia)

7-64
Maintenance
5. Insert a new bulb by inserting it into the socket and rotating it until
it locks into place.
6. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
7. Push the socket into the assembly and turn the socket clockwise.
Position lamp and daytime running
light
If the LED lamp does not operate, we
recommend that you have the vehicle
checked by a HYUNDAI authorised
repairer.
Front fog lamp (if equipped)
1. Loosen the pin-type retainers of theunder cover and then remove the
under cover.
2. Reach your hand into the back of the front bumper.
3. Disconnect the power connector from the socket.
4. Remove the bulb-socket from the housing by turning the socket coun-
terclockwise until the tabs on the
socket align with the slots of the
housing.
5. Install a new bulb-socket into the housing by aligning the tabs on the
socket with the slots in the housing.
Push the socket into the housing
and turn the socket clockwise.
Headlamp and front fog lamp
aiming
Headlamp aiming
1. Inflate the tyres to the specified pressure and remove any loads
from the vehicle except the driver,
spare tyre, and tools.
2. The vehicle should be placed on a flat floor.
3. Draw vertical lines (Vertical lines passing through respective head
lamp centres) and a horizontal line
(Horizontal line passing through
centre of head lamps) on the
screen.
OOS077059L
■Halogen type■LED type
OOS077060L/OOS077061L

7-65
7
Maintenance
4. With the headlamp and battery innormal condition, aim the head-
lamps so the brightest portion falls
on the horizontal and vertical
lines.
5. To aim the low beam left or right, turn the driver clockwise or coun-
terclockwise. To aim the low beam
up or down, turn the driver clock-
wise or counterclockwise.
To aim the high beam up or down,turn the driver clockwise or coun-

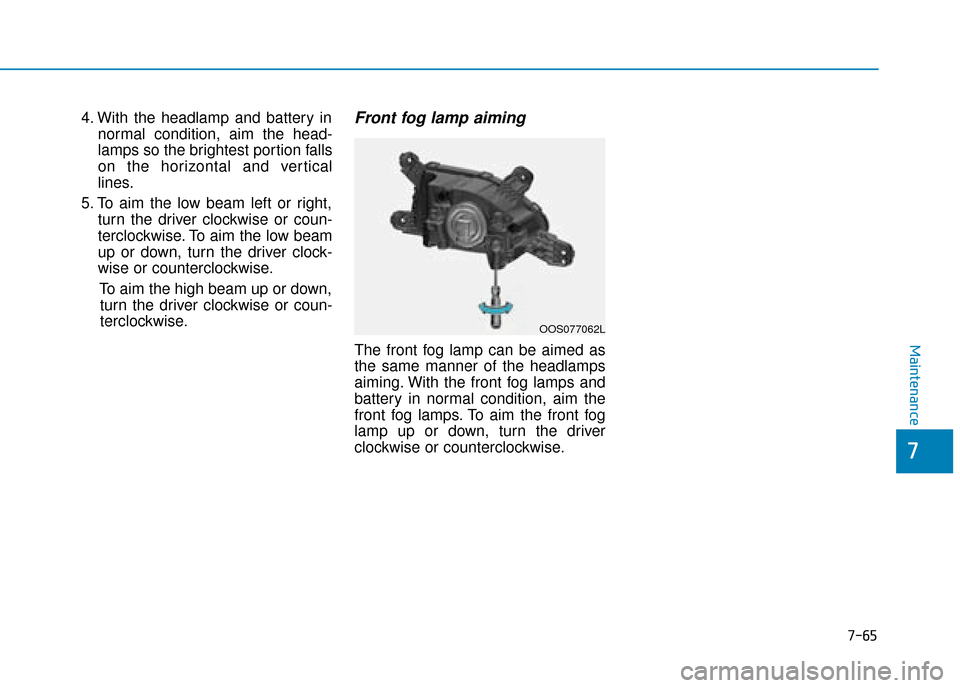

terclockwise.Front fog lamp aiming
The front fog lamp can be aimed as
the same manner of the headlamps
aiming. With the front fog lamps and
battery in normal condition, aim the
front fog lamps. To aim the front fog
lamp up or down, turn the driver
clockwise or counterclockwise.
OOS077062L

7-66
Maintenance

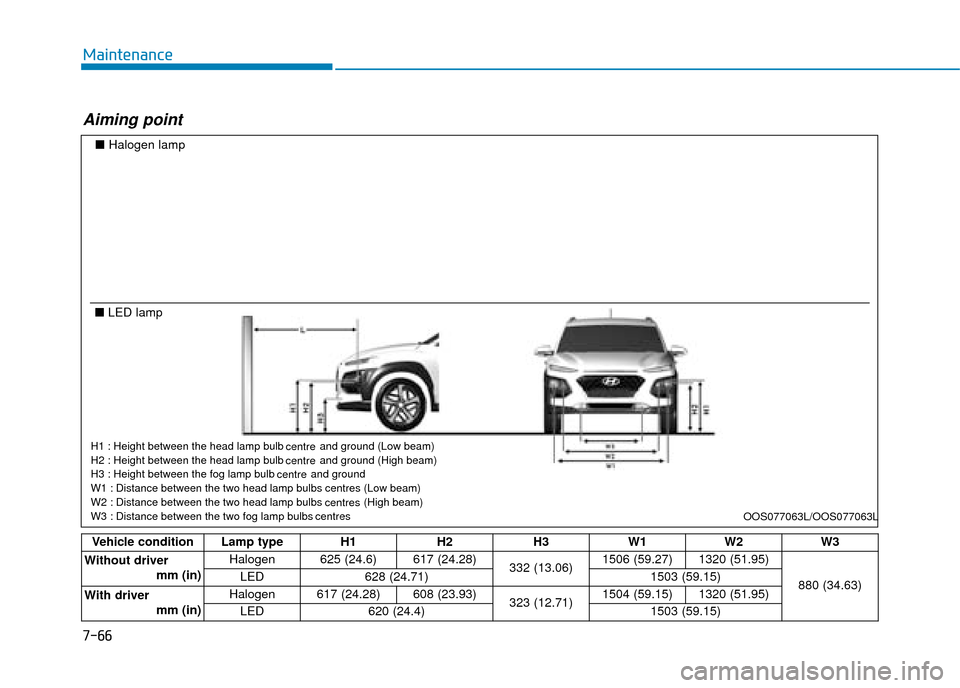

Aiming point
Vehicle condition Lamp type H1H2H3W1 W2W3
Without driver mm (in) Halogen 625 (24.6) 617 (24.28)
332 (13.06)1506 (59.27) 1320 (51.95)
880 (34.63)
LED
628 (24.71) 1503 (59.15)
With driver mm (in) Halogen 617 (24.28) 608 (23.93)
323 (12.71)1504 (59.15) 1320 (51.95)
LED 620 (24.4) 1503 (59.15)
■Halogen lamp
■ LED lamp
OOS077063L/OOS077063L
H1 : Height between the head lamp bulb center and ground (Low beam)
H2 : Height between the head lamp bulb center and ground (High beam)
H3 : Height between the fog lamp bulb center and ground
W1 : Distance between the two head lamp bulbs centers (Low beam)
W2 : Distance between the two head lamp bulbs centers (High beam)
W3 : Distance between the two fog lamp bulbs centerscentrecentrecentrecentrescentrescentres

7-67
7
Maintenance

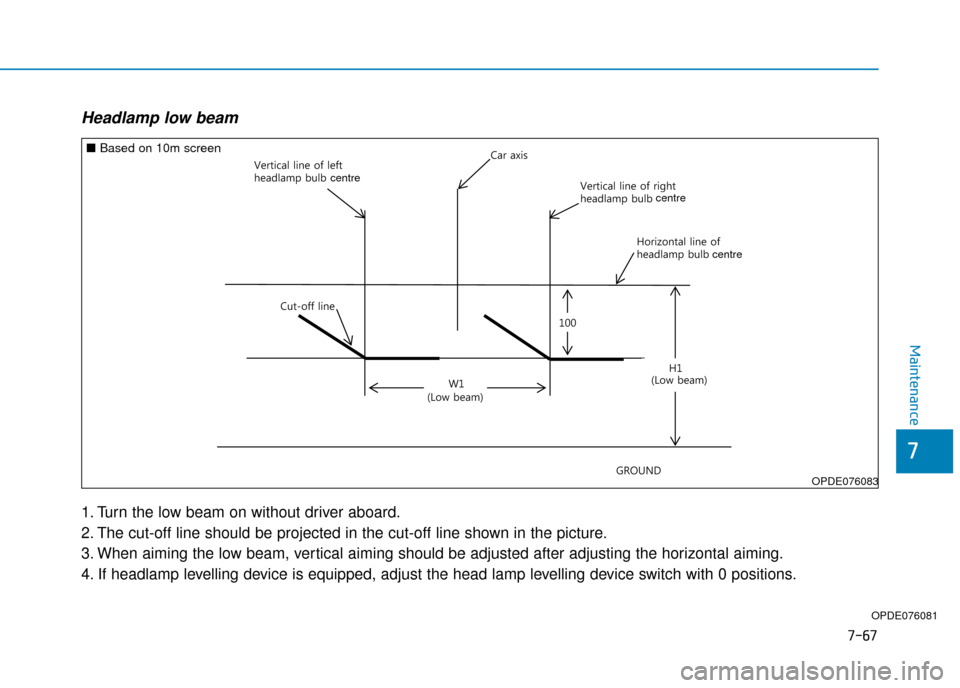

Headlamp low beam
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If headlamp levelling device is equipped, adjust the head lamp levelling device switch with 0 positions.
:&DUD[LV
9HUWLFDOOLQHRIOHIW
KHDGODPSEXOEFHQWHU
&XWRIIOLQH
9HUWLFDOOLQHRIULJKW
KHDGODPSEXOEFHQWHU +RUL]RQWDOOLQHRI
KHDGODPSEXOEFHQWHU
*5281'
+
/RZEHDP
/RZEHDP

OPDE076083
■ Based on 10m screen
centre
centre
centre
OPDE076081

7-68
Maintenance

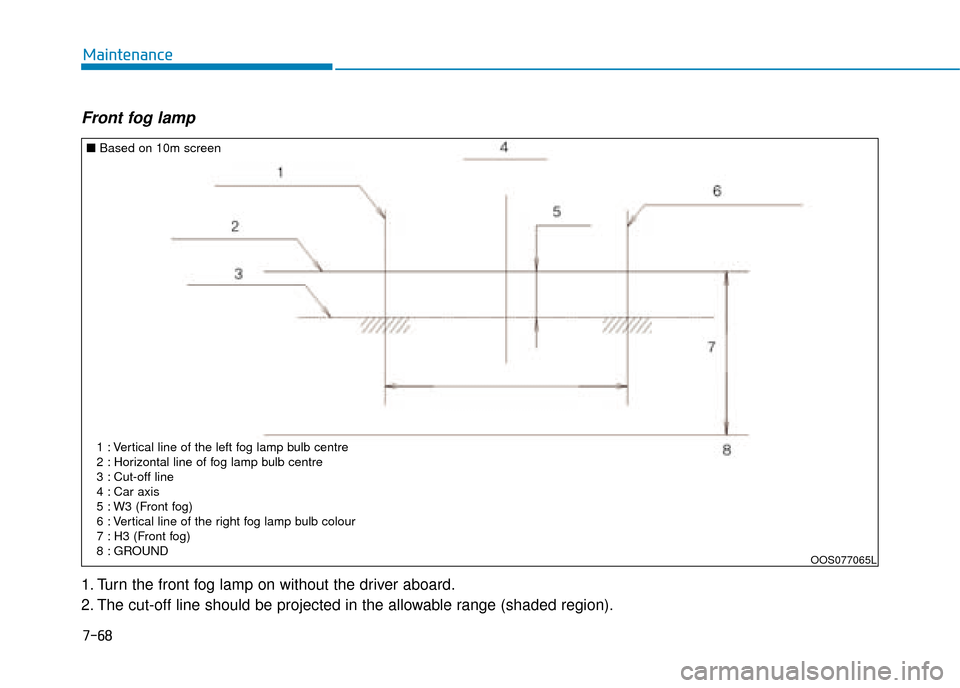

Front fog lamp
1. Turn the front fog lamp on without the driver aboard.
2. The cut-off line should be projected in the allowable range (shaded region).
OOS077065L
■Based on 10m screen
1 : Vertical line of the left fog lamp bulb centre
2 : Horizontal line of fog lamp bulb centre
3 : Cut-off line
4 : Car axis
5 : W3 (Front fog)
6 : Vertical line of the right fog lamp bulb colour
7 : H3 (Front fog)
8 : GROUND

7-69
7
Maintenance
Side repeater lamp replace-
ment
If the light bulb does not operate, we
recommend that you have the vehicle
checked by a HYUNDAI authorised
repairer.
Rear combination lamp bulb
replacement(1) Stop/Tail lamp
(2) Tail lamp(Type A), Stop/Tail lamp (Type B)
(3) Turn signal lamp
(4) Backup lamp
(5) Rear fog lamp
Stop/Tail lamp
1. Turn off the engine.
2. Open the tailgate.
3. Loosen the lamp assembly retain- ing screws with a cross-tip screw-
driver.
OOS077039
OOS077066L
OOS077040
OOS077041
OOS077067L
■Type B (LED)
■Type A (Standard)

7-70
Maintenance
4. Remove the rear combination lamp assembly from the body of
the vehicle.
5. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
6. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket. 7. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.
8. Install the socket into the assem- bly by aligning the tabs on the
socket with the slots in the assem-
bly. Push the socket into the
assembly and turn the socket
clockwise.
9. Reinstall the lamp assembly to the body of the vehicle.
Tail lamp (Type A)
1. Turn off the engine.
2. Open the tailgate.
3. Remove the service cover using aflat-blade screwdriver.
4. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
5. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
OOS077068LOOS077069L

7-71
7
Maintenance
6. Insert a new bulb by inserting itinto the socket and rotating it until
it locks into place.
7. Install the socket into the assem- bly by aligning the tabs on the
socket with the slots in the assem-
bly. Push the socket into the
assembly and turn the socket
clockwise.
8. Reinstall the lamp assembly to the body of the vehicle.
Tail / Stop lamp (Type B)
If the LED lamp does not operate, we
recommend that you have the vehi-
cle checked by a HYUNDAI autho-
rised repairer.
Turn signal lamp / Back up lamp /
Rear fog lamp
If these lamps do not operate, we
recommend that you have the vehi-
cle checked by a HYUNDAI autho-
rised repairer.
High mounted stop lamp
replacement
If the high mounted stop lamp does
not operate, we recommend that you
contact a HYUNDAI authorised
repairer.
License plate light bulb
replacement
1. Using a screwdriver, remove thescrews securing the lens cover to
the lamp housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb.
4. Reinstall in the reverse order.
OOS077042OOS077043
