uuIndicator, Coming On/BlinkinguIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS or the compact spare tire is installed,
the indicator blinks for about one minute, and then stays on.
■What to do when th e indicator comes on
Drive carefully avoiding abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The spec ified tire pressure is on a label on
the driver side doorjamb.
u Calibrate the TPMS after the tire pressure is adjusted.
2 TPMS Calibration P. 516
■What to do when the indica tor blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indica tor to blink, change the tire to a full-size tire.
The indicator will go off after driv ing for a few miles (kilometers).
u Calibrate the TPMS after a full-size tire is reinstalled.
2 TPMS Calibration P. 516
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 639 ページ ２０１８年８月２２日　水曜日　午後２時５９分

640
Handling the Unexpected

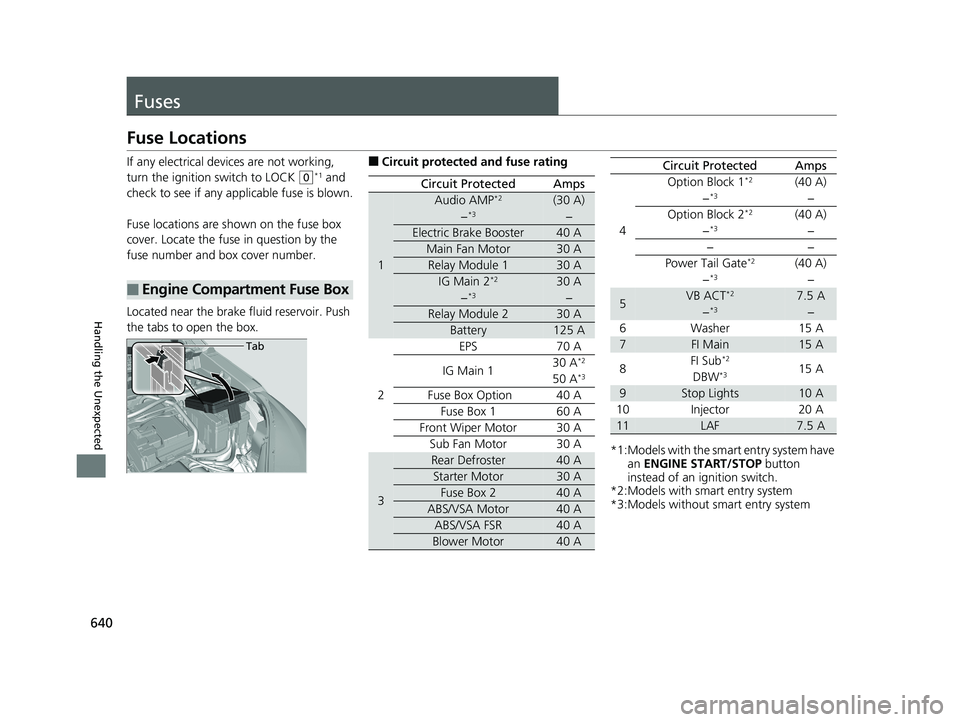

Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0*1 and
check to see if any appl icable fuse is blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
Audio AMP*2(30 A)
−*3−
Electric Brake Booster40 A
Main Fan Motor30 A
Relay Module 130 A
IG Main 2*230 A
−*3−
Relay Module 230 A
Battery125 A
2
EPS70 A
IG Main 130 A*2
50 A*3
Fuse Box Option40 A
Fuse Box 160 A
Front Wiper Motor30 A
Sub Fan Motor30 A
3
Rear Defroster40 A
Starter Motor30 A
Fuse Box 240 A
ABS/VSA Motor40 A
ABS/VSA FSR40 A
Blower Motor40 A
*1:Models with the sma rt entry system have
an ENGINE START/STOP button
instead of an ignition switch.
*2:Models with smart entry system
*3:Models without smart entry system
4
Option Block 1*2(40 A)
−*3−
Option Block 2*2(40 A)
−*3−
−−
Power Tail Gate*2(40 A)
−*3−
5VB ACT*27.5 A
−*3−
6Washer15 A
7FI Main15 A
8FI Sub*215 ADBW*3
9Stop Lights10 A
10Injector20 A
11LAF7.5 A
Circuit ProtectedAmps
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 640 ページ ２０１８年８月２２日　水曜日　午後２時５９分

641
uuFuses uFuse Locations
Continued
Handling the Unexpected
Circuit ProtectedAmps
12FI ECU*110 A
−*2−
13Front Wiper Deicer*1(15 A)
−*2−
14Hazard10 A
15IG Coil15 A
16Transmission*115 A
−*2−
17−−
18Back Up10 A
19Audio15 A
20E-DPS*(20 A)
21Rear Seat Heater*1(20 A)
−*2−
22Front Fog Lights*/Lower
Shutter Grille(15 A)
23Magnetic Clutch/Upper Shutter Grille10 A
24Horn10 A
25Cooling Fan7.5 A
26−−
27−−
28−*1−
ST Magnetic Switch*2(7.5 A)
29−−
30−−
*1:Models with smart entry system
*2:Models without smart entry system Located under the dashboard.
Fuse locations are shown on the label on
the steering column lower cover.
Locate the fuse in question by the fuse
number and label number.■Interior Fuse Box
Fuse Label
Fuse Box
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 641 ページ ２０１８年８月２２日　水曜日　午後２時５９分

642
uuFuses uFuse Locations
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Accessory10 A
2Key Lock5 A
3Option 310 A
4Option 2*15 A
Transmission*2(10 A)
5Option10 A
6SRS Indicator10 A
7Meter10 A
8Fuel Pump15 A
9A/C10 A
10Accessory Power Socket
(Center Console)(20 A)
11Engine Control5 A
12Passenger's Side Door Lock10 A
13Driver's Side Door Unlock10 A
14Rear Driver's Side Power Window20 A
15Front Passenger's Side Power Window20 A
16Door Lock20 A
17Transmission*1
Option 2*2(10 A)
5 A
Circuit ProtectedAmps
18Front Driver's Lumber support*(10 A)
19Moonroof*(20 A)
20Starter10 A
21ACG10 A
22Daytime Running Light10 A
23Steering Wheel Heater* (10 A)
24Option5 A
25Driver's Door Lock(10 A)
26Passenger's Side Door Unlock10 A
27Rear Passenger's Side
Power Window20 A
28Driver's Power Window20 A
29Front Accessory Power Socket20 A
30Smart Entry*1
STS*210 A5 A
31Driver's Power Seat
Reclining*(20 A)
32Front Seat Heater*(20 A)
33Driver's Power Seat Sliding*(20 A)
34ABS/VSA10 A
35SRS10 A
36HAC Option*20 A
37Trailer*15 A
38Driver's Side Door Lock10 A
*1:Models with smart entry system
*2:Models without smart entry system
39Driver's Door Unlock(10 A)
aPower Tailgate Closer*(20 A)
bPassenger's Power Seat Sliding*(20 A)
cPassenger's Power Seat Reclining*(20 A)
dPanorama Shade Motor(20 A)
eRear Blower(20 A)
fEPT L(20 A)
gEPT R(20 A)
hAccessory Power Socket (Cargo Area)(20 A)
Circuit ProtectedAmps
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 642 ページ ２０１８年８月２２日　水曜日　午後２時５９分

643
uuFusesuInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1.Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller, and replace it with a new
one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Use the charts to locate the fuse in question and
conform the specific amperage on the fuse label.
2 Fuse Locations P. 640
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 643 ページ ２０１８年８月２２日　水曜日　午後２時５９分

644
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
Improper towing, such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flat bed equipment.
2 Parking Brake P. 522All models
2WD models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 644 ページ ２０１８年８月２２日　水曜日　午後２時５９分

645
Handling the Unexpected
When You Cannot Open the Tailgate
If you cannot open the tailgate, use the following procedure:1.Use a flat-tip screwdriver and remove the
cover on the inside of the tailgate.
u Wrap the flat-tip scre wdriver with a cloth
to prevent scratches.
2. To open the tailgate, push the tailgate
while pushing the lever to the right using a
flat-tip screw driver.
■What to Do When Unable to Open the Tailgate1When You Cannot Open the Tailgate
Following up:
After taking these steps, cont act a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lever
Models with power tailgate
Screwdriver
Models without power tailgate
Lever
Screwdriver
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 645 ページ ２０１８年８月２２日　水曜日　午後２時５９分
