2019 HONDA CR-V Owner's Manual (in English)

127
uuGauges and Displays uDriver Information Interface*
Instrument Panel
Shows you turn-by-turn driv ing directions to your destination linked with the
navigation system.
2 Refer to the Navigation System Manual
Show the current audio information.
2Audio System Basic Operation P. 258
Show the current phone information.
2Bluetooth ® HandsFreeLink ® P. 385
■Turn-by-Turn Directions*
■Audio
■Phone
1 Turn-by-Turn Directions*
The driver information in terface shows a compass
when the route guidance is not used.
You can select whether the turn-by-turn display
comes on during the route guidance.
2 Customized Features P. 349
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 127 ページ ２０１８年８月２２日　水曜日　午後２時５９分

128
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 128 ページ ２０１８年８月２２日　水曜日　午後２時５９分

129
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 130
Locking and Unlocking the Doors
Key Types and Functions .................. 132
Low Smart Entry Remote Signal Strength*...134Locking/Unlocking the Doors from the Outside .......................................... 135
Locking/Unlocking the Doors from the Inside ... 142Childproof Door Locks ..................... 143
Auto Door Locking/Unlocking .......... 144
Customizing the Auto Door Locking/Unlocking Setting ........................... 145
Opening and Closing the Tailgate ... 148
Security System Immobilizer System .......................... 159 Security System Alarm
*.................... 159Opening and Closing the Windows
.... 162Moonroof*.............................................. 165Panoramic Roof*1.................................... 166Operating the Switches Around the Steering WheelIgnition Switch*............................... 169
ENGINE START/STOP Button*........... 170
Ignition Switch and Power Mode
Comparison ................................... 173
Turn Signals ..................................... 174
Light Switches.................................. 175
Fog Lights
*...................................... 178
Auto High-Beam System*................ 179
Daytime Running Lights ................... 182 Wipers and Washers ........................ 183
Brightness Control ........................... 186
Defogger/Heated Door Mirror
*........ 188
Driving Position Memory System*.... 190
Adjusting the Steering Wheel .......... 192
Adjusting the Mirrors ....................... 193
Adjusting the Seats .......................... 195
Interior Lights/Interior Convenience Items.. 205Climate Control System
Using Automatic Climate Control .... 224
Synchronization Mode
*................... 227Automatic Climate Control Sensors ...... 228
(*1: Canadian models only, if equipped)
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 129 ページ ２０１８年８月２２日　水曜日　午後２時５９分

130
Controls
Clock
Adjusting the Clock
You can adjust the time in the clock display with the ignition switch in ON (w*1.
■Using the MENU/CLOCK button
1. Press and hold the MENU/CLOCK button.
u Adjust Clock is selected.
2. Rotate to change hour, then press .
3. Rotate to change minute, then press
.
4. To enter the selection, rotate and select
Set , then press .
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Adjusting the Time
1 Adjusting the Clock
The clock is automatica lly updated through the
navigation system, so the ti me does not need to be
adjusted.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 349
Models with navigation system
Models with color audio system
Models without navigation system
1Using the MENU/CLOCK button
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
Models with color audio system
Models with color audio system
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 130 ページ ２０１８年８月２２日　水曜日　午後２時５９分

131
uuClock uAdjusting the Clock
Controls

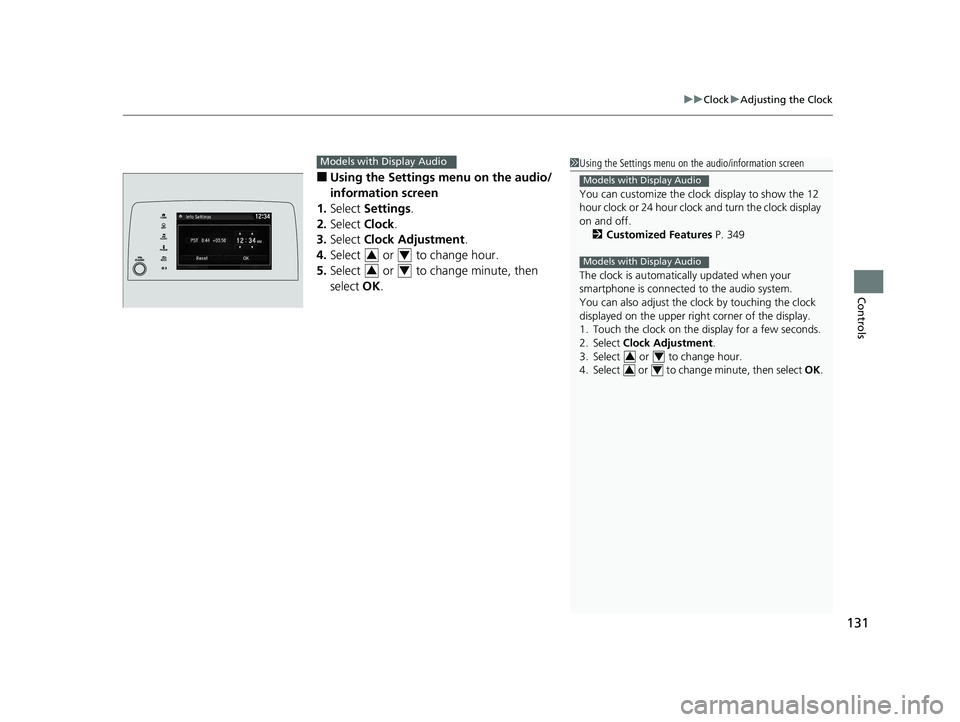

■Using the Settings menu on the audio/
information screen
1. Select Settings .
2. Select Clock.
3. Select Clock Adjustment .
4. Select or to change hour.
5. Select or to change minute, then
select OK.
Models with Display Audio1Using the Settings menu on the audio/information screen
You can customize the clock display to show the 12
hour clock or 24 hour clock and turn the clock display
on and off.
2 Customized Features P. 349
The clock is automatica lly updated when your
smartphone is connected to the audio system.
You can also adjust the clock by touching the clock
displayed on the upper right corner of the display.
1. Touch the clock on the display for a few seconds.
2. Select Clock Adjustment .
3. Select or to change hour.
4. Select or to change minute, then select OK.
Models with Display Audio
Models with Display Audio
34
34
34
34
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 131 ページ ２０１８年８月２２日　水曜日　午後２時５９分

132
Controls
Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:
Use the key to start and stop the engine, and to lock and unlock the doors and
tailgate. You can also lock and unlock the doors and tailgate pressing the buttons
on remote transmitter.The built-in key can be used to lock/unlock the
doors when the smart entry remote battery
becomes weak and th e power door lock/
unlock operation is disabled.
To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push th e built-in key into the
smart entry remote until it clicks.
■Keys
1 Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps protect against vehicle
theft.
2 Immobilizer System P. 159
The keys contain precision electronics.
Adhere to the following advi ce to prevent damage to
the electronics:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.
•Keep the keys away from liquids.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely start the engine using the one-way
smart entry remote. 2 Remote Engine Start with Vehicle
Feedback
* P. 462
Models with remote engine starter■Built-in Key*
Smart Entry Remote*Ignition Keys with Remote
Transmitter*
Built-in Key
Release Knob
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 132 ページ ２０１８年８月２２日　水曜日　午後２時５９分

133
uuLocking and Unlocking the Doors uKey Types and Functions
Controls
Can be used to start an d stop the engine, and
lock and unlock driver's door.
Contains a number that you will need if you
purchase a replacement key.
■Valet Key*1 Valet Key*
When you need to leave a key with a third party,
leave the valet key.
Gray
■Key Number Tag1Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 133 ページ ２０１８年８月２２日　水曜日　午後２時５９分

134
uuLocking and Unlocking the Doors uLow Smart Entry Remote Signal Strength*
Controls
Low Smart Entry Remo te Signal Strength*
The vehicle transmits radio waves to loca te the smart entry remote when locking/
unlocking the doors, opening the ta ilgate, or to start the engine.
In the following cases, locking/unlocking th e doors, opening the tailgate, or starting
the engine may be inhibited or operation may be unstable:
• Strong radio waves are being tra nsmitted by nearby equipment.
• You are carrying the smart entry remote together with telecommunications
equipment, laptop computers, ce ll phones, or wireless devices.
• A metallic object is touching or covering the smart entry remote.1Low Smart Entry Remote Signal Strength*
Communication between the smart entry remote and
the vehicle consumes the smart entry remote’s
battery.
Battery life is about two years, but this varies
depending on regularity of use.
The battery is consumed whenever the smart entry
remote is receivi ng strong radio wave s. Avoid placing
it near electrical appliances such as televisions and
personal computers.
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 134 ページ ２０１８年８月２２日　水曜日　午後２時５９分
