2019 HONDA CR-V Owner's Manual (in English)

111
uuIndicators uDriver Information Interface Wa rning and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the parking brake is applied
automatically while ACC with LSF is in operation.●ACC with LSF has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 479
2 Parking Brake P. 522
●Appears when pressing the –/SET button while the
parking brake is applied.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 479
2 Parking Brake P. 522
●Appears when pressing the –/SET button while the
vehicle is moving and the brake pedal is depressed.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 479
●Appears if ACC with LSF is canceled while your
vehicle is automatically stopped by ACC with LSF.●Immediately depress the brake pedal.
●Flashes when the system senses a likely collision
with a vehicle in front of you.●Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2 Collision Mitigation Braking SystemTM (CMBSTM)*
P. 530
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)
* P. 479
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 111 ページ ２０１８年８月２２日　水曜日　午後２時５９分

112
uuIndicators uDriver Information Interface Wa rning and Information Messages*
Instrument Panel
MessageConditionExplanation
●Appears when the vehicle is driving out of a detected
line. The steering wheel vibrates rapidly.
●Keep the vehicle within the lane you are driving.
2Road Departure Mitigation (RDM) System* P. 495
●Appears when the vehicle is driving out of a detected
lane.
-The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected lane.
- The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected line. The system
also steers the vehicle to help you remain within
your driving lane.
●Keep the vehicle within the lane you are driving.
2 Road Departure Mitigation (RDM) System* P. 495●You can change the setting for the road departure
mitigation system. Normal, Wide , and Warning Only
can be selected.
2 Customized Features P. 349
●Blinks when you fail to st eer the vehicle. The beeper
sounds simultaneously.●Operate the steering whee l to resume the LKAS.
•Appears if anything covers the radar sensor cover
and prevents the sensor fr om detecting a vehicle in
front.
• May appear when driving in bad weather (rain,
snow, fog, etc.)•When the radar sensor gets di rty, stop your vehicle in a
safe place, and wipe off dirt using a soft cloth.
• Have your vehicle checked by a dealer if the message
does not disappear even after you clean the sensor
cover.
2 Honda Sensing ®* P. 26
Lane Keeping Assist System (LKAS)
Road Departure Mitigation (RDM) System
When you selected Warning Only
When you selected Normal or Wide
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 112 ページ ２０１８年８月２２日　水曜日　午後２時５９分

113
uuIndicators uDriver Information Interface Wa rning and Information Messages*
Continued
Instrument Panel
•Appears if the temperature inside the front sensor
camera is too high and some driver assist systems
cannot be activated.• Use the climate control system to cool down the camera.
• Disappears - The camera has been cooled down and
the systems are activated normally.
2 Front Sensor Camera* P. 477
2 Auto High-Beam System* P. 179
•Appears if the area around the front sensor camera
is blocked by dirt, mud, etc. and be prevented from
detecting a vehicle in front.
• May appear when driving in bad weather (rain,
snow, fog, etc.)• When the front window gets dirty, stop your vehicle in a
safe place, and wipe it off with a soft cloth.
• Have your vehicle checked by a dealer if the message
does not disappear even after you cleaned the area
around the camera.
2 Front Sensor Camera* P. 477
2 Auto High-Beam System* P. 179
MessageConditionExplanation
●Appears when you unlock and open the driver’s
door while the engine is running by remote engine
start.
2Remote Engine Start with Vehicle Feedback* P. 462
MessageConditionExplanation
Models with remote engine starter
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 113 ページ ２０１８年８月２２日　水曜日　午後２時５９分

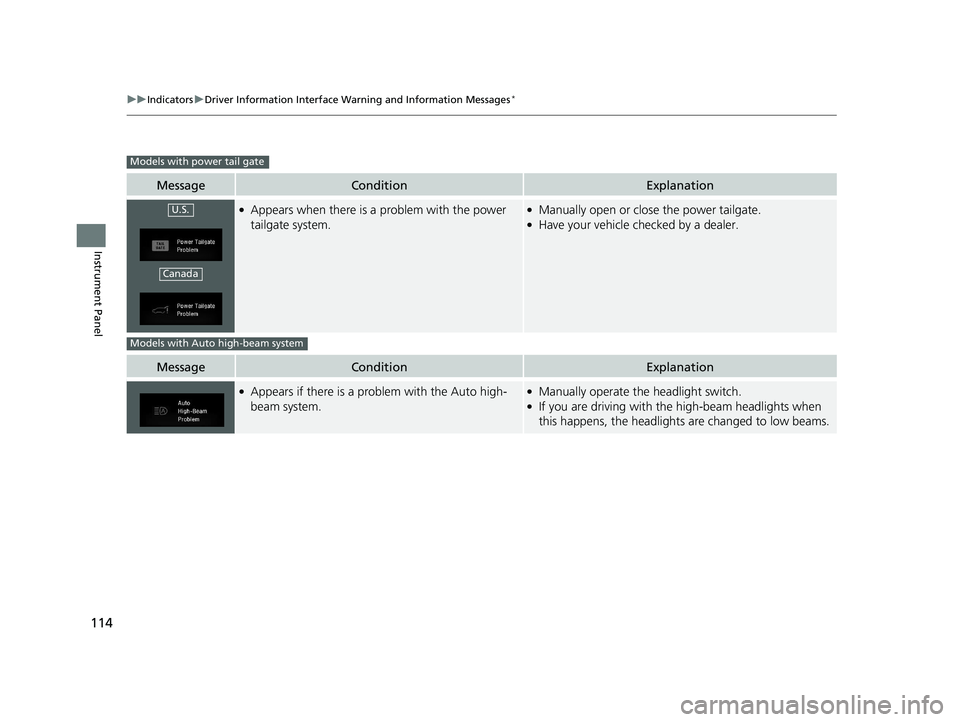

114
uuIndicators uDriver Information Interface Wa rning and Information Messages*
Instrument Panel
MessageConditionExplanation
●Appears when there is a problem with the power
tailgate system.●Manually open or close the power tailgate.●Have your vehicle checked by a dealer.
MessageConditionExplanation
●Appears if there is a problem with the Auto high-
beam system.●Manually operate the headlight switch.●If you are driving with the high-beam headlights when
this happens, the headlight s are changed to low beams.
Models with power tail gate
U.S.
Canada
Models with Auto high-beam system
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 114 ページ ２０１８年８月２２日　水曜日　午後２時５９分

115
uuIndicators uDriver Information Interface Wa rning and Information Messages*
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the real time
AWD with intelligent control systemTM.
●The engine drives the front wh eels only in this state. Have
your vehicle checked by a dealer.
●Appears when the differen tial temperature is too
high.●Stop in a safe place, put the transmission into (P, and
idle the engine until the message disappears. If the
message does not disappear, have your vehicle checked
by a dealer.
2 Real Time AWD with Intelligent Control SystemTM*
P. 515
Models with real time AWD with intelligent control systemTM
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 115 ページ ２０１８年８月２２日　水曜日　午後２時５９分

116
Instrument Panel
Gauges and Displays
Gauges
Gauges include the speedometer, tachometer, fuel gauge, and related indicators.
They are displayed when the ignition switch is in ON
(w*1.
Displays your driving speed in mph (U.S.) or km/h (Canada).
Shows the number of engine revolutions per minute.
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Speedometer
■Tachometer
■Fuel Gauge
■Temperature Gauge
1 Gauges
Press and hold the mile (U .S.)/km (Canada) change
knob until you hear a beep. The speedometer reading
and the displayed measurements switch between
mph (U.S.) and km/h (Canada).
Press the (display /information) button
repeatedly until the ic on is shown on the driver
information interface. Press ENTER , then press and
hold it again. The spee dometer reading and the
displayed measurements wi ll switch between mph
(U.S.) and km/h (Canada).
Models with information display
Models with driver information interface
1 Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
1 Temperature Gauge
NOTICE
Driving with the temperat ure gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal. 2 Overheating P. 631
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 116 ページ ２０１８年８月２２日　水曜日　午後２時５９分

117
uuGauges and Displays uInformation Display*
Continued
Instrument Panel
Information Display*
The information display shows the odom eter, trip meter, engine oil life and
maintenance service item codes, and other gauges.
Press the ( TRIP) knob to change the display.
Shows the total number of miles (U.S.) or kilometers (Canada) that your vehicle has
accumulated.
Shows the total number of miles (U.S.) or k ilometers (Canada) driven since the last
reset. Meters A and B can be used to measure two separate trips.
■Switching the Display
1Switching the Display
Each time you press the knob, the information
display changes as follows:
Instant Fuel Economy,
Odometer, Trip Meter A,
Outside Temperature
Instant Fuel Economy,
Range, Trip Meter A,
Outside Temperature
Engine Oil Life
Instant Fuel Economy, Average
Fuel Economy A, Trip Meter A,
Outside Temperature Instant Fuel Economy, Average
Fuel Economy B, Trip Meter B,
Outside Temperature
■Odometer
■Trip Meter
( TRIP) knob
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 117 ページ ２０１８年８月２２日　水曜日　午後２時５９分

uuGauges and Displays uInformation Display*
118
Instrument Panel
■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0 .
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. Wh en a trip meter is reset, the average fuel
economy is also reset.
Shows the instant fuel economy as a bar graph in mpg or l/100km.
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance MinderTM P. 557
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.
■Average Fuel Economy
■Instant Fuel Economy Gauge
■Engine Oil Life
■Range
1 Average Fuel Economy
Press and hold the mile (U .S.)/km (Canada) change
knob to switch the measurement.
1 Instant Fuel Economy Gauge
Press and hold the mile (U .S.)/km (Canada) change
knob to switch the measurement.
1 Range
Press and hold the mile (U .S.)/km (Canada) change
knob to switch the measurement.
