2019 HONDA CR-V Owner's Manual (in English)

199
uuAdjusting the Seats uRear Seats
Continued
Controls
Rear Seats
1. Store the center seat belt first. Insert the
latch plate into the slot on the side of the
anchor buckle.
2. Retract the seat belt into the holder on the
ceiling.
2 Seat Belt with Detachable Anchor P. 46
3.Lower the rear seat head restraint to its
lowest position. Put the armrest back into
the seat-back.
■Adjusting the Seat Positions1Rear Seats
Once a seat is adjusted co rrectly, rock it back and
forth to make sure it is locked in position.
■Folding Down the Rear Seats
Lever
Seat-back Angle Adjustment
Pull up the lever to change the
angle.
1 Folding Down the Rear Seats
The rear seat-backs can be folded down to
accommodate bulkier items in the cargo area.
Remove any items from th e rear seat cushion and
floor before you fold down the rear seat.
Never drive with the seat-back folded down and the
tailgate open. 2 Exhaust Gas Hazard P. 76
When returning the seat-back to its original position,
push it firmly back. Also, m ake sure all rear shoulder
belts are positioned in front of the seat-back.
Make sure all items in the cargo area or items
extending through the opening into the rear
seats are properly secured. Loose items can fly
forward if you have to brake hard.
Latch plate
Anchor buckle
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 199 ページ ２０１８年８月２２日　水曜日　午後２時５９分

uuAdjusting the Seats uRear Seats
200
Controls
4. Pull the release lever and fold down the
seat.
4. Pull the release lever and fold down the
seat.
1Folding Down the Rear Seats
Make sure that the folded seat-back does not press
against the front passenger seat, as this can cause the
weight sensors in the front passenger seat to work
improperly. 2 Passenger Airbag Off Indicator P. 61
Make sure the seat-back, head restraints and seat
cushion are securely latche d back into place before
driving.Release LeverFrom the rear seat side
Release LeverFrom the cargo area side
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 200 ページ ２０１８年８月２２日　水曜日　午後２時５９分

201
uuAdjusting the Seats uHead Restraints
Continued
Controls
Head Restraints
Your vehicle is equipped with head restraints in all seating positions.
Head restraints are most effective for
protection against whiplash and other rear-
impact crash injuries when the center of the
back of the occupant's head rests against the
center of the restraint. The tops of the
occupant's ears should be level with the
center height of the restraint.
To raise the head restraint: Pull it upward.
To lower the head restraint: Push it down
while pressing the release button.
■Adjusting the Front Head Restraints1 Adjusting the Front Head Restraints
In order for the head restraint system to work
properly:
•Do not hang any items on the head restraints, or
from the restraint legs.
•Do not place any objects between an occupant and
the seat-back.
•Install each restraint in its proper location.
3WARNING
Improperly positioning head restraints
reduces their effectiveness and increases
the likelihood of serious injury in a crash.
Make sure head restraints are in place and
positioned properly before driving.
Position head in the center
of the head restraint.
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 201 ページ ２０１８年８月２２日　水曜日　午後２時５９分

uuAdjusting the Seats uHead Restraints
202
Controls
A passenger sitting in the rear seat should
adjust the height of their head restraint to an
appropriate position befo re the vehicle begins
moving.
To raise the head restraint:
Pull it upward.
To lower the head restraint:
Push it down while pressing the release
button.
Head restraints can be removed for cleaning or repair.
To remove a head restraint:
Pull the restraint up as far as it will go. Then push the release button, and pull the
restraint up and out.
To reinstall a head restraint:
Insert the legs back in place, then adjust the head restraint to an appropriate height
while pressing the release butto n. Pull up on the restraint to make sure it is locked
in position.
■Changing the Rear Seat Head Restraint Position
■Removing and Reinstalling the Head Restraints1 Removing and Reinstalling the Head Restraints
3WARNING
Failure to reinstall, or correctly reinstall, the
head restraints can result in severe injury
during a crash.
Always replace the he ad restraints before
driving.
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 202 ページ ２０１８年８月２２日　水曜日　午後２時５９分

203
uuAdjusting the Seats uMaintain a Proper Sitting Position
Controls
Maintain a Proper Sitting Position
After all occupants have adjusted their s eats and head restraints, and put on their
seat belts, it is very important that they continue to sit upright, well back in their
seats, with their feet on the floor, until the vehicle is safe ly parked and the engine is
off.
Sitting improperly can increase the chance of injury during a crash. For example, if
an occupant slouches, lies down, turns si deways, sits forward, leans forward or
sideways, or puts one or both feet up, the chance of injury during a crash is greatly
increased.
In addition, an occupant who is out of posi tion in the front seat can be seriously or
fatally injured in a crash by striking interior parts of the vehicle or being struck by an
inflating front airbag.1 Maintain a Proper Sitting Position
3WARNING
Sitting improperly or out of position can
result in serious injury or death in a crash.
Always sit upright, well back in the seat,
with your feet on the floor.
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 203 ページ ２０１８年８月２２日　水曜日　午後２時５９分

204
uuAdjusting the Seats uArmrest
Controls

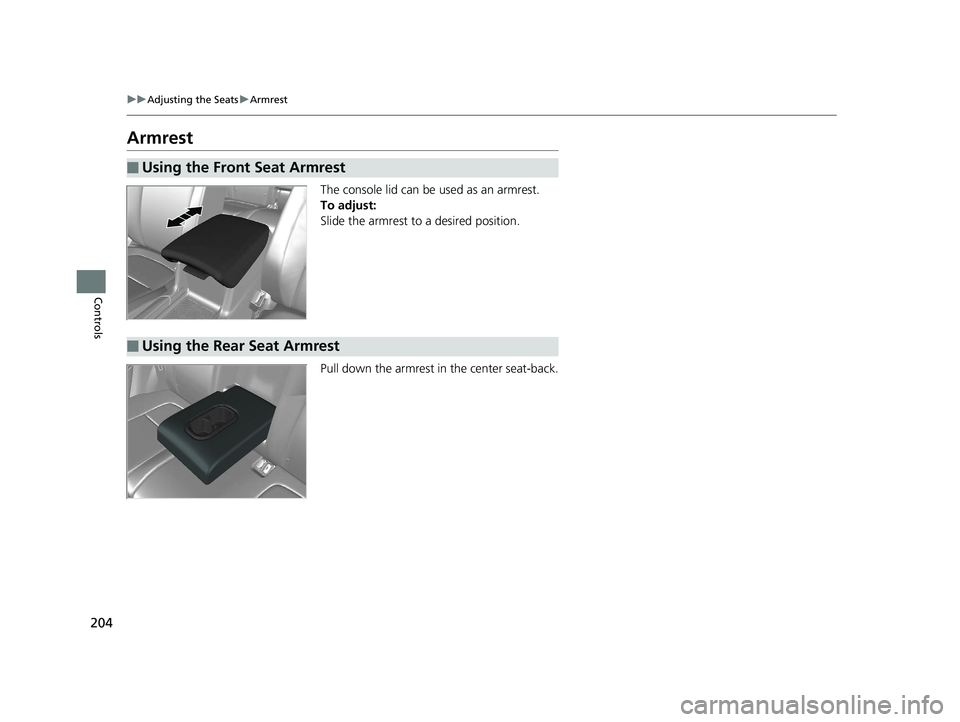

Armrest
The console lid can be used as an armrest.
To adjust:
Slide the armrest to a desired position.
Pull down the armrest in the center seat-back.
■Using the Front Seat Armrest
■Using the Rear Seat Armrest
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 204 ページ ２０１８年８月２２日　水曜日　午後２時５９分

205Continued
Controls
Interior Lights/Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the doors are open or closed.
■Door activated
The interior lights come on in the following
situations:
• When any doors are opened.
• You unlock the driver's door.
• You remove the key from the ignition
switch.
• When the power mode is set to VEHICLE
OFF (LOCK).
■OFF
The interior lights remain off regardless of
whether the doors are open or closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade out
and go off about 30 seconds after the doors are closed.
The lights go off after 30 seconds in the following situations:
•When you unlock the driver's door but do not open it.
•When you remove the key from the ignition switch
but do not open a door.
•When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
You can change the interi or lights dimming time.
2 Customized Features P. 349
The interior lights go off i mmediately in the following
situations:
•When you lock the driver's door.
•When you close the driver's door with the key in
the ignition switch.
•When you close the driver’s door in ACCESSORY mode.•When you set the power mode to ON.
To avoid draining the ba ttery, do not leave the
interior light on for an extended length of time when
the engine or power system is off.
If you leave any doors open in VEHICLE OFF (LOCK)
mode, or without the key in the ignition switch, the
interior lights go off after about 15 minutes.
Models without smart entry system
Models with smart entry system
Models with Display Audio
Models without smart entry system
Models with smart entry systemModels with panoramic roof
Models with moonroof
Front
Models without smart entry system
Door
Activated
Position
Off
Front
Front
Door Activated Position
Off
On
Door
Activated
Position
Off
On
Models without smart entry system
Models with smart entry system
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 205 ページ ２０１８年８月２２日　水曜日　午後２時５９分

206
uuInterior Lights/Interior Convenience Items uInterior Lights
Controls
Rear
Models without panoramic roof
Off
On
Door Activated
Position
Rear
Models with panoramic roof
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 206 ページ ２０１８年８月２２日　水曜日　午後２時５９分
