2019 HONDA CR-V Owner's Manual (in English)

15
Quick Reference Guide
Unlocking the Front
Doors from the Inside
(P142)
●Pull either front door inner handle to
unlock and open it at the same time.
Tailgate (P148)
Use a forward and back kicking motion
under the center of the rear bumper to
open or close the power tailgate while
carrying the smart entry remote.
Models with Hands Free Access
1 sec.
● With all the doors unlocked, press the
tailgate outer handle, and lift open the
tailgate.
● Press the tailgate outer handle to unlock
and open the tailgate when you have the
smart entry remote on you.
● Press the power tailgate button on the
driver side control panel, or press the
remote transmitter to unlock and open
the tailgate when you have the smart
entry remote on you.
Outer
Handle
Models without smart entry system
Models with smart entry system
Models with power tailgate
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 15 ページ ２０１８年８月２２日　水曜日　午後２時５９分

16
Quick Reference Guide
Power Door Mirrors
(P194)
●With the ignition switch in ON
(w*1, move
the selector switch to L or R .
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
*1: Models with the smart entry system have an
ENGINE START/STOP button instead of an ignition
switch.
Selector Switch
Adjustment Switch
Power Windows (P162)
● With the ignition switch in ON
(w*1, open
and close the power windows.
● If the power window lock button is in the
off position, each passenger's window
can be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator on), each
passenger's window switch is disabled.
*1: Models with the smart entry system have an
ENGINE START/STOP button instead of an ignition
switch.
Power Window Lock Button
Window Switch Indicator
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 16 ページ ２０１８年８月２２日　水曜日　午後２時５９分

17
Quick Reference Guide
Climate Control System (P224)
● Press the AUTO button to activate th e climate control system.
● Press the button to tu rn the system on or off.
● Press the button to defrost the windshield.
Models without SYNC button
Fan Control Dial
(Fresh Air) ButtonTemperature Control Dial
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation) Button (MODE Control) Button
(ON/OFF) Button
AUTO Button
A/C (Air Conditioning) Button
(Windshield De froster) Button
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 17 ページ ２０１８年８月２２日　水曜日　午後２時５９分

18
Quick Reference Guide
Models with SYNC button
Passenger's side Temperature
Control Dial
(Windshield De froster) ButtonDriver's side Temperature
Control Dial
(Recirculation) Button
(CLIMATE) Button
(ON/OFF) Button
AUTO Button
Audio/Information Screen
SYNC (Synchronization) Button
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Fresh Air) Button
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 18 ページ ２０１８年８月２２日　水曜日　午後２時５９分

Quick Reference Guide
19
Features (P229)
Audio Remote Controls
(P233)
●
(+ / (- Button
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode: FM1/
FM2/AM/USB or iPod/Pandora ®/
Bluetooth ®Audio.
Models with color audio system
SOURCE Button
(+ / (- / / Button
● / Button
Radio: Press to change the preset station.
Press and hold to select the next or
previous strong station.
iPod, USB device, or Bluetooth® Audio:
Press to skip to the beginning of
the next song or return to the
beginning of the current song.
USB device or Bluetooth® Audio
*:
Press and hold to change a folder.
Pandora ®:
Press to skip to the next track. Press
and hold to select the next or
previous station.
●( + / (- Bar
Press to adjust the volume up/down.
● / Button
Press or to cycl e through the audio
mode as follows:
FM/AM/SiriusXM ®
*/USB/iPod/
Bluetooth ®Audio/Pandora®*/Apps*/
Audio Apps*
• When listening to the radio and
SiriusXM ®*
aPress ENTER to switch the display to a
preset list you stored in the preset
buttons.
bPress or to select a preset, then
press ENTER .
Models with Display Audio
ENTER Button
/ / / Button34(+ / (- Bar
3434
34
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 19 ページ ２０１８年８月２２日　水曜日　午後２時５９分

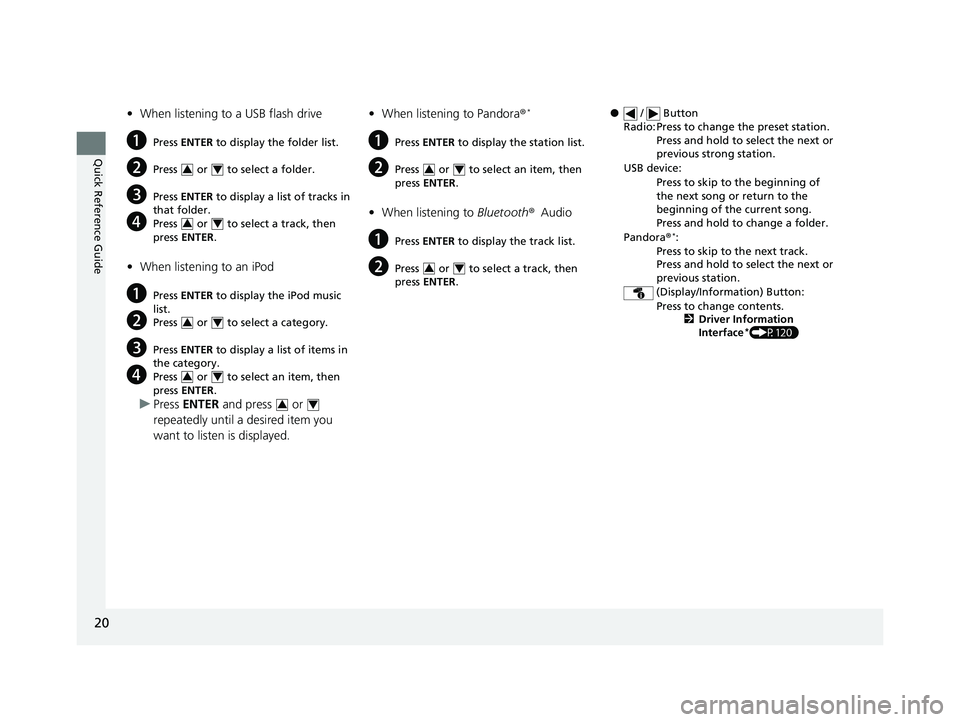

20
Quick Reference Guide
•When listening to a USB flash drive
aPress ENTER to display the folder list.
bPress or to select a folder.
cPress ENTER to display a list of tracks in
that folder.
dPress or to select a track, then
press ENTER .
•When listening to an iPod
aPress ENTER to display the iPod music
list.
bPress or to select a category.
cPress ENTER to display a list of items in
the category.
dPress or to select an item, then
press ENTER .
uPress ENTER and press or
repeatedly until a desired item you
want to listen is displayed.
34
34
34
34
34
• When listening to Pandora ®*
aPress ENTER to display the station list.
bPress or to select an item, then
press ENTER .
•When listening to Bluetooth®Audio
aPress ENTER to display the track list.
bPress or to select a track, then
press ENTER .
34
34
● / Button
Radio: Press to change the preset station. Press and hold to select the next or
previous strong station.
USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
Pandora®
*:
Press to skip to the next track.
Press and hold to select the next or
previous station.
(Display/Information) Button: Press to change contents. 2Driver Information
Interface
*(P120)
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 20 ページ ２０１８年８月２２日　水曜日　午後２時５９分

21
Quick Reference Guide
Audio system (P230)
(P237)Models with color audio system
(Seek/Skip) Button
RADIO Button
(Day/Night) Button
MEDIA Button
Preset Buttons (1-6)
(Seek/Skip) Button
VOL
/ (Volume/Power) Knob
Audio/Information Screen
(Back) Button
(Sound) Button
MENU/CLOCK Button
Selector Knob (Phone) Button
*
Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 21 ページ ２０１８年８月２２日　水曜日　午後２時５９分

22
Quick Reference Guide
(P258)
For navigation system operation () See the Navigation System Manual
Models with Display Audio
(Audio) Icon
(Back) Icon
Audio/Information Screen Driver Information Interface
(Instrument Panel) Icon (Day/Night) Icon
*
VOL / AUDIO (Volume/Power Audio)
Knob
(Home) Icon
(Map) Icon*
(Phone) Icon
Compass Icon*
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 22 ページ ２０１８年８月２２日　水曜日　午後２時５９分
