2019 HONDA CR-V Owner's Manual (in English)

439
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features
■Making a call to a sender
1. Go to the text message screen.
2. Select Dial.
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 439 ページ ２０１８年８月２２日　水曜日　午後２時５９分

uuBluetooth ® HandsFreeLink ®u HFL Menus
440
Features
■Automatic collisi on notification
If your vehicle’s airbags deploy or if the unit
detects that the vehicle is severely impacted,
your vehicle automatically will attempt to
connect to the HondaLink operator. If
connected, information about your vehicle, its
location, and its condition can be sent to the
operator
*1; you also can speak to the operator
when connected.
IMPORTANT: For vehicles equipped with Hond aLink Assist, owner activation
constitutes authorization for Honda to collect information from your vehicle needed
to provide the service, and agr eement to the Terms of Use at
www.hondalink.com/TermsAndConditions . In a crash, HondaLink Assist will
attempt to notify emergency services but NEITHER Honda-PRO NOR ITS SERVICE
PROVIDERS GUARANTEE THAT S UCH NOTIFICATION WILL OCCUR.
Honda reserves the right to terminate HondaLink Assist services at any time or for
any reason, and in the future may not be ab le to provide services due to changes in,
or obsolescence of, technology integral to the service or changes in governmental
regulation.
*1: Depending on your phone and adequate cellular coverage, y our vehicle's location may not
be sent to the operator.
■In Case of Emergency1 In Case of Emergency
Your vehicle may not be able to connect to the
operator if the battery level is low, the line is
disconnected, or you do not have adequate cellular
coverage.
You cannot use this emergency service when:
•You travel outside the H ondaLink service coverage
areas.
•There is a problem with the connecting devices,
such as the microphones, speakers, or the unit
itself.
You cannot operate othe r phone-related functions
using the screen while talking to the operator.
Select Hang Up to terminate the connection to your
vehicle.
1 Automatic collision notification
If the unit fails to connect to the operator, it
repeatedly tries until it succeeds.
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 440 ページ ２０１８年８月２２日　水曜日　午後２時５９分

441
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
■To enable notification
1.Go to the Phone Settings screen.
2Phone Settings screen P. 411
2.Select the Phone tab, then HondaLink
Assist .
u A pop-up menu appears on the screen.
3. Select On or Off .
1To enable notification
Setting options:
•On: Notification is available.
•Off: Disable the feature.
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 441 ページ ２０１８年８月２２日　水曜日　午後２時５９分

442
Features

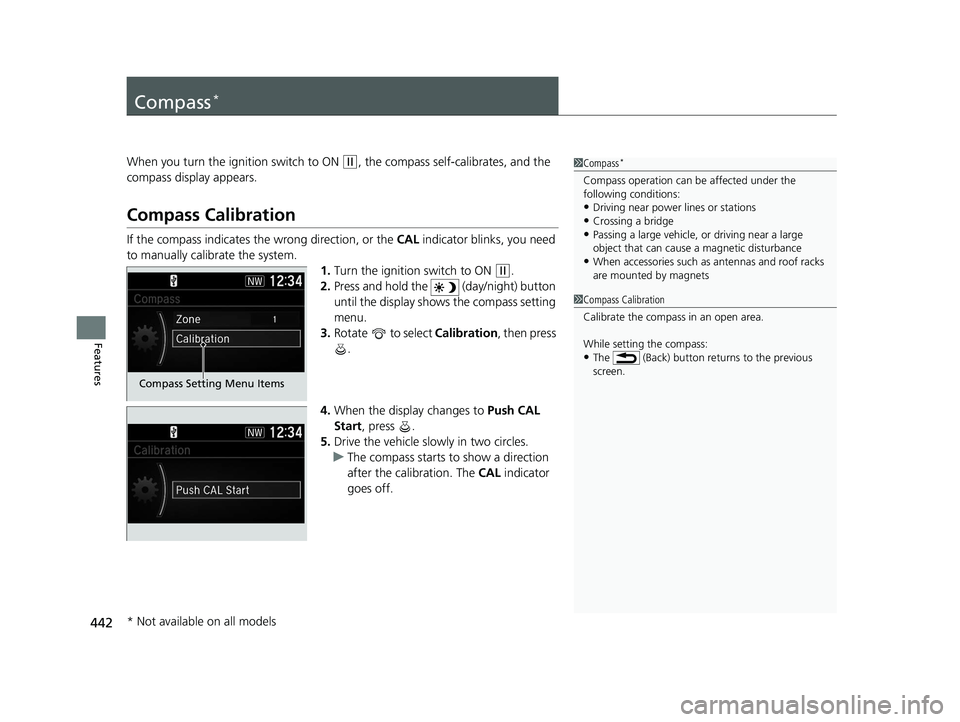

Compass*
When you turn the ignition switch to ON (w, the compass self-calibrates, and the
compass display appears.
Compass Calibration
If the compass indicates the wrong direction, or the CAL indicator blinks, you need
to manually calibrate the system.
1.Turn the ignition switch to ON
(w.
2. Press and hold the (day/night) button
until the display shows the compass setting
menu.
3. Rotate to select Calibration, then press
.
4. When the display changes to Push CAL
Start, press .
5. Drive the vehicle slowly in two circles.
u The compass starts to show a direction
after the calibration. The CAL indicator
goes off.
1 Compass*
Compass operation can be affected under the
following conditions:
•Driving near power lines or stations
•Crossing a bridge•Passing a large vehicle, or driving near a large
object that can cause a magnetic disturbance
•When accessories such as antennas and roof racks
are mounted by magnets
1 Compass Calibration
Calibrate the compass in an open area.
While setting the compass:
•The (Back) button returns to the previous
screen.
Compass Setting Menu Items
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 442 ページ ２０１８年８月２２日　水曜日　午後２時５９分

443
uuCompass*uCompass Zone Selection
Features
Compass Zone Selection
1. Turn the ignition switch to ON (w.
2. Press and hold the (day/night) button
until the display shows the compass setting
menu.
3. Rotate to select Zone, then press .
The display shows the current zone
number.
4. Rotate to select the zone number of
your area (See Zone Map), then press .1Compass Zone Selection
The zone selection is done to compensate the
variation between magneti c north and true north.
If the calibration starts while the audio system is in
use, the display returns to normal after the calibration
is completed.
Zone Number
Zone Map
Guam Island: Zone 8
Puerto Rico: Zone 11
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 443 ページ ２０１８年８月２２日　水曜日　午後２時５９分

444
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 444 ページ ２０１８年８月２２日　水曜日　午後２時５９分

445
Driving
This chapter discusses driving and refueling.
Before Driving................................... 446
Towing a Trailer Towing Preparation .......................... 451
Driving Safely with a Trailer .............. 454
Towing Your Vehicle ........................ 455
Off-Highway Driving Guidelines
General Information ......................... 456
Important Safety Precautions............ 456
Avoiding Trouble ............................. 457
When Driving
Starting the Engine .......................... 458
Starting the Engine .......................... 460
Precautions While Driving................. 465
Models without smart entry system
Models with smart entry system
Continuously Variable Transmission... 466
Shifting ............................................ 467
ECON Button ................................... 469
Cruise Control
*............................... 470
Front Sensor Camera*..................... 477
Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF)
*....................... 479Road Departure Mitigation (RDM) System*..................................... 495Lane Keeping Assist System (LKAS)*.. 499Vehicle Stability Assist® (VSA®), aka Electronic
Stability Control (ESC), System............. 507
LaneWatchTM*.................................. 513
Real Time AWD with Intelligent Control System
TM*...................................... 515
Tire Pressure Monitoring System (TPMS) ... 516Tire Pressure Monitoring System (TPMS) - Required Federal Explanation ......... 520
Braking Brake System ................................... 522
Anti-lock Brake System (ABS) ........... 528
Brake Assist System ......................... 529
Collision Mitigation Braking System
TM
(CMBSTM)*..................................... 530
Parking Your Vehicle When Stopped ................................ 540
Multi-View Rear Camera .................. 546
Refueling ........................................... 548
Fuel Economy and CO
2 Emissions .... 551
Turbo Engine Vehicle*...................... 552
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 445 ページ ２０１８年８月２２日　水曜日　午後２時５９分

446
Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on th e windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheel s, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressures, and check for damage and excessive wear.
2Checking and Maintaining Tires P. 595
•Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the engine and exhaust can ignite
flammable material s left under the hood, causing a
fire. If you've parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also check under the hood for leftover
flammable materials after you or someone else has
performed maintenance on your vehicle.
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 446 ページ ２０１８年８月２２日　水曜日　午後２時５９分
