2019 FORD F650/750 Instrument

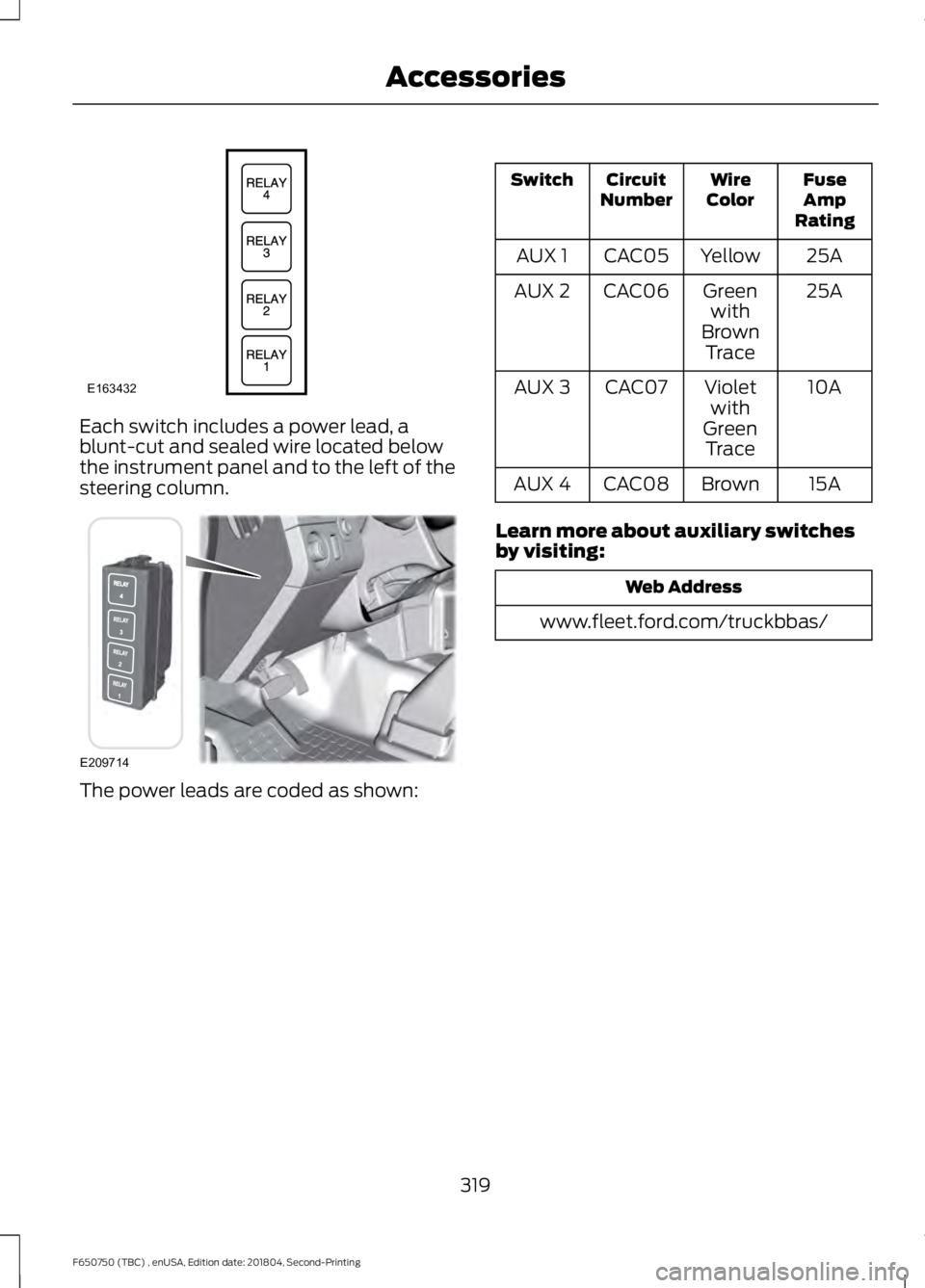

Each switch includes a power lead, a
blunt-cut and sealed wire located below
the instrument panel and to the left of the
steering column.
The power leads are coded as shown: Fuse
Amp
Rating
Wire
Color
Circuit
Number
Switch
25A
Yellow
CAC05
AUX 1
25A
Green
with
Brown Trace
CAC06
AUX 2
10A
Violet
with
Green Trace
CAC07
AUX 3
15A
Brown
CAC08
AUX 4
Learn more about auxiliary switches
by visiting: Web Address
www.fleet.ford.com/truckbbas/
319
F650750 (TBC) , enUSA, Edition date: 201804, Second-Printing AccessoriesE163432 E209714

A message appears in the information
display when it is time for an oil change.
Make sure you perform the oil change
within two weeks or 500 mi (800 km) of
the message appearing. Make sure you
reset the Intelligent Oil-Life Monitor after
each oil change. See Instrument Cluster
(page
56).
If your information display resets
prematurely or becomes inoperative, you
should perform the oil change interval at
six months or
5,000 mi (8,000 km) from
your last oil change. Never exceed one year
or
10,000 mi (16,000 km) between oil
change intervals.
All Vehicles
Your vehicle is very sophisticated and built
with multiple, complex, performance
systems. Every manufacturer develops
these systems using different
specifications and performance features.
That is why it is important to rely upon your
dealership to properly diagnose and repair
your vehicle.
Ford Motor Company has recommended
maintenance intervals for various parts
and component systems based upon
engineering testing. Ford Motor Company
relies upon this testing to determine the
most appropriate mileage for replacement
of oils and fluids to protect your vehicle at
the lowest overall cost to you and
recommends against maintenance
schedules that deviate from the scheduled
maintenance information.
We strongly recommend the use of only
genuine Ford, Motorcraft or
Ford-authorized re-manufactured
replacement parts engineered for your
vehicle. Additives and Chemicals
This owner's manual and the Ford
Workshop Manual list the recommended
additives and chemicals for your vehicle.
We do not recommend using chemicals or
additives not approved by us as part of
your vehicle
’s normal maintenance. Please
consult your warranty information.
Oils, Fluids and Flushing
In many cases, fluid discoloration is a
normal operating characteristic and, by
itself, does not necessarily indicate a
concern or that the fluid needs to be
changed. However, a qualified expert, such
as the factory-trained technicians at your
dealership, should inspect discolored fluids
that also show signs of overheating or
foreign material contamination
immediately.
Make sure to change your vehicle ’s oils and
fluids at the specified intervals or in
conjunction with a repair. Flushing is a
viable way to change fluid for many vehicle
sub-systems during scheduled
maintenance. It is critical that systems are
flushed only with new fluid that is the same
as that required to fill and operate the
system or using a Ford-approved flushing
chemical.
Scheduled Maintenance Services
Maintenance service adjustments must
conform to specifications contained in this
manual, and those shown on the Important
Engine Information decal. Perform the
following services at scheduled intervals
because they essential to the life and
performance of your vehicle. Ford
recommends that you perform
maintenance on all designated items to
achieve best vehicle operation.
323
F650750 (TBC) , enUSA, Edition date: 201804, Second-Printing Scheduled Maintenance

Cleaning the Engine.....................................231
Cleaning the Exterior..................................229
Cleaning the Headlamps................................ 230
Exterior Chrome Parts..................................... 230
Exterior Plastic Parts........................................ 230
Stripes or Graphics........................................... 230
Underbody........................................................... 230
Under Hood......................................................... 230
Cleaning the Instrument Panel and Instrument Cluster Lens.........................232
Cleaning the Interior....................................232 Mirrors..................................................................... 232
Cleaning the Wheels..................................233
Cleaning the Windows and Wiper Blades
............................................................231
Climate Control...............................................72
Cold Weather Precautions.........................151 Winter Operating Tips for Arctic Operation
-20°F (-29°C) and Below.......................... 152
Coolant Check See: Engine Coolant Check - 6.7L
Diesel................................................................. 196
See: Engine Coolant Check - 6.8L..............200
Cruise Control
..................................................47
Principle of Operation....................................... 138
Cruise control See: Using Cruise Control................................ 138
Customer Assistance
.................................160
D
Data Recording
.................................................13
Service Data Recording....................................... 13
Daytime Running Lamps............................50
Diesel Particulate Filter
..............................109
Oxidation Catalytic Converter and Diesel
Particulate Filter System............................. 110
Direction Indicators
........................................51
Doors and Locks.............................................42
Draining the Fuel Filter Water Trap - 6.7L Diesel.............................................................207
Draining the Diesel Fuel Conditioner Module (DFCM)............................................................. 207
Driving Aids
.....................................................140
Driving Hints...................................................149
Driving Through Water................................153
Operation in Standing Water......................... 153DRL
See: Daytime Running Lamps......................... 50
E
Economical Driving
......................................150
Electrical System Inspection....................221 Accessory Feed Connections......................... 221
Electromagnetic Compatibility
...............351
Electronic Locking Differential................120 Activating the Locking Differential................121
Driver-Controlled Locking
Differential....................................................... 120
Servicing a Vehicle with a Locking Differential......................................................... 121
Emission Law
.................................................102
Noise Emissions Warranty, Prohibited
Tampering Acts and Maintenance..........103
Tampering With a Noise Control System............................................................... 102
End User License Agreement..................353 SYNC End User License Agreement
(EULA).............................................................. 353
Engine Block Heater
.....................................90
Using the Engine Block Heater......................... 91
Engine Coolant Check - 6.7L Diesel.............................................................196
Adding Coolant.................................................... 197
Coolant Change.................................................. 199
Engine and Secondary Cooling System Refill Procedure.............................................. 198
Engine-driven Cooling Fan............................ 200
Recycled Coolant............................................... 199
Severe Climates.................................................. 199
Engine Coolant Check - 6.8L..................200 Adding Coolant................................................... 201
Engine Coolant Temperature Management.................................................. 203
Fail-Safe Cooling............................................... 202
Recycled Coolant............................................... 201
Severe Climates................................................. 202
Engine Emission Control
............................102
Engine Idle Shutdown..................................90
Engine Immobilizer See: Passive Anti-Theft System..................... 44
Engine Oil Check - 6.7L Diesel.................192 Adding Engine Oil............................................... 192
377
F650750 (TBC) , enUSA, Edition date: 201804, Second-Printing Index

Engine Oil Pressure Gauge................................
57
Fuel Gauge.............................................................. 57
Gasoline Engines.................................................. 56
Gauge Package...................................................... 57
Information Display............................................. 58
Transmission Fluid Temperature Gauge................................................................... 57
Gearbox See: Transmission............................................... 115
General Driving Points................................149
Backing Up............................................................ 149
General Information.......................................... 149
Parking .................................................................... 150
General Information on Radio Frequencies..................................................40
General Maintenance Information
........322
Multi-point Inspection..................................... 326
Owner Checks and Services.......................... 324
Protecting Your Investment........................... 322
Why Maintain Your Vehicle?.......................... 322
Why Maintain Your Vehicle at Your Dealership?..................................................... 322
Getting Assistance Outside the U.S. and Canada..........................................................163
Getting the Services You Need...............160 Away From Home.............................................. 160
H
Handbrake See: Parking Brake.............................................. 123
Hazard Flashers
.............................................155
Headlamp Adjusting See: Adjusting the Headlamps...................... 210
Headlamp Removal See: Removing a Headlamp........................... 212
Headrest See: Head Restraints........................................... 75
Head Restraints...............................................75 Adjusting the Head Restraint........................... 76
Heated Exterior Mirrors.................................74
Heating See: Climate Control........................................... 72
Hints on Controlling the Interior Climate
............................................................73
Defogging the Side Windows in Cold
Weather............................................................... 74
General Hints.......................................................... 73Quickly Cooling the Interior...............................
73
Quickly Heating the Interior.............................. 73
Recommended Settings for Cooling.............73
Recommended Settings for Heating............73
Vehicle Stationary for Extended Periods During Extreme High Ambient
Temperatures.................................................... 74
Hints on Driving With Anti-Lock Brakes.............................................................123
Hood Lock See: Opening and Closing the Hood...........188
I
Ignition Switch
................................................86
In California (U.S. Only)..............................161
Information Display Control.......................47
Information Displays
....................................64
General Information........................................... 64
Information Messages
..................................67
Diesel Messages................................................... 67
Engine....................................................................... 70
Fuel........................................................................\
.... 70
Key........................................................................\
....... 71
Maintenance............................................................ 71
Park Brake................................................................. 71
Installing Child Restraints...........................20 Child Restraints..................................................... 20
Tether Strap Attachment.................................. 26
Using Cinch Tongue Lap and Shoulder Belts (All Front Center, Super Cab and Crew
Cab Rear Center Positions)......................... 23
Using Lap and Shoulder Belts.......................... 21
Using Lower Anchors and Tethers for CHildren (LATCH)............................................ 25
Using Tether Straps............................................. 25
Instrument Cluster
........................................56
Instrument Lighting Dimmer.....................50
Instrument Panel Overview.........................17
Interior Lamps
..................................................51
Interior Mirror...................................................55
Introduction.........................................................7
J
Jump Starting the Vehicle.........................156 Connecting the Jumper Cables..................... 156
Jump Starting....................................................... 157
379
F650750 (TBC) , enUSA, Edition date: 201804, Second-Printing Index
