25Pictorial index
UK AURIS_HV_HB_EE (OM12M49E)
Audio remote control switches*2 . . . . . . . . . . . . . . . . . . . . P. 319
Telephone switches*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 355
Meter control switches . . . . . . . . . . . . . . . . . . . . . . . . . P. 108, 109
LDA (Lane Departur e Alert) switch*1. . . . . . . . . . . . . . . . . . P. 265
Cruise control switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 280
Talk switch*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 355
Seat heater switches*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 389
VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 306, 307
“PWR MODE” switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 222
“ECO MODE” switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 222
EV drive mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 217
P position switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 221
1
2
3
4
5
6
1
2
3
4
5
6
*1: If equipped
*2: For vehicles with navigation/multimedia system, refer to
“Navigation and multimedia system Owner’s manual”.

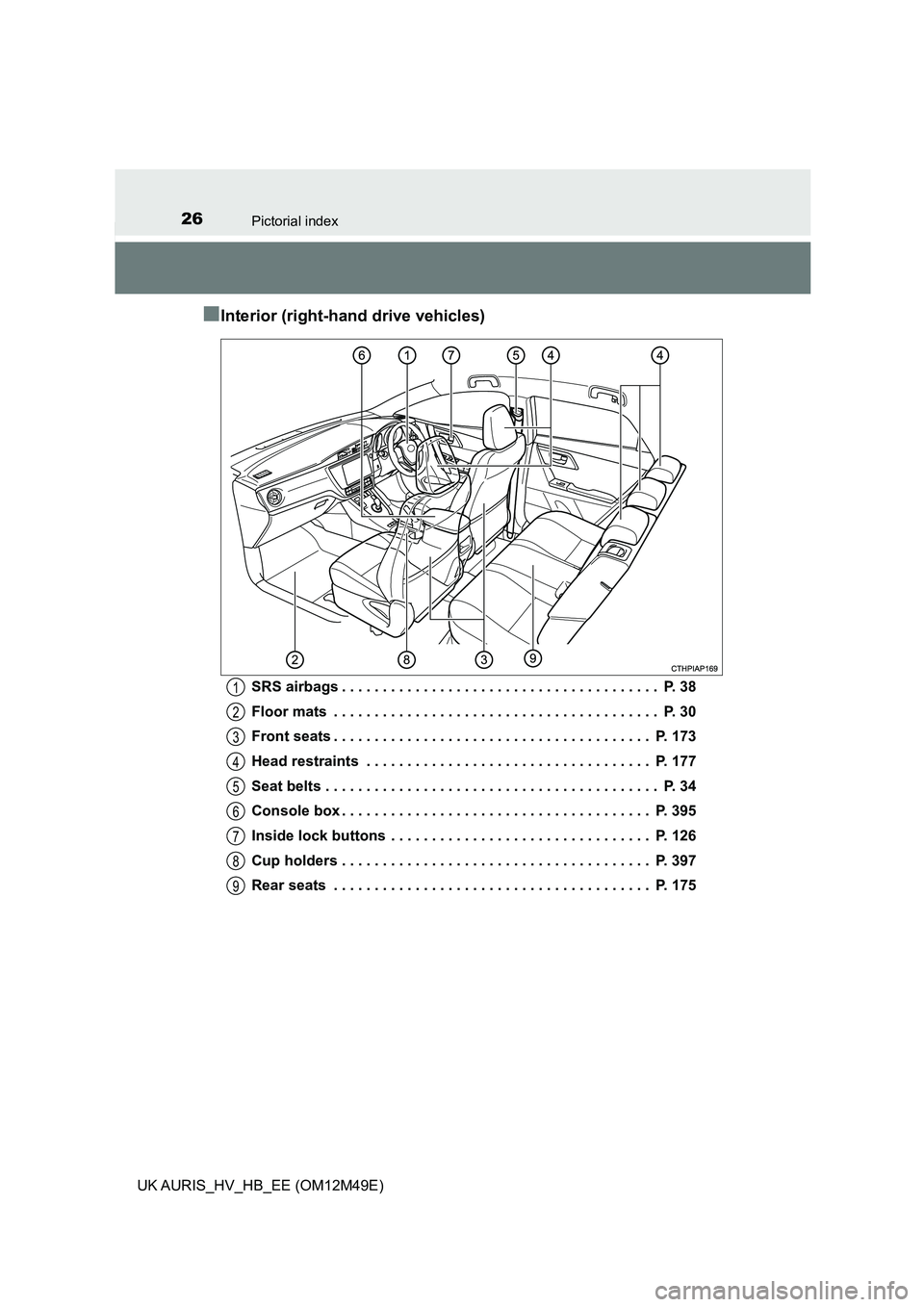

26Pictorial index
UK AURIS_HV_HB_EE (OM12M49E)
■Interior (right-hand drive vehicles)
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 38
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 30
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 173
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 177
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 34
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 395
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 126
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 397
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 175
1
2
3
4
5
6
7
8
9

27Pictorial index
UK AURIS_HV_HB_EE (OM12M49E)
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 181
Sun visors*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 405
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 405
Vanity lights*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 391
Interior lights/personal lights . . . . . . . . . . . . . . . . . . . . P. 391, 392
Panoramic roof shade switch*2. . . . . . . . . . . . . . . . . . . . . . P. 409
Intrusion sensor cancel switch . . . . . . . . . . . . . . . . . . . . . . . P. 92
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 408
1
2
3
4
5
6
7
8
*1: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it,
DEATH or SERIOUS INJURY to the
CHILD can occur. ( P. 68)
*2: If equipped

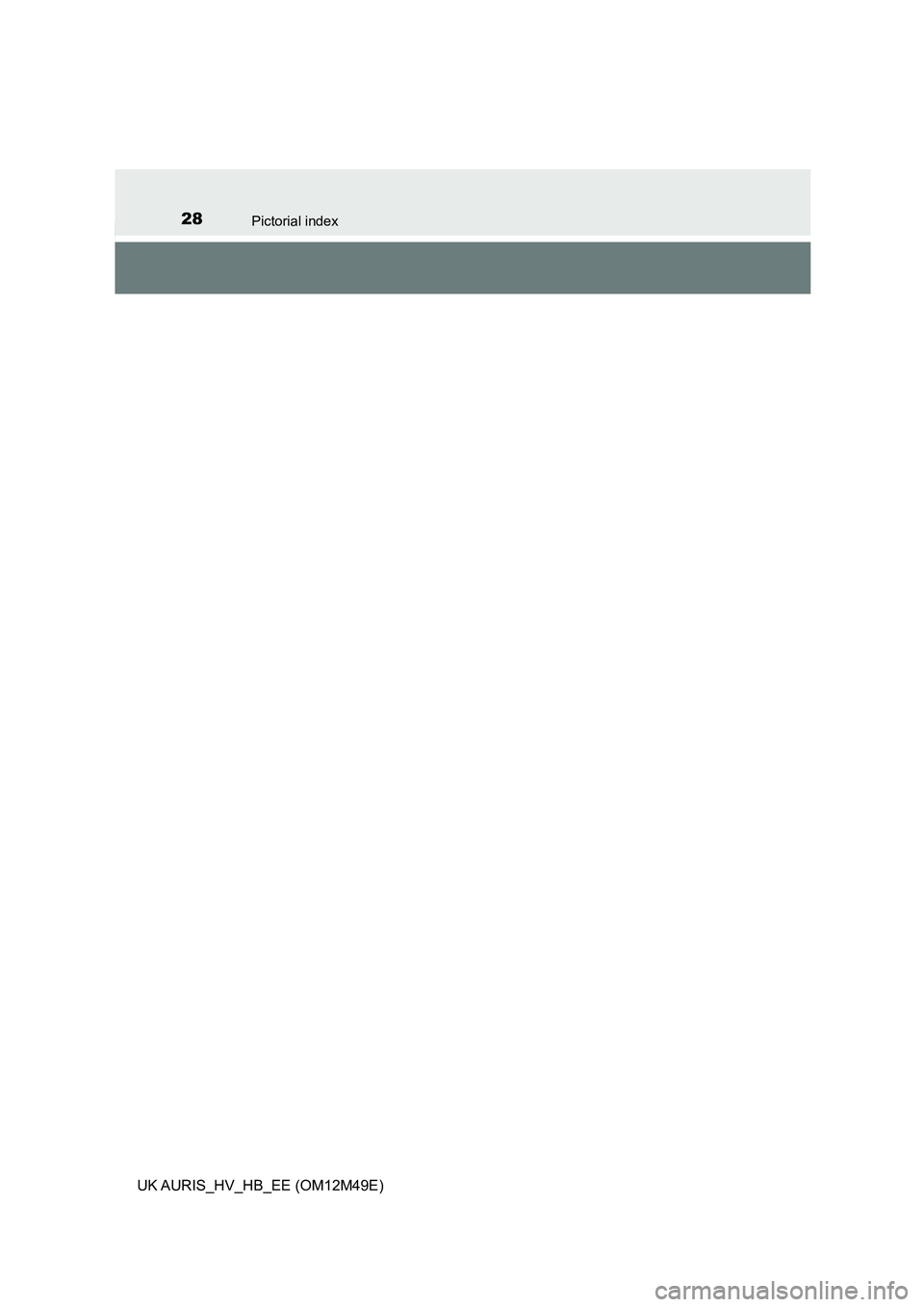

28Pictorial index
UK AURIS_HV_HB_EE (OM12M49E)

29

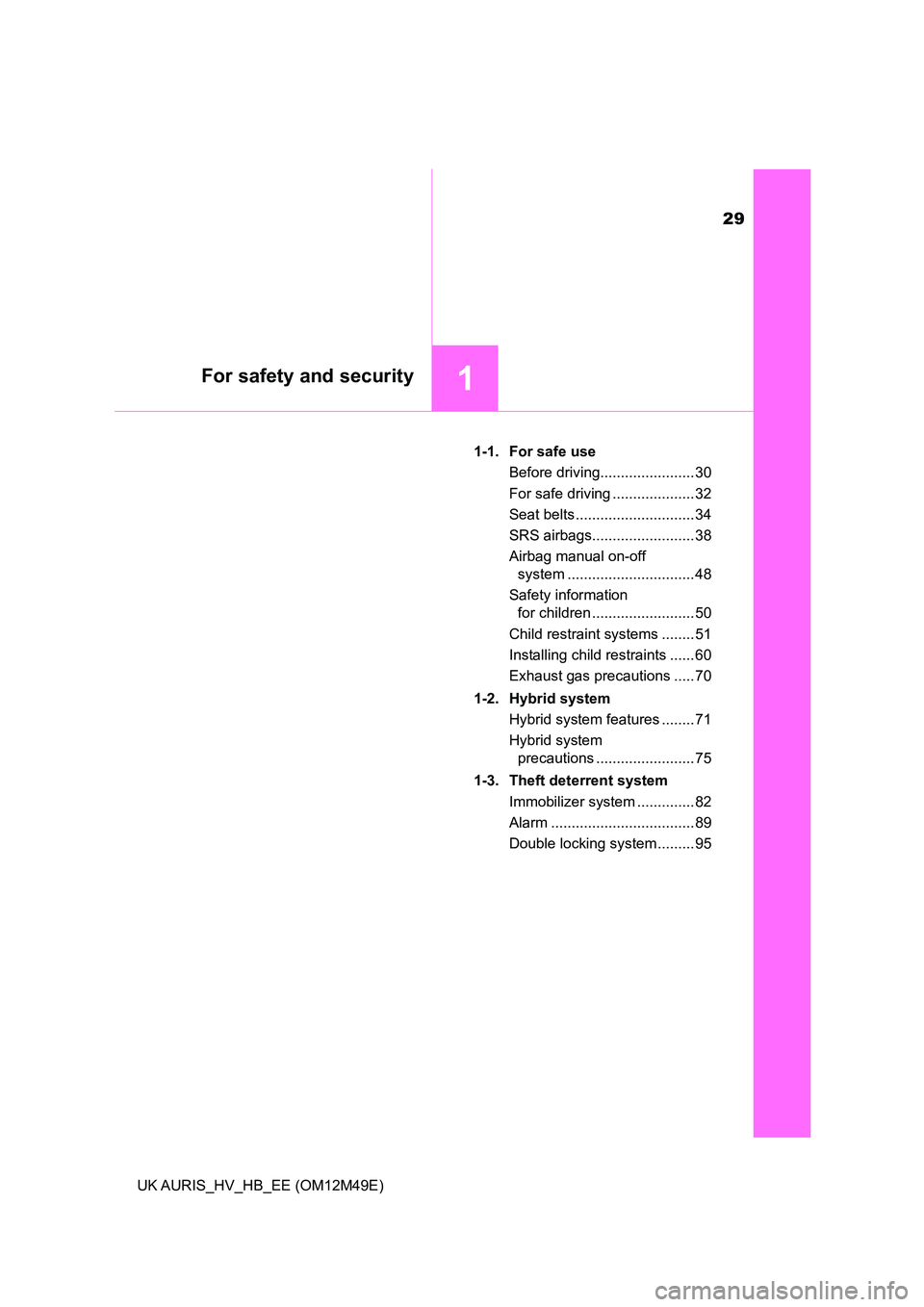

1For safety and security
UK AURIS_HV_HB_EE (OM12M49E)
1-1. For safe use
Before driving....................... 30
For safe driving .................... 32
Seat belts ............................. 34
SRS airbags......................... 38
Airbag manual on-off
system ............................... 48
Safety information
for children ......................... 50
Child restraint systems ........ 51
Installing child restraints ...... 60
Exhaust gas precautions ..... 70
1-2. Hybrid system
Hybrid system features ........ 71
Hybrid system
precautions ........................ 75
1-3. Theft deterrent system
Immobilizer system .............. 82
Alarm ................................... 89
Double locking system ......... 95

30
UK AURIS_HV_HB_EE (OM12M49E)

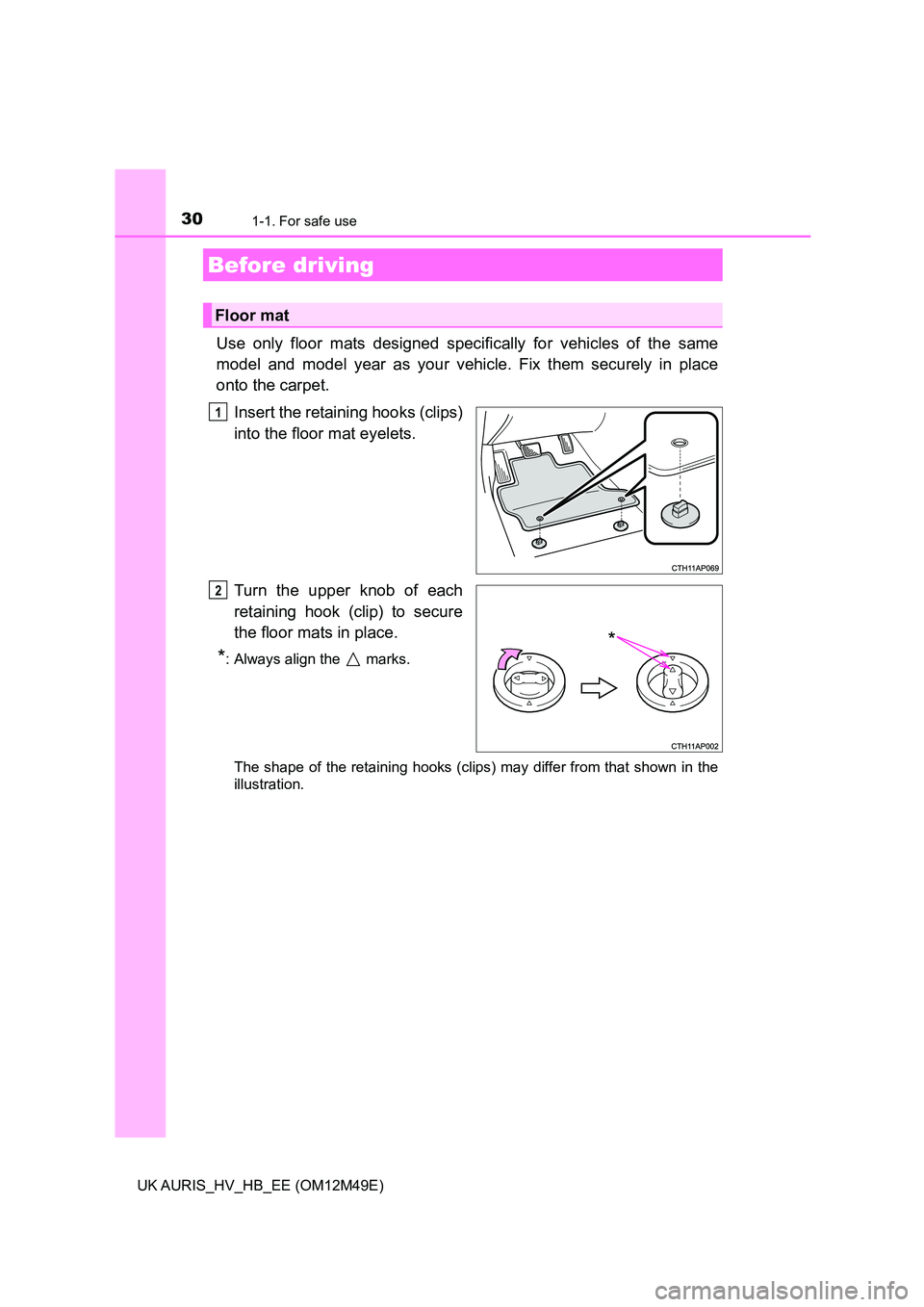

1-1. For safe use
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
Before driving
Floor mat
1
*
2

311-1. For safe use
1
For safety and security
UK AURIS_HV_HB_EE (OM12M49E)
WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■ When installing the driver’s floor mat
● Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the hybrid system stopped and the
shift position in P, fully depress each
pedal to the floor to make sure it does
not interfere with the floor mat.

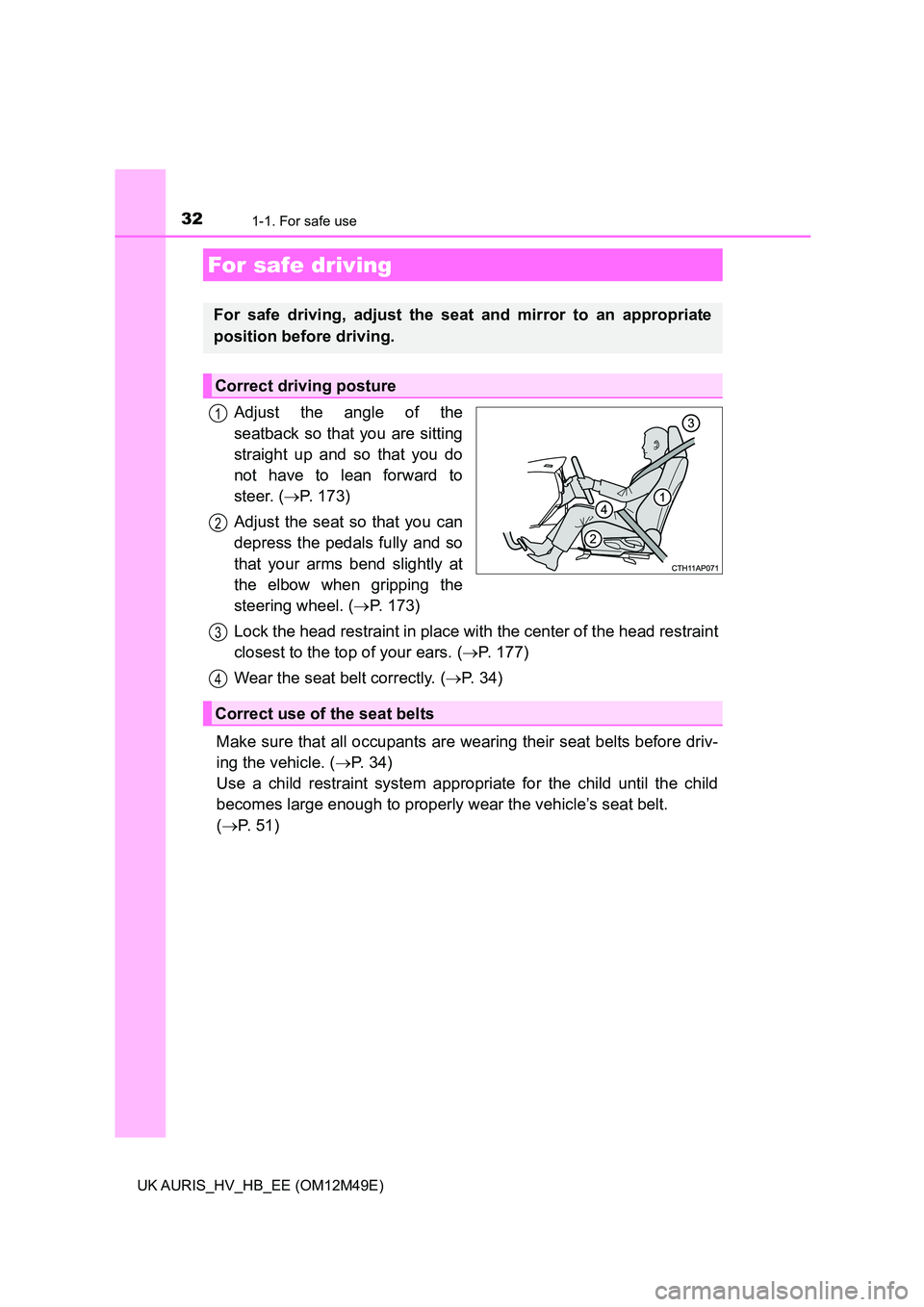

321-1. For safe use
UK AURIS_HV_HB_EE (OM12M49E)
Adjust the angle of the
seatback so that you are sitting
straight up and so that you do
not have to lean forward to
steer. ( P. 173)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P. 173)
Lock the head restraint in place with the center of the head restraint
closest to the top of your ears. ( P. 177)
Wear the seat belt correctly. ( P. 3 4 )
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. ( P. 3 4 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
( P. 51)
For safe driving
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
3
4
