2018 TOYOTA AURIS Owners Manual (in English)

97
2Instrument cluster
UK AURIS_HV_HB_EE (OM12M49E)
2. Instrument cluster
Warning lights and
indicators ........................... 98
Gauges and meters ........... 103
Multi-information
display ............................. 106
Energy monitor/
consumption screen ........ 115

98
UK AURIS_HV_HB_EE (OM12M49E)
2. Instrument cluster
The units used on the speedometer and some indicators may differ
depending on the target region.

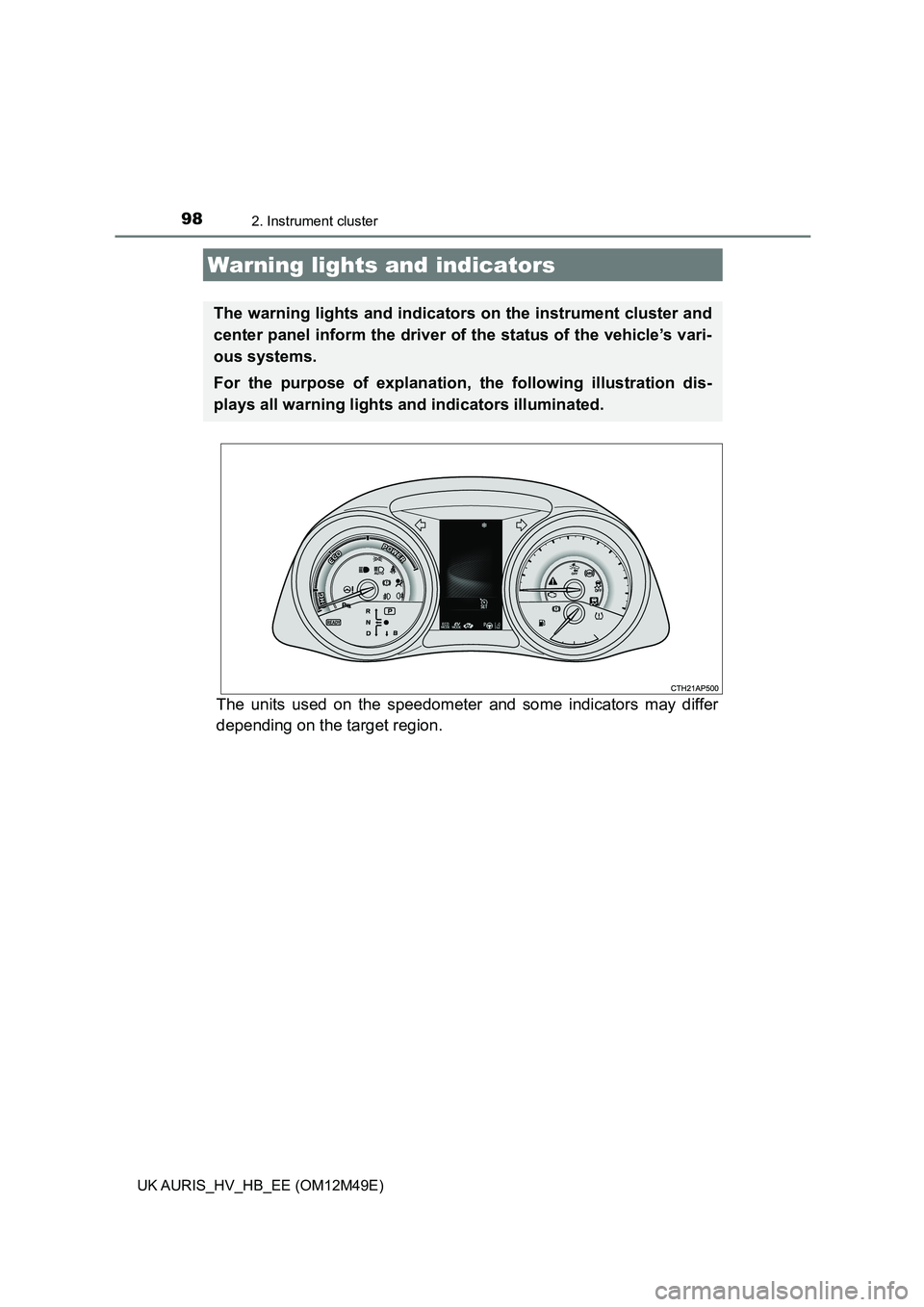

Warning lights and indicators
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights a nd indicators illuminated.

992. Instrument cluster
UK AURIS_HV_HB_EE (OM12M49E)
2
Instrument cluster

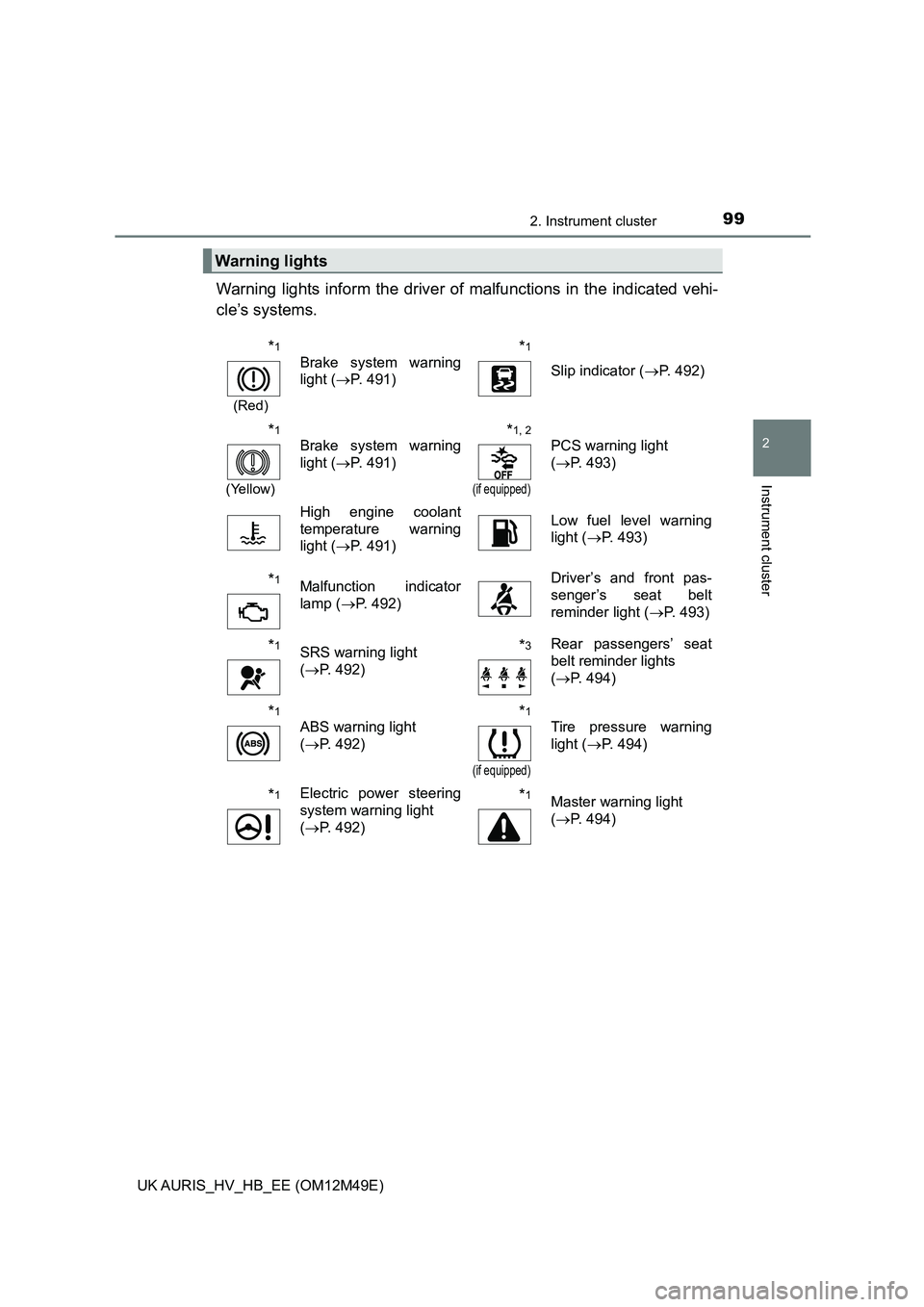

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
(Red)
Brake system warning
light ( P. 491)
*1
Slip indicator (P. 492)
*1
(Yellow)
Brake system warning
light ( P. 491)
*1, 2
(if equipped)
PCS warning light
( P. 493)
High engine coolant
temperature warning
light ( P. 491)
Low fuel level warning
light ( P. 493)
*1Malfunction indicator
lamp ( P. 492)
Driver’s and front pas-
senger’s seat belt
reminder light ( P. 493)
*1SRS warning light
( P. 492)
*3Rear passengers’ seat
belt reminder lights
( P. 494)
*1
ABS warning light
( P. 492)
*1
(if equipped)
Tire pressure warning
light ( P. 494)
*1Electric power steering
system warning light
( P. 492)
*1Master warning light
( P. 494)

1002. Instrument cluster
UK AURIS_HV_HB_EE (OM12M49E)

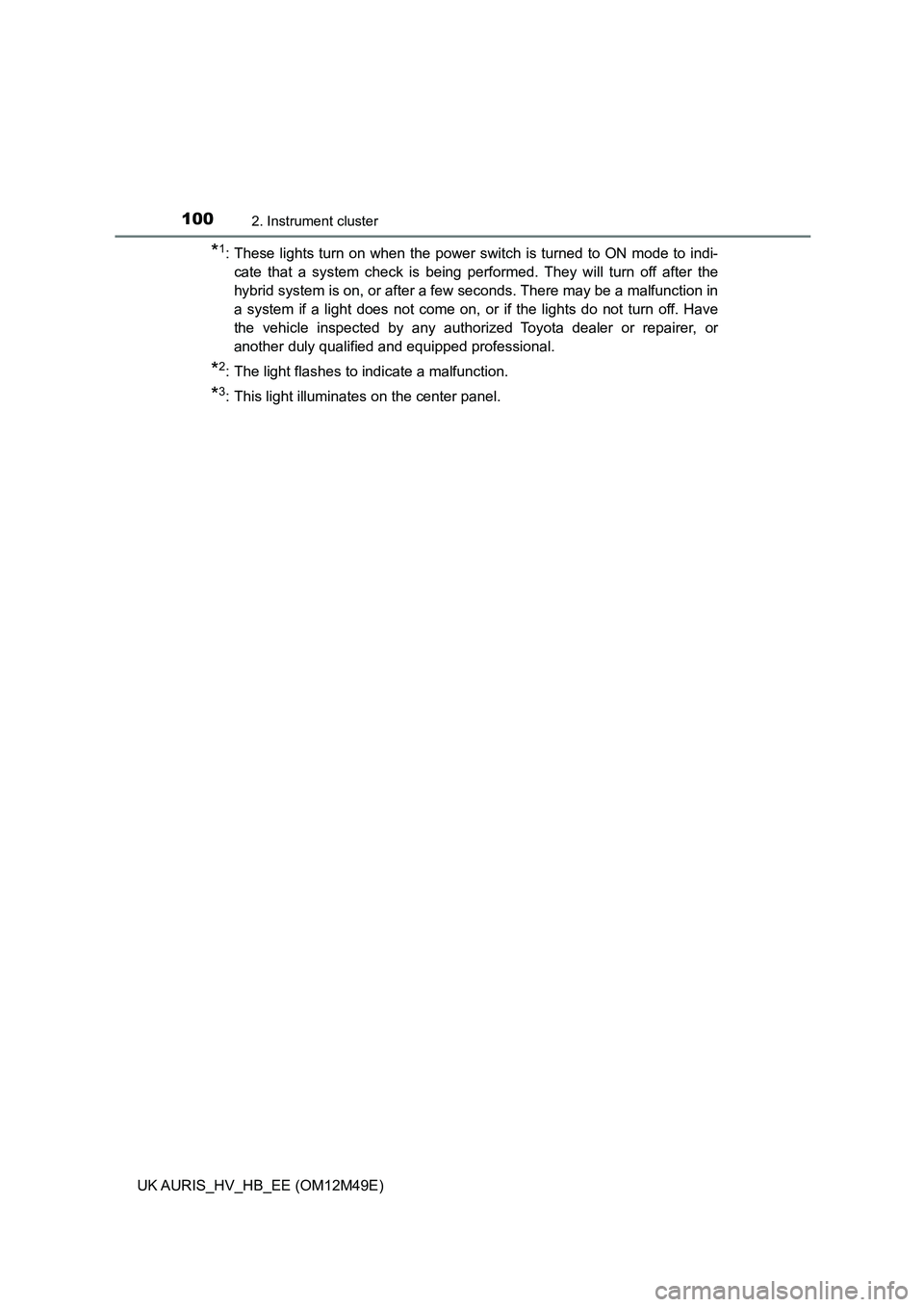

*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being per formed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
*2: The light flashes to indicate a malfunction.
*3: This light illuminates on the center panel.

1012. Instrument cluster
UK AURIS_HV_HB_EE (OM12M49E)
2
Instrument cluster
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 227)(if equipped)
Simple-IPA indicator
( P. 291)
Tail light indicator
( P. 229)
*1, 2Slip indicator
( P. 306)
Headlight high beam
indicator ( P. 229)
*1VSC OFF indicator
( P. 306)
*1
(if equipped)
Automatic High Beam
indicator ( P. 270)
*1
(if equipped)
PCS warning light
( P. 255)
(if equipped)
Front fog light indicator
( P. 235) EV indicator ( P. 217)
Rear fog light indicator
( P. 235)
*3Security indicator
( P. 82, 89)
(if equipped)
Cruise control indicator
( P. 280)
Power mode indicator
( P. 222)
(if equipped)
Cruise control “SET”
indicator ( P. 280)
“ECO MODE” indicator
( P. 222)
(if equipped)
LDA (Lane Departure
Alert) indicator
( P. 265)
EV drive mode indicator
( P. 217)
(if equipped)
Toyota parking
assist-sensor indicator
( P. 284)
“READY” indicator
( P. 211)

1022. Instrument cluster
UK AURIS_HV_HB_EE (OM12M49E)

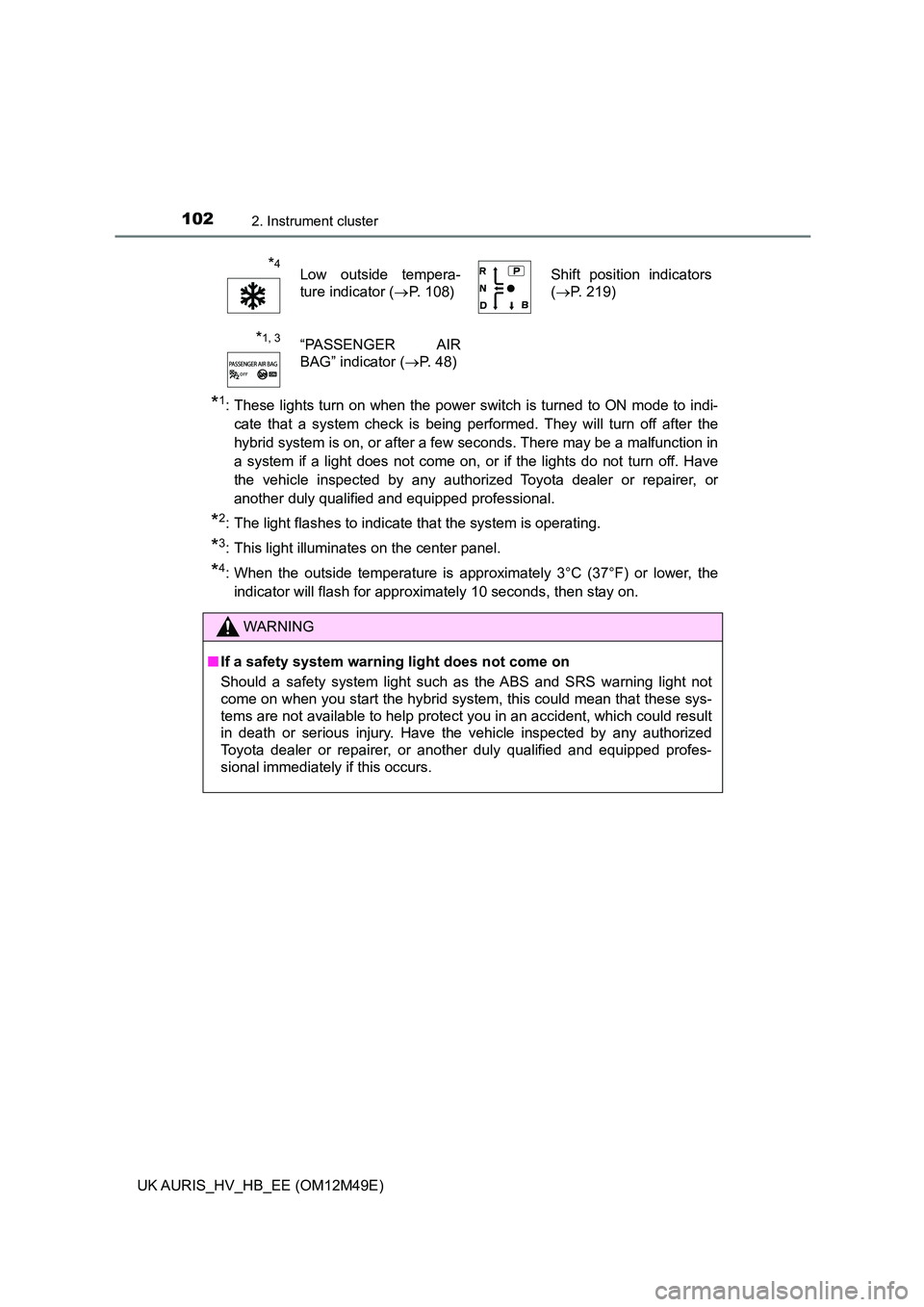

*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being per formed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
*2: The light flashes to indicate that the system is operating.
*3: This light illuminates on the center panel.
*4: When the outside temperature is approximately 3°C (37°F) or lower, the
indicator will flash for approximately 10 seconds, then stay on.
*4Low outside tempera-
ture indicator ( P. 108)
Shift position indicators
( P. 219)
*1, 3“PASSENGER AIR
BAG” indicator ( P. 48)
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional immediately if this occurs.

1032. Instrument cluster
UK AURIS_HV_HB_EE (OM12M49E)
2
Instrument cluster
Hybrid System Indicator
Displays hybrid system output or regeneration level (P. 104)
Speedometer
Displays the vehicle speed.
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C
(122°F). Low outside temperature indicator comes on when the ambient
temperature is 3°C (37°F) or lower.
Shift position indicators
Displays the shift position. ( P. 219)
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Multi-information display
P. 106
Gauges and meters
1
2
3
4
5
6

1042. Instrument cluster
UK AURIS_HV_HB_EE (OM12M49E)
■The meters and display illuminate when
The power switch is in ON mode.
■ Outside temperature display
● In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 15 km/h [9 mph])
• When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
● If “ ” is displayed continuously, the system may be malfunctioning. Take
your vehicle to any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
■ Hybrid System Indicator
● By keeping the indicator needle within Eco area, more Eco-friendly driving
can be achieved.
● Charge area indicates regeneration* status. Regenerated energy will be
used to charge the hybrid battery (traction battery).
*: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy.
■ Engine speed
On hybrid vehicles, engine speed is precisely controlled in order to help
improve fuel efficiency and reduce exhaust emissions etc.
There are times when the engine speed that is displayed may differ even
when vehicle operation and driving conditions are the same.
Charge area
Shows regenerative charging.
Hybrid Eco area
Shows that gasoline engine power is
not being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
Eco area
Shows that the vehicle is being driven in
an Eco-friendly manner.
Power area
Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)
1
2
3
4
