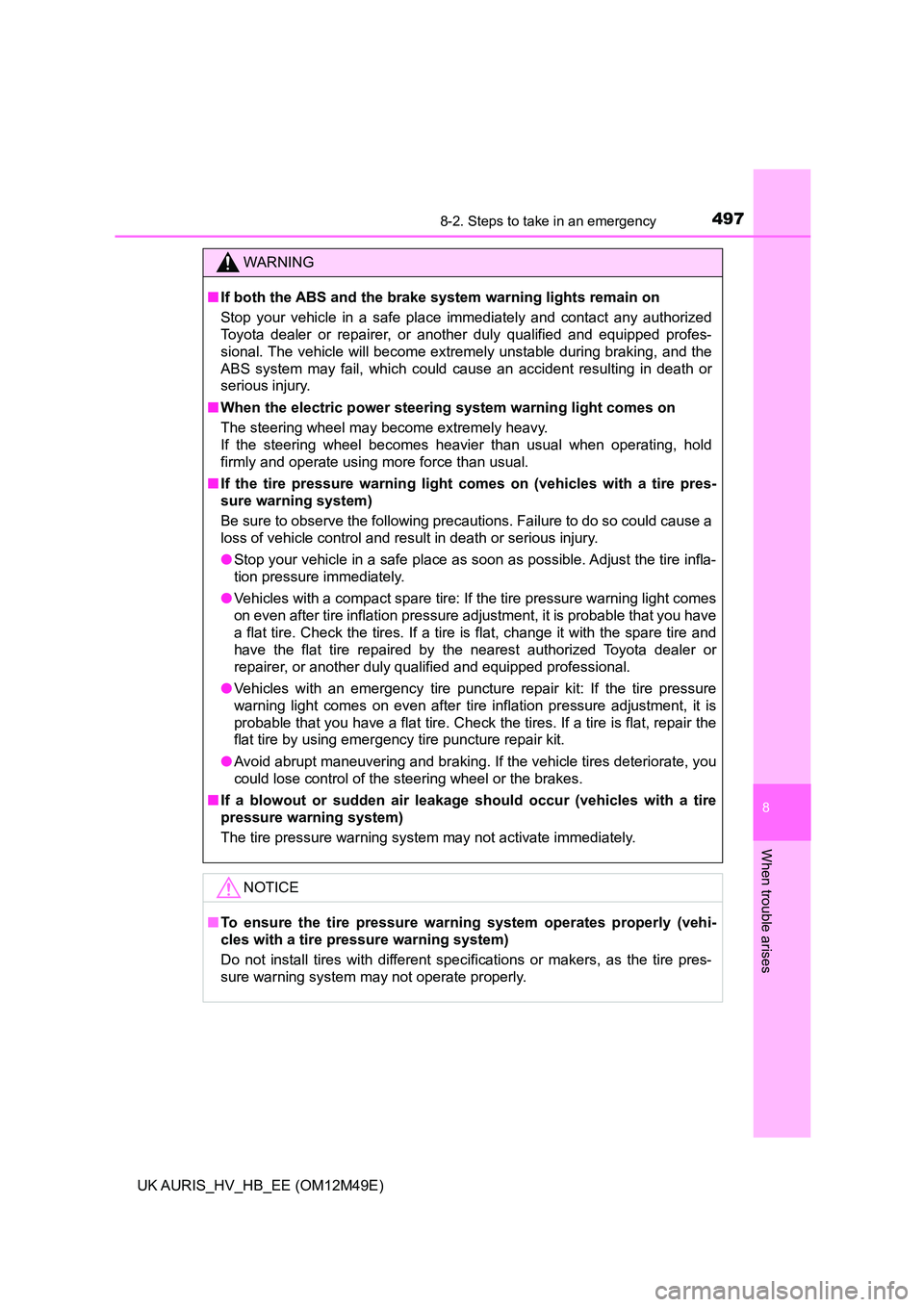

4978-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12M49E)
8
When trouble arises
WARNING
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional. The vehicle will become extremely unstable during braking, and the
ABS system may fail, which could cause an accident resulting in death or
serious injury.
■ When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold
firmly and operate using more force than usual.
■ If the tire pressure warning light comes on (vehicles with a tire pres-
sure warning system)
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
● Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
● Vehicles with a compact spare tire: If the tire pressure warning light comes
on even after tire inflation pressure adjustment, it is probable that you have
a flat tire. Check the tires. If a tire is flat, change it with the spare tire and
have the flat tire repaired by the nearest authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
● Vehicles with an emergency tire puncture repair kit: If the tire pressure
warning light comes on even after tire inflation pressure adjustment, it is
probable that you have a flat tire. Check the tires. If a tire is flat, repair the
flat tire by using emergency tire puncture repair kit.
● Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
■ If a blowout or sudden air leakage should occur (vehicles with a tire
pressure warning system)
The tire pressure warning system may not activate immediately.
NOTICE
■ To ensure the tire pressure warning system operates properly (vehi-
cles with a tire pressure warning system)
Do not install tires with different specifications or makers, as the tire pres-
sure warning system may not operate properly.

4988-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12M49E)
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the multi-
information display.
Multi-information display
If any of the message or indicator comes on again after the following
actions have been performed, contact any authorized Toyota dealer or
repairer, or another duly qua lified and equipped professional.
If a warning message is displayed
The multi-information display shows warnings of system mal-
functions, incorrectly performe d operations, and messages that
indicate a need for maintenance. When a message is shown,
perform the correction procedure appropriate to the message.
1
2

4998-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12M49E)
8
When trouble arises
The warning lights and warning buzzers operate as follows depending
on the content of the message. If a message indicates the need for
inspection by a dealer , have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional immediately.
*: A buzzer sounds the first time a message is shown on the multi-informa-
tion display
Messages and warnings
System
warning
light
Warning buzzer*Warning
Comes
on  Sounds
Indicates an important situation,
such as when a system related to
driving is malfunctioning or that
danger may result if the correction
procedure is not performed

Comes
on or
flashes
Sounds or does
not sound
Indicates an important situation,
such as when the systems shown
on the multi-information display
may be malfunctioning
FlashesSounds
Indicates a situation, such as
when damage to the vehicle or
danger may result
Comes
onDoes not sound
Indicates a condition, such as
malfunction of electrical compo-
nents, their condition, or indicates
the need for maintenance
Does not sound
Indicates a situation, such as
when an operation has been per-
formed incorrectly, or indicates
how to perform an operation cor-
rectly

5008-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12M49E)
The following messages may be displayed. Take the appropriate
action as shown below:
■If “12-volt battery low. Shifting unavailable. Read Owner’s
Manual.” is displayed
Indicates that an attempt was made to change the shift position
when the voltage of the 12-volt battery was low.
Charge or replace the 12-volt battery.
■If “Shifting temporar ily unavailable. Wait a moment and try
again.” is displayed
Indicates that the shift lever and P position switch were operated
repeatedly in quick succession.
Wait approximately 20 seconds a nd then change the shift position.
■If “Switched to N. To engage P mode, stop car then press P
switch.” is displayed
Indicates that the P position swit ch has been pressed while driving
and that the shift position has been changed to N automatically.
To enable shifting to P, stop the vehicle completely and press the P
position switch. To continue driving, change the shift position to D or
R.
If the shifting operation of the hybrid transmission is rejected

5018-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12M49E)
8
When trouble arises
If any of the following messages are displayed, have the vehicle
inspected by any authorized Toyota de aler or repairer, or another duly
qualified and equipped professi onal as soon as possible.
When parking, park the vehicle on level ground and firmly set the
parking brake.
■If “P lock malfunction. When park ing, park in flat place and
apply parking brake securely” is displayed
Indicates the following:
● The parking lock mechanism may not operate. Also, changing
the shift position to P may not be possible.
● The hybrid system may not be able to be started.
● The power switch may not be able to be turned off.
If the power switch cannot be turned off, set the parking brake and
then operate the power switch to turn it off.
■If “Shift system failure. When parking, apply parking brake.
Read Owner’s Manual.” is displayed
Refer to “P lock malfunction. Wh en parking, park in flat place and
apply parking brake securely.”.
■If “Shift system comm. failure . When parking, apply parking
brake. Read Owner’s Manual.” is displayed
Indicates that the automatic P po sition selection function may not
be operating.
Before turning the power switch off, press the P position switch.
Verify that the shift position has been changed to P by checking the
shift position indicators.
■If “12-volt battery low. When parking, apply parking brake.
Read Owner’s Manual.” is displayed
Indicates the following:
● 12-volt battery may not be charged sufficiently.
● Changing the shift position to P may not be possible.
● The hybrid system may not be able to be started.
Charge or replace the 12-volt batt ery. After charging the 12-volt bat-
tery, the message may be displayed until the shift position is
changed from P.
If caution about parking is necessary

5028-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12M49E)
If any of the following messages are displayed, take the appropriate
actions as shown below:
■If “Press brake when vehicle is stopped. Hybrid system may
overheat.” is displayed
Message is displayed when the accelerator pedal is depressed to
maintain the vehicle position when stopped on an upward slope,
etc.
If this continues, the hybrid sy stem may overheat. Release the
accelerator pedal and depress the brake pedal.
■If “Hybrid battery low. Hybrid system stopped. Shift to P and
restart.” is displayed
Message is displayed when the remaining charge for the hybrid
battery (traction battery) is low, because vehicle has been shifted N
for a long period of time.
When operating the vehicle, re start the hybrid system.
■If “Hybrid system malfunction. Stop in a safe place. See
owner’s manual.” is displayed
Refer to “If a message instructing to refer to the Owner’s Manual is
displayed”. ( P. 504)
If a message about the hybrid system or hybrid battery (traction
battery) is displayed

5038-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12M49E)
8
When trouble arises
■If “Hybrid battery low. Shift out of N to recharge.” is displayed
Message is displayed when the remaining charge for the hybrid
battery (traction battery) is low.
As the hybrid battery (traction battery) cannot be charged when the
shift position is in N, when stopped for long periods of time change
the shift position to P.
■If “Hybrid system overheated. Reduced output power.” is dis-
played
This message may be displayed wh en driving under severe operat-
ing conditions.
(For example, when driving up a long steep hill.)
Handling method: P. 5 4 4
■If “Maintenance required for hybrid battery cooling parts at
your dealer.” is displayed
The filter may be clogged, the ai r intake vent may be blocked or
there may be a gap in the duct. Have maintenance performed on
the hybrid battery (traction batt ery) cooling component at any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.

5048-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12M49E)
●If any of the following messages are displayed, take the appropriate
actions as shown on the following pages in this Owner’s Manual:
• “12-volt battery low. Shifting unavailable. Read Owner’s Man-
ual.”: P. 500
• “Shift system failure. When pa rking, apply parking brake. Read
owner’s manual.”: P. 5 0 1
• “Shift system comm. failure. W hen parking, apply parking brake.
Read owner’s manual.”: P. 501
• “12-volt battery low. When park ing, apply parking brake. Read
Owner’s Manual.”: P. 501
● If the following messages are displayed, there may be a malfunc-
tion.
Immediately stop the vehicle in a safe place and contact any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
• “Brake effectiveness is reduced due to failure, please stop in a
safe area and check manual.”
• “Hybrid system malf unction. Stop in a safe place. See owner’s
manual.”
● If the following message is displayed, there may be a malfunction.
Immediately have the vehicle in spected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
• “Shift system failure. Read Owner’s Manual.”
If a message instructing to refer to the Owner’s Manual is dis-
played
