2018 TOYOTA AURIS Owners Manual (in English)

5058-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12M49E)
8
When trouble arises
Take the appropriate actions as instructed in the message displayed.
If any of the following messages are displayed, also refer to this
Owner’s Manual.
■If “Check charging system.” is displayed
Indicates a malfunction in t he vehicle's charging system.
Immediately stop the vehicle in a safe place and contact any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■If “Engine oil pressure low.” is displayed
Indicates that the engine oil pressure is too low.
Immediately stop the vehicle in a safe place and contact any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■When “Headlight system malfunction. Visit your dealer.” is
displayed on the multi-information display (if equipped)
The following systems may be malfunctioning. Have the vehicle
inspected by any autho rized Toyota dealer or repairer, or another
duly qualified and equipped professional immediately.
● The LED headlight system
● The automatic headlight leveling system
● Automatic High Beam
■If “Front sensor systems are temporarily unavailable due to
inappropriate temp. Wait a moment.” or “Front Camera Vision
Blocked Clean and Demist Wi ndshield.” is displayed (if
equipped)
The following systems may be suspended until the problem shown
in the message is resolved.
● PCS (Pre-Crash Safety system)
● LDA (Lane Departure Alert)
● Automatic High Beam
● RSA (Road Sign Assist)
Other messages displayed on the multi-information display

5068-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12M49E)
■If “Shift to P before exiting vehicle.” is displayed
Message is displayed when the driver’s door is opened without
turning the power switch to off with the shift position in any position
other than P.
Change the shift position to P.
■If “Shift is in N. Release accel erator before shifting.” is dis-
played
Message is displayed when the accelerator pedal has been
depressed and the shift position is in N.
Release the accelerator pedal and change the shift position to D or
R.
■ System warning lights
In the following situations, the master warning light will not come on or flash.
Instead, a separate system warning light will come on along with a message
displayed on the multi-information display.
● Malfunction of the brake system
The brake system warning light will come on. ( P. 491)
● High engine coolant temperature
The high engine coolant temperature warning light will be displayed.
( P. 491)
■ Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.

5078-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12M49E)
8
When trouble arises
●Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift position to P.
● Stop the hybrid system.
● Turn on the emergency flashers. (P. 482)
If you have a flat tire (vehicles with a spare
tire)
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: P. 4 3 9
WARNING
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before jacking up the vehicle

5088-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12M49E)
Location of the spare tire, jack and tools
Tool bag
Wheel nut wrench
Jack handle
Towing eyelet
Jack
Spare tire
1
2
3
4
5
6

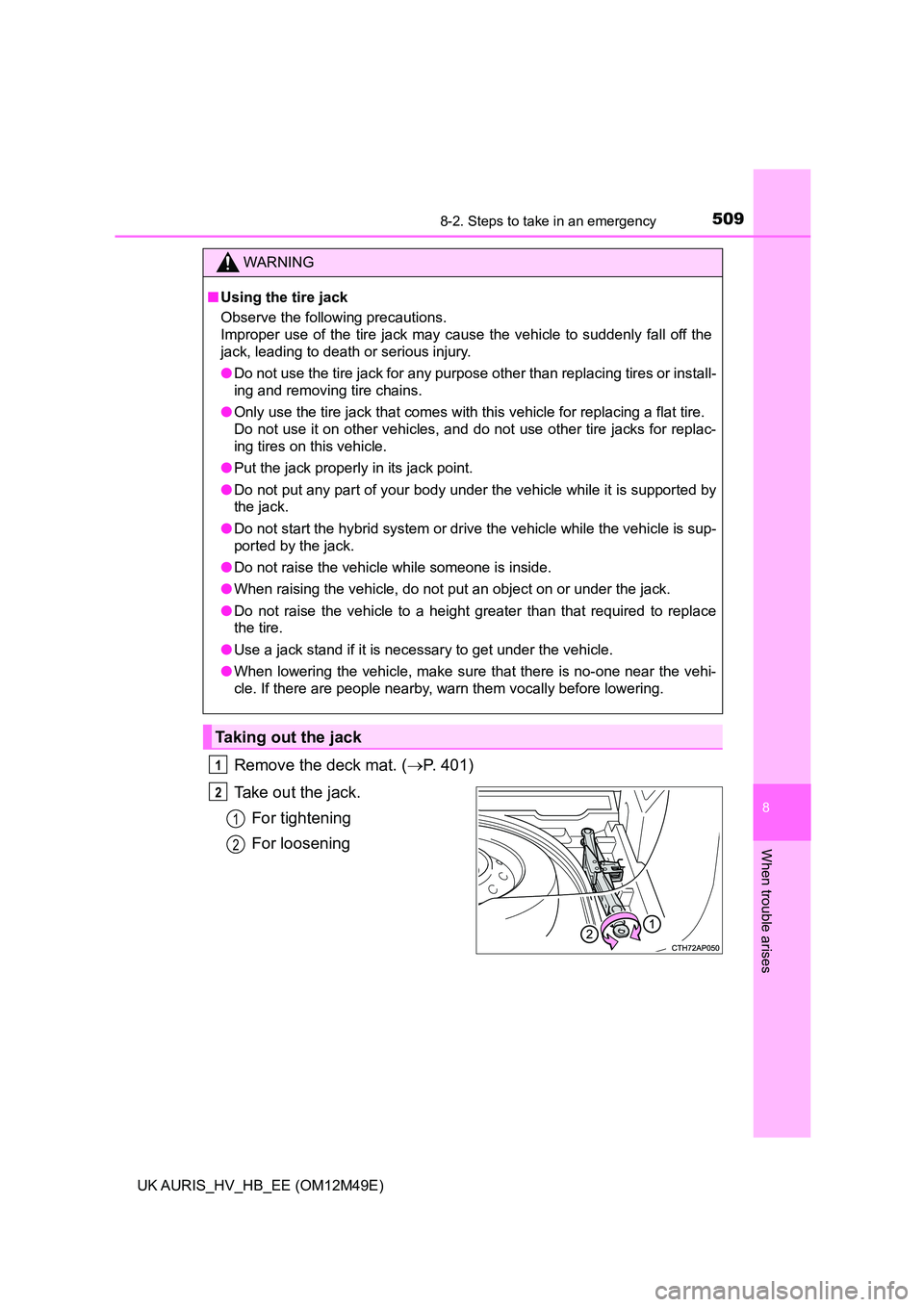

5098-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12M49E)
8
When trouble arises
Remove the deck mat. (P. 401)
Take out the jack.
For tightening
For loosening
WARNING
■ Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the
jack, leading to death or serious injury.
● Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
● Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
● Put the jack properly in its jack point.
● Do not put any part of your body under the vehicle while it is supported by
the jack.
● Do not start the hybrid system or drive the vehicle while the vehicle is sup-
ported by the jack.
● Do not raise the vehicle while someone is inside.
● When raising the vehicle, do not put an object on or under the jack.
● Do not raise the vehicle to a height greater than that required to replace
the tire.
● Use a jack stand if it is necessary to get under the vehicle.
● When lowering the vehicle, make sure that there is no-one near the vehi-
cle. If there are people nearby, warn them vocally before lowering.
Taking out the jack
1
2
1
2

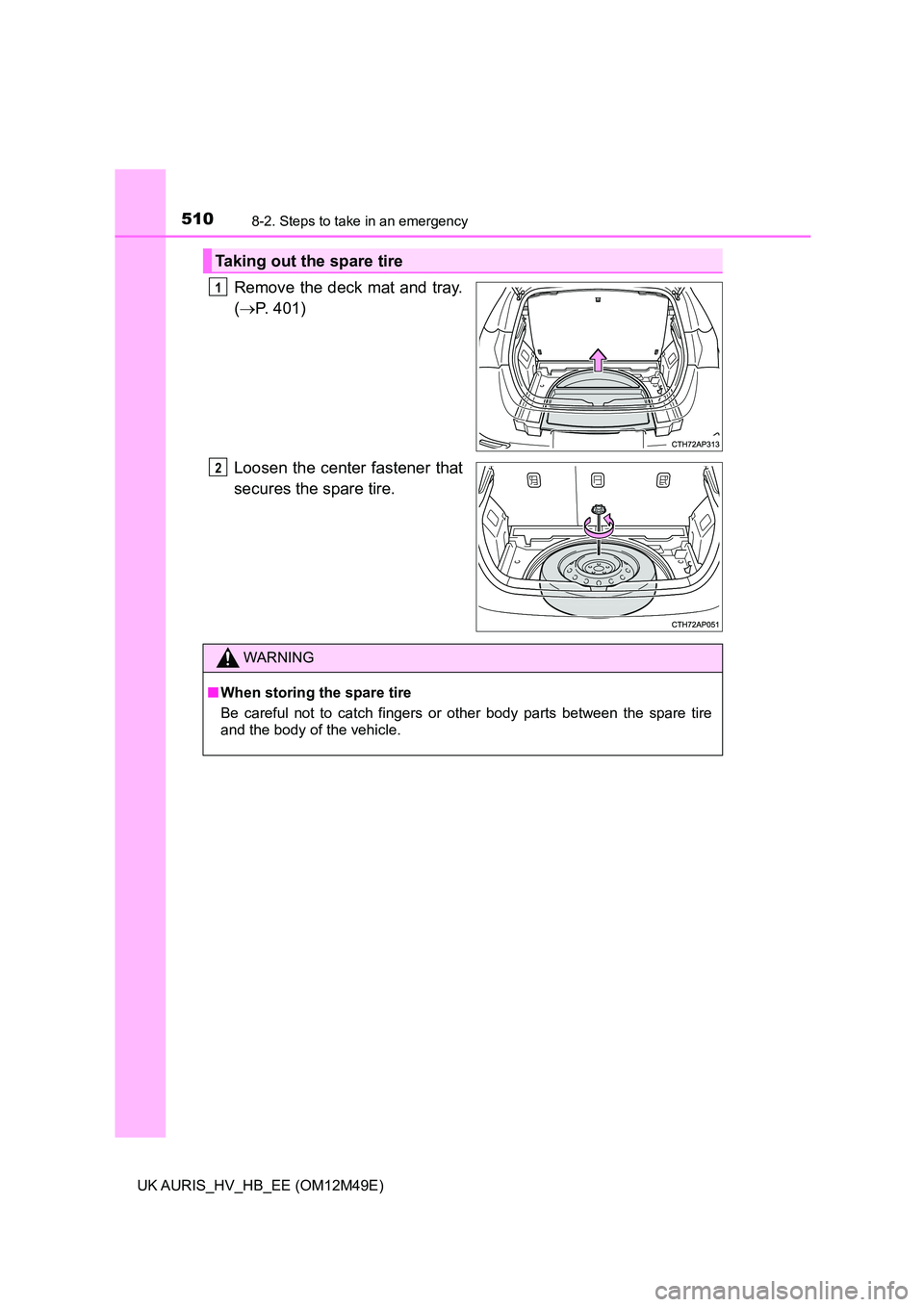

5108-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12M49E)
Remove the deck mat and tray.
( P. 401)
Loosen the center fastener that
secures the spare tire.
Taking out the spare tire
1
2
WARNING
■ When storing the spare tire
Be careful not to catch fingers or other body parts between the spare tire
and the body of the vehicle.

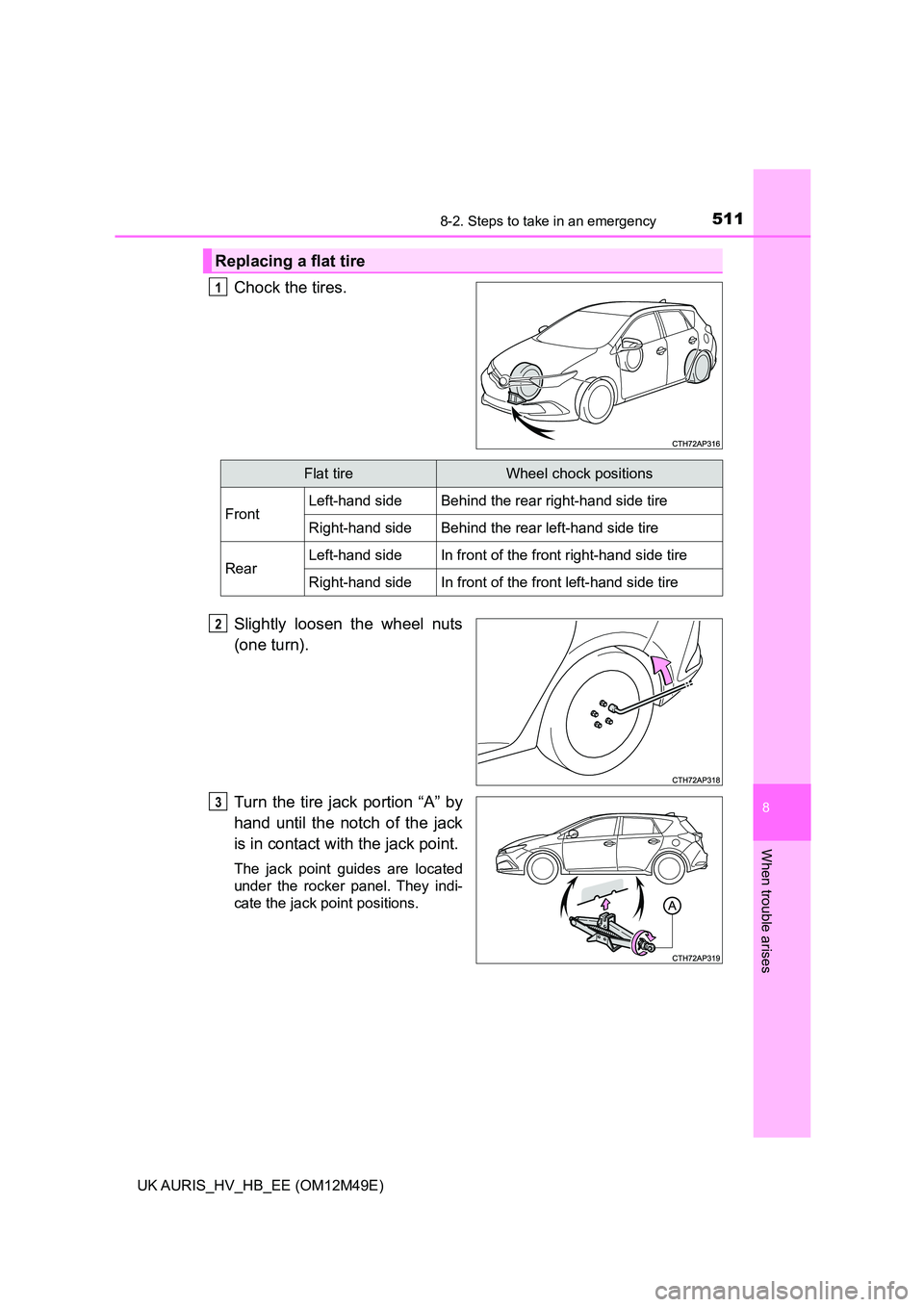

5118-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12M49E)
8
When trouble arises
Chock the tires.
Slightly loosen the wheel nuts
(one turn).
Turn the tire jack portion “A” by
hand until the notch of the jack
is in contact with the jack point.
The jack point guides are located
under the rocker panel. They indi-
cate the jack point positions.
Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
2
3

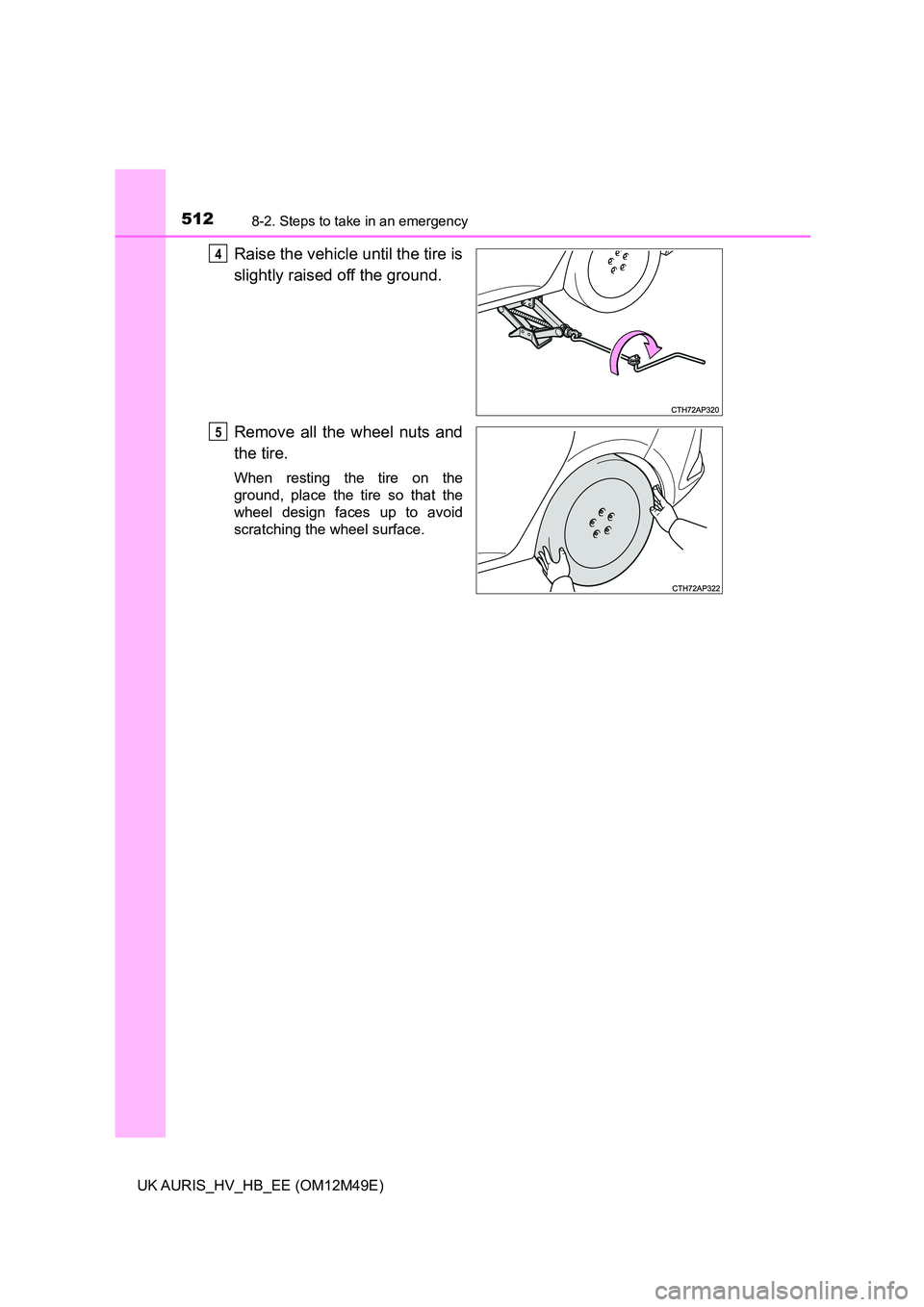

5128-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12M49E)
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
4
5
