2018 TOYOTA AURIS Owners Manual (in English)

Page 265 of 592

TOYOTA AURIS 2018  Owners Manual (in English) 2654-5. Toyota Safety Sense
UK AURIS_HV_HB_EE (OM12M49E)
4
Driving
When driving on roads with white (yellow) lines, this function alerts the
driver when the vehicle might depart from its lane.
The L

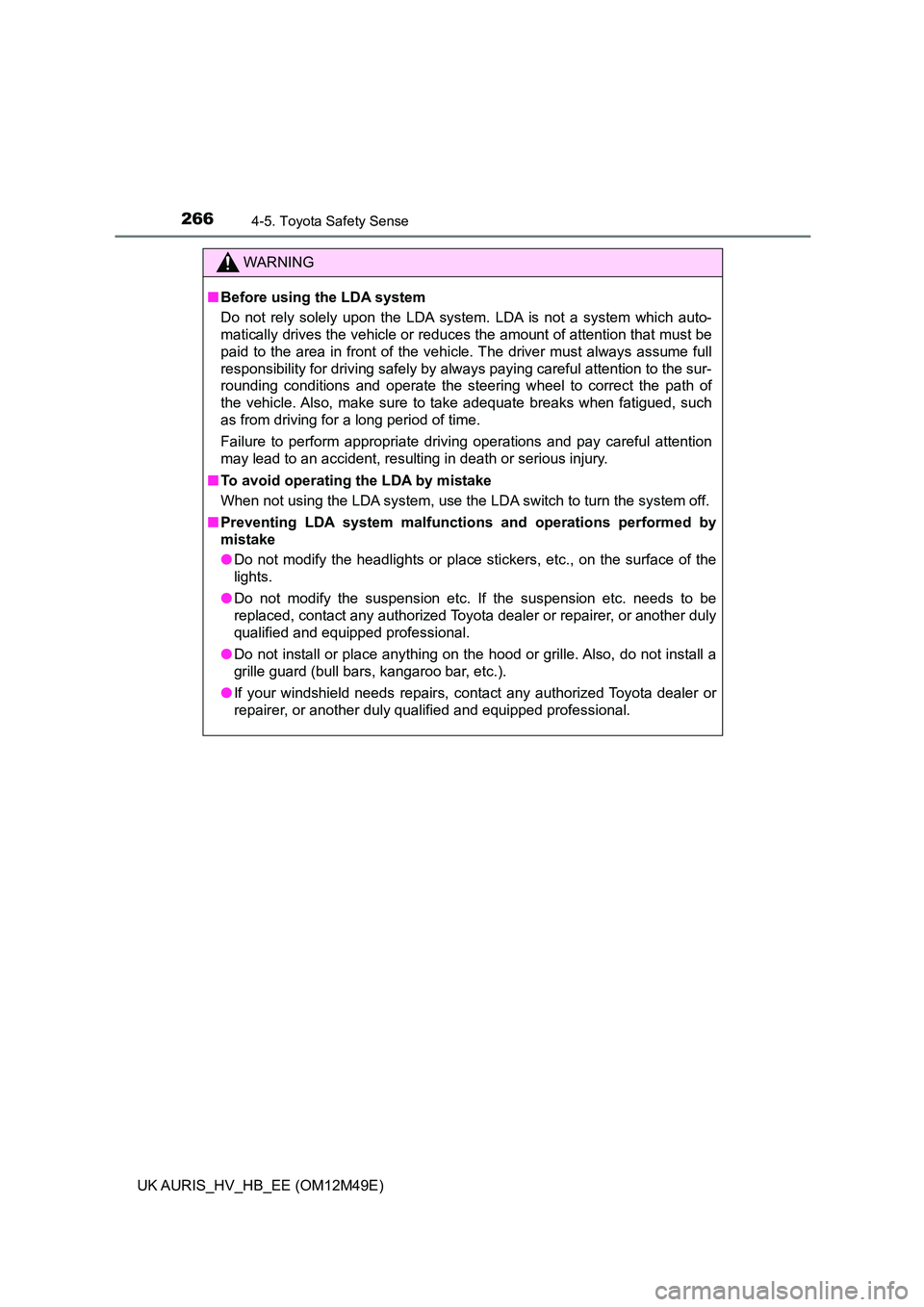

Page 266 of 592

TOYOTA AURIS 2018  Owners Manual (in English) 2664-5. Toyota Safety Sense
UK AURIS_HV_HB_EE (OM12M49E)
WARNING
■Before using the LDA system
Do not rely solely upon the LDA system. LDA is not a system which auto-
matically drives the vehicle o

Page 267 of 592

TOYOTA AURIS 2018  Owners Manual (in English) 2674-5. Toyota Safety Sense
UK AURIS_HV_HB_EE (OM12M49E)
4
Driving
Press the LDA switch to turn the
LDA system on.
The LDA indicator illuminates and
a message is displayed on the
multi-information d

Page 268 of 592

TOYOTA AURIS 2018  Owners Manual (in English) 2684-5. Toyota Safety Sense
UK AURIS_HV_HB_EE (OM12M49E)
■If “Check LDA system.” is displayed on the multi-information display
If the LDA indicator does not come on when the LDA switch is press

Page 269 of 592

TOYOTA AURIS 2018  Owners Manual (in English) 2694-5. Toyota Safety Sense
UK AURIS_HV_HB_EE (OM12M49E)
4
Driving
■Conditions in which functions may not operate properly
In the following situations, the front sensor may not detect white (yellow

Page 270 of 592

TOYOTA AURIS 2018  Owners Manual (in English) 2704-5. Toyota Safety Sense
UK AURIS_HV_HB_EE (OM12M49E)
Push the lever away from you with
the headlight switch in
position.
The Automatic High Beam indica-
tor will come on when the head-
lights a

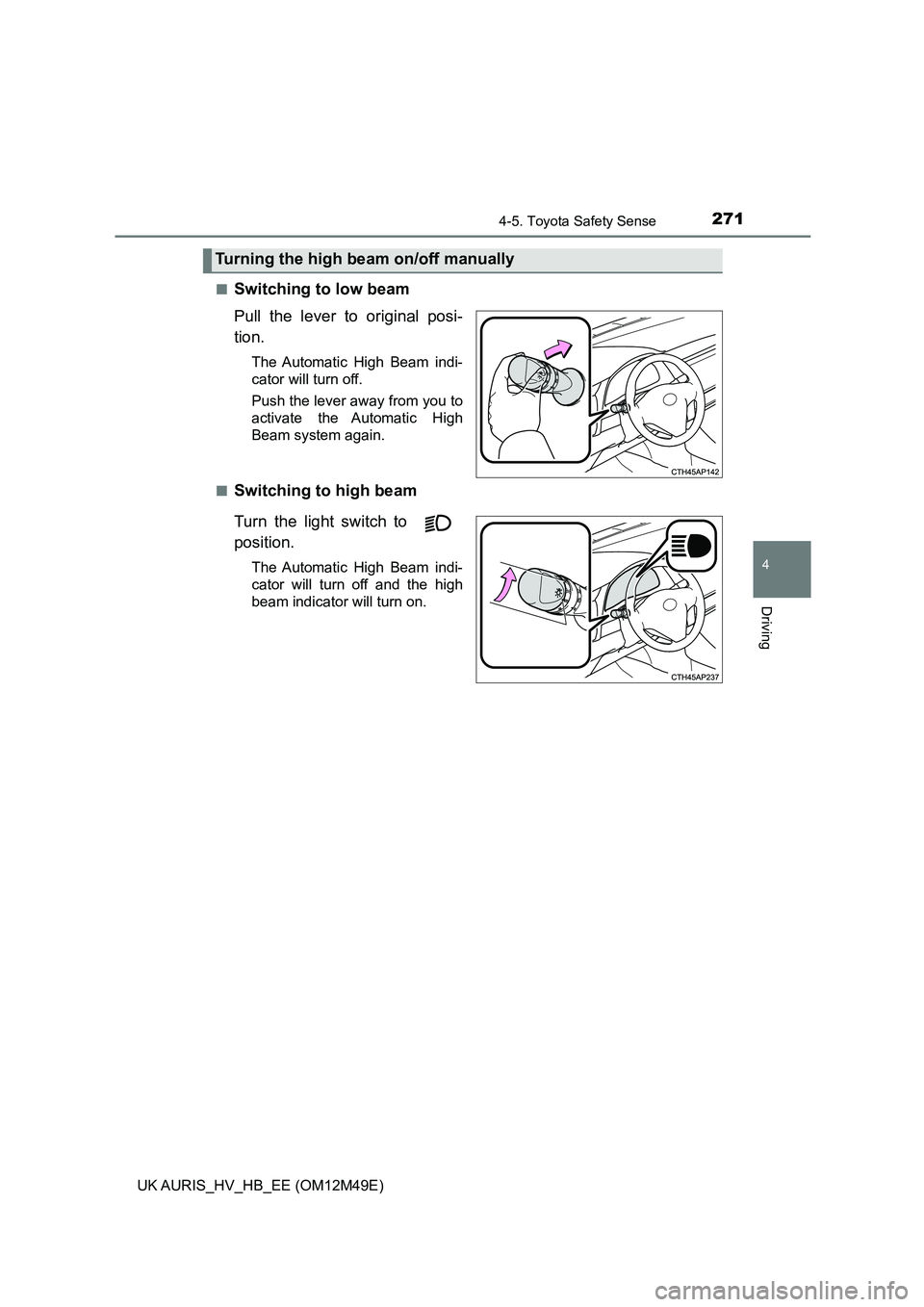

Page 271 of 592

TOYOTA AURIS 2018  Owners Manual (in English) 2714-5. Toyota Safety Sense
UK AURIS_HV_HB_EE (OM12M49E)
4
Driving
■Switching to low beam
Pull the lever to original posi-
tion.
The Automatic High Beam indi-
cator will turn off.
Push the lever

Page 272 of 592

TOYOTA AURIS 2018  Owners Manual (in English) 2724-5. Toyota Safety Sense
UK AURIS_HV_HB_EE (OM12M49E)
■High beam automatic turning on or off conditions
● When all of the following conditions are fulfilled, the high beam will be auto-
matic
