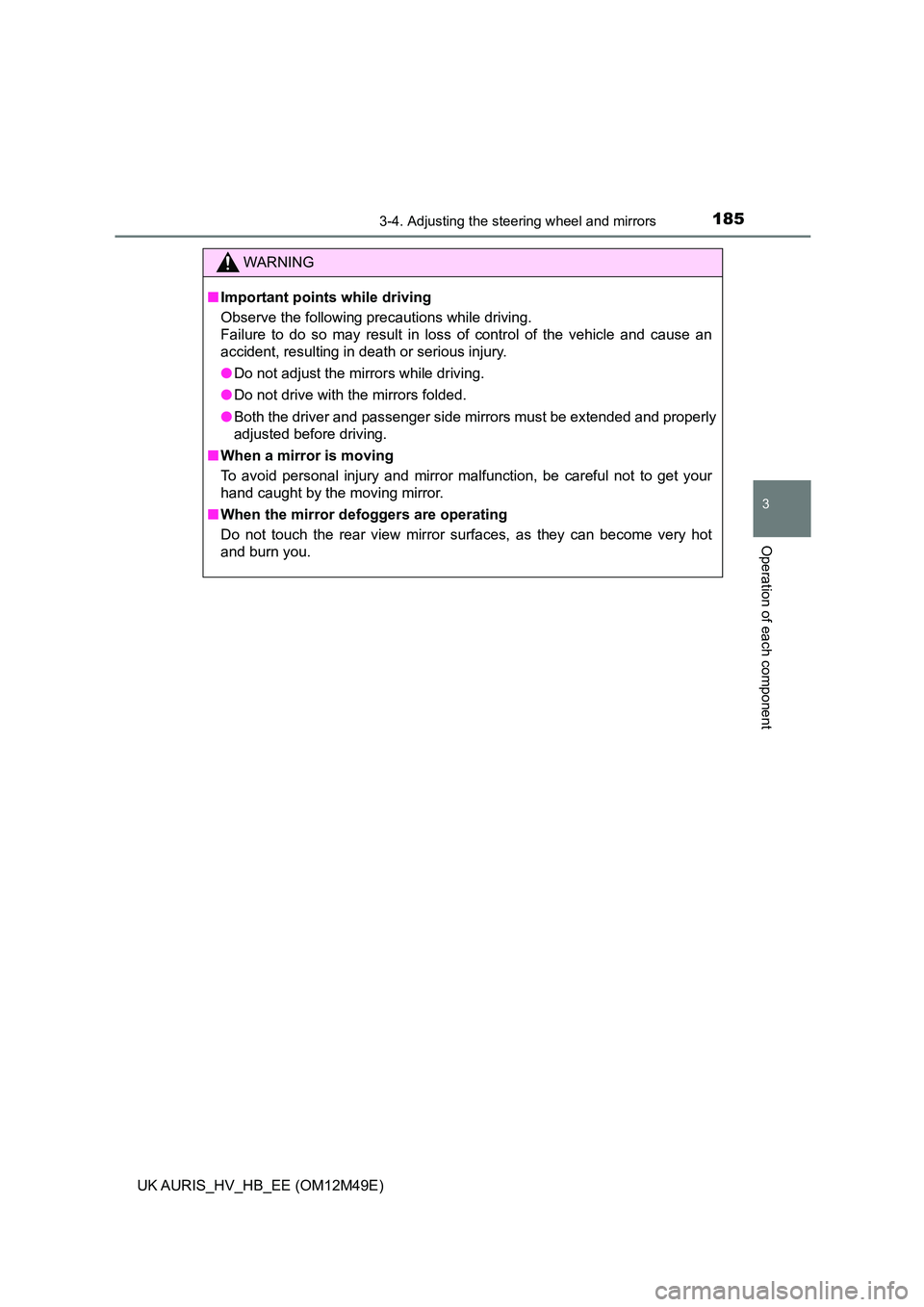

Page 185 of 592
1853-4. Adjusting the steering wheel and mirrors
UK AURIS_HV_HB_EE (OM12M49E)
3
Operation of each component
WARNING
■Important points while driving
Observe the following precautions while driving.
Failure to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.
● Do not adjust the mirrors while driving.
● Do not drive with the mirrors folded.
● Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■ When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
■ When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot
and burn you.

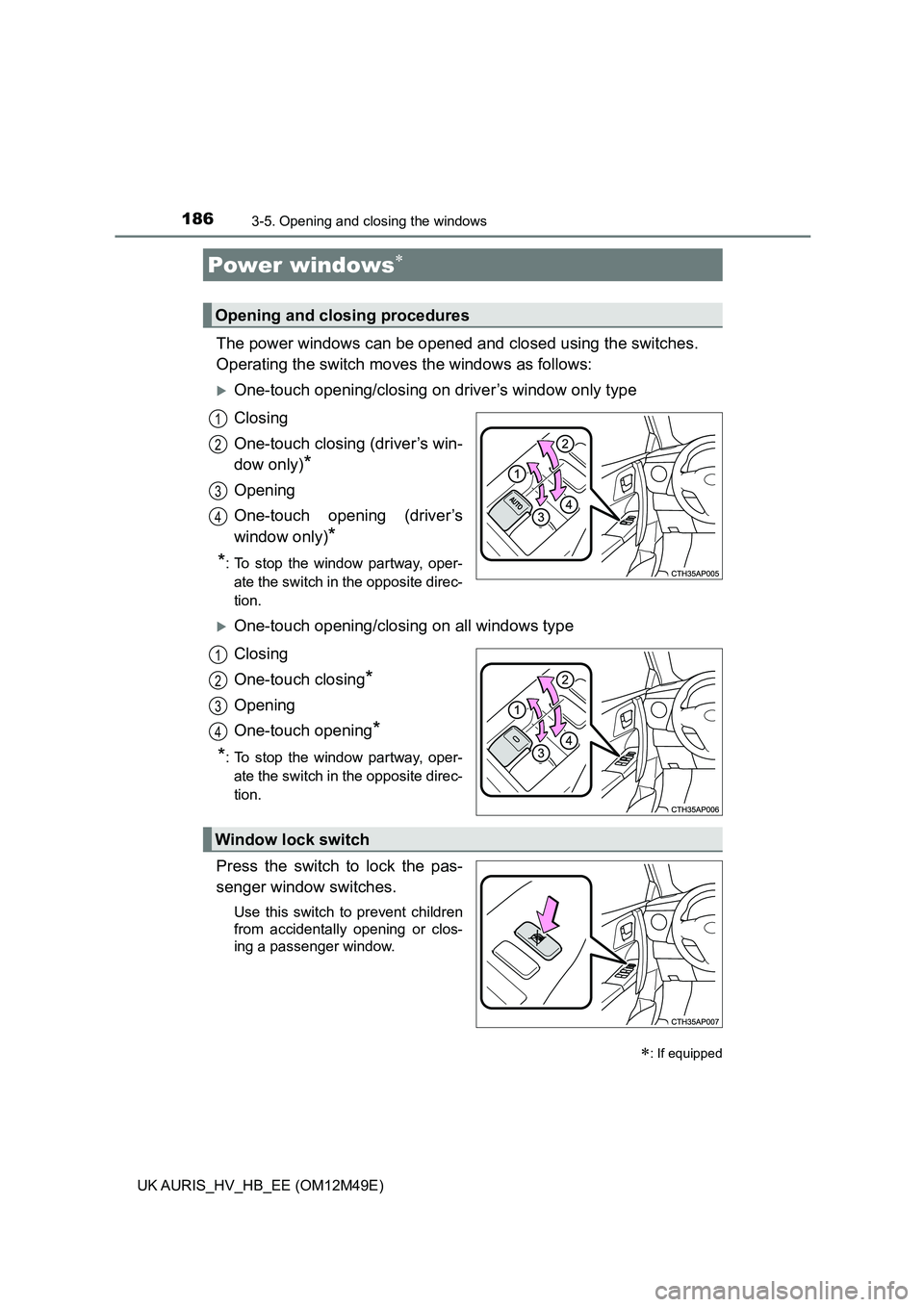

Page 186 of 592
186
UK AURIS_HV_HB_EE (OM12M49E)
3-5. Opening and closing the windows
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
One-touch opening/closing on driver’s window only type
Closing
One-touch closing (driver’s win-
dow only)*
Opening
One-touch opening (driver’s
window only)*
*: To stop the window partway, oper-
ate the switch in the opposite direc-
tion.
One-touch opening/closing on all windows type
Closing
One-touch closing*
Opening
One-touch opening*
*: To stop the window partway, oper-
ate the switch in the opposite direc-
tion.
Press the switch to lock the pas-
senger window switches.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
Power windows
: If equipped
Opening and closing procedures
1
2
3
4
1
2
3
4
Window lock switch
Page 187 of 592

1873-5. Opening and closing the windows
UK AURIS_HV_HB_EE (OM12M49E)
3
Operation of each component
■The power windows can be operated when
The power switch is in ON mode.
■ Operating the power windows after turning the hybrid system off
The power windows can be operated for approximately 45 seconds after the
power switch is turned to ACCESSORY mode or turned off. They cannot,
however, be operated once either front door is opened.
■ Jam protection function (windows with one-touch closing function only)
If an object becomes caught between the window and the window frame, win-
dow travel is stopped and the window is opened slightly.
■ When the power window does not close normally (windows with one-
touch closing function only)
If the jam protection function is operating abnormally and a window cannot be
closed, perform the following operations using the power window switch on
the relevant door.
● After stopping the vehicle, the window can be closed by holding the power
window switch in the one-touch closing position while the power switch is
turned to ON mode.
● If the window still cannot be closed even by carrying out the operation as
explained above, initialize the function by performing the following proce-
dure.
Hold the power window switch in the one-touch closing position. Continue
holding the switch for a further 6 seconds after the window has closed.
Hold the power window switch in the one-touch opening position. Con-
tinue holding the switch for a further 2 seconds after the window has
opened completely.
Hold the power window switch in the one-touch closing position once
again. Continue holding the switch for a further 2 seconds after the win-
dow has closed.
If you release the switch while the window is moving, start again from the
beginning.
If the window continues to close but then re-open slightly even after perform-
ing the above procedure correctly, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped
professional.
1
2
3
Page 188 of 592

1883-5. Opening and closing the windows
UK AURIS_HV_HB_EE (OM12M49E)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ Closing the windows
● The driver is responsible for all the power window operations, including the
operation for the passengers. In order to prevent accidental operation,
especially by a child, do not let a child operate the power windows. It is
possible for children and other passengers to have body parts caught in
the power window. Also, when riding with a child, it is recommended to use
the window lock switch. ( P. 186)
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● When exiting the vehicle, turn the power switch off, carry the key and exit
the vehicle along with the child. There may be accidental operation, due to
mischief, etc., that may possibly lead to an accident.
■ Jam protection function (windows with one-touch closing function
only)
● Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets caught just
before the window fully closes.
Page 189 of 592

189
4Driving
UK AURIS_HV_HB_EE (OM12M49E)
4-1. Before driving
Driving the vehicle ............. 190
Cargo and luggage ............ 200
Trailer towing ..................... 201
4-2. Driving procedures
Power (ignition) switch ....... 211
EV drive mode ................... 217
Hybrid transmission ........... 219
Turn signal lever ................ 227
Parking brake .................... 228
4-3. Operating the lights
and wipers
Headlight switch ................ 229
Fog light switch .................. 235
Windshield wipers
and washer ...................... 237
Rear window wiper
and washer ...................... 241
4-4. Refueling
Opening the fuel tank
cap ................................... 243
4-5. Toyota Safety Sense
Toyota Safety Sense ......... 246
PCS
(Pre-Crash Safety
system) ............................ 252
LDA
(Lane Departure Alert) ..... 265
Automatic High Beam ........ 270
RSA (Road Sign Assist)..... 274
4-6. Using the driving
support systems
Cruise control..................... 280
Toyota parking
assist-sensor ................... 284
Simple-IPA
(Simple-Intelligent
Parking Assist)................. 291
Driving assist systems ....... 305
4-7. Driving tips
Hybrid vehicle driving
tips ................................... 311
Winter driving tips .............. 314

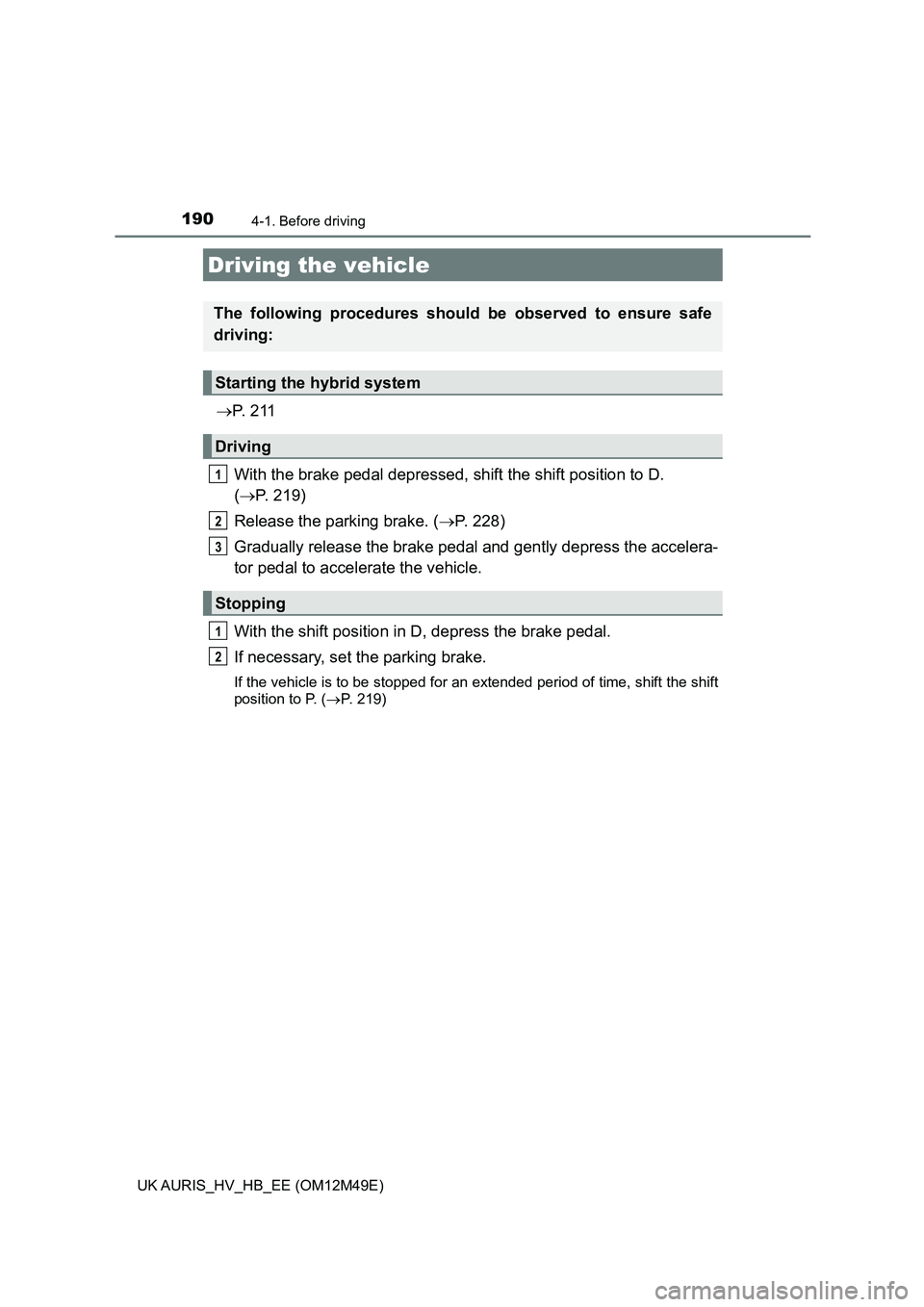

Page 190 of 592
190
UK AURIS_HV_HB_EE (OM12M49E)
4-1. Before driving
P. 2 1 1
With the brake pedal depressed, shift the shift position to D.
( P. 219)
Release the parking brake. ( P. 228)
Gradually release the brake pedal and gently depress the accelera-
tor pedal to accelerate the vehicle.
With the shift position in D, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift
position to P. ( P. 219)
Driving the vehicle
The following procedures should be observed to ensure safe
driving:
Starting the hybrid system
Driving
Stopping
1
2
3
1
2
Page 191 of 592

1914-1. Before driving
UK AURIS_HV_HB_EE (OM12M49E)
4
Driving
With the shift position in D, depress the brake pedal.
Set the parking brake. ( P. 228)
Shift the shift position to P. ( P. 221)
If parking on a hill, block the wheels as needed.
Press the power switch off to stop the hybrid system.
Lock the door, making sure that you have the key on your person.
Firmly set the parking brake and t hen shift the shift position to D.
Gently depress the accelerator pedal.
Release the parking brake.
■ When starting off on an uphill
The hill-start assist control will activate. ( P. 305)
■ For fuel-efficient driving
Keep in mind that hybrid vehicle are similar to conventional vehicles. And it is
necessary to refrain from activities such as sudden acceleration. ( P. 311)
■ Driving in the rain
● Drive carefully when it is raining, because visibility will be reduced, the win-
dows may become fogged-up, and the road will be slippery.
● Drive carefully when it starts to rain, because the road surface will be espe-
cially slippery.
● Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road sur-
face, preventing the steering and brakes from operating properly.
■ Breaking in your new Toyota
To extend the life of the vehicle, observing the following precautions is recom-
mended:
● For the first 300 km (200 miles):
Avoid sudden stops.
● For the first 800 km (500 miles) (vehicles with towing package):
Do not tow a trailer.
● For the first 2000 km (1200 miles):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive at a constant speed for extended periods.
Parking the vehicle
Starting off on a steep uphill
1
2
3
4
5
1
2
3
Page 192 of 592

1924-1. Before driving
UK AURIS_HV_HB_EE (OM12M49E)
■ Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability
of the correct fuel. ( P. 554)
■ Brake actuator
The brake actuator uses brake fluid pressurized by the pump to power-assist
the brakes. If the brake actuator fails during driving, the brake system warn-
ing light comes on and the buzzer sounds intermittently. In this case, the
brakes may not work properly. If they do not work well, depress the brake
pedal firmly. If the brake system warning light comes on, immediately stop
your vehicle and contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
In the following conditions, you may hear a sound in the engine compartment.
This is not a malfunction.
● The driver’s door is opened with the hybrid system turned off.
● The brake pedal is depressed with the hybrid system turned off.
● After the hybrid system is turned on.
● The brake pedal is depressed repeatedly with the hybrid system turned on.
● After the hybrid system is turned off.
The brake pedal may be hard to depress or the brake pedal stroke may be
short before turning the hybrid system on. This is not a malfunction.
■ When braking the vehicle
When applying brakes, you may hear a sound coming from the motor gener-
ator.
However, this does not indicate any trouble.
