Technical specifications
Trailer mode Tr
ai
ler weights Trailer weight
The trai
l

er weights and drawbar loads ap-
proved are selected in intensive trials accord-
ing to precisely defined criteria. The ap-
proved trailer weights are valid for vehicles in
the EU for maximum speeds of 80 km/h (50
mph) (in certain circumstances up to 100
km/h (62 mph)). The figures may be different
in other countries. All data in the official vehi-
cle documentation takes precedence over
these data at all times ››› .
Dr a
wb

ar loads
The maximum permitted drawbar load on the
ball joint of the towing bracket must not ex-
ceed 88 kg.
In the interest of road safety, we recommend
that you always tow approaching the maxi-
mum drawbar load. The response of the trail-
er on the road will be poor, if the drawbar
load is too small.
If the maximum permissible drawbar load
cannot be met (e.g. with small, empty and
light-weight single axle trailers or tandem
axle trailers with a wheelbase of less than 1
metre), a minimum of 4% of the actual trailer
weight is legally required for the drawbar
load. WARNING
● For s af

ety reasons, you should not drive at
speeds above 80 km/h (50 mph) when towing
a trailer. This also applies in countries where
higher speeds are permitted.
● Never exceed the maximum trailer weights
or the drawb
ar load. If the permissible axle
load or the permissible total weight is excee-
ded, the driving characteristics of the vehicle
may change, leading to accidents, injuries
and damage to the vehicle. Wheels
Ty
r

e pressure, snow chains and wheel
bolts Tyre pressure
The s
tic
k

er with the tyre pressure values can
be found on the back of the left front door
frame. The tyre pressure values given there
are for cold tyres. The slightly raised pres-
sures of warm tyres must not be reduced.
››› The pressure for win
t
er
tyres is 0.2 bar
(2.9 psi / 20 kPa) higher than that of summer
tyres.
Snow chains
Snow chains may be fitted only to the front
wheels, and only for the following tyres:
215/60 R16Chains with links of maximum 15 mm
215/55 R17Chains with links of maximum 15 mm
215/50 R18Chains with links of maximum 15 mm
Other dimensions do not allow chains Wheel bolts
Aft
er the wheel

s have been changed, the
tightening torque of the wheel bolts should
be checked as soon as possible with a torque
wrench ››› . The tightening torque for steel
and allo y

wheels is 140 Nm. WARNING
● Check the ty

re pressure at least once per
month. Checking the tyre pressure is very im-
portant. If the tyre pressure is too high or too
low, there is an increased danger of accidents
- particularly at high speeds.
● If the tightening torque of the wheel bolts
is t
oo low, they could loosen while the vehi-
cle is in motion. Risk of accident! If the tight-
ening torque is too high, the wheel bolts and
threads can be damaged. Note
We recommend that you ask your Technical
Serv ic

e for information about appropriate
wheel, tyre and snow chain size. 319
Technical data
Advice
Operation
Emergencies
Safety

Technical data
Engine data P etr
o
l engine 1.0 85 kW (115 PS)
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
85 (115)/5,000-5,500200/2,000-3,5003/999Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
Outputs and weights
Top speed (km/h)183 (5)
Acceleration from 0-80 km/h (seconds)7.2
Acceleration from 0-100 km/h (seconds)11.0
Maximum authorised weight (kg)1,830
Weight in running order (with driver) (kg)1,280
Maximum authorised weight on front axle (kg)940
Maximum authorised weight on rear axle (kg)940
Permitted roof load (kg)75
Maximum trailer weight without brakes (kg)640
Weight of trailer with brakes on gradients up to 8% (kg)1,500
Weight of trailer with brakes on gradients up to 12% (kg)1,300 320

Technical specifications

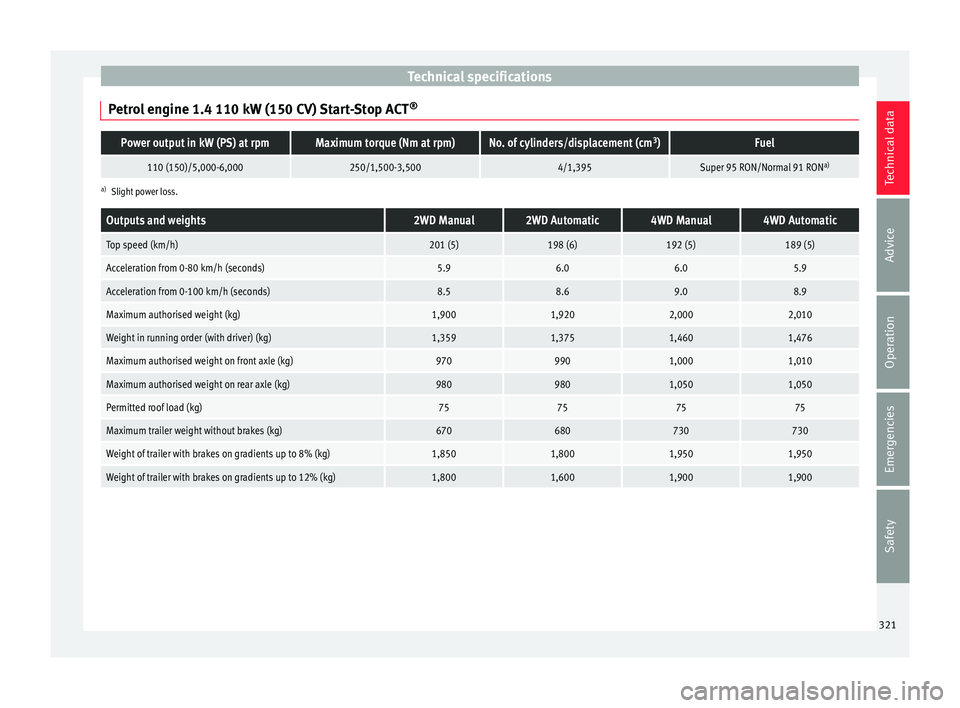

Petrol engine 1.4 110 kW (150 CV) Start-Stop ACT ®Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
110 (150)/5,000-6,000250/1,500-3,5004/1,395Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
Outputs and weights2WD Manual2WD Automatic4WD Manual4WD Automatic
Top speed (km/h)201 (5)198 (6)192 (5)189 (5)
Acceleration from 0-80 km/h (seconds)5.96.06.05.9
Acceleration from 0-100 km/h (seconds)8.58.69.08.9
Maximum authorised weight (kg)1,9001,9202,0002,010
Weight in running order (with driver) (kg)1,3591,3751,4601,476
Maximum authorised weight on front axle (kg)9709901,0001,010
Maximum authorised weight on rear axle (kg)9809801,0501,050
Permitted roof load (kg)75757575
Maximum trailer weight without brakes (kg)670680730730
Weight of trailer with brakes on gradients up to 8% (kg)1,8501,8001,9501,950
Weight of trailer with brakes on gradients up to 12% (kg)1,8001,6001,9001,900 321
Technical data
Advice
Operation
Emergencies
Safety

Technical data
Petrol engine 2.0 140 kW (190 PS) Start-StopPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
140 (190)/4,200-6,000320/1,450-4,2004/1,984Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
Outputs and weights4WD
Top speed (km/h)212(5)
Acceleration from 0-80 km/h (seconds)5.2
Acceleration from 0-100 km/h (seconds)7.9
Maximum authorised weight (kg)2,080
Weight in running order (with driver) (kg)1,536
Maximum authorised weight on front axle (kg)1,070
Maximum authorised weight on rear axle (kg)1,060
Permitted roof load (kg)75
Maximum trailer weight without brakes (kg)750
Weight of trailer with brakes on gradients up to 8% (kg)2,000
Weight of trailer with brakes on gradients up to 12% (kg)1,900 322

Technical specifications
Diesel engine 1.6 85 kW (115 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
85 (115)/3,250-4,000250/1,500-3,2504/1,598Diesel according to standard EN 590, min.
51 CZ
Outputs and weights
Top speed (km/h)184 (6)
Acceleration from 0-80 km/h (seconds)8.2
Acceleration from 0-100 km/h (seconds)11.5
Maximum authorised weight (kg)1,910
Weight in running order (with driver) (kg)1,375
Maximum authorised weight on front axle (kg)1,030
Maximum authorised weight on rear axle (kg)930
Permitted roof load (kg)75
Maximum trailer weight without brakes (kg)680
Weight of trailer with brakes on gradients up to 8% (kg)1,700
Weight of trailer with brakes on gradients up to 12% (kg)1,500 323
Technical data
Advice
Operation
Emergencies
Safety

Technical data
Diesel engine 2.0 105 kW (143 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
105 (143)/3,500-4,000320/1,750-3,0004/1,968Diesel according to standard EN 590, min.
51 CZ
Outputs and weightsAutomatic
Top speed (km/h)192 (5)
Acceleration from 0-80 km/h (seconds)6.4
Acceleration from 0-100 km/h (seconds)9.2
Maximum authorised weight (kg)1,970
Weight in running order (with driver) (kg)1,435
Maximum authorised weight on front axle (kg)1,080
Maximum authorised weight on rear axle (kg)940
Permitted roof load (kg)75
Maximum trailer weight without brakes (kg)710
Weight of trailer with brakes on gradients up to 8% (kg)1,900
Weight of trailer with brakes on gradients up to 12% (kg)1,800324

Technical specifications
Diesel engine 2.0 110 kW (150 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
110 (150)/3,500-4,000340/1,750-3,0004/1,968Diesel according to standard EN 590, min.
51 CZ
Outputs and weights2WD Manual2WD Automatic4WD
Top speed (km/h)201 (6)200 (6)196 (6)
Acceleration from 0-80 km/h (seconds)6.25.96.0
Acceleration from 0-100 km/h (seconds)8.88.79.0
Maximum authorised weight (kg)1,9902,0102,100
Weight in running order (with driver) (kg)1,4531,4831,548
Maximum authorised weight on front axle (kg)1,0601,0901,080
Maximum authorised weight on rear axle (kg)9409301,070
Permitted roof load (kg)757575
Maximum trailer weight without brakes (kg)700720750
Weight of trailer with brakes on gradients up to 8% (kg)1,9001,9002,000
Weight of trailer with brakes on gradients up to 12% (kg)1,9001,9002,000 325
Technical data
Advice
Operation
Emergencies
Safety

Technical data
Diesel engine 2.0 140 kW (190 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
140 (190)/3,500-4,000400/1,750-3,2504/1,968Diesel according to standard EN 590, min.
51 CZ
Outputs and weights4WD Automatic
Top speed (km/h)212 (6)
Acceleration from 0-80 km/h (seconds)4.7
Acceleration from 0-100 km/h (seconds)7.5
Maximum authorised weight (kg)2,130
Weight in running order (with driver) (kg)1,589
Maximum authorised weight on front axle (kg)1,120
Maximum authorised weight on rear axle (kg)1,060
Permitted roof load (kg)75
Maximum trailer weight without brakes (kg)750
Weight of trailer with brakes on gradients up to 8% (kg)2,100
Weight of trailer with brakes on gradients up to 12% (kg)2,100326
