2018 NISSAN TITAN Owner´s Manual

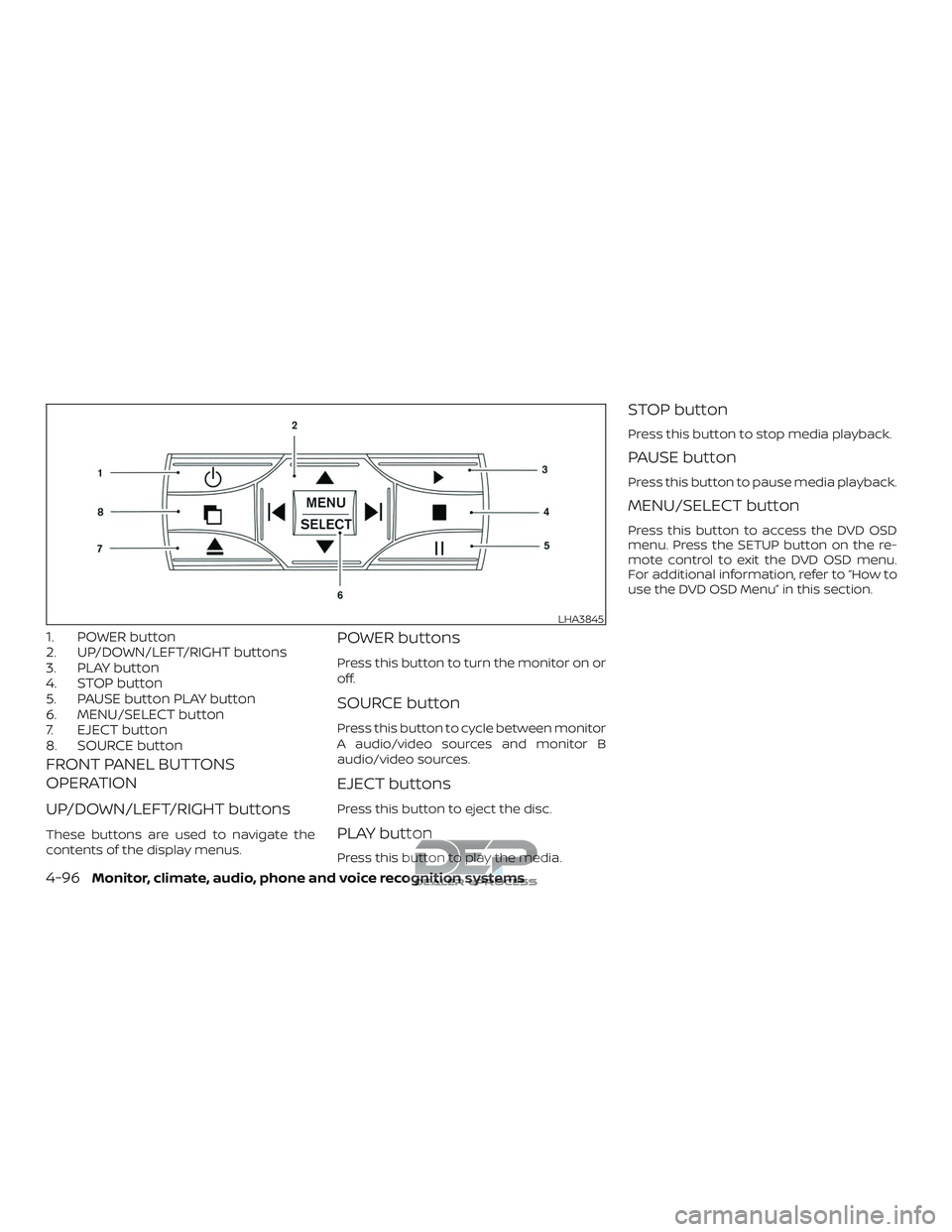

1. POWER button
2. UP/DOWN/LEFT/RIGHT buttons
3. PLAY button
4. STOP button
5. PAUSE button PLAY button
6. MENU/SELECT button
7. EJECT button
8. SOURCE button
FRONT PANEL BUTTONS
OPERATION
UP/DOWN/LEFT/RIGHT buttons
These buttons are used to navigate the
contents of the display menus.
POWER buttons
Press this button to turn the monitor on or
off.
SOURCE button
Press this button to cycle between monitor
A audio/video sources and monitor B
audio/video sources.
EJECT buttons
Press this button to eject the disc.
PLAY button
Press this button to play the media.
STOP button
Press this button to stop media playback.
PAUSE button
Press this button to pause media playback.
MENU/SELECT button
Press this button to access the DVD OSD
menu. Press the SETUP button on the re-
mote control to exit the DVD OSD menu.
For additional information, refer to “How to
use the DVD OSD Menu” in this section.
LHA3845
4-96Monitor, climate, audio, phone and voice recognition systems

WIRELESS HEADPHONE
OPERATION
Installing the batteries
Before attempting to operate the head-
phones, install the batteries as described
below.1. Remove headphone battery cover
A.
2. Install two “AAA” batteries into the headphones. Make sure the proper po-
larity (+ or –) is observed.
3. Reinstall headphone battery cover.
Headphone operation
Press the power buttonAon the head-
phones to turn on and off the headphones.
The red LED will illuminate when the head-
phone is turned on. Set the select switch
B
to “A” or “B” for use with the “A” monitor or “B”
monitor respectively. Use the volume
thumb wheel
Cto adjust the volume level
for the headphone audio. NOTE:
If the headphones are accidentally lef t
on and system is powered off, a battery
saver feature will automatically turn off
the headphones af ter approximately
3 minutes.CAUTION
∙ Always ensure that the batteries are
inserted with the positive and nega-
tive terminals in the correct direction
as shown in the battery
compartment.
LHA3846LHA3847LHA3810
Monitor, climate, audio, phone and voice recognition systems4-97

∙ Different types of batteries have dif-ferent characteristics. Do not mix dif-
ferent types.
∙ Remove the batteries if the head- phones are not used for a month or
longer.
REMOTE CONTROL OPERATION
Before attempting to operate your remote
control, install the batteries described be-
low. 1. Turn the remote control face down.
Press down on the ridged area of the
battery cover and slide it off.
2. Install two “AAA” batteries. Make sure that proper polarity (+ or —) is observed.
3. Slide the cover back into place until it clicks.
NOTE:
The remote control will only operate this
device. It is not a universal remote con-
trol and will not control other equipment.
WARNING
∙ Keep the batteries out of the reach of children. Should the batteries be
swallowed, immediately consult a
doctor. Also, when disposing of used
batteries, please comply with govern-
mental regulations or environmental
public institution rules that apply in
your country/area.
LHA3848
4-98Monitor, climate, audio, phone and voice recognition systems

CAUTION
∙ Always ensure that the batteries areinserted with the positive and nega-
tive terminals in the correct direction
as shown in the battery
compartment.
∙ Different types of batteries have dif- ferent characteristics. Do not mix dif-
ferent types.
∙ Do not mix old and new batteries. Mix- ing old and new batteries will shorten
battery life and/or cause chemical
leaks from the old batteries.
∙ When batteries fail to function, re- place them immediately.
∙ Remove the batteries if the remote control is not used for a month or
longer.
REMOTE CONTROL BUTTONS
1. POWER button
2. SOURCE button
3. SETUP button 4. EJECT button
5. DVD-B button
6. SOUND AROUND SELECT button
7. PIX button
8. REPEAT button
9. RIGHT button
10. ENTER button
11. A-B button
12. R-S button
13. ERASE/ADD button
14. AUDIO button
15. ANGLE button
16. GO TO button
17. DISPLAY button
18. PROGRAM button
19. RANDOM button
20. 3D button
21. PBC (Video CD only) button
22. ZOOM button
23. NEXT button
24. PREV button
LHA4093
Monitor, climate, audio, phone and voice recognition systems4-99

25. FF (Fast forward) button
26. FR (Fast rewind) button
27. STOP button
28. PLAY/PAUSE button
29. Number Keys
30. SUBTITLE button
31. TITLE button
32. CH-SEARCH/SKIP button
33. AUTO MEMORY button
34. DOWN button
35. RETURN button
36. LEFT button
37. UP button
38. MENU button
39. MUTE button
40. SOUND AROUND ON/OFF button
41. DVD-A button
NOTE:
The following remote control functions
do not apply to this model: A-B and Pro-
gram.POWER button
Press this button to turn the monitor on.
Press this button again to turn the monitor
off.
Source button
Press this button to cycle between monitor
A audio/video sources and monitor B
audio/video sources.
Setup button
Press this button to navigate the DVD OSD
menu. For additional information, refer to
“How to use the DVD OSD menu” in this
section.
Eject button
Press this button to eject the disc.
DVD–B button
Press this button to transmit the remote
control codes and functions to operate
monitor B.
SOUND AROUND SELECT button
Selects a FM transmitter channel.
PIX button
Press this button to access the picture ad-
justment menu and select between
BRIGHTNESS, CONTRAST, SATURATION,
HUE, SHARPNESS, IR HEADPHONE, LAN-
GUAGE, and RESET. Press the
orbuttons to adjust the screen.
REPEAT button
Press this button to select between differ-
ent repeat modes.
ENTER button
Press this button to make a selection or
begin playback of the media.
RIGHT button
Press this button to navigate right when
displaying a menu or file list.
A-B button
Press the A-B button once to set point A
and then press again to set point B. Play-
back will now repeat between point A and
point B.
R-S button
Non-functioning.
4-100Monitor, climate, audio, phone and voice recognition systems

ERASE / ADD button
Non-functioning.
AUDIO button
Press this button to select and listen to
different audio streams (this function only
applies to DVD titles that support multiple
audio streams).
ANGLE button
Press this button to select different viewing
angles (this function only applies to DVD
titles that support multiple angles).
GO TO button
Non-functioning.
DISPLAY button
Press this button to display various infor-
mation including title, chapter/track,
elapsed time, time remaining, or turn off
the display.
PROGRAM button
Edit a playback program containing de-
sired titles in the DVD or tracks in the CD-
DA.
RANDOM button
Press this button to play content in a ran-
dom order.
3D button
Press this button to select between several
audio effects. DVD mode: Concert, Living
Room, Hall, Bathroom, Cave, Arena, Church,
and Off.
PBC (Video CD only) button
Press this button to run the playback con-
trol on or off.
ZOOM button
Press this button to zoom in or out when
displaying images or playing DVDs. The
zoom range for images is from 50% to
200%. The zoom range for DVDs is from 1/4
size to 4x the original size.
NEXT button
Press this button to select the next chapter,
track, or file.
PREV button
Press this button to select the previous
chapter, track, or file.
FF (Fast forward) button
Press this button to search media for-
wards.
FR (Fast rewind) button
Press this button to search media back-
wards.
STOP button
Press this button once to stop playback
(press play to resume playback). Press this
button twice to perform a full stop (press
play to start playback from the beginning).
PLAY/PAUSE button
Press this button to begin media playback.
Press this button again to pause media
playback.
Number Keys
0—9
SUBTITLE button
Press this button to select and display sub-
titles (this function only applies to DVD titles
that support subtitles).
Monitor, climate, audio, phone and voice recognition systems4-101

TITLE button
Press this button to navigate the title menu
if included on the disc.
CH- SEARCH/SKIP button
Non-functioning.
AUTO MEMORY button
Non-functioning.
DOWN button
Press this button to navigate down when
displaying a menu or file list.
RETURN button
Press this button to return to a previous
menu screen.
LEFT button
Press this button to navigate lef t when dis-
playing a menu or file list.
UP button
Press this button to navigate up when dis-
playing a menu or file list.
MENU button
Press this button to go to the root menu if
included on the disc.
MUTE button
Press this button to mute the audio when
playing discs or playing files from a USB
device. Press this button again to resume
audio.
SOUND AROUND ON/OFF
Turns the FM transmitter ON/OFF.
DVD–A button
Press this button to transmit the remote
control codes and functions to operate
monitor A.
GENERAL OPERATING
INSTRUCTIONS
Turning the monitor ON or OFF
1. Press the POWER button on the frontpanel or the remote control to turn the
monitor on or off. When powered on,
the front panel controls will illuminate.
2. Af ter the monitor has been turned on and is displaying a picture, adjust the viewing angle by pivoting the screen to
optimize the picture quality.
3. Remember to turn the monitor off and return the LCD monitor to the fully
closed (upright) position when not in
use.
Listening through vehicle
speakers
Press the AUX button on the factory radio
and toggle through AUX screens to select
VTRF — Jack to listen to the audio from
monitor A.
Sharing sources between Monitor
A and Monitor B
The source button on your monitor unit or
remote control allows viewing monitor A
video on monitor B and vice versa. Press
the source button to cycle through avail-
able video sources.
Disc/DVD Basic Operation
To get the most use out of each disc, make
sure you read this section completely.
For additional information, refer to “CD care
and cleaning” in this section.
4-102Monitor, climate, audio, phone and voice recognition systems

Regional coding
Both the DVD player and discs are coded by
region. These regional codes must match
in order for the disc to play. The system is
preset to the region code designated for
your area by the DVD Copy Control Asso-
ciation. Other regions may not be played in
this system.
Supported Disc Types∙ DVD-Video: DVD contains video
∙ DVD +/- R: DVD contains video
∙ CD-DA: CD contains audio
∙ CD-Video: CD contains video
∙ CD-R/+RW: CD contains audio
Unsupported Disc Types
Before you load a disc, make sure that it is
compatible with the player. Note that the
following disc CANNOT be used with this
system: Optical disc- CD-1, CD-ROM, and
DVD-ROM Mini disc- CDG (audio only, not
graphics), and Blu-ray (list is not all inclu-
sive).
Loading and Playing Discs
Press the POWER button to turn the moni-
tor on. Insert the disc about half way into the disc compartment slot, with the disc’s
label facing the rear of the vehicle. Do NOT
insert the disc at an angle. The Disc must
be inserted straight into the player.
The disc will load automatically and begin
to play. Some discs may start at the root
menu, where playback must be selected to
start a movie. Depending on the disc and
playback location on the disc, a “
”icon
may be displayed in the upper lef t-hand
corner of the screen indicating that play-
back is not possible during certain times.
Additional information on Media
Compatibility
This system is compatible with the follow-
ing media formats:
Format Extension
Audio MP3 .mp3
WMA .wma
Video AVI
.avi
MPEG-1 .mpg
MPEG-2 .mpg
Image JPEG .jpg
Due to ongoing technological advance-
ments, some USB flash drives may be in-
compatible with this system. ∙ The text information of some audio and
video files may not be correctly dis-
played.
∙ There may be a slight delay before play- back of files using a USB flash drive with
complex folder hierarchies.
∙ Some audio, video, and image files may be incompatible with this system due
to file characteristics, file format, record-
ing sof tware used, directory structure,
and/or the type of audio/video encod-
ing used.
HOW TO USE THE DVD OSD MENU
This section describes how to set and ad-
just settings using On-Screen Display
(OSD) Menu. You can use the OSD menu to
adjust all the settings. Follow the steps out-
lined below to select the desired function.
Monitor, climate, audio, phone and voice recognition systems4-103
