2018 NISSAN TITAN Owner´s Manual

LOCKING WITH KEY
To lock or unlock the vehicle, turn the key as
shown.
Manual
To lock a door, turn the key toward the front
of the vehicle
1. To unlock, turn the key
toward the rear
2.
LOCKING WITH INSIDE LOCK KNOB
To lock the door without the key, move the
inside lock to the lock position
1, then
close the door.
To unlock the door without the key, move
the inside lock knob to the unlock position
2.
LOCKING WITH POWER DOOR
LOCK SWITCH
To lock all the doors and the tailgate lock (if
so equipped) without a key, push the door
lock switch (driver’s or front passenger’s
side) to the lock position
1. When locking
the door this way, be certain not to leave
the key inside the vehicle.
To unlock all the doors and the tailgate lock
(if so equipped) without a key, push the
door lock switch (driver’s or front passen-
ger’s side) to the unlock position
2.
Driver’s side
WPD0311
Inside lock
LPD2092WPD0381
3-6Pre-driving checks and adjustments

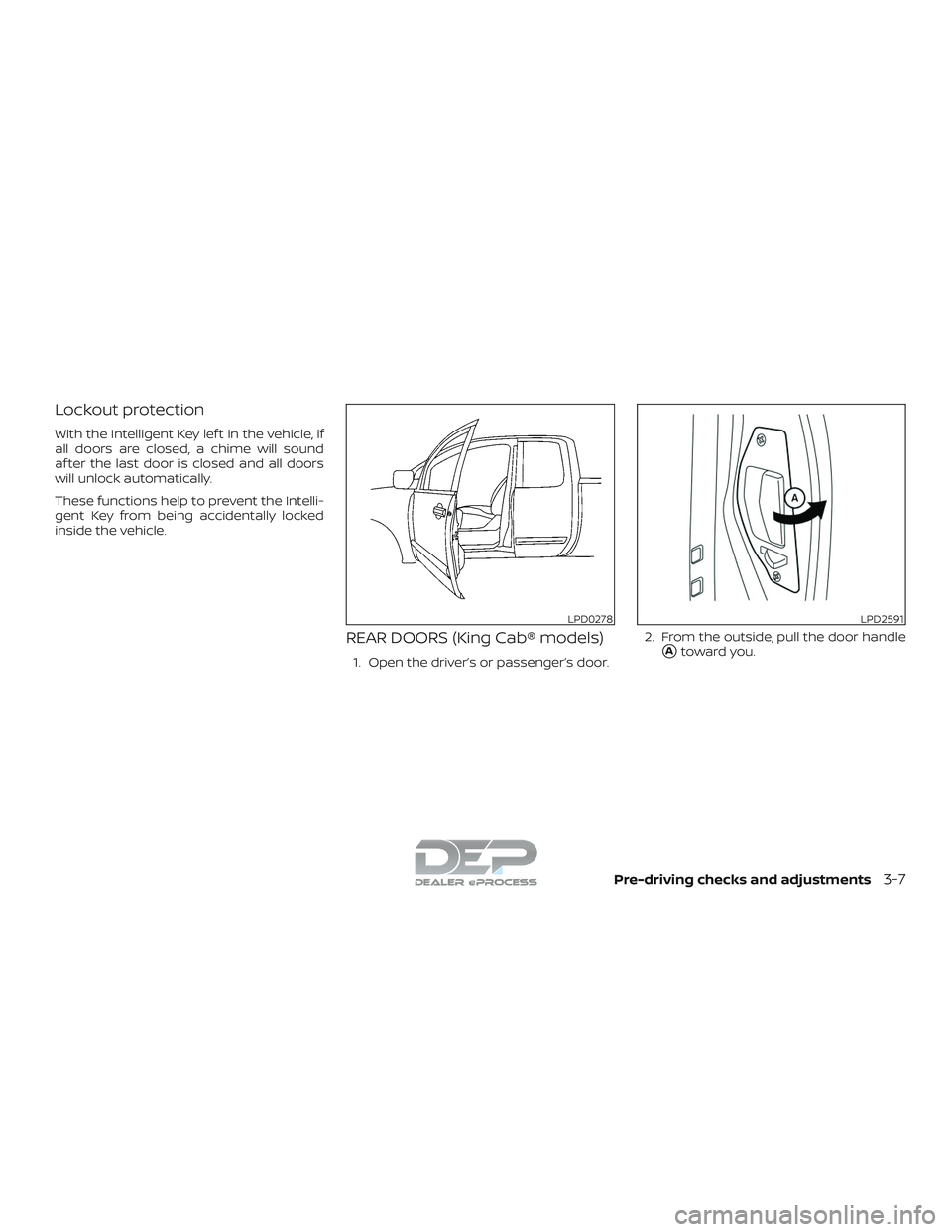

Lockout protection
With the Intelligent Key lef t in the vehicle, if
all doors are closed, a chime will sound
af ter the last door is closed and all doors
will unlock automatically.
These functions help to prevent the Intelli-
gent Key from being accidentally locked
inside the vehicle.
REAR DOORS (King Cab® models)
1. Open the driver’s or passenger’s door.2. From the outside, pull the door handleAtoward you.
LPD0278LPD2591
Pre-driving checks and adjustments3-7

3. Open the door to the desired position.CAUTION
Be careful when opening and exiting
the driver’s side rear door if the fuel-
filler door is open. This may cause dam-
age to the driver’s side rear door or fuel-
filler door if you open fully and they
make contact.
AUTOMATIC DOOR LOCKS (if so
equipped)
∙ All doors lock automatically when thevehicle speed reaches 15 mph
(24 km/h).
LPD2592LPD2593LPD2594
3-8Pre-driving checks and adjustments

NOTE:
The automatic door unlock function can
be changed using the “Vehicle Settings”
of the vehicle information display. For
additional information refer to “Vehicle
information display ” in the “Instruments
and Controls” section of this manual (if
so equipped).

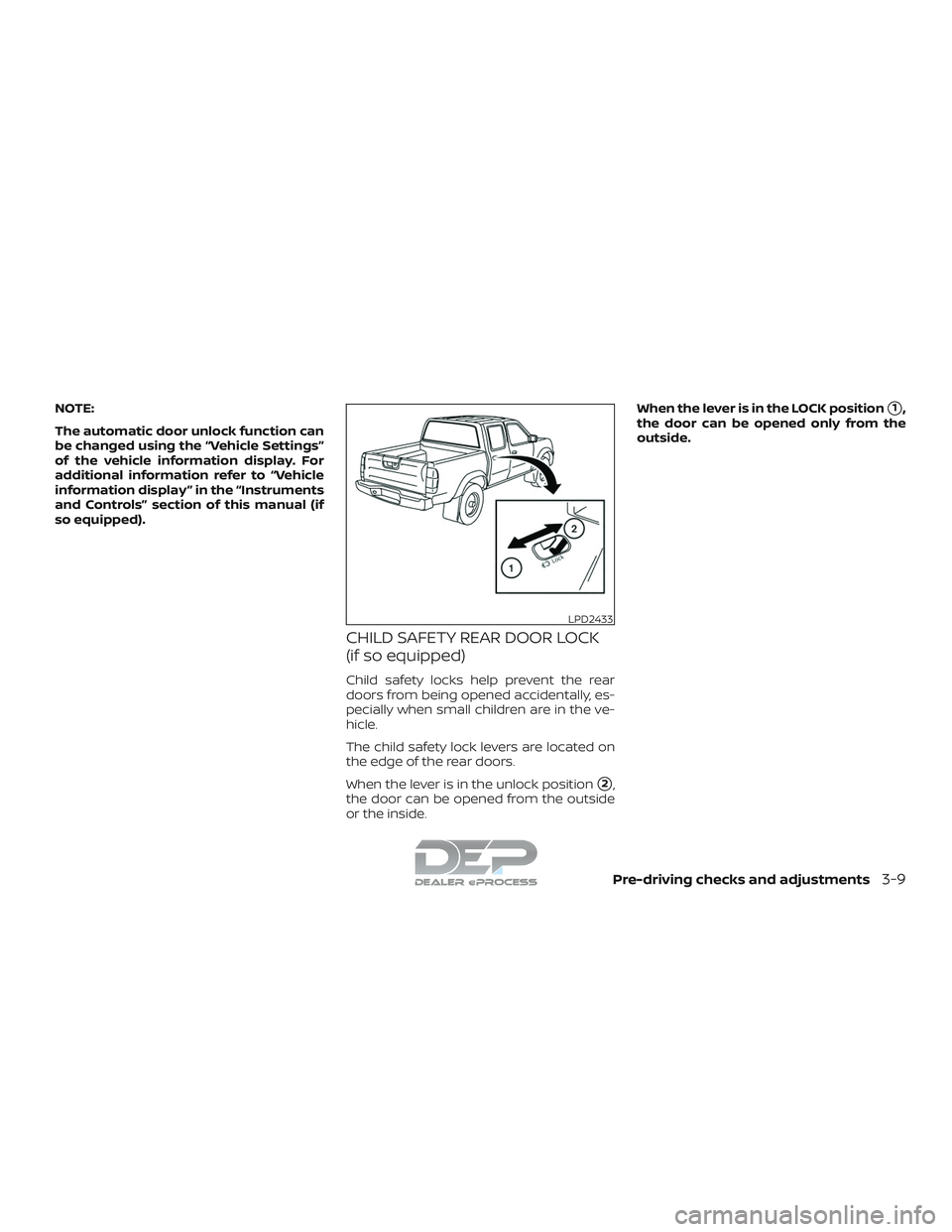

CHILD SAFETY REAR DOOR LOCK
(if so equipped)
Child safety locks help prevent the rear
doors from being opened accidentally, es-
pecially when small children are in the ve-
hicle.
The child safety lock levers are located on
the edge of the rear doors.
When the lever is in the unlock position
2,
the door can be opened from the outside
or the inside. When the lever is in the LOCK position
1,
the door can be opened only from the
outside.
LPD2433
Pre-driving checks and adjustments3-9

WARNING
∙ Radio waves could adversely affectelectric medical equipment. Those
who use a pacemaker should contact
the electric medical equipment
manufacturer for the possible influ-
ences before use.
∙ The Intelligent Key transmits radio waves when the buttons are pressed.
The FAA advises the radio waves may
affect aircraf t navigation and com-
munication systems. Do not operate
the Intelligent Key while on an air-
plane. Make sure the buttons are not
operated unintentionally when the
unit is stored for a flight.
∙ Never leave the Intelligent Key in the vehicle when you leave the vehicle.
The Intelligent Key system can operate all
the door locks using the remote control
function or pushing the request switch on
the vehicle without taking the key out from
a pocket or purse. The operating environ-
ment and/or conditions may affect the In-
telligent Key system operation.
Be sure to read the following before using
the Intelligent Key system.
CAUTION
Be sure to carry the Intelligent Key with
you when operating the vehicle.
The Intelligent Key is capable of receiving
and transmitting radio waves. The Intelli-
gent Key system transmits weak radio
waves from various distances. Environ-
mental conditions may interfere with the
operation of the Intelligent Key system un-
der the following operating conditions: ∙ When operating near a location where strong radio waves are transmitted,
such as a TV tower, power station and
broadcasting station.
∙ When in possession of wireless equip- ment, such as a cellular telephone,
transceiver, or a CB radio.
∙ When the Intelligent Key is in contact with or covered by metallic materials.
∙ When any type of radio wave remote control is used nearby.
∙ When the Intelligent Key is placed near an electric appliance such as a personal
computer.
∙ When the vehicle is parked near a park- ing meter. In such cases, correct the operating condi-
tions before using the Intelligent Key func-
tion or use the mechanical key.
Although the life of the battery varies de-
pending on the operating conditions, the
battery’s life is approximately two years. If
the battery is discharged, replace it with a
new one.
When the Intelligent Key battery is low, a
yellow indicator illuminates with the mes-
sage “Warning, Key ID Incorrect” in the ve-
hicle information display (if so equipped).
When the Intelligent Key battery is low, the
NISSAN Intelligent Key® warning light (if so
equipped) will blink green. For additional
information, refer to “Vehicle information
display warnings and indicators” in the “In-
struments and controls” section of this
manual.
Since the Intelligent Key is capable of re-
ceiving radio waves, if the key is lef t near
equipment which transmits strong radio
waves, such as signals from a TV and per-
sonal computer, the battery life may be-
come shorter.
For additional information, refer to “Battery
replacement” in the “Do-it-yourself ” section
of this manual.
NISSAN INTELLIGENT KEY®
3-10Pre-driving checks and adjustments

As many as four Intelligent Keys can be
registered and used with one vehicle. For
information about the purchase and use of
additional Intelligent Keys, it is recom-
mended that you visit a NISSAN dealer.
OPERATING RANGE
The Intelligent Key functions can only be
used when the Intelligent Key is within the
specified operating range from the request
switch
1(if so equipped).
When the Intelligent Key battery is dis-
charged or strong radio waves are present
near the operating location, the Intelligent
Key operating range becomes narrower,
and the Intelligent Key may not function
properly.
The operating range is within 31.50 in
(80 cm) from each request switch
1. If the Intelligent Key is too close to the door
glass or handle, the request switches may
not function.
When the Intelligent Key is within the oper-
ating range, it is possible for anyone, even
someone who does not carry the Intelli-
gent Key, to push the request switch to
lock/unlock the doors.
LPD2338
Pre-driving checks and adjustments3-11

DOOR LOCKS/UNLOCKS
PRECAUTION
∙ Do not push the door handle requestswitch with the Intelligent Key held in
your hand as illustrated. The close dis-
tance to the door handle will cause the
Intelligent Key system to have difficulty
recognizing that the Intelligent Key is
outside the vehicle.
∙ Af ter locking with the door handle re- quest switch, verif y the doors are se-
curely locked by testing them. ∙ To prevent the Intelligent Key from be-
ing lef t inside the vehicle, make sure you
carry the Intelligent Key with you and
then lock the doors.
∙ Do not pull the door handle before pushing the door handle request
switch. The door will be unlocked but
will not open. Release the door handle
once and pull it again to open the door.
NISSAN INTELLIGENT KEY®
OPERATION
You can lock or unlock the doors without
taking the Intelligent Key out of your pocket
or bag.
When you carry the Intelligent Key with you,
you can lock or unlock all doors by pushing
the door handle request switch within the
range of operation.
LPD2554LPD2382
3-12Pre-driving checks and adjustments

Locking doors
1. Move the shif t lever to the P (Park) posi-tion, place the ignition switch in the
LOCK position and make sure you carry
the Intelligent Key with you.
2. Close all doors.
3. Push the door handle request switch (if so equipped) while carrying the Intelli-
gent Key with you.
4. All doors and the tailgate lock (if so equipped) will lock. 5. The hazard indicator lights flash twice,
the outside chirp sounds twice, and the
front and tail lights may turn on for
10 seconds.
NOTE: ∙ Request switches (if so equipped) for
all doors can be deactivated when the
“I-Key Door Lock” setting is switched
to OFF in the Vehicle Settings of the
vehicle information display (if so
equipped). For additional informa-
tion, refer to “Vehicle information dis-
play ” in the “Instruments and con-
trols” section of this manual. ∙
Doors and the tailgate lock (if so
equipped) will lock with the door
handle request switch
1while the
ignition switch is not in the LOCK po-
sition.
∙ Doors and the tailgate lock (if so
equipped) will not lock by pushing the
door handle request switch if any
door is open. However, doors will lock
with the mechanical key even if any
door is open.
∙ Doors and the tailgate lock (if so
equipped) do not lock with the door
handle request switch if the Intelli-
gent Key is inside the vehicle. A beep
will sound to warn you. However,
when an Intelligent Key is inside the
vehicle, doors can be locked with an-
other Intelligent Key.
LPD2383LPD2579
Pre-driving checks and adjustments3-13
