2018 NISSAN TITAN Owner´s Manual

WHEELS AND TIRES
Wheel TypeOffset in (mm) Size
Steel 1.73 (44)
17 x 7.5 J
0.98 (25) 18 x 8.0 J
Alloy 0.98 (25)
18 x 8.0 J
0.91 (23) 18 x 8.0 J
1.63 (41.5) 18 x 7.5 J
0.91(23) 20x8.0J
1.63 (41.5) 20 x 7.5 J
Tire type Performance type Size
Passenger All season
265/70R18
All season P265/70R18
All season P275/60R20
All terrain P275/70/R18
Light truck All season
LT245/75R17
All terrain LT275/65R18
All season LT265/60R20
Spare wheel type Performance type Size
Full size (Non Matching)
Steel -
265/70R18
- P265/70R18
- LT245/75R17
Full size (Non Matching)
Alloy -
P275/60R20
Full size (Matching) Al-
loy -
P275/70R18
- P275/60R20
- LT275/60R20
- LT275/65R18
10-10Technical and consumer information

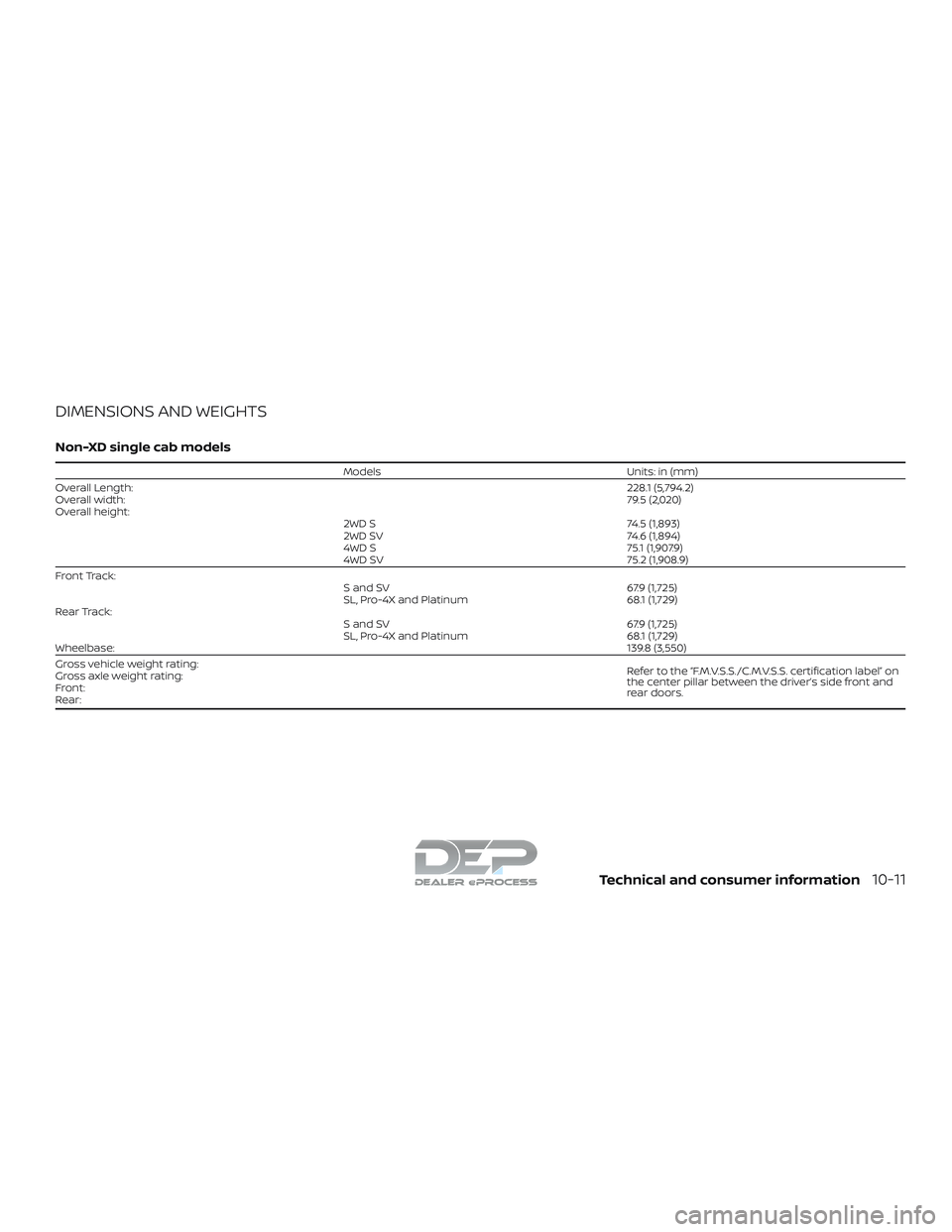

DIMENSIONS AND WEIGHTS
Non-XD single cab models
ModelsUnits: in (mm)
Overall Length: 228.1 (5,794.2)
Overall width: 79.5 (2,020)
Overall height: 2WD S74.5 (1,893)
2WD SV 74.6 (1,894)
4WD S 75.1 (1,907.9)
4WD SV 75.2 (1,908.9)
Front Track: S and SV67.9 (1,725)
SL, Pro-4X and Platinum 68.1 (1,729)
Rear Track: S and SV67.9 (1,725)
SL, Pro-4X and Platinum 68.1 (1,729)
Wheelbase: 139.8 (3,550)
Gross vehicle weight rating: Refer to the “F.M.V.S.S./C.M.V.S.S. certification label” on
the center pillar between the driver’s side front and
rear doors.
Gross axle weight rating:
Front:
Rear:
Technical and consumer information10-11

XD single cab models
ModelsUnits: in (mm)
Overall Length: 231 (5,866.5)
Overall width: 79.5 (2,020)
Overall height: 2WD with diesel engine77.2 (1,960.5)
4WD with diesel engine 77.1 (1959.5)
2WD with gasoline engine 77.3 (1,962.5)
4WD with gasoline engine 77.2 (1,960.5)
Front Track: S and SV68.4 (1,738)
SL, Pro-4X and Platinum 68.6 (1,743)
Rear Track: S and SV68.3 (1,737)
SL, Pro-4X and Platinum 68.6 (1,742)
Wheelbase: 139.8 (3,550)
Gross vehicle weight rating: Refer to the “F.M.V.S.S./C.M.V.S.S. certification label” on
the center pillar between the driver’s side front and
rear doors.
Gross axle weight rating:
Front:
Rear:
10-12Technical and consumer information

Non-XD crew cab models
ModelsUnits: in (mm)
Overall Length: S, SV, SL and Platinum228.1 (5,794.2)
Pro-4X 228.5 (5,804.1)
Overall width:
Tow mirrors extended 102.6 (2607.19)
Without overfenders S, SV and SL79.5 (2,020)
With overfenders Pro-4X and Platinum80.7 (2,049.6)
Overall height: 2WD S/SV75.4 (1,915.1)
4WD S/SV 76.0 (1,929.7)
2WD SL/Platinum 75.6 (1,920.4)
4WD Pro-4X 77.2 (1,960.3)
4WD SL/Platinum 77.2 (1,959.7)
Front Track: S and SV67.9 (1,725)
SL, Pro-4X and Platinum 68.1 (1,729)
Rear Track: S and SV67.9 (1,725)
SL, Pro-4X and Platinum 68.1 (1,729)
Wheelbase: 139.8 (3,550)
Gross vehicle weight rating: Refer to the “F.M.V.S.S./C.M.V.S.S. certification label” on
the center pillar between the driver’s side front and
rear doors.
Gross axle weight rating:
Front:
Rear:
Technical and consumer information10-13

XD crew cab models
ModelsUnits: in (mm)
Overall Length:
Without front license plate bracket S, SV, SL and Platinum242.7 (6,165.7)
Without front license plate bracket Pro-4X243.6 (6,187.1)
With front license plate bracket S, SV, SL and Platinum243.0 (6,172.6)
With front license plate bracket Pro-4X243.9 (6,194.6)
Overall width:
Tow mirrors non-extended 98.2 (2,494)
Tow mirrors extended 103.9 (2,640)
Without overfenders S, SV and SL79.5 (2,019.9)
With overfenders Pro-4X and Platinum80.7 (2,048.9)
Overall height: 2WD/4WD S/SV78.0 (1980)
4WD Pro-4X 78.3 (1,990)
2WD/4WD SL/Platinum 78.7 (2,000)
Front Track: S and SV68.4 (1,738)
SL, Pro-4X and Platinum 68.6 (1,743)
Rear Track: S and SV68.3 (1,737)
SL, Pro-4X and Platinum 68.6 (1,742)
Wheelbase: 151.6 (3,850)
Gross vehicle weight rating: Refer to the “F.M.V.S.S./C.M.V.S.S. certification label” on
the center pillar between the driver’s side front and
rear doors.
Gross axle weight rating:
Front:
Rear:
10-14Technical and consumer information

Non-XD King Cab® models
ModelsUnits: in (mm)
Overall Length: S and SV228.1 (5,794.2)
Pro-4X 228.5 (5,804.1)
Overall width: S and SV79.5 (2,020)
Pro-4X 80.7 (2,049.6)
Overall height: 2WD S75.1 (1,906.6)
4WD S 75.7 (1,921.8)
2WD SV 75.1 (1,908)
4WD SV 75.7 (1,923.2)
Pro-4X 76.9 (1,953.2)
Front Track: S and SV67.9 (1,725)
Pro-4X 68.1 (1,729)
Rear Track: S and SV67.9 (1,725)
Pro-4X 68.1 (1,729)
Wheelbase: 139.8 (3,550)
Gross vehicle weight rating: Refer to the “F.M.V.S.S./C.M.V.S.S. certification label” on
the center pillar between the driver’s side front and
rear doors.
Gross axle weight rating:
Front:
Rear:
Technical and consumer information10-15

XD King Cab® models
ModelsUnits: in (mm)
Overall Length: S and SV231.0 (5,866.5)
Pro-4X 231.8 (5887.9)
Overall width: S and SV79.5 (2,020)
Pro-4X 80.7 (2,049.6)
Overall height: 2WD S and SV77.7 (1,974.3)
4WD S and SV 77.7 (1,973.4)
4WD Pro-4X 78.1 (1,983.5)
Front Track: S and SV68.4 (1,738)
Pro-4X 68.6 (1,743)
Rear Track: S and SV68.4 (1,737)
Pro-4X 68.6 (1,742)
Wheelbase: 139.8 (3,550)
Gross vehicle weight rating: Refer to the “F.M.V.S.S./C.M.V.S.S. certification label” on
the center pillar between the driver’s side front and
rear doors.
Gross axle weight rating:
Front:
Rear:
10-16Technical and consumer information

When planning to drive your NISSAN ve-
hicle in another country,you should first
find out if the fuel available is suitable for
your vehicle's engine.
Using fuel with an octane rating that is too
low may cause engine damage. All gaso-
line vehicles must be operated with un-
leaded gasoline. Therefore, avoid taking
your vehicle to areas where appropriate
fuel is not available.
When transferring the registration of
your vehicle to another country, state,
province or district, it may be necessary
to modif y the vehicle to meet local laws
and regulations.
The laws and regulations for motor vehicle
emission control and safety standards
vary according to the country, state, prov-
ince or district; therefore, vehicle specifica-
tions may differ.
When any vehicle is to be taken into an-
other country, state, province or district
and registered, its modifications, trans-
portation and registration are the re-
sponsibility of the user. NISSAN is not re-
sponsible for any inconvenience that
may result.
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
The vehicle identification number (VIN)
plate is attached as shown. This number is
the identification for your vehicle and is
used in the vehicle registration.
VEHICLE IDENTIFICATION NUMBER
(chassis number)
The vehicle identification number is lo-
cated as shown.
LTI2195LTI0086
WHEN TRAVELING OR REGISTERING
IN ANOTHER COUNTRY VEHICLE IDENTIFICATION
Technical and consumer information10-17
