Page 473 of 650

3. Park on a level surface and apply theparking brake. Move the shif t lever to P
(Park).
4. Turn off the engine.
5. Raise the hood to warn other traffic and to signal professional road assis-
tance personnel that you need assis-
tance.
6. Have all passengers get out of the ve- hicle and stand in a safe place, away
from traffic and clear of the vehicle.
WARNING
∙ Make sure the parking brake is se-curely applied and the shif t lever is
shif ted into P (Park).
∙ Never change tires when the vehicle is on a slope, ice or slippery areas. This is
hazardous.
∙ Never change tires if oncoming traffic is close to your vehicle. Wait for pro-
fessional road assistance.A. Tire stoppers
B. Flat Tire
Blocking wheels
Place tire stoppers, supplied with jack, at
both the front and back of the wheel diago-
nally opposite the flat tire to prevent the
vehicle from moving when it is jacked up.
WARNING
Be sure to block the wheel as the vehicle
may move and result in personal injury.
Getting the spare tire and tools
(Crew and King Cab® models)
1. Fold up the right rear bench seat. For additional information, refer to “Folding
the rear bench seat up” in the “Safety—
Seats, seat belts and supplemental re-
straint system” section of this manual.
LCE2142
6-4In case of emergency
Page 474 of 650

2. Remove the tire stopper bagA.
3. Release the straps
B.
4. Collapse the jack to remove it from the storage location. Loosen the jack with
your fingers until the jack is free.
5. Remove the jack and tool kit. 6. Assemble the pieces of the jack rod.
Find the oval-shaped opening above
the license plate, slightly to the lef t of
the middle (driver’s side). Pass the
T-shaped end of the jack rod through
the opening and direct it toward the
spare tire winch, located directly above
the spare tire.
CAUTION
Do not insert the jack rod straight as it is
designed to be inserted at an angle as
shown. 7. Fit the square end of the jack rod into
the square hole of the wheel nut
wrench to form a handle.
8. Seat the T-shaped end of the jack rod into the T-shaped opening of the tire
winch. Apply pressure to keep the jack
rod engaged in the spare tire winch
and turn the jack rod counterclockwise
to lower the spare tire.
9. Once the spare tire is completely low- ered, reach under the vehicle, remove
the retainer chain and carefully slide
the tire from under the rear of the ve-
hicle.
LCE2374WCE0150WCE0151
In case of emergency6-5
Page 475 of 650

10. Securely store the flat tire beneath thevehicle, from where the full size spare
was removed.
11. To reinstall the jack and tool kit, reverse steps 1 through 5.
CAUTION
Be sure to center the spare tire sus-
pending plate on the wheel and then lif t
the spare tire.
Getting the spare tire and tools
(Single Cab models)
1. Move the front passenger seat to ac-cess the tools. For additional informa-
tion about seat functions, refer to “
Seats” in the “Safety–Seats, seat belts
and supplemental restraint system”
section of this manual. 2. Remove the lid from the tool storage
compartment.
3. Release the straps
A.
4. Remove the tire stopper bag
B.
5. Remove the tool kit and jack
C. 6. Assemble the pieces of the jack rod.
Find the oval-shaped opening above
the license plate, slightly to the lef t of
the middle (driver’s side). Pass the
T-shaped end of the jack rod through
the opening and direct it toward the
spare tire winch, located directly above
the spare tire.
CAUTION
Do not insert the jack rod straight as it is
designed to be inserted at an angle as
shown.
LCE2280WCE0150
6-6In case of emergency

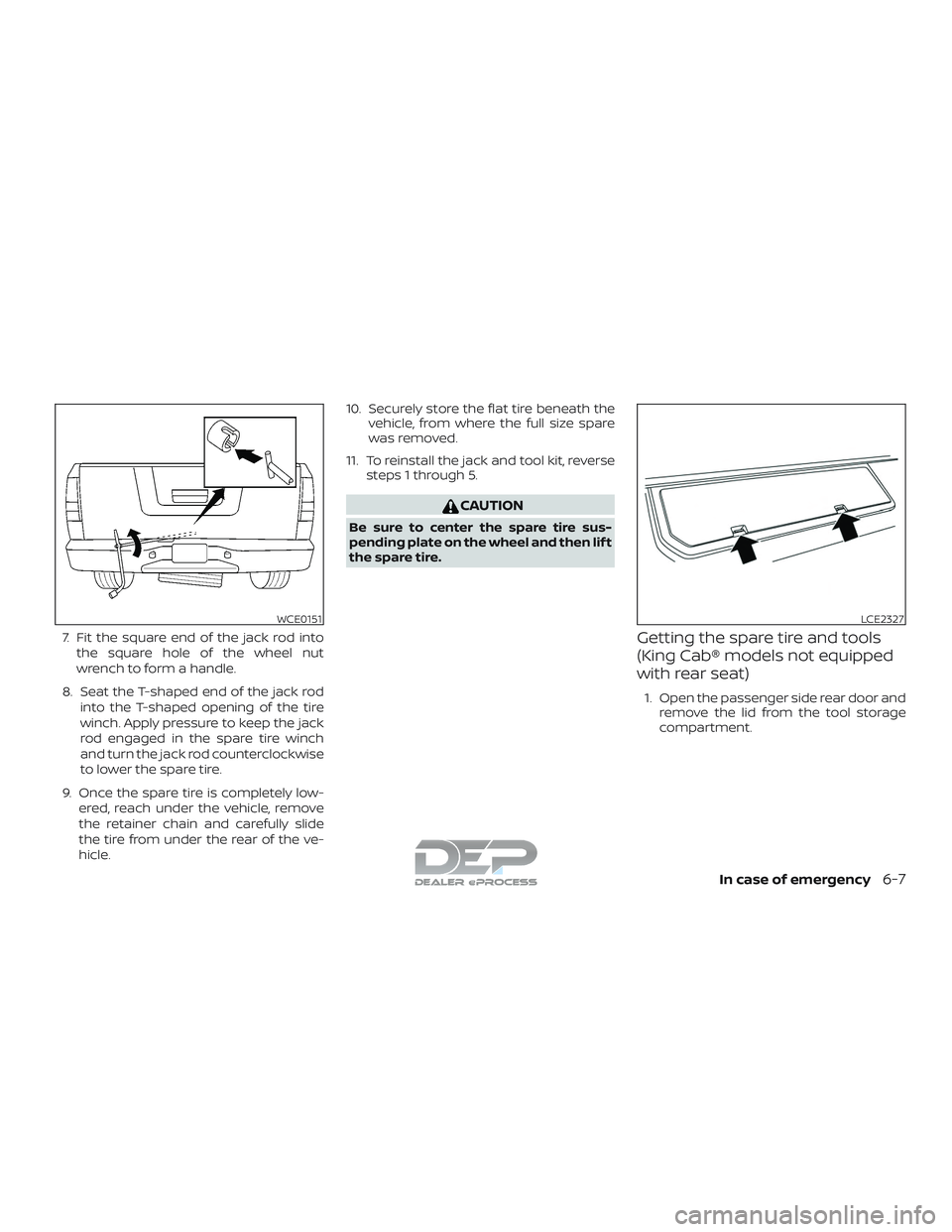

Page 476 of 650
7. Fit the square end of the jack rod intothe square hole of the wheel nut
wrench to form a handle.
8. Seat the T-shaped end of the jack rod into the T-shaped opening of the tire
winch. Apply pressure to keep the jack
rod engaged in the spare tire winch
and turn the jack rod counterclockwise
to lower the spare tire.
9. Once the spare tire is completely low- ered, reach under the vehicle, remove
the retainer chain and carefully slide
the tire from under the rear of the ve-
hicle. 10. Securely store the flat tire beneath the
vehicle, from where the full size spare
was removed.
11. To reinstall the jack and tool kit, reverse steps 1 through 5.
CAUTION
Be sure to center the spare tire sus-
pending plate on the wheel and then lif t
the spare tire.
Getting the spare tire and tools
(King Cab® models not equipped
with rear seat)
1. Open the passenger side rear door andremove the lid from the tool storage
compartment.
WCE0151LCE2327
In case of emergency6-7
Page 477 of 650

2. Release the strapsA.
3. Remove the tire stopper bag
B.
4. Lif t the storage cover
Cto access the
jack.
5. Remove the tool kit and jack. 6. Assemble the pieces of the jack rod.
Find the oval-shaped opening above
the license plate, slightly to the lef t of
the middle (driver’s side). Pass the
T-shaped end of the jack rod through
the opening and direct it toward the
spare tire winch, located directly above
the spare tire.
CAUTION
Do not insert the jack rod straight as it is
designed to be inserted at an angle as
shown. 7. Fit the square end of the jack rod into
the square hole of the wheel nut
wrench to form a handle.
8. Seat the T-shaped end of the jack rod into the T-shaped opening of the tire
winch. Apply pressure to keep the jack
rod engaged in the spare tire winch
and turn the jack rod counterclockwise
to lower the spare tire.
9. Once the spare tire is completely low- ered, reach under the vehicle, remove
the retainer chain and carefully slide
the tire from under the rear of the ve-
hicle.
LCE2328WCE0150WCE0151
6-8In case of emergency
Page 478 of 650

10. Securely store the flat tire beneath thevehicle, from where the full size spare
was removed.
11. To reinstall the jack and tool kit, reverse steps 1 through 5.
CAUTION
Be sure to center the spare tire sus-
pending plate on the wheel and then lif t
the spare tire.
Jacking up vehicle and removing
the damaged tire (all models)
WARNING
∙ Never get under the vehicle while it issupported only by the jack. If it is nec-
essary to work under the vehicle, sup-
port it with safety stands.
∙ Use only the jack provided with your vehicle to lif t the vehicle. Do not use
the jack provided with your vehicle on
other vehicles. The jack is designed
for lif ting only your vehicle during a
tire change.
∙ Use the correct jack-up points. Never use any other part of the vehicle for
jack support. ∙ Never jack up the vehicle more than
necessary.
∙ Never use blocks on or under the jack.
∙ Do not start or run the engine while vehicle is on the jack. It may cause the
vehicle to move. This is especially true
for vehicles with limited slip
differentials.
∙ Do not allow passengers to stay in the vehicle while it is on the jack.
∙ Never run the engine with a wheel(s) off the ground. It may cause the ve-
hicle to move.
In case of emergency6-9
Page 479 of 650
Always refer to the illustration for the cor-
rect placement and jack-up points for your
specific vehicle model and jack type.
Carefully read the caution label attached
to the jack body and the following in-
structions.1. Loosen each wheel nut one or two
turns by turning counterclockwise with
the wheel nut wrench. Do not remove
the wheel nuts until the tire is off the
ground. 2. Place the jack directly under the
jack-up point as illustrated so the top
of the jack contacts the vehicle at the
jack-up point. Align the jack head under
the arrow stamped on the side of the
frame or rear as shown.
The jack should be used on firm and
level ground.
WCE0152
6-10In case of emergency
Page 480 of 650
3. Install the assembled jack rod into thejack as shown.
4. To lif t the vehicle, securely hold the jack lever and rod. Carefully raise the vehicle
until the tire clears the ground. 5. Remove the wheel nuts and then re-
move the tire.
Installing the spare tire
The spare tire is designed for emergency
use. For additional information, refer to
“Wheels and tires” in the “Do-it-yourself ”
section of this manual.
1. Clean any mud or dirt from the surface between the wheel and hub.
2. Carefully put the spare tire on and tighten the wheel nuts finger tight.
3. With the wheel nut wrench, tighten wheel nuts alternately and evenly in the
sequence illustrated (
1,2,3,4,5,6)
until they are tight.
LCE0087
LCE2012
In case of emergency6-11
