2018 NISSAN TITAN Owner´s Manual

CAUTION
For vehicles with automatic drive posi-
tioner: Failure to reset the tilt and tele-
scoping functions of the steering
wheel, af ter the vehicle’s battery has
been discharged, may prevent the
steering wheel position from being
adjusted.
For vehicles with automatic drive posi-
tioner: Both the tilt and telescopic steering
operation must be reset af ter the vehicle’s
battery has been discharged in order to
prevent the tilt and telescopic operation
from locking in one position. When the bat-
tery has been recharged or replaced, per-
form the following: ∙ For tilt operation: Adjust the switch
1
so the steering wheel moves to the
highest position
2that can be
reached.
∙ For telescopic operation: Adjust the switch
1so the steering wheel moves
to the most forward and backward po-
sition
3that can be reached.
Performing these operations resets the
range of the steering wheel’s tilt and tele-
scopic function.
Entry/Exit function (if so
equipped)
The automatic drive positioner system (if
so equipped) will make the steering wheel
move up automatically when the driver’s
door is opened and the ignition switch is in
the LOCK position. This lets the driver get
into and out of the seat more easily. The
steering wheel moves back into position
when the driver’s door is closed and the
ignition switch is pushed.
For additional information, refer to “Auto-
matic drive positioner” in this section.
WPD0344
SUN VISORS
3-30Pre-driving checks and adjustments

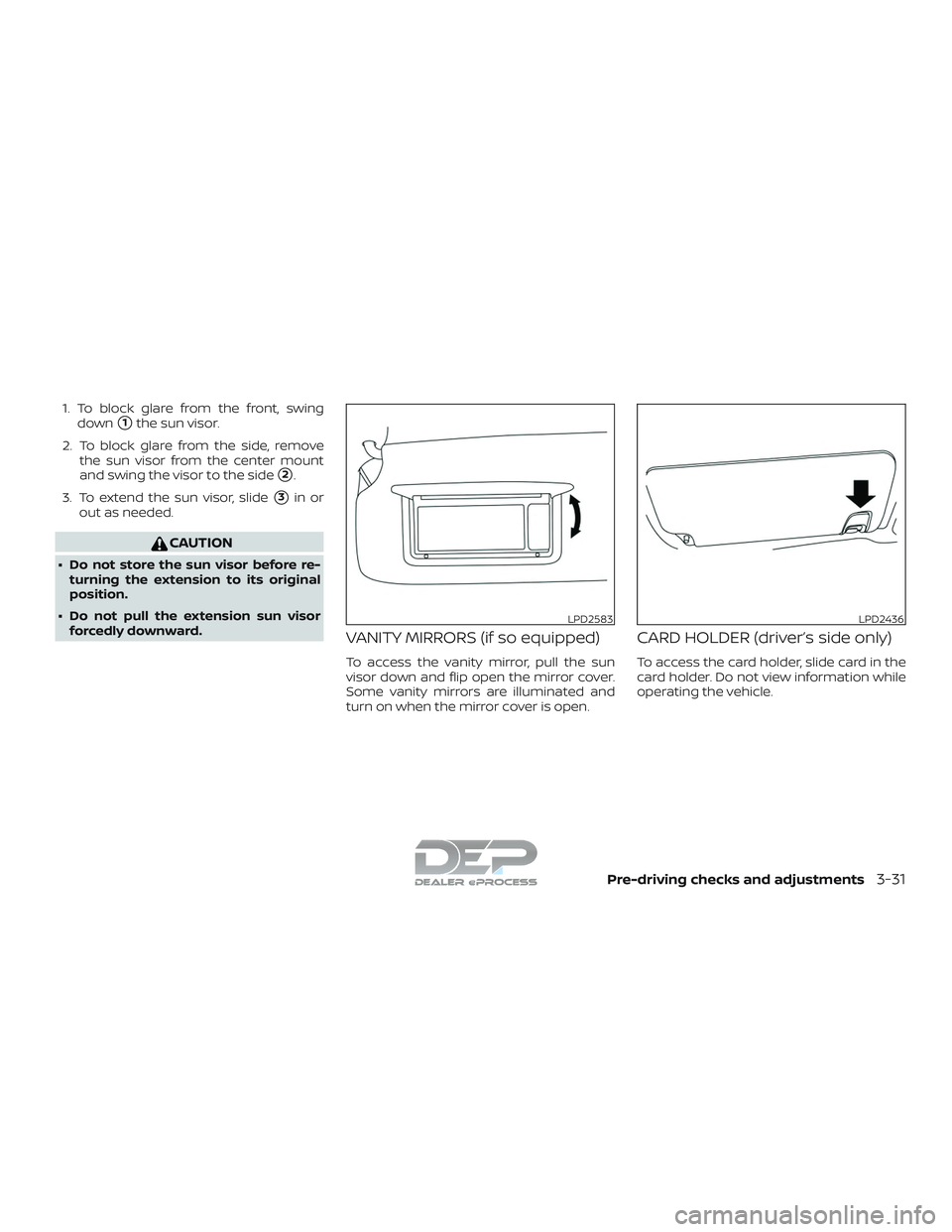

1. To block glare from the front, swingdown
1the sun visor.
2. To block glare from the side, remove the sun visor from the center mount
and swing the visor to the side
2.
3. To extend the sun visor, slide
3in or
out as needed.
CAUTION
∙ Do not store the sun visor before re- turning the extension to its original
position.
∙ Do not pull the extension sun visor forcedly downward.
VANITY MIRRORS (if so equipped)
To access the vanity mirror, pull the sun
visor down and flip open the mirror cover.
Some vanity mirrors are illuminated and
turn on when the mirror cover is open.
CARD HOLDER (driver’s side only)
To access the card holder, slide card in the
card holder. Do not view information while
operating the vehicle.
LPD2583LPD2436
Pre-driving checks and adjustments3-31

MANUAL ANTI-GLARE REARVIEW
MIRROR (if so equipped)
Use the night position1to reduce glare
from the headlights of vehicles behind you
at night.
Use the day position
2when driving in
daylight hours.
WARNING
Use the night position only when neces-
sary, because it reduces rear view
clarity.
AUTOMATIC ANTI-GLARE
REARVIEW MIRROR (if so equipped)
The inside mirror is designed so that it au-
tomatically dims during night time condi-
tions and according to the intensity of the
headlights of the vehicle following you. The
automatic anti-glare feature is activated
when the ignition switch is in the ON posi-
tion.
The indicator light
2will illuminate when
the automatic anti-glare feature is operat-
ing.
NOTE:
Do not hang any objects over the sen-
sors
1or apply glass cleaner to the sen-
sors. Doing so will reduce the sensitivity
of the sensors, resulting in improper op-
eration.Type A (if so equipped)
To turn off the automatic anti-glare feature,
press the O button. The indicator light
will turn off.
To turn on the automatic anti-glare feature
again, press the | button. The indicator
light will turn on.
For additional information, refer to the
“HomeLink® Universal Transceiver” in the
“Instruments and controls” section of this
manual.
WPD0126Type A - Without compass (if so equipped)
LPD0469
MIRRORS
3-32Pre-driving checks and adjustments

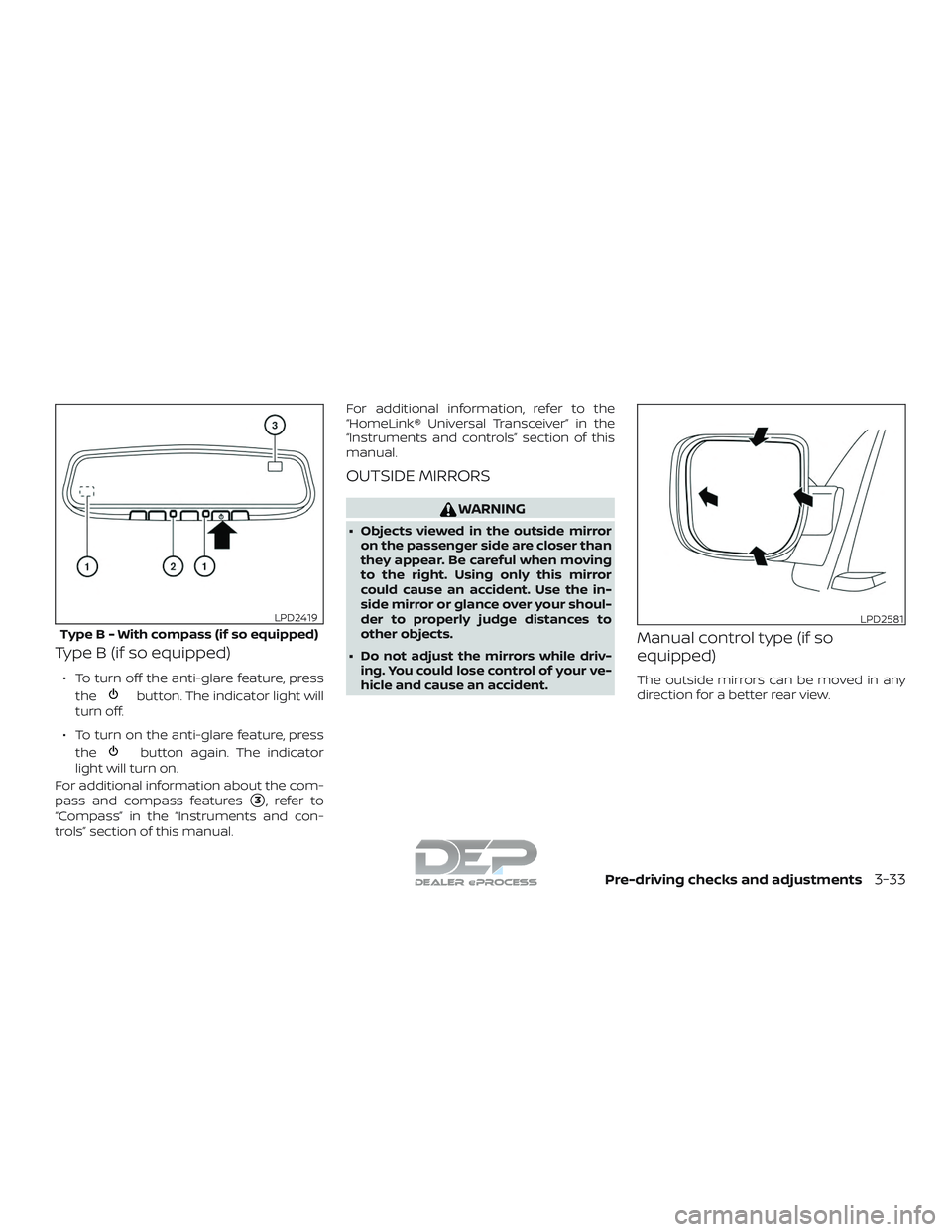

Type B (if so equipped)
∙ To turn off the anti-glare feature, pressthe
button. The indicator light will
turn off.
∙ To turn on the anti-glare feature, press the
button again. The indicator
light will turn on.
For additional information about the com-
pass and compass features
3, refer to
“Compass” in the “Instruments and con-
trols” section of this manual. For additional information, refer to the
“HomeLink® Universal Transceiver” in the
“Instruments and controls” section of this
manual.
OUTSIDE MIRRORS
WARNING
∙ Objects viewed in the outside mirror
on the passenger side are closer than
they appear. Be careful when moving
to the right. Using only this mirror
could cause an accident. Use the in-
side mirror or glance over your shoul-
der to properly judge distances to
other objects.
∙ Do not adjust the mirrors while driv- ing. You could lose control of your ve-
hicle and cause an accident.
Manual control type (if so
equipped)
The outside mirrors can be moved in any
direction for a better rear view.
Type B - With compass (if so equipped)
LPD2419LPD2581
Pre-driving checks and adjustments3-33

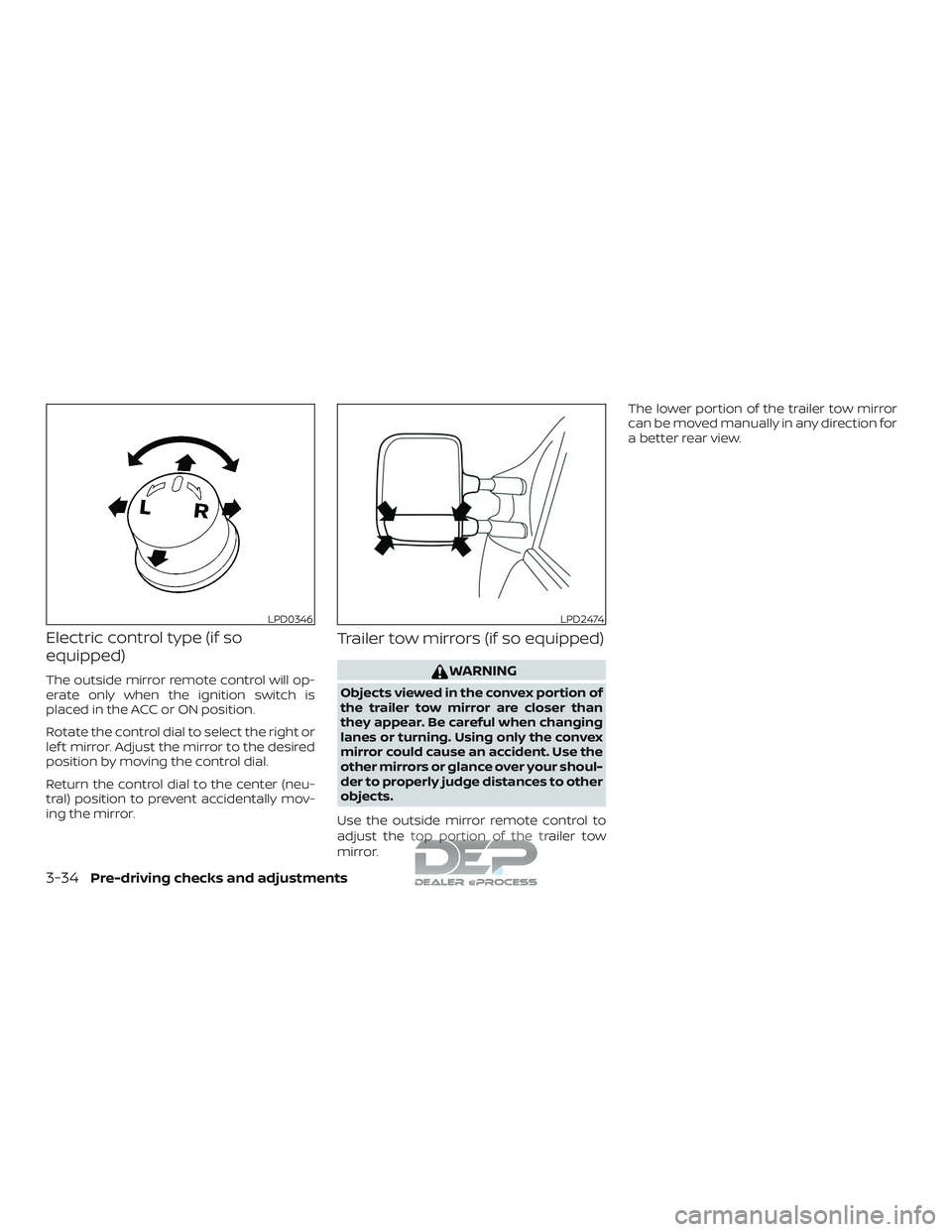

Electric control type (if so
equipped)
The outside mirror remote control will op-
erate only when the ignition switch is
placed in the ACC or ON position.
Rotate the control dial to select the right or
lef t mirror. Adjust the mirror to the desired
position by moving the control dial.
Return the control dial to the center (neu-
tral) position to prevent accidentally mov-
ing the mirror.
Trailer tow mirrors (if so equipped)
WARNING
Objects viewed in the convex portion of
the trailer tow mirror are closer than
they appear. Be careful when changing
lanes or turning. Using only the convex
mirror could cause an accident. Use the
other mirrors or glance over your shoul-
der to properly judge distances to other
objects.
Use the outside mirror remote control to
adjust the top portion of the trailer tow
mirror. The lower portion of the trailer tow mirror
can be moved manually in any direction for
a better rear view.
LPD0346LPD2474
3-34Pre-driving checks and adjustments

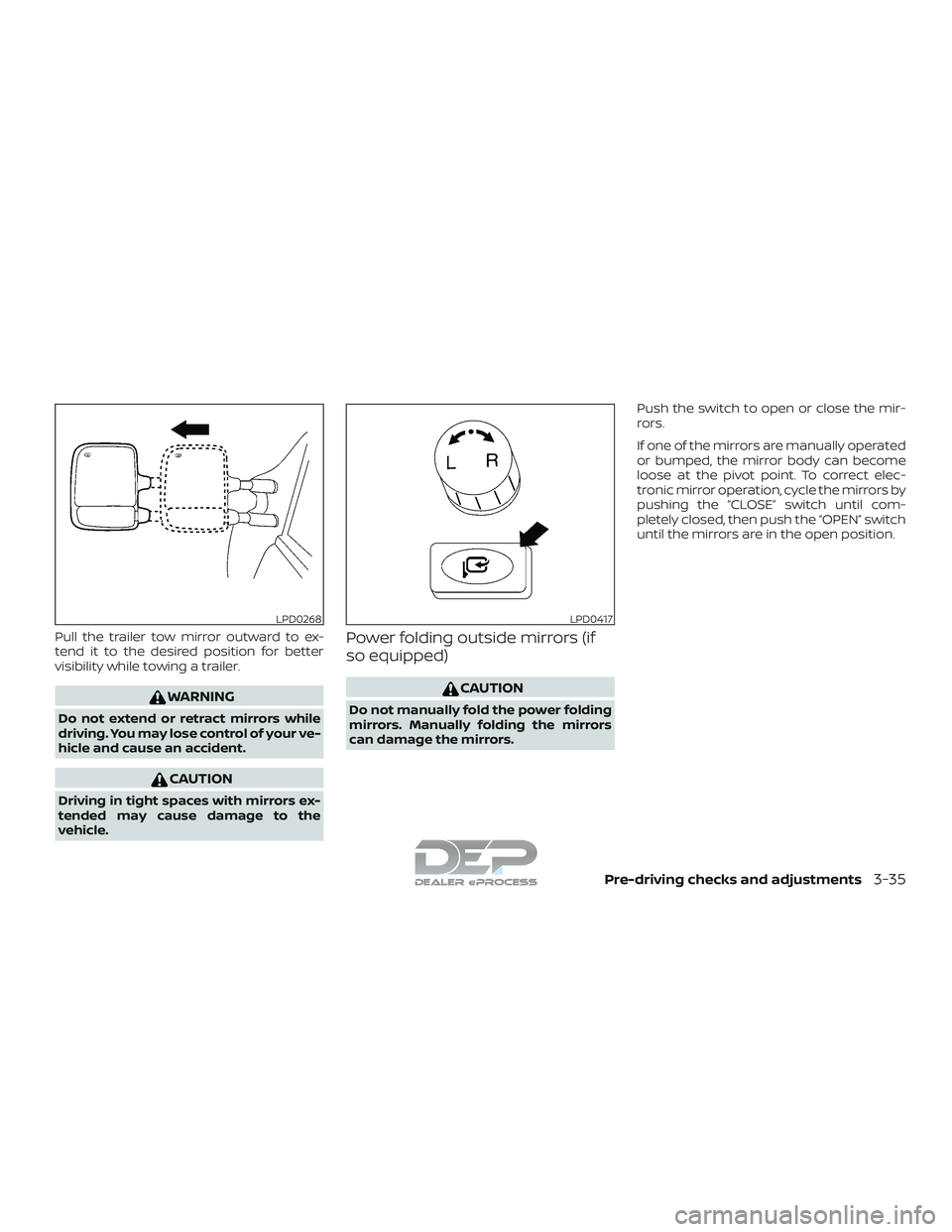

Pull the trailer tow mirror outward to ex-
tend it to the desired position for better
visibility while towing a trailer.
WARNING
Do not extend or retract mirrors while
driving. You may lose control of your ve-
hicle and cause an accident.
CAUTION
Driving in tight spaces with mirrors ex-
tended may cause damage to the
vehicle.
Power folding outside mirrors (if
so equipped)
CAUTION
Do not manually fold the power folding
mirrors. Manually folding the mirrors
can damage the mirrors.Push the switch to open or close the mir-
rors.
If one of the mirrors are manually operated
or bumped, the mirror body can become
loose at the pivot point. To correct elec-
tronic mirror operation, cycle the mirrors by
pushing the “CLOSE” switch until com-
pletely closed, then push the “OPEN” switch
until the mirrors are in the open position.
LPD0268LPD0417
Pre-driving checks and adjustments3-35

Manual folding outside mirrors (if
so equipped)
Pull the outside mirror toward the door to
fold it.
Reverse tilt-down feature (if so
equipped)
The reverse tilt-down feature will turn both
outside mirror surfaces downward to pro-
vide better rear visibility close to the vehicle
when the mirror control switch is in either
the L or R position.The mirrors automatically return to their
original position when you shif t out of R
(Reverse).
The outside mirror surfaces will return to
their original position when one of the fol-
lowing conditions has occurred:
∙ The shif t lever is moved to any position other than R (Reverse).
∙ The outside mirror control switch is set to the neutral or center position.
∙ The ignition switch is placed in the OFF position. NOTE:
If the outside mirror control switch is in
the “center” position, the mirror surface
will NOT turn downward when the shif t
lever is moved to R (Reverse).
For additional information, refer to “Auto-
matic drive positioner” in this section.
Automatic anti-glare outside
mirror (if so equipped)
The outside mirror will automatically dim
during nighttime conditions to reduce the
glare from the headlights of trailing ve-
hicles. The automatic anti-glare feature
operates only when the ignition switch is
placed in the ON position.
The automatic anti-glare feature will be on
when starting the vehicle. The indicator
light on the automatic anti-glare rearview
mirror will illuminate when the automatic
anti-glare feature is operating.
To turn off the anti-glare feature, press
the
button on the rearview mirror.
The indicator light will turn off.
To turn on the anti-glare feature again,
press the
button on the rearview mir-
ror. The indicator light will turn on.
Type A (if so equipped)
LPD2634
Type B (if so equipped)
LPD0269
3-36Pre-driving checks and adjustments

For additional information on the auto-
matic anti-glare rearview mirror, refer to
“Automatic anti-glare rearview mirror” in
this section.
Heated mirrors (if so equipped)
Some outside mirrors can be heated to
defrost, defog, or de-ice for improved vis-
ibility. For additional information, refer to
“Rear window and/or outside mirror de-
froster switch” in the “Instruments and con-
trols” section of this manual.
TAILGATE
Opening the tailgate
Pull the tailgate handle upward and lower
the tailgate. The support cables hold the
tailgate open.
When closing the tailgate, make sure the
latches are securely locked.
Do not drive the vehicle with the tailgate
down, unless equipped with NISSAN’s
Bed Extender (accessory) or equivalent
in the extended position.For additional information on proper truck
box loading, refer to “Vehicle loading infor-
mation” in the “Technical and consumer in-
formation” section of this manual.
WARNING
∙ Never allow anyone to ride in the
cargo area or on the rear seat (if so
equipped) when it is in the folded po-
sition. Use of these areas by passen-
gers without proper restraints could
result in serious injury or death in an
accident or sudden stop.
∙ It is extremely dangerous to ride in a cargo area inside a vehicle. In a colli-
sion, people riding in these areas are
more likely to be seriously injured or
killed.
∙ Do not allow people to ride in any area of your vehicle that is not equipped
with seats and seat belts.
∙ Be sure everyone in your vehicle is in a seat and using a seat belt properly.
LPD2334
TRUCK BOX
Pre-driving checks and adjustments3-37
