2018 HONDA CLARITY ELECTRIC Owner's Manual (in English)

7

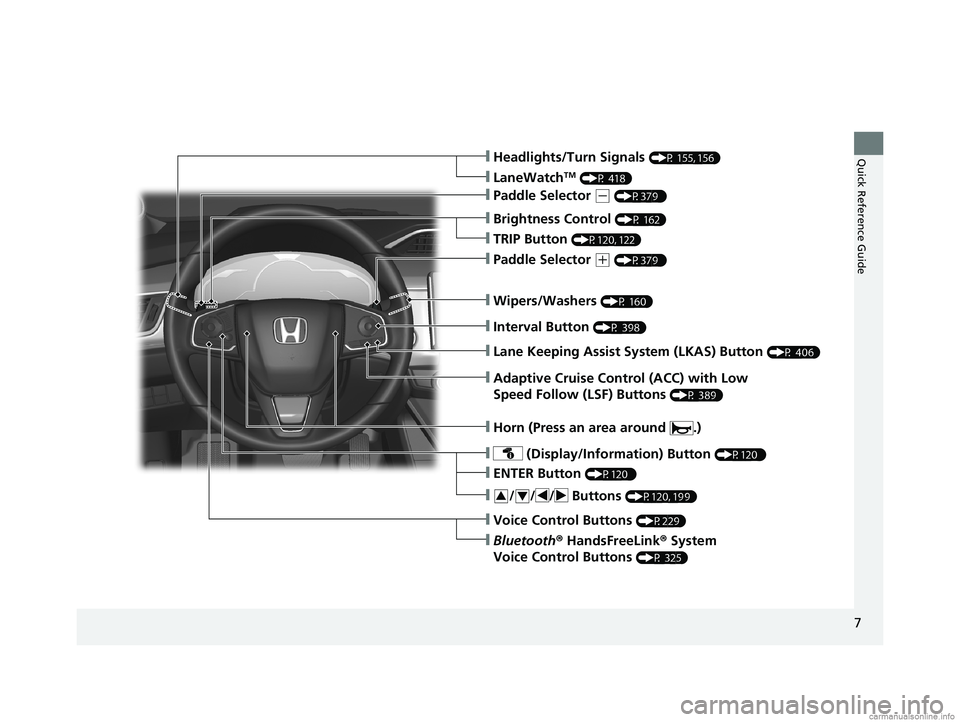

Quick Reference Guide
❙Wipers/Washers (P 160)
❙Headlights/Turn Signals (P 155, 156)
❙Brightness Control (P 162)
❙LaneWatchTM (P 418)
❙TRIP Button (P120, 122)
❙Interval Button (P 398)
❙Lane Keeping Assist System (LKAS) Button (P 406)
❙Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) Buttons
(P 389)
❙ (Display/Information) Button (P120 )
❙/ / / Buttons (P120, 199)34
❙ENTER Button (P120 )
❙Voice Control Buttons (P229)
❙Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P 325)
❙Horn (Press an area around .)
❙Paddle Selector (+ (P379 )
❙Paddle Selector (- (P379 )
18 CLARITY ELECTRIC CSS-31TRV6100.book 7 ページ ２０１８年２月５日　月曜日　午後１２時０分

Visual Index
8
Quick Reference Guide❙Power Window Switches (P 150)
❙Trunk Opener (P 144)
❙Driver’s Knee Airbag (P 59)
❙Door Mirror Controls (P 168)
❙Power Door Lock Master Switch (P 142)❙Memory Buttons (P 165)
❙SET Button (P 165)
❙Interior Fuse Box (P 526)
❙Automatic Brake Hold Button (P 424)
❙Driver’s Front Airbag (P 55)
❙Passenger’s Front Airbag (P 55)
❙Rearview Mirror (P 167)
❙SPORT Button (P 378)
❙Glove Box (P 178)
❙Electric Parking Brake Switch (P 420)
❙Shift Button
Electronic Gear Selector
(P 371)
❙Accessory Power Socket (P 182)
❙Hood Release Handle (P 466)
❙ECON Button (P377 )
18 CLARITY ELECTRIC CSS-31TRV6100.book 8 ページ ２０１８年２月５日　月曜日　午後１２時０分

9
Quick Reference Guide
❙Side Airbags (P 61)
❙Side Curtain Airbags (P 63)
❙Seat Belts (P 44)
❙Seat Belt (Installing a Child Seat) (P 74)
❙Rear Seat
❙Coat Hook (P 183)
❙Map Lights (P 177)
❙Sun Visors
❙Vanity Mirrors
❙Seat Belt to Secure a Child Seat (P 76)
❙Map Lights (P 177)
❙Grab Handle
❙Sunglasses Holder
(P 185)
❙Accessory Power
Socket
(P 182)
❙Front Seat (P 169)
❙USB Ports (P 197)
❙LATCH to Secure a Child Seat (P 72)
18 CLARITY ELECTRIC CSS-31TRV6100.book 9 ページ ２０１８年２月５日　月曜日　午後１２時０分

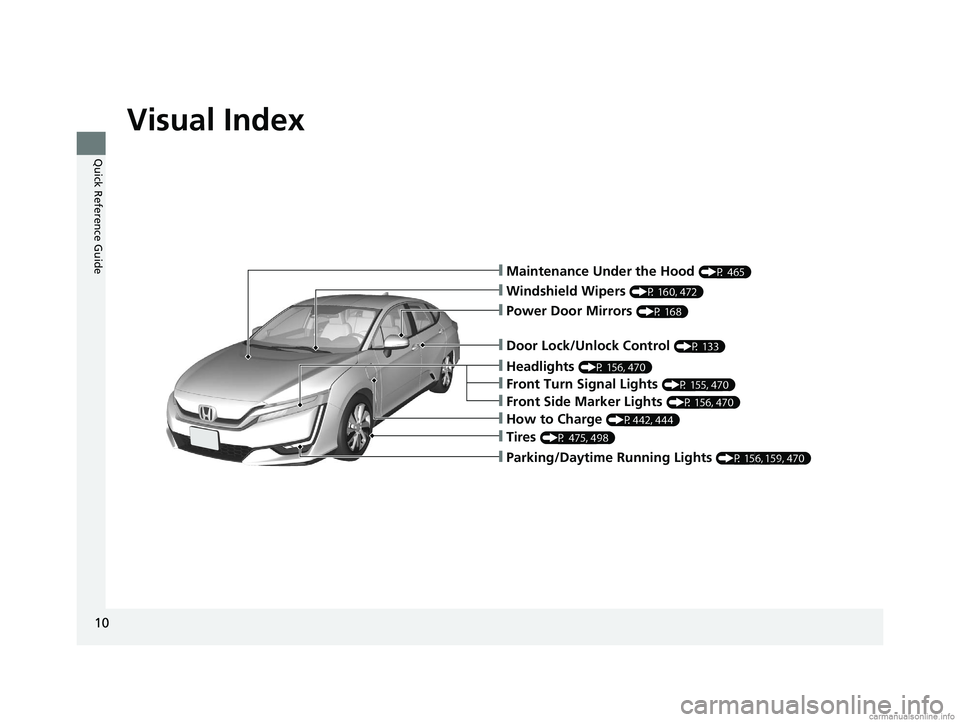

Visual Index
10
Quick Reference Guide
❙Maintenance Under the Hood (P 465)
❙Windshield Wipers (P 160, 472)
❙Tires (P 475, 498)
❙Door Lock/Unlock Control (P 133)
❙Power Door Mirrors (P 168)
❙Headlights (P 156, 470)
❙Front Turn Signal Lights (P 155, 470)
❙Parking/Daytime Running Lights (P 156, 159, 470)
❙Front Side Marker Lights (P 156, 470)
❙How to Charge (P442, 444)
18 CLARITY ELECTRIC CSS-31TRV6100.book 10 ページ ２０１８年２月５日　月曜日　午後１２時０分

11
Quick Reference Guide

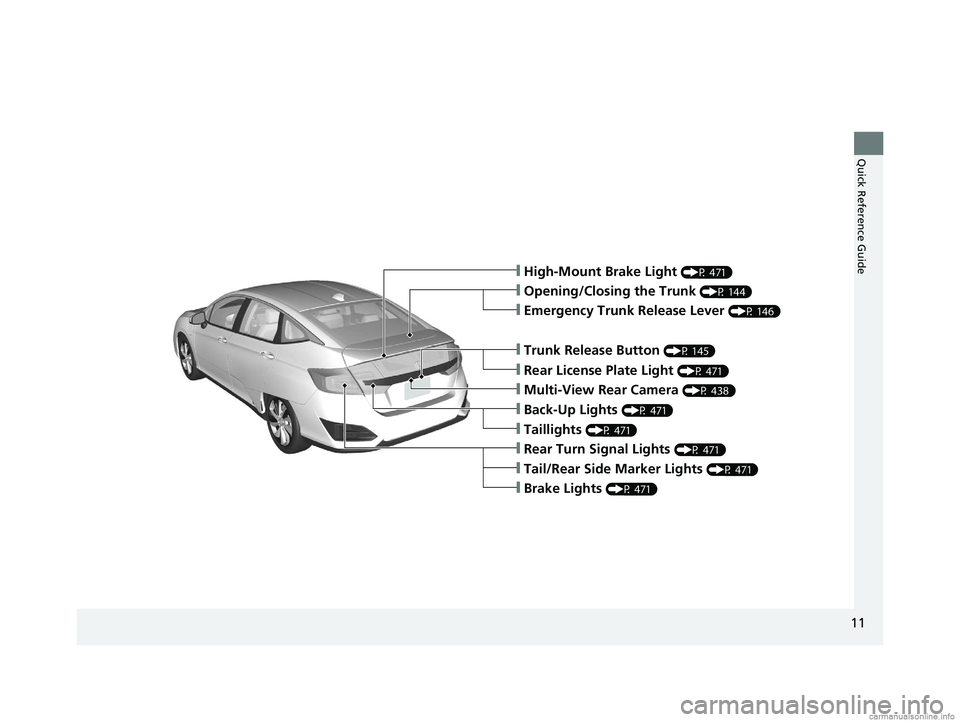

❙High-Mount Brake Light (P 471)
❙Opening/Closing the Trunk (P 144)
❙Tail/Rear Side Marker Lights (P 471)
❙Brake Lights (P 471)
❙Rear Turn Signal Lights (P 471)
❙Back-Up Lights (P 471)
❙Taillights (P 471)
❙Trunk Release Button (P 145)
❙Rear License Plate Light (P 471)
❙Multi-View Rear Camera (P 438)
❙Emergency Trunk Release Lever (P 146)
18 CLARITY ELECTRIC CSS-31TRV6100.book 11 ページ ２０１８年２月５日　月曜日　午後１２時０分

12
Quick Reference Guide

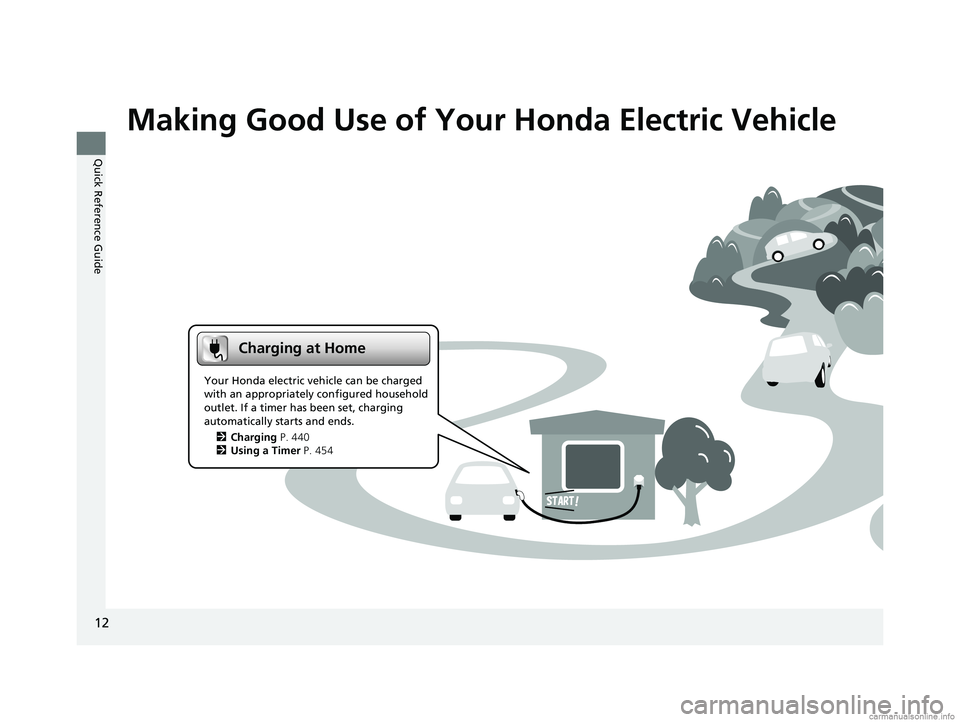

Making Good Use of Your Honda Electric Vehicle
Charging at Home
Your Honda electric vehicle can be charged
with an appropriately configured household
outlet. If a timer has been set, charging
automatically starts and ends.2 Charging P. 440
2 Using a Timer P. 454
18 CLARITY ELECTRIC CSS-31TRV6100.book 12 ページ ２０１８年２月５日　月曜日　午後１２時０分

13
Quick Reference Guide

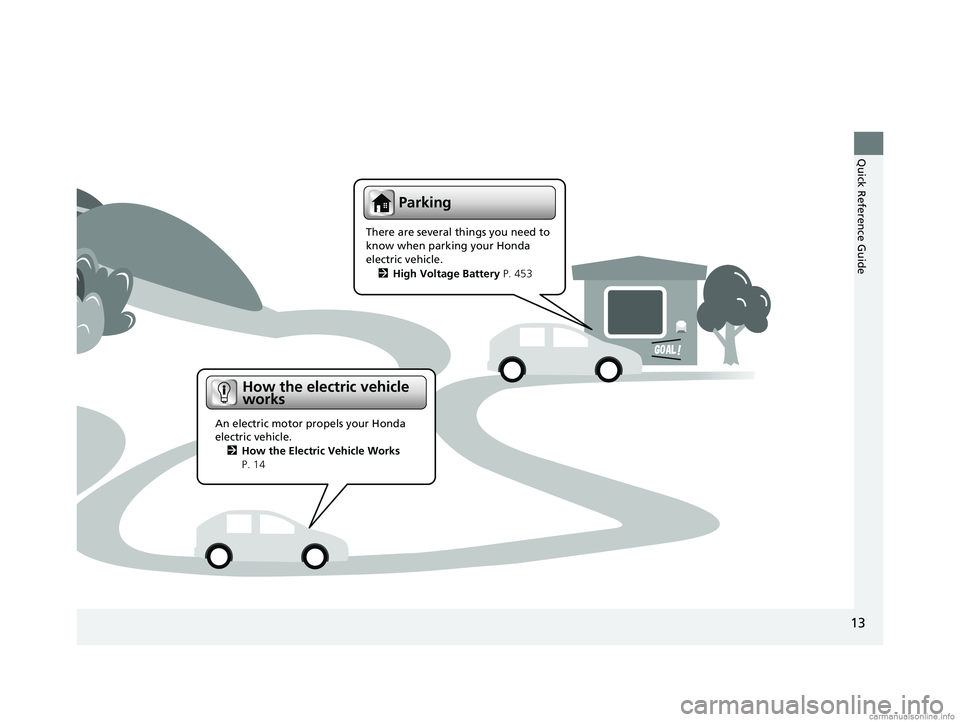

Parking
There are several things you need to
know when parking your Honda
electric vehicle.2 High Voltage Battery P. 453
How the electric vehicle
works
An electric motor propels your Honda
electric vehicle.
2 How the Electric Vehicle Works
P. 14
18 CLARITY ELECTRIC CSS-31TRV6100.book 13 ページ ２０１８年２月５日　月曜日　午後１２時０分

14
Quick Reference Guide
How the Electric Vehicle Works
Instead of using gasoline to power an internal combustion engine, your vehicle uses stored electricity to power an electric pro pulsion motor.
As with a gasoline powered vehicle, the efficiency of an electri c vehicle (and the vehicle’s range) is most impacted by the driver’s driving
style. Climate control system usage also has a strong impact with heavy usage negatively affecting the vehicle’s range.
There are two types of batteries used in this vehicle, a standa rd 12-volt battery that powers the airbags, the interior and exterior lights, and
other standard 12-volt systems, and a high voltage lithium ion ba ttery that is used to power the propulsion motor and recharge the 12-volt
battery.
Charging the High Voltage Battery
You can recharge the High Voltage battery using a standar d household outlet or at a public charging station.
(P 440)
While the vehicle is charging or is parked after running, the co mpressor may operate to melt any frost that has formed on the climate
control system.
Water from the melted frost drains out through the fr ont section of the vehicle, near the undercover.
