2018 HONDA CLARITY ELECTRIC Owner's Manual (in English)

119
uuGauges and Driver Information Interface uGauges
Instrument Panel

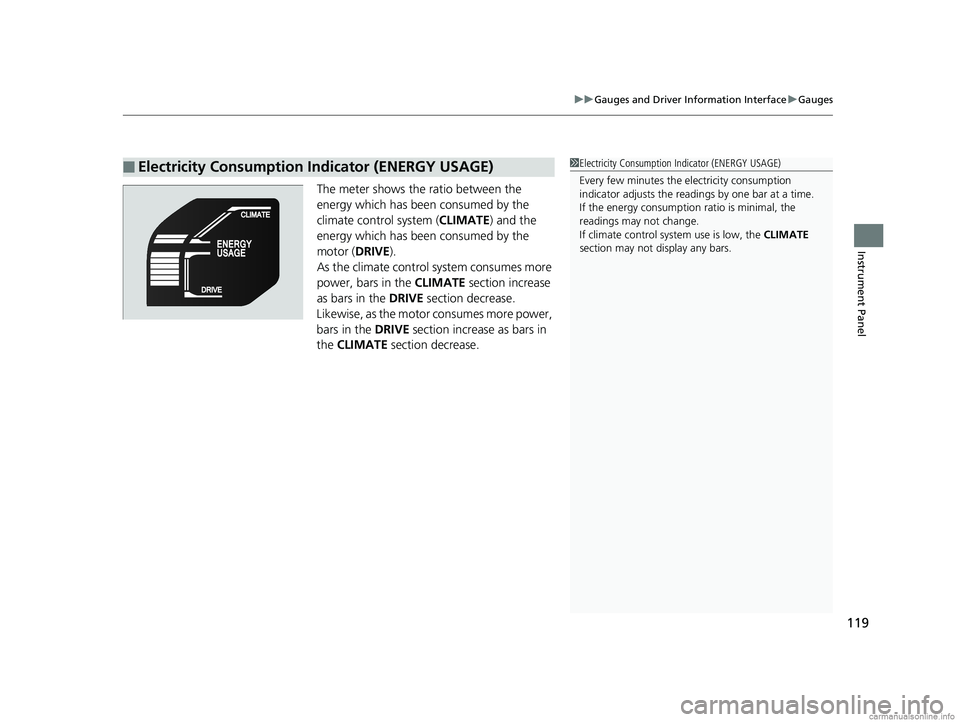

The meter shows the ratio between the
energy which has been consumed by the
climate control system ( CLIMATE) and the
energy which has been consumed by the
motor ( DRIVE).
As the climate control system consumes more
power, bars in the CLIMATE section increase
as bars in the DRIVE section decrease.
Likewise, as the motor consumes more power,
bars in the DRIVE section increase as bars in
the CLIMATE section decrease.
■Electricity Consumption Indicator (ENERGY USAGE)1Electricity Consumption Indicator (ENERGY USAGE)
Every few minutes the electricity consumption
indicator adjusts the readi ngs by one bar at a time.
If the energy consumptio n ratio is minimal, the
readings may not change.
If climate control system use is low, the CLIMATE
section may not display any bars.
18 CLARITY ELECTRIC CSS-31TRV6100.book 119 ページ ２０１８年２月５日　月曜日　午後１２時０分

120
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

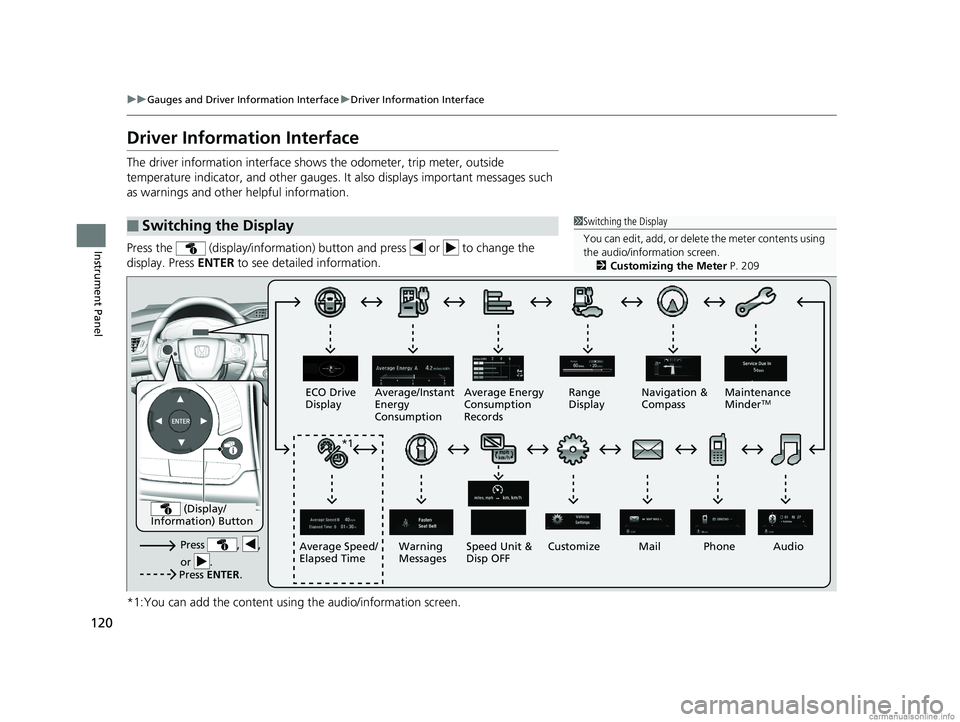

Driver Information Interface
The driver information interface shows the odometer, trip meter, outside
temperature indicator, and other gauges. It also displays important messages such
as warnings and other helpful information.
Press the (display/information) button and press or to change the
display. Press ENTER to see detailed information.
*1:You can add the content using the audio/information screen.
■Switching the Display1 Switching the Display
You can edit, add, or delete the meter contents using
the audio/information screen. 2 Customizing the Meter P. 209
Press , ,
or .Speed Unit &
Disp OFF
ECO Drive
Display
Average/Instant
Energy
Consumption
Mail
Warning
Messages Audio
Average Speed/
Elapsed Time Average Energy
Consumption
Records
Navigation &
Compass
Maintenance
Minder
TMRange
Display
Phone
Press ENTER .
(Display/
Information) Button
*1
Customize
18 CLARITY ELECTRIC CSS-31TRV6100.book 120 ページ ２０１８年２月５日　月曜日　午後１２時０分

121
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel

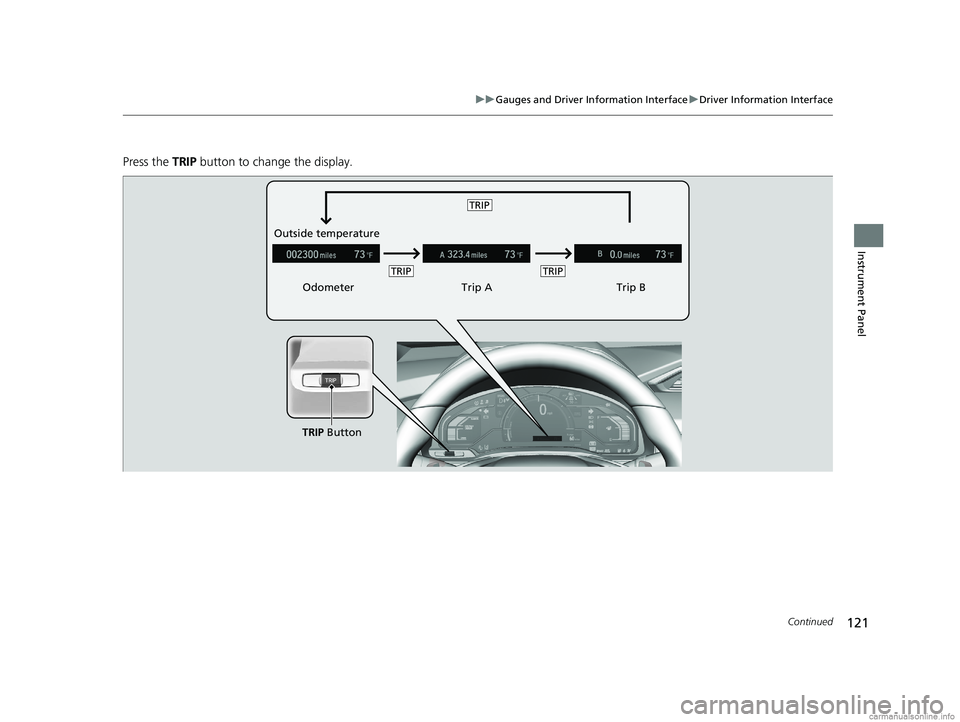

Press the TRIP button to change the display.
Odometer Trip ATrip B
Outside temperature
TRIP Button
TRIPTRIP
TRIP
18 CLARITY ELECTRIC CSS-31TRV6100.book 121 ページ ２０１８年２月５日　月曜日　午後１２時０分

uuGauges and Driver Information Interface uDriver Information Interface
122
Instrument Panel
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then press and hold the TRIP button. The trip meter
is reset to 0.0.
Shows the outside temperature in Fahrenheit.
■Adjusting the outside temperature display
Adjust the temperature reading up to ± 5°F if the temperature reading seems
incorrect.
Shows the estimated average energy consum ption of each trip meter in miles/kWh
or km/kWh. The display is updated at set in tervals. When a trip meter is reset, the
average energy consumption is also reset.
■Odometer
■Trip Meter
■Outside Temperature
■Average Energy Consumption
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the TRIP button.
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Use the audio/information screen’s customized
features to correct the temperature.
2 Customized Features P. 296
1Average Energy Consumption
You can change when to reset the average energy
consumption.
2 Customized Features P. 296
18 CLARITY ELECTRIC CSS-31TRV6100.book 122 ページ ２０１８年２月５日　月曜日　午後１２時０分

Continued123
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Shows the instant energy consumption as a bar graph in miles/kWh or km/kWh.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
Shows you turn-by-turn driv ing directions to your destination linked with the
navigation system.
2 Refer to the Navigation System Manual
■Instant Energy Consumption
■Elapsed Time
■Average Speed
■Turn-by-Turn Directions
1Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 296
1Average Speed
You can change when to reset the average speed.
2 Customized Features P. 296
1Turn-by-Turn Directions
The driver information in terface shows a compass
when the route guidance is not used.
You can select whether th e turn-by-turn display
comes on or not during the route guidance. 2 Customized Features P. 296
18 CLARITY ELECTRIC CSS-31TRV6100.book 123 ページ ２０１８年２月５日　月曜日　午後１２時０分

124
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

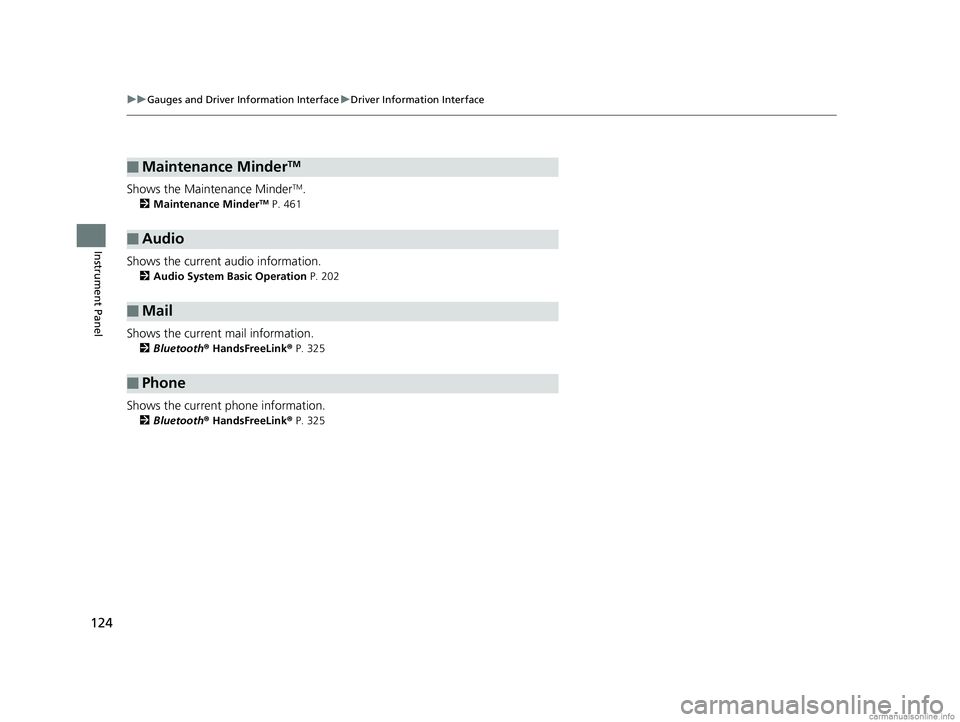

Shows the Maintenance MinderTM.
2 Maintenance MinderTM P. 461
Shows the current audio information.
2Audio System Basic Operation P. 202
Shows the current mail information.
2Bluetooth ® HandsFreeLink ® P. 325
Shows the current phone information.
2 Bluetooth ® HandsFreeLink ® P. 325
■Maintenance MinderTM
■Audio
■Mail
■Phone
18 CLARITY ELECTRIC CSS-31TRV6100.book 124 ページ ２０１８年２月５日　月曜日　午後１２時０分

Continued125
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

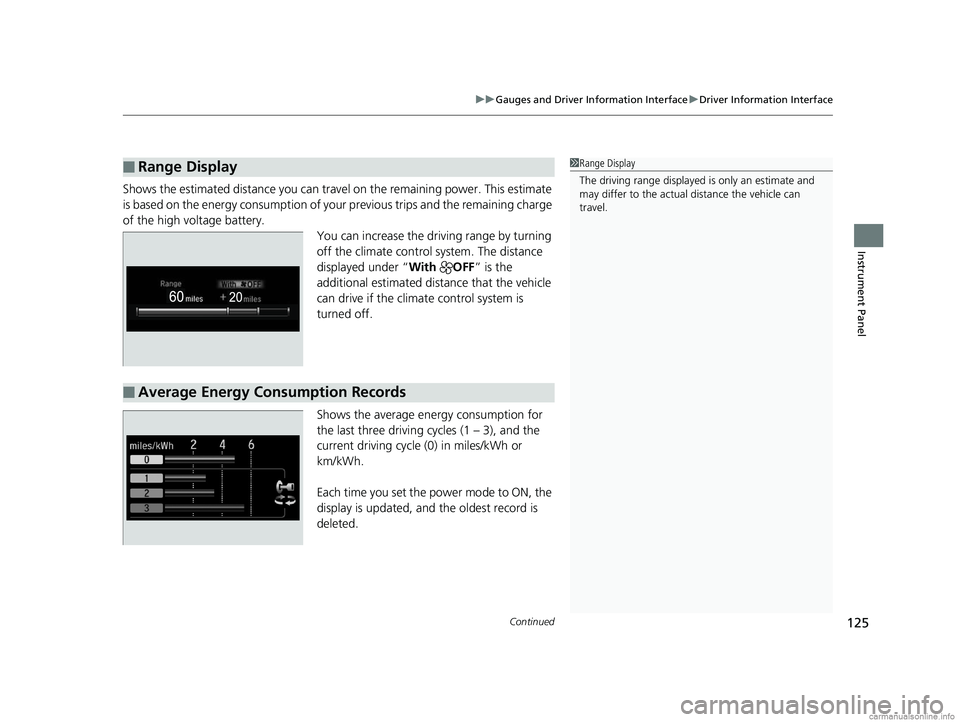

Shows the estimated distance you can travel on the remaining power. This estimate
is based on the energy consumption of your previous trips and the remaining charge
of the high voltage battery. You can increase the driving range by turning
off the climate control system. The distance
displayed under “With OFF” is the
additional estimated distance that the vehicle
can drive if the climat e control system is
turned off.
Shows the average energy consumption for
the last three driving cy cles (1 – 3), and the
current driving cycle (0) in miles/kWh or
km/kWh.
Each time you set the power mode to ON, the
display is updated, and the oldest record is
deleted.
■Range Display1 Range Display
The driving range displayed is only an estimate and
may differ to the actual distance the vehicle can
travel.
■Average Energy Consumption Records
18 CLARITY ELECTRIC CSS-31TRV6100.book 125 ページ ２０１８年２月５日　月曜日　午後１２時０分

126
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

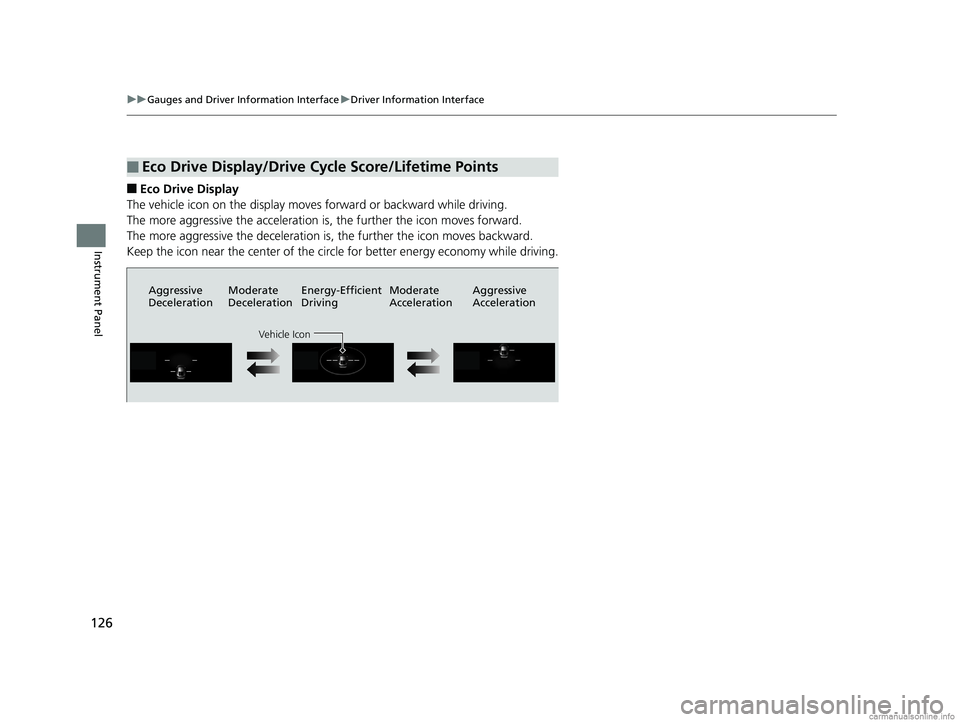

■Eco Drive Display
The vehicle icon on the display moves forward or backward while driving.
The more aggressive the acceleration is, the further the icon moves forward.
The more aggressive the deceleration is, the further the icon moves backward.
Keep the icon near the center of the circle for better energy economy while driving.
■Eco Drive Display/Drive Cycle Score/Lifetime Points
Aggressive
DecelerationModerate
DecelerationEnergy-Efficient
Driving Moderate
AccelerationAggressive
Acceleration
Vehicle Icon
