2018 HONDA CLARITY ELECTRIC Owner's Manual (in English)

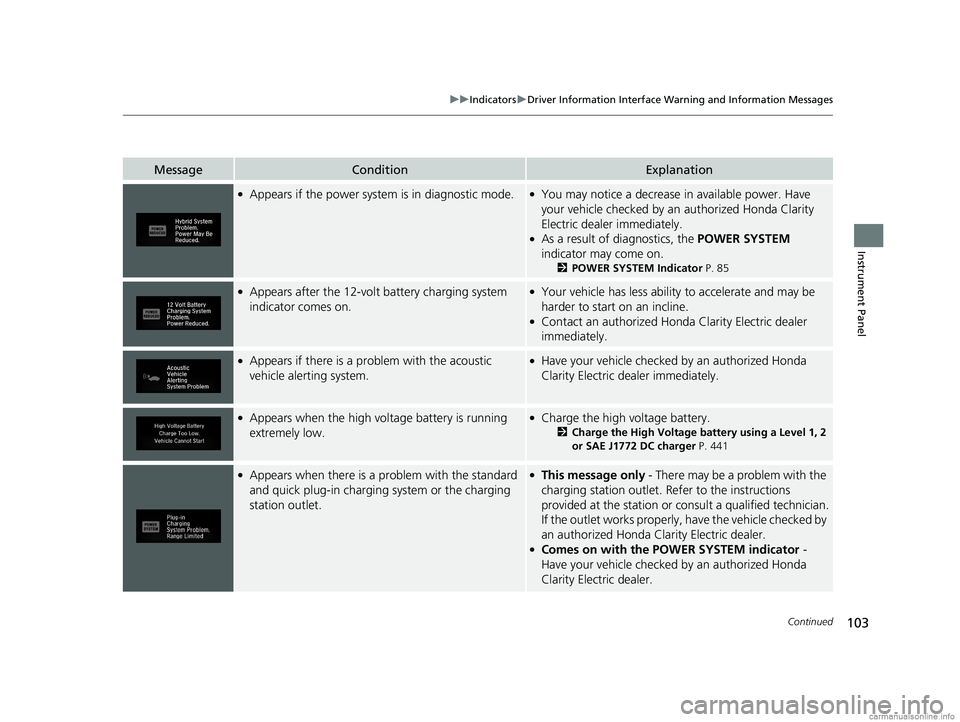

103
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if the power system is in diagnostic mode.●You may notice a decrease in available power. Have
your vehicle checked by an authorized Honda Clarity
Electric dealer immediately.
●As a result of diagnostics, the POWER SYSTEM
indicator may come on.
2 POWER SYSTEM Indicator P. 85
●Appears after the 12-volt battery charging system
indicator comes on.●Your vehicle has less ability to accelerate and may be
harder to start on an incline.
●Contact an authorized Honda Clarity Electric dealer
immediately.
●Appears if there is a problem with the acoustic
vehicle alerting system.●Have your vehicle checked by an authorized Honda
Clarity Electric dealer immediately.
●Appears when the high vo ltage battery is running
extremely low.●Charge the high voltage battery.
2 Charge the High Voltage battery using a Level 1, 2
or SAE J1772 DC charger P. 441
●Appears when there is a pr oblem with the standard
and quick plug-in charging system or the charging
station outlet.●This message only - There may be a problem with the
charging station outlet. Refer to the instructions
provided at the station or co nsult a qualified technician.
If the outlet works properly, have the vehicle checked by
an authorized Honda Clarity Electric dealer.
●Comes on with the POWER SYSTEM indicator -
Have your vehicle checked by an authorized Honda
Clarity Electric dealer.
18 CLARITY ELECTRIC CSS-31TRV6100.book 103 ページ ２０１８年２月５日　月曜日　午後１２時０分

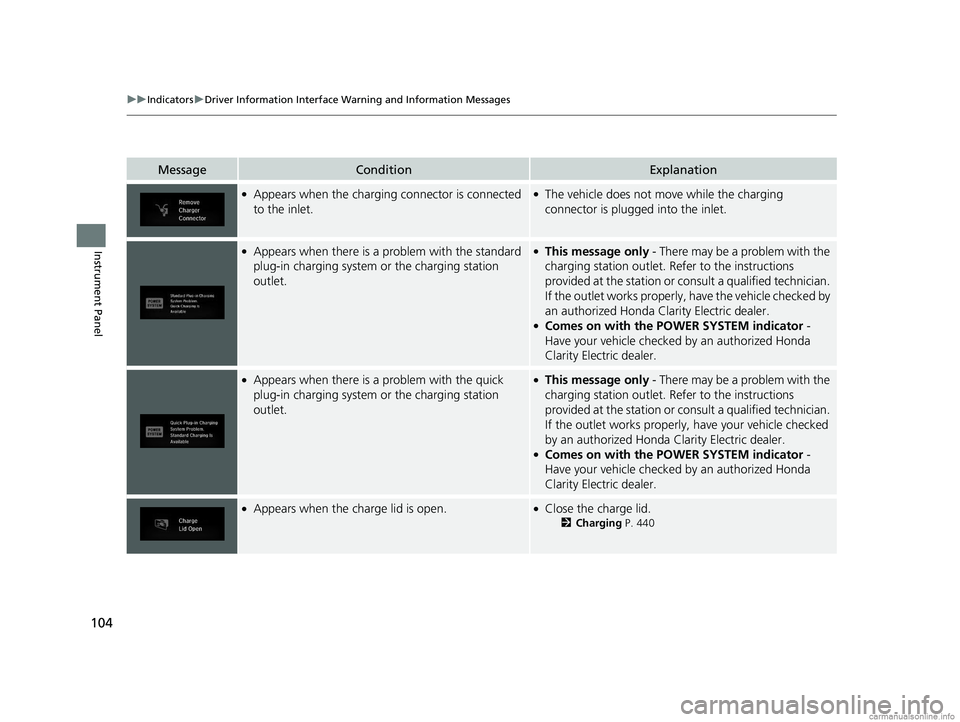

104
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the charging connector is connected
to the inlet.●The vehicle does not move while the charging
connector is plugged into the inlet.
●Appears when there is a pr oblem with the standard
plug-in charging system or the charging station
outlet.●This message only - There may be a problem with the
charging station outlet. Refer to the instructions
provided at the station or consult a qualified technician.
If the outlet works properly, have the vehicle checked by
an authorized Honda Cl arity Electric dealer.
●Comes on with the PO WER SYSTEM indicator -
Have your vehicle checked by an authorized Honda
Clarity Electric dealer.
●Appears when there is a problem with the quick
plug-in charging system or the charging station
outlet.●This message only - There may be a problem with the
charging station outlet. Refer to the instructions
provided at the station or consult a qualified technician.
If the outlet works properly, have your vehicle checked
by an authorized Honda Clarity Electric dealer.
●Comes on with the POWER SYSTEM indicator -
Have your vehicle checked by an authorized Honda
Clarity Electric dealer.
●Appears when the charge lid is open.●Close the charge lid.
2 Charging P. 440
18 CLARITY ELECTRIC CSS-31TRV6100.book 104 ページ ２０１８年２月５日　月曜日　午後１２時０分

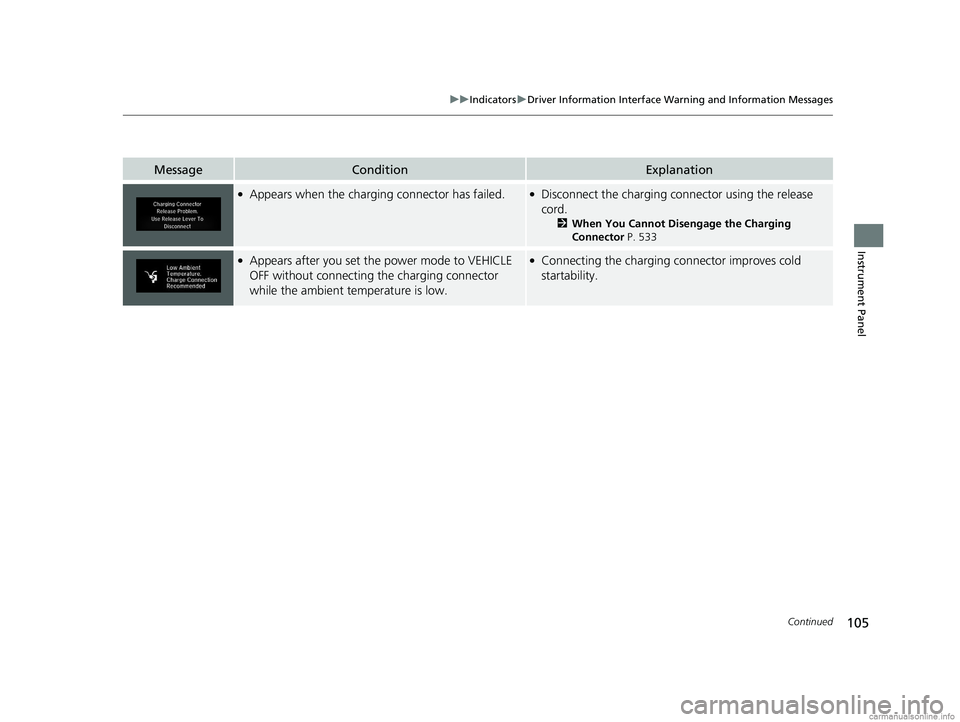

105
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the charging connector has failed.●Disconnect the charging connector using the release
cord.
2When You Cannot Disengage the Charging
Connector P. 533
●Appears after you set the power mode to VEHICLE
OFF without connecting the charging connector
while the ambient temperature is low.●Connecting the charging connector improves cold
startability.
18 CLARITY ELECTRIC CSS-31TRV6100.book 105 ページ ２０１８年２月５日　月曜日　午後１２時０分

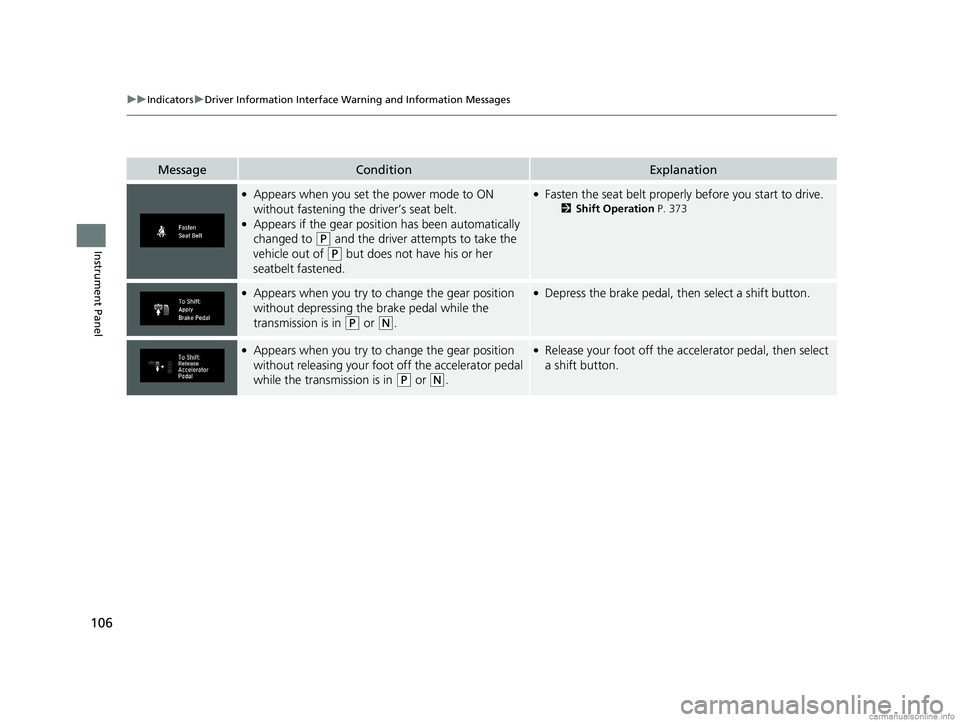

106
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when you set the power mode to ON
without fastening the driver’s seat belt.
●Appears if the gear position has been automatically
changed to
(P and the driver attempts to take the
vehicle out of
(P but does not have his or her
seatbelt fastened.
●Fasten the seat belt properly before you start to drive.
2 Shift Operation P. 373
●Appears when you try to change the gear position
without depressing the brake pedal while the
transmission is in
(P or (N.
●Depress the brake pedal, then select a shift button.
●Appears when you try to change the gear position
without releasing your foot off the accelerator pedal
while the transmission is in
(P or (N.
●Release your foot off the accelerator pedal, then select
a shift button.
18 CLARITY ELECTRIC CSS-31TRV6100.book 106 ページ ２０１８年２月５日　月曜日　午後１２時０分

107
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the parking button is pressed while
the vehicle is moving.
●Appears if you change the gear position to (R while
the vehicle is moving forward, or to
(D while the
vehicle is reversing.
●Make sure that the vehicle comes to a stop before
operating the select button.
●Appears if there is a problem with the electric system.●Appears when you set the power mode to OFF while
driving.
●Immediately stop in a safe place and set the parking
brake.
●Resume driving if the message disappears.●If there is a problem with the transmission system, the
transmission system indicator comes on.
2 Transmission System Indicator P. 87
●Appears when the vehicle is stopped with the driver’s
seat belt unfastened and there is a chance that the
vehicle may roll unintentionally.●Press the (P button before releasing the brake pedal
when idling, parking, or exiting the vehicle.
2 Shift Operation P. 373
●Appears for a few seconds if you have not pressed
the
(N button long enough to initiate Neutral-Hold
mode.2 If you want to keep the transmission in (N
position [car wash mode] P. 375
●Appears when you press and hold (N button for
more than 2 seconds.●Disappears when you set the gear position to other than
(N.
2If you want to keep the transmission in (N
position [car wash mode] P. 375
18 CLARITY ELECTRIC CSS-31TRV6100.book 107 ページ ２０１８年２月５日　月曜日　午後１２時０分

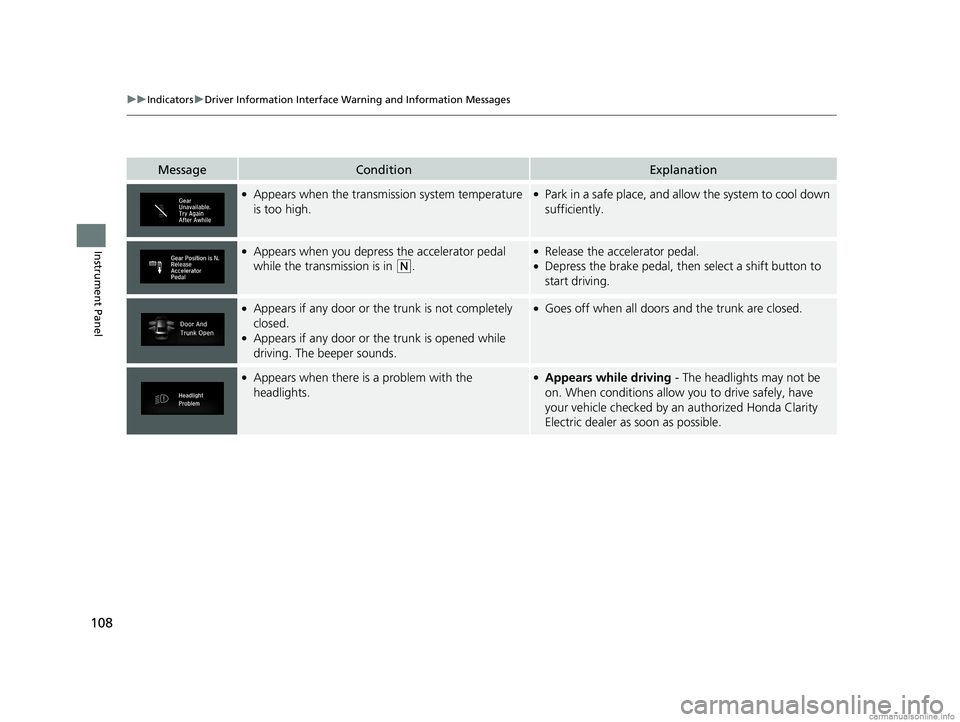

108
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the transmission system temperature
is too high.●Park in a safe place, and allow the system to cool down
sufficiently.
●Appears when you depress the accelerator pedal
while the transmission is in
(N.
●Release the accelerator pedal.●Depress the brake pedal, then select a shift button to
start driving.
●Appears if any door or the trunk is not completely
closed.
●Appears if any door or the trunk is opened while
driving. The beeper sounds.
●Goes off when all doors and the trunk are closed.
●Appears when there is a problem with the
headlights.●Appears while driving - The headlights may not be
on. When conditions allow you to drive safely, have
your vehicle checked by an authorized Honda Clarity
Electric dealer as soon as possible.
18 CLARITY ELECTRIC CSS-31TRV6100.book 108 ページ ２０１８年２月５日　月曜日　午後１２時０分

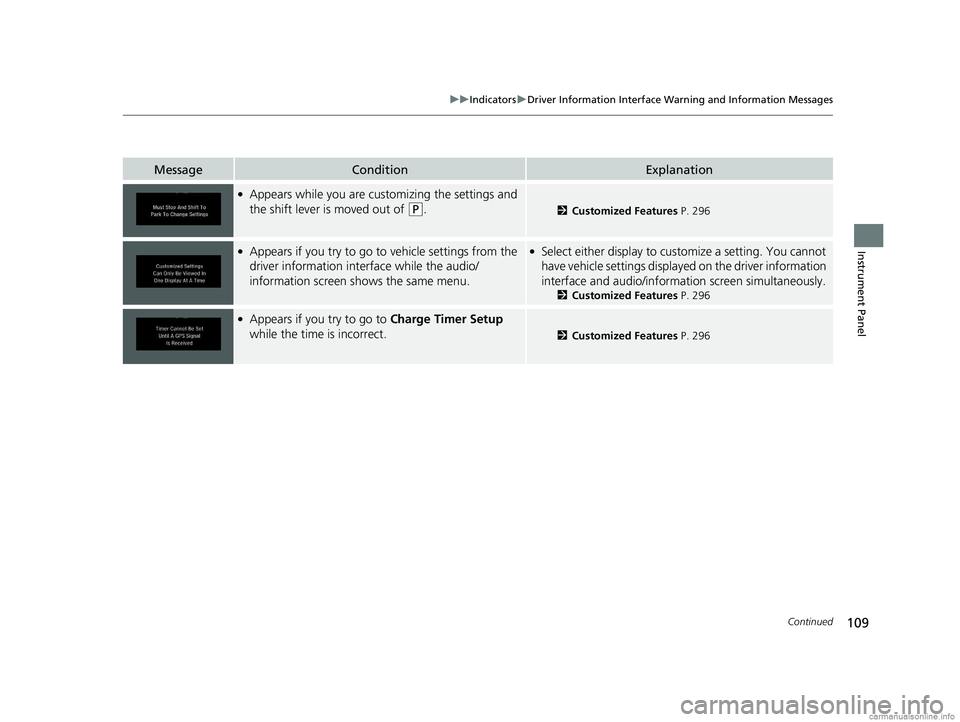

109
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears while you are customizing the settings and
the shift lever is moved out of
(P.2Customized Features P. 296
●Appears if you try to go to vehicle settings from the
driver information interface while the audio/
information screen sh ows the same menu.●Select either display to customize a setting. You cannot
have vehicle settings displayed on the driver information
interface and audio/informati on screen simultaneously.
2Customized Features P. 296
●Appears if you try to go to Charge Timer Setup
while the time is incorrect.
2 Customized Features P. 296
18 CLARITY ELECTRIC CSS-31TRV6100.book 109 ページ ２０１８年２月５日　月曜日　午後１２時０分

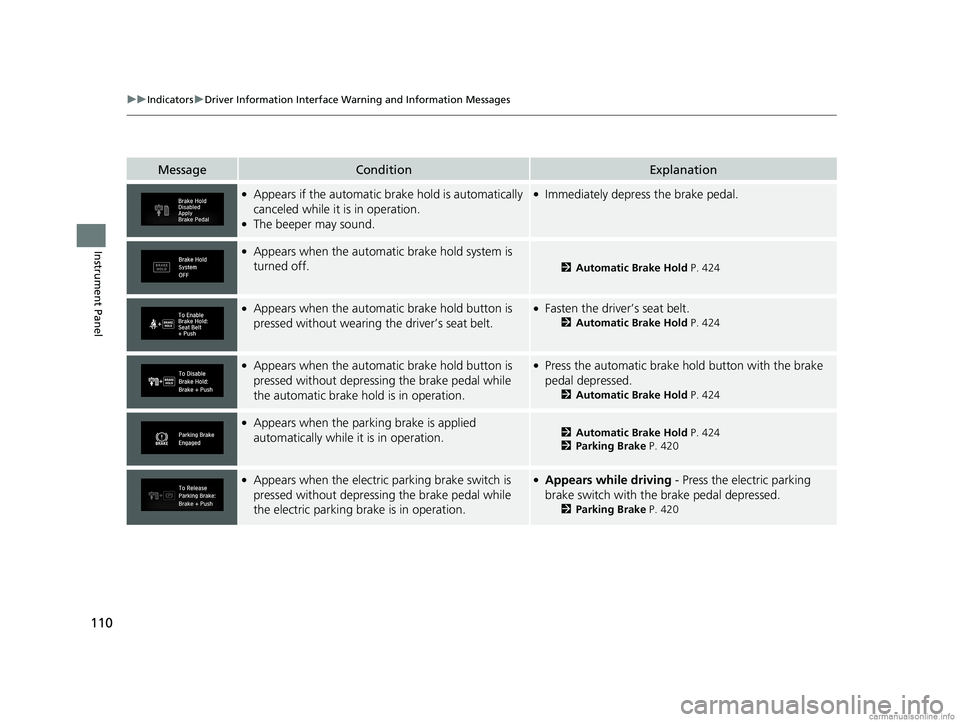

110
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if the automatic brake hold is automatically
canceled while it is in operation.
●The beeper may sound.
●Immediately depress the brake pedal.
●Appears when the automatic brake hold system is
turned off.
2 Automatic Brake Hold P. 424
●Appears when the automa tic brake hold button is
pressed without wearing the driver’s seat belt.●Fasten the driver’s seat belt.
2 Automatic Brake Hold P. 424
●Appears when the automa tic brake hold button is
pressed without depressing the brake pedal while
the automatic brake hold is in operation.●Press the automatic brake hold button with the brake
pedal depressed.
2 Automatic Brake Hold P. 424
●Appears when the parking brake is applied
automatically while it is in operation.2Automatic Brake Hold P. 424
2 Parking Brake P. 420
●Appears when the electric parking brake switch is
pressed without depressing the brake pedal while
the electric parking brake is in operation.●Appears while driving - Press the electric parking
brake switch with the brake pedal depressed.
2 Parking Brake P. 420
