2018 HONDA CLARITY ELECTRIC Owner's Manual (in English)

527
uuFuses uFuse Locations
Continued
Handling the Unexpected
■Fuse Box B
Located under the fuse box A.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
Fuse Label
Fuse Box B
■Circuit protected and fuse rating
Circuit ProtectedAmps
cQC CNT(10 A)
dR H/L HI7.5 A
eL H/L HI7.5 A
fIGC10 A
gHAZARD10 A
hIGB15 A
iSMART10 A
jIGA10 A
18 CLARITY ELECTRIC CSS-31TRV6100.book 527 ページ ２０１８年２月５日　月曜日　午後１２時０分

528
uuFuses uFuse Locations
Handling the Unexpected
■Fuse Box C
Located on the right side of fuse box B.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
Fuse Label
Fuse Box C
■Circuit protected and fuse rating
Circuit ProtectedAmps
kAS P/SEAT REC(20 A)
lAS P/SEAT SLIDE(20 A)
mILLUMI7.5 A
nSMALL7.5 A
18 CLARITY ELECTRIC CSS-31TRV6100.book 528 ページ ２０１８年２月５日　月曜日　午後１２時０分

529
uuFuses uFuse Locations
Handling the Unexpected
■Fuse Box D
Located inside the driver’s side outer panel.
Replacement of fuses in the driver’s side
outer panel should be done by an
authorized Honda Clarity Electric dealer.
Fuse Box D
■Circuit protected and fuse rating
Circuit ProtectedAmps
pCOMBO(10 A)
qIGMG(7.5 A)
rSHIFTER7.5 A
sP-ACT DRV7.5 A
t−−
uEPP(7.5 A)
vOPTION7.5 A
wESB7.5 A
18 CLARITY ELECTRIC CSS-31TRV6100.book 529 ページ ２０１８年２月５日　月曜日　午後１２時０分

530
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF
(LOCK). Turn headlight s and all accessories
off.
2. Check the fuses on the battery in the motor
compartment.
u If the fuse is blown, have it replaced by
an authorized Honda Clarity Electric
dealer.
3. Remove the fuse box cover.
4. Check the large fuse in the motor
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw, and
replace it with a new one.
5. Inspect the small fuses in the motor
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller, and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace the fuse with a spare fuse of the same
specified amperage.
Confirm the specified amperage using the charts on
P. 524 to 529.
There is a fuse puller on the back of the cover of the
motor compartment fuse box A.
12-Volt Battery
Blown Fuse
Fuse Puller
18 CLARITY ELECTRIC CSS-31TRV6100.book 530 ページ ２０１８年２月５日　月曜日　午後１２時０分

531
Handling the Unexpected

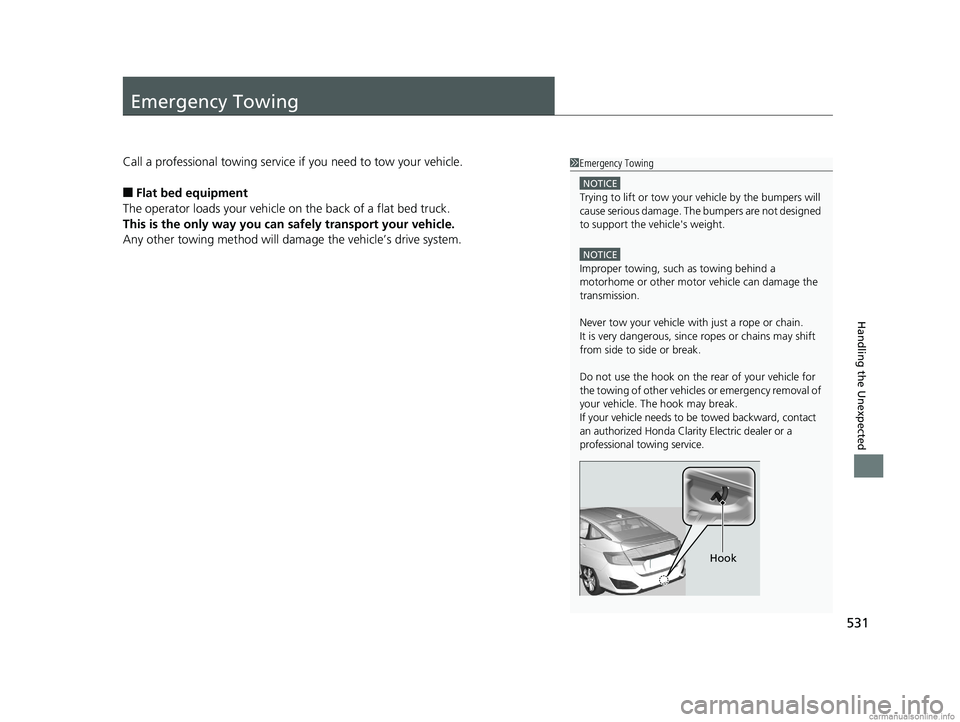

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a flat bed truck.
This is the only way you can safely transport your vehicle.
Any other towing method will dama ge the vehicle’s drive system.
1Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing, such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
Do not use the hook on the rear of your vehicle for
the towing of other vehicles or emergency removal of
your vehicle. The hook may break.
If your vehicle needs to be towed backward, contact
an authorized Honda Clarity Electric dealer or a
professional towing service.
Hook
18 CLARITY ELECTRIC CSS-31TRV6100.book 531 ページ ２０１８年２月５日　月曜日　午後１２時０分

532
Handling the Unexpected

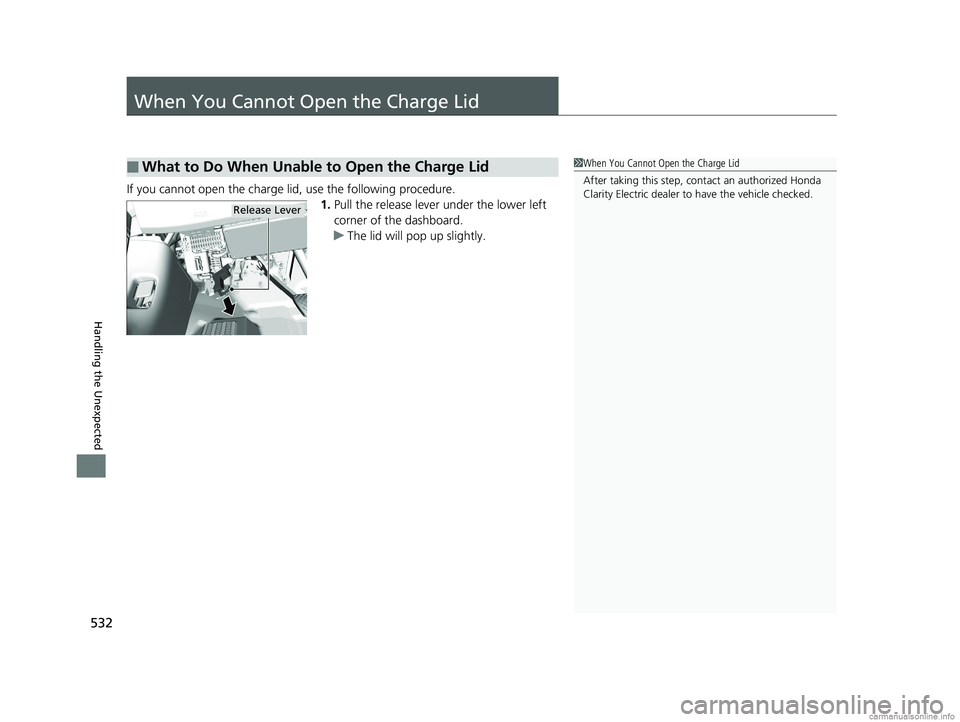

When You Cannot Open the Charge Lid
If you cannot open the charge lid, use the following procedure.1.Pull the release lever under the lower left
corner of the dashboard.
u The lid will pop up slightly.
■What to Do When Unable to Open the Charge Lid1When You Cannot Open the Charge Lid
After taking this step, cont act an authorized Honda
Clarity Electric dealer to have the vehicle checked.
Release Lever
18 CLARITY ELECTRIC CSS-31TRV6100.book 532 ページ ２０１８年２月５日　月曜日　午後１２時０分

533
Handling the Unexpected

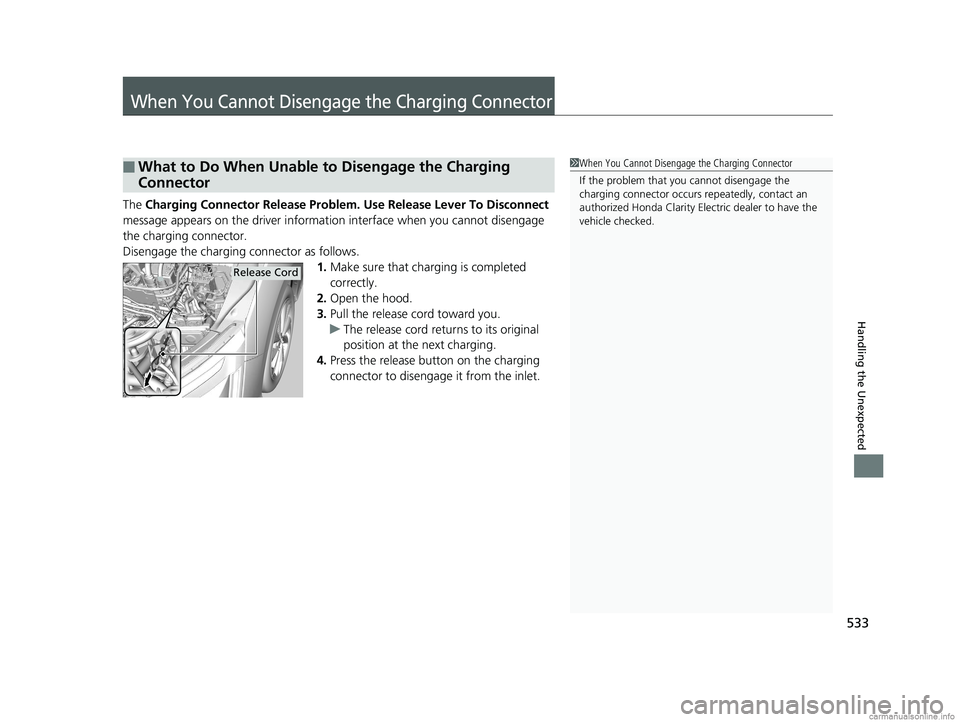

When You Cannot Disengage the Charging Connector
The Charging Connector Release Problem. Use Release Lever To Disconnect
message appears on the driver informatio n interface when you cannot disengage
the charging connector.
Disengage the charging connector as follows.
1.Make sure that charging is completed
correctly.
2. Open the hood.
3. Pull the release cord toward you.
u The release cord returns to its original
position at the next charging.
4. Press the release button on the charging
connector to disengage it from the inlet.
■What to Do When Unable to Disengage the Charging
Connector1When You Cannot Disengage the Charging Connector
If the problem that you cannot disengage the
charging connector occurs repeatedly, contact an
authorized Honda Clarity Electric dealer to have the
vehicle checked.
Release Cord
18 CLARITY ELECTRIC CSS-31TRV6100.book 533 ページ ２０１８年２月５日　月曜日　午後１２時０分

534
Handling the Unexpected

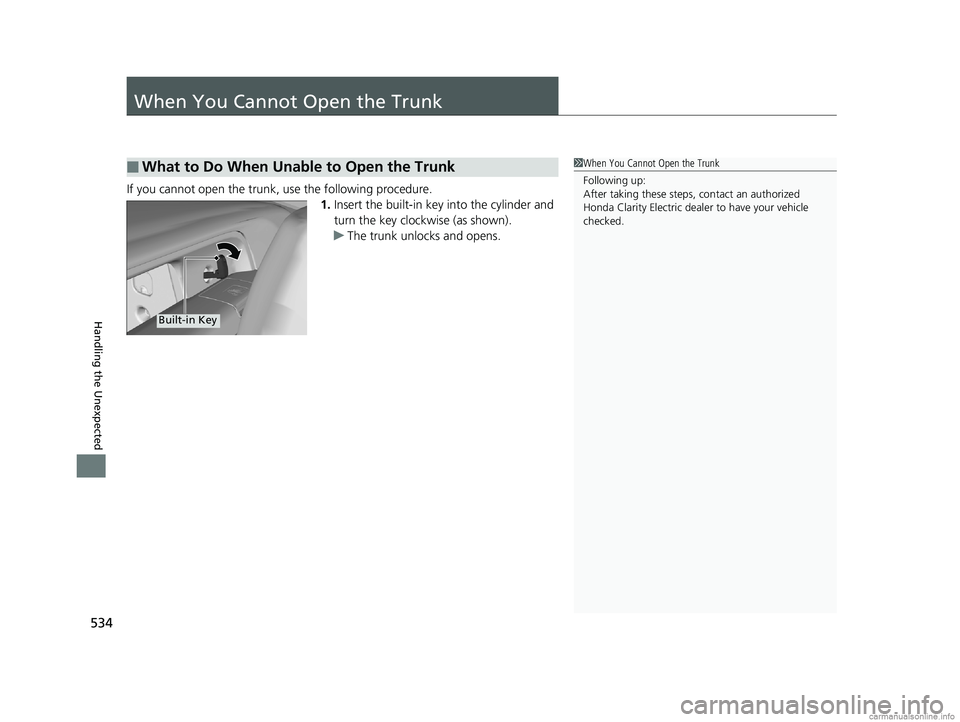

When You Cannot Open the Trunk
If you cannot open the trunk, use the following procedure.1.Insert the built-in key into the cylinder and
turn the key clockwise (as shown).
u The trunk unlocks and opens.
■What to Do When Unable to Open the Trunk1When You Cannot Open the Trunk
Following up:
After taking these steps, contact an authorized
Honda Clarity Electric deal er to have your vehicle
checked.
Built-in Key
