2018 HONDA CLARITY ELECTRIC Owner's Manual (in English)

295
uuGeneral Information on the Audio System uAbout Open Source Licenses
Features

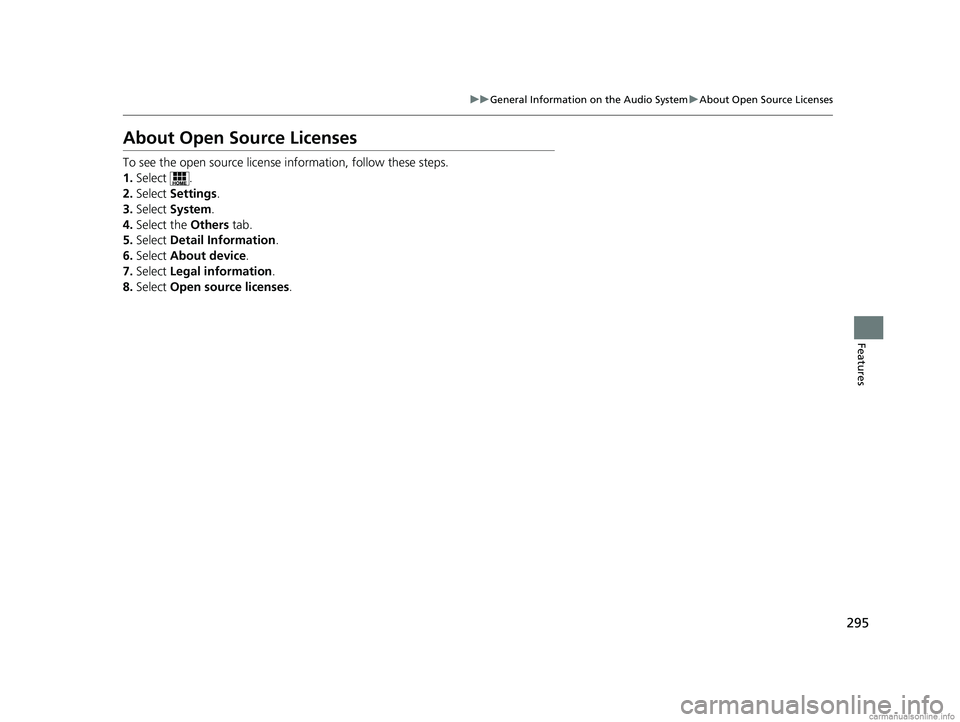

About Open Source Licenses
To see the open source licens e information, follow these steps.
1. Select .
2. Select Settings .
3. Select System.
4. Select the Others tab.
5. Select Detail Information .
6. Select About device.
7. Select Legal information .
8. Select Open source licenses.
18 CLARITY ELECTRIC CSS-31TRV6100.book 295 ページ ２０１８年２月５日　月曜日　午後１２時０分

296
Features

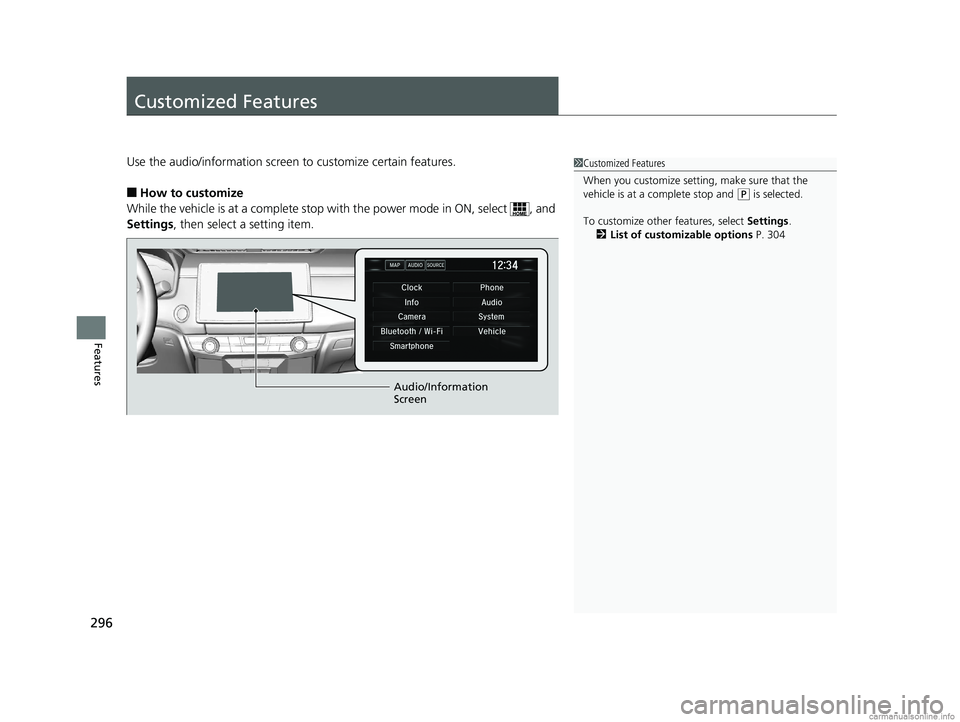

Customized Features
Use the audio/information screen to customize certain features.
■How to customize
While the vehicle is at a complete stop wi th the power mode in ON, select , and
Settings , then select a setting item.
1Customized Features
When you customize setting, make sure that the
vehicle is at a complete stop and
(P is selected.
To customize other features, select Settings.
2 List of customizable options P. 304
Audio/Information
Screen
18 CLARITY ELECTRIC CSS-31TRV6100.book 296 ページ ２０１８年２月５日　月曜日　午後１２時０分

297
uuCustomized Features u
Continued
Features

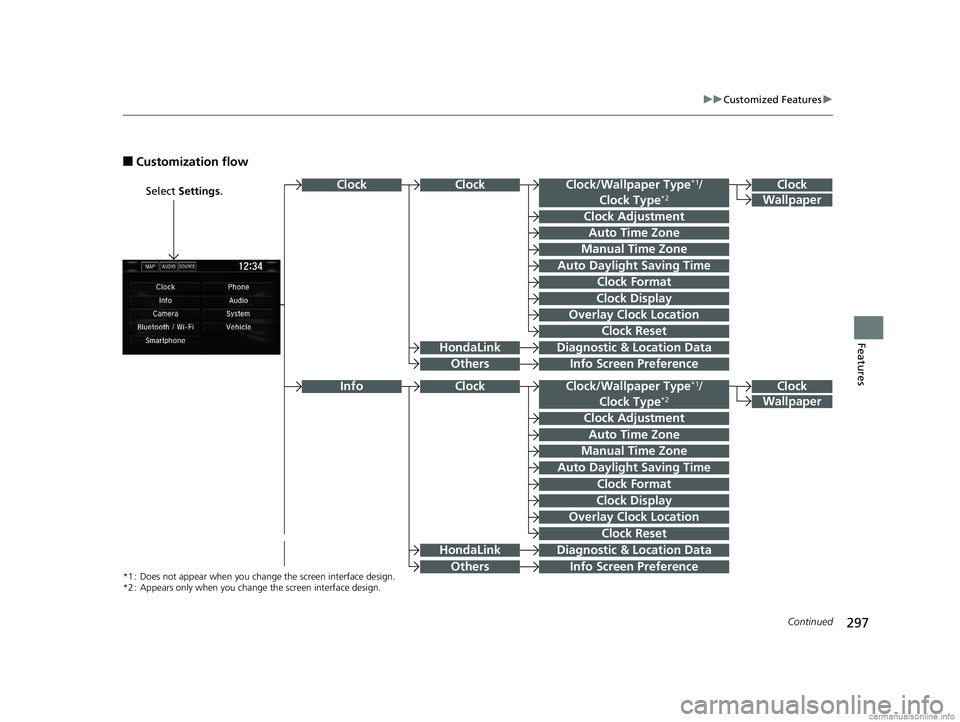

■Customization flow
Select Settings .Clock
Wallpaper
Clock/Wallpaper Type*1/
Clock Type*2
Clock Adjustment
Clock Format
ClockClock
Auto Time Zone
Manual Time Zone
Auto Daylight Saving Time
Clock Display
Overlay Clock Location
Info Screen Preference
Clock
Wallpaper
Clock/Wallpaper Type*1/
Clock Type*2
Clock Adjustment
Clock Format
Auto Time Zone
Manual Time Zone
Auto Daylight Saving Time
Clock Display
Overlay Clock Location
Clock Reset
Info Screen Preference
Info
*1 : Does not appear when you chang e the screen interface design.
*2 : Appears only when you change the screen interface design.
Diagnostic & Location Data
Diagnostic & Location Data
HondaLink
Others
HondaLink
Others
Clock
Clock Reset
18 CLARITY ELECTRIC CSS-31TRV6100.book 297 ページ ２０１８年２月５日　月曜日　午後１２時０分

298
uuCustomized Features u
Features

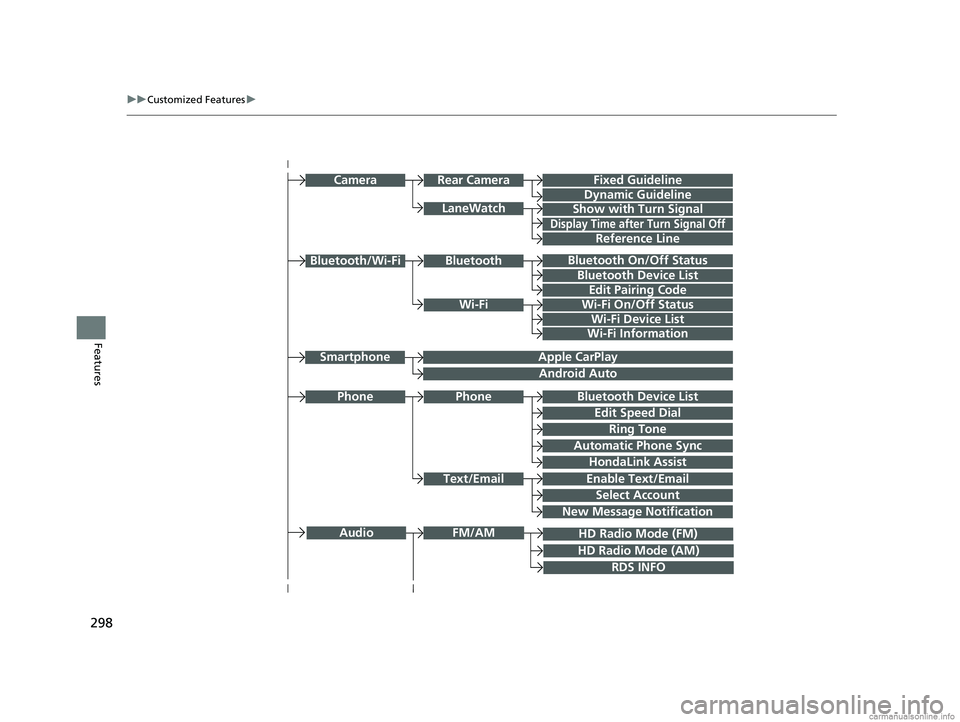

Bluetooth On/Off Status
Bluetooth Device List
Edit Pairing Code
Wi-Fi On/Off Status
Wi-Fi Device List
Wi-Fi
BluetoothBluetooth/Wi-Fi
Wi-Fi Information
Text/Email
Bluetooth Device List
Edit Speed Dial
Ring Tone
Phone
Automatic Phone Sync
HondaLink Assist
Enable Text/Email
Select Account
New Message Notification
Phone
LaneWatch
Fixed Guideline
Dynamic Guideline
Show with Turn Signal
Rear CameraCamera
Display Time after Turn Signal Off
Reference Line
HD Radio Mode (FM)
RDS INFO
AudioFM/AM
HD Radio Mode (AM)
Apple CarPlay
Android Auto
Smartphone
18 CLARITY ELECTRIC CSS-31TRV6100.book 298 ページ ２０１８年２月５日　月曜日　午後１２時０分

299
uuCustomized Features u
Continued
Features

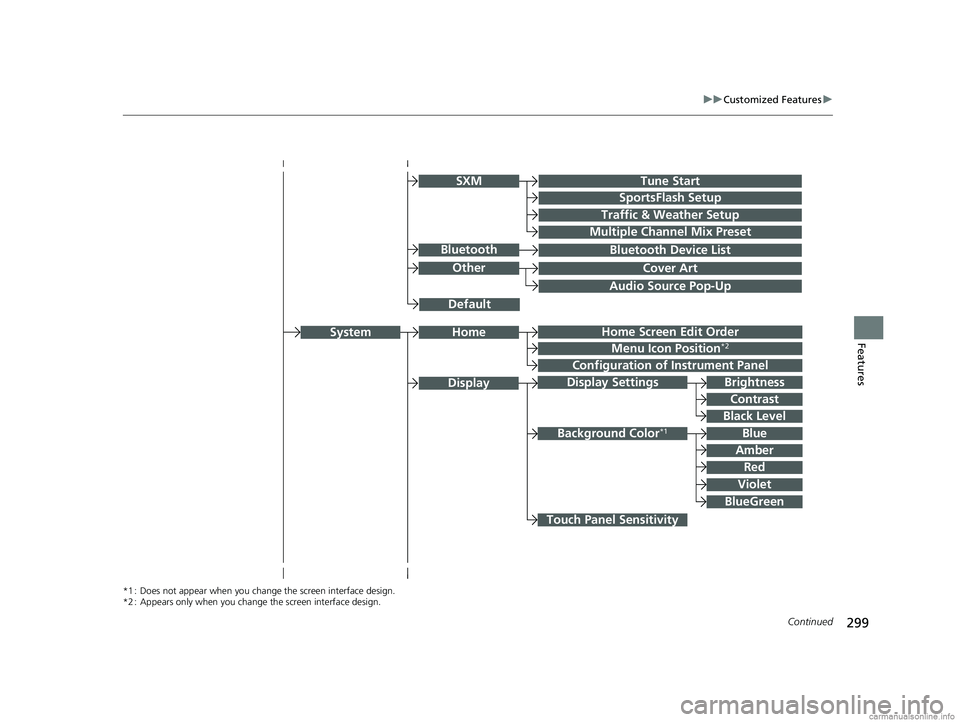

Audio Source Pop-Up
Cover Art
Tune Start
SportsFlash Setup
Traffic & Weather Setup
Other
SXM
Default
Bluetooth Device ListBluetooth
Multiple Channel Mix Preset
Home Screen Edit Order
Configuration of Instrument Panel
Display Settings
Background Color*1
Display
System
Touch Panel Sensitivity
Brightness
Contrast
Black Level
Blue
Amber
Red
Violet
BlueGreen
Home
Menu Icon Position*2
*1 : Does not appear when you chang e the screen interface design.
*2 : Appears only when you change the screen interface design.
18 CLARITY ELECTRIC CSS-31TRV6100.book 299 ページ ２０１８年２月５日　月曜日　午後１２時０分

300
uuCustomized Features u
Features

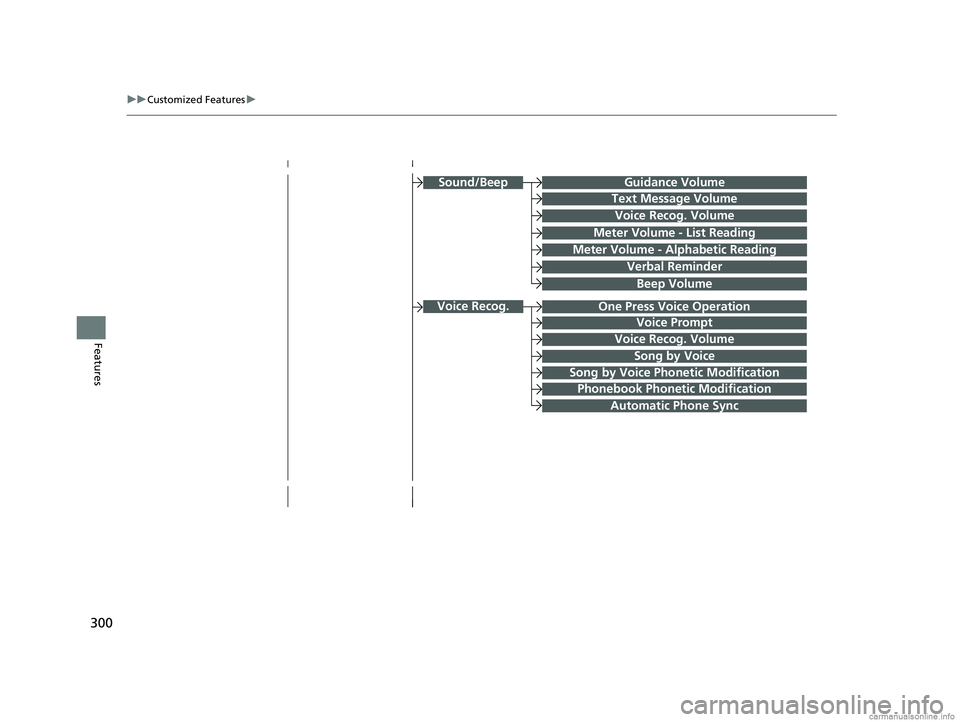

Guidance Volume
Text Message Volume
Sound/Beep
Voice Recog. Volume
Verbal Reminder
Beep Volume
Meter Volume - List Reading
Meter Volume - Alphabetic Reading
Voice Prompt
Voice Recog. Volume
Song by Voice
Song by Voice Phonetic Modification
Phonebook Phonetic Modification
Automatic Phone Sync
One Press Voice OperationVoice Recog.
18 CLARITY ELECTRIC CSS-31TRV6100.book 300 ページ ２０１８年２月５日　月曜日　午後１２時０分

301
uuCustomized Features u
Continued
Features

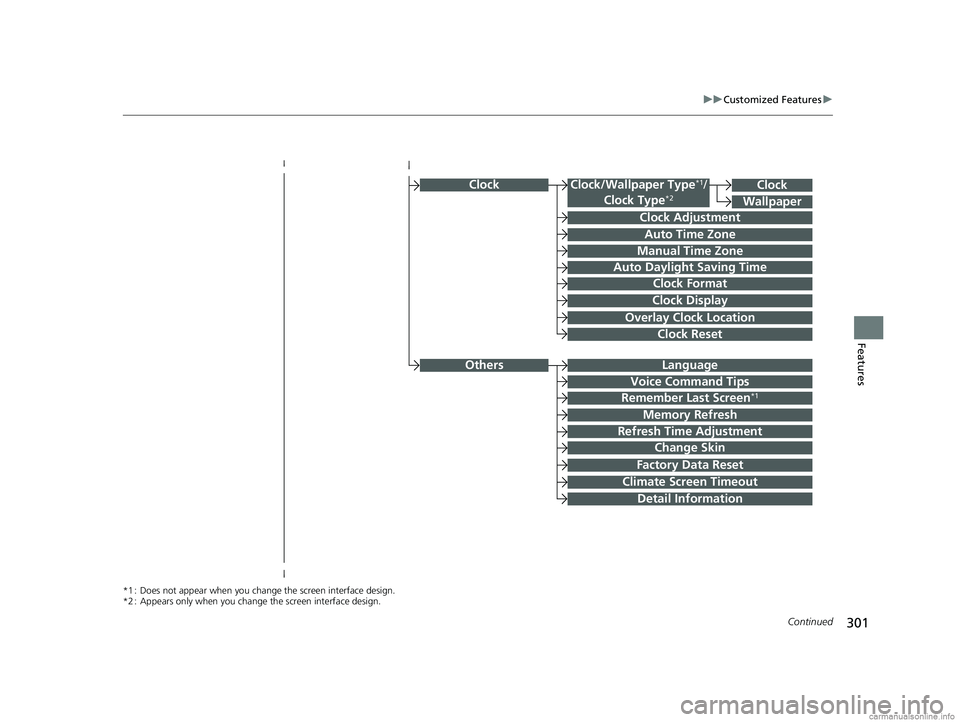

ClockClock/Wallpaper Type*1/
Clock Type*2
Clock Adjustment
Clock Format
Auto Time Zone
Manual Time Zone
Auto Daylight Saving Time
Clock Display
Overlay Clock Location
Clock Reset
Clock
Wallpaper
*1 : Does not appear when you chang e the screen interface design.
*2 : Appears only when you change the screen interface design.
OthersLanguage
Voice Command Tips
Remember Last Screen*1
Memory Refresh
Refresh Time Adjustment
Change Skin
Factory Data Reset
Climate Screen Timeout
Detail Information
18 CLARITY ELECTRIC CSS-31TRV6100.book 301 ページ ２０１８年２月５日　月曜日　午後１２時０分

302
uuCustomized Features u
Features

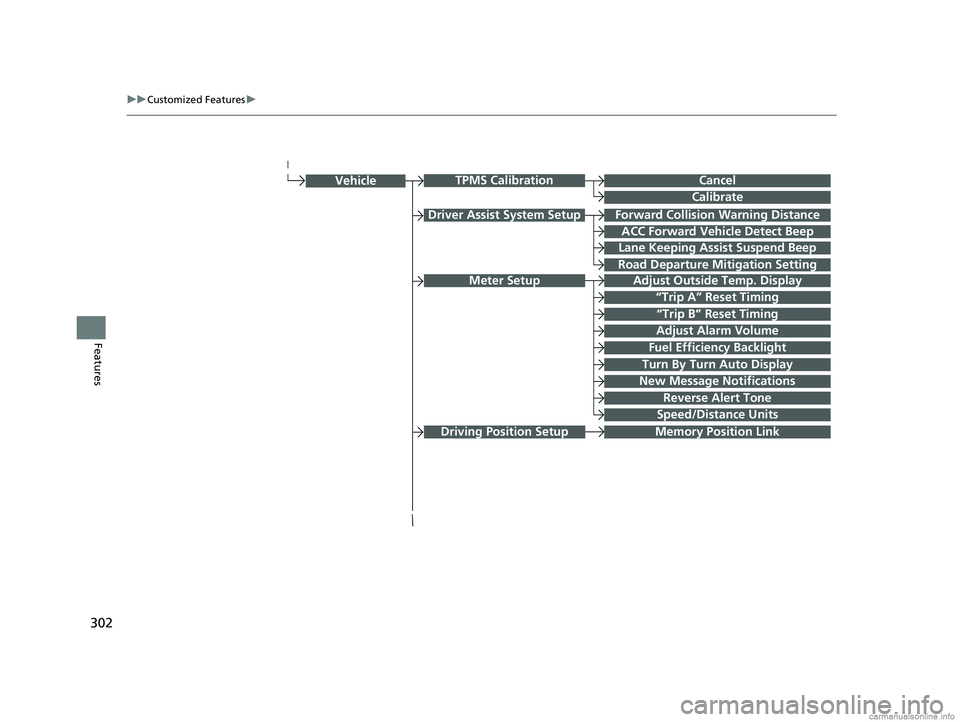

Driver Assist System SetupForward Collision Warning Distance
ACC Forward Vehicle Detect Beep
Lane Keeping Assist Suspend Beep
Road Departure Mi tigation Setting
Adjust Outside Temp. Display
“Trip A” Reset Timing
“Trip B” Reset Timing
Vehicle
Meter Setup
Adjust Alarm Volume
New Message Notifications
Turn By Turn Auto Display
Speed/Distance Units
CancelTPMS Calibration
Calibrate
Fuel Efficiency Backlight
Memory Position LinkDriving Position Setup
Reverse Alert Tone
18 CLARITY ELECTRIC CSS-31TRV6100.book 302 ページ ２０１８年２月５日　月曜日　午後１２時０分
