Warning/indicator lampStateCause Action/Observations
Hazard warning
lamps Flashing with buzzer. The hazard warning lamps switch,
located on the dashboard, has been
operated. The left-hand and right-hand direction indicators and
their associated indicator lamps flash simultaneously.
Sidelamps Fixed. The lighting control stalk is in the
"Sidelamps" position.
Front foglamps Fixed. The front foglamps are switched on
using the ring on the lighting control
stalk. Turn the ring on the lighting control stalk rear ward
twice to switch off the front foglamps.
Dipped beam
headlamps Fixed.
The lighting control stalk is in the
"Dipped beam headlamps" position.
Main beam
headlamps Fixed.
The lighting control stalk has been
pulled towards you. Pull the lighting control stalk to return to dipped beam
headlamps.
01
Instruments

24
Indicators

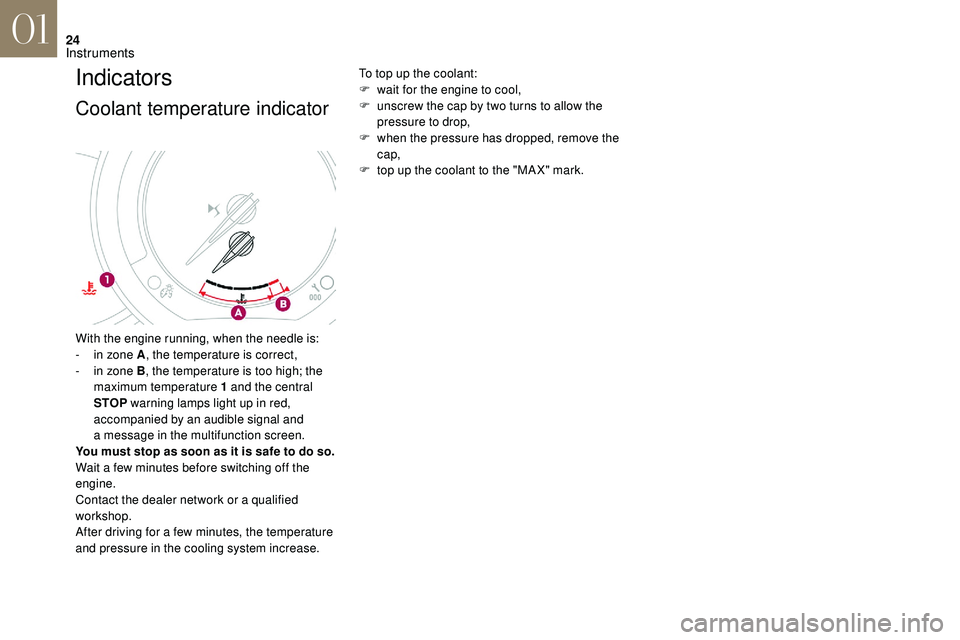

Coolant temperature indicator
To top up the coolant:
F w ait for the engine to cool,
F

u
nscrew the cap by two turns to allow the
pressure to drop,
F

w
hen the pressure has dropped, remove the
cap,
F

t
op up the coolant to the "MA X" mark.
With the engine running, when the needle is:
-

i

n zone A , the temperature is correct,
-

i

n zone B , the temperature is too high; the
maximum temperature 1

and the central
STOP warning lamps light up in red,
accompanied by an audible signal and
a

message in the multifunction screen.
You must stop as soon as it is safe to do so.
Wait a

few minutes before switching off the
engine.
Contact the dealer network or a

qualified
workshop.
After driving for a

few minutes, the temperature
and pressure in the cooling system increase.
01
Instruments

25
Service indicator
Warning/indicator lampStateCause Action/Observations
Service spanner Fixed, temporary
when the ignition is
switched on. Between 1,860
miles (3,000 km) and
620
miles (1,000 km) remain before
the next ser vice is due. The ser vice indicator is displayed for a
few seconds
in the instrument panel. Depending on the version:
-

t
he distance recorder displays a line showing the
distance remaining (in kilometres or miles) before
the next ser vice is due.
-

a
n alert indicates the distance remaining (in
kilometres or miles) as well as the period before
the next ser vice is due.
The service spanner disappears after a


few seconds.
The alert may be triggered close to the due date.
Fixed, when the
ignition is switched
on. Less than 620
miles (1,000 km)
remain before the next ser vice is
due. The ser vice indicator is displayed for a
few seconds
in the instrument panel. Depending on the version:
-

t
he distance recorder display line indicates the
distance remaining before the next ser vice is due.
-

a
n alert message indicates the distance remaining
as well as the period before the next ser vice is
due.
The ser vice spanner remains on to show that
a
ser vice is required very soon.
The alert may be triggered close to the due date.
01
Instruments

26
Warning/indicator lampStateCause Action/Observations
Service spanner Flashing then fixed,
when the ignition is
switched on. Service is overdue.
The ser vice indicator is displayed for a
few seconds
in the instrument panel. Depending on the version:
-

t
he total distance recorder displays a line showing
the distance travelled since ser vice was due. The
value is preceded by the "-" sign.
-

a
n alert message indicates that ser vice is
overdue.
The ser vice spanner remains on until the ser vice has
been performed.
The alert is triggered when the due date has passed.
+ Flashing then fixed,
when the ignition
is switched on,
associated with the
Ser vice warning
lamp.Ser vice is overdue for diesel
BlueHDi versions.
The ser vice indicator is displayed for a
few seconds
in the instrument panel. Depending on the version:
-

t
he total distance recorder displays a line showing
the distance travelled since ser vice was due. The
value is preceded by the "-" sign.
-

a
n alert message indicates that ser vice is
overdue.
The ser vice spanner remains on until the ser vice has
been performed.
The alert is triggered when the due date has passed.
The distance indicated (in kilometres
or miles) is calculated according to the
mileage covered and the time elapsed
since the last ser vice.
01
Instruments

27
Resetting the service indicator
After each service, the service indicator must
be reset to zero.
The procedure for resetting to zero is as
follows:
F
S
witch off the ignition.
F

P
ress and hold the trip distance recorder
reset button.
F

S
witch on the ignition; the distance recorder
display begins a


countdown.
F

W
hen the display indicates "=0", release the
button; the spanner disappears.
Following this step, if you wish to
disconnect the battery, lock the vehicle
and wait at least five minutes for the reset
to be taken into account.
Retrieving the service information
You can access the ser vice information at any
time.
F
P
ress the trip distance recorder reset
button. The ser vice information is displayed
for a
few seconds, then disappears.
Engine oil level indicator
Oil level correct
Low oil level
(Depending on version) The level read will only be correct if the
vehicle is on level ground and the engine
has been off for more than 30
minutes.
It is indicated by "OIL" flashing, accompanied
by the Ser vice warning lamp lighting up, an
audible signal and a

message.
If the low oil level is confirmed by a
check using
the dipstick, the level must be topped up to
avoid damage to the engine.
For more information on Checking levels ,
refer to the corresponding section.
On versions fitted with an electric oil level
indicator, the state of the engine oil level is
displayed in the instrument panel for a
few
seconds after switching the ignition on, after
the servicing information.
01
Instruments

28
AdBlue® range indicators
These range indicators are present only on
BlueHDi Diesel versions.
Once the AdBlue
® tank is on reser ve or after
detection of a

fault with the SCR emissions
control system, when the ignition is switched
on, an indicator displays an estimate of the
distance that can be covered, the range, before
engine starting is prevented.
In the event of the risk of non-
starting related to a lack of AdBlue®
The engine start prevention system
required by regulations is activated
automatically once the AdBlue
® tank is
e m pt y.
Range greater than 1,500

miles (2,400 km)
When switching on the ignition, there is no
automatic display of range in the instrument
panel.
Range between 1,500

miles and 370 miles
(2,400

and 600

km) Go to a
member of the dealer network or
a qualified workshop to have the AdBlue
®
topped up.
You can also top up the tank yourself.
Range below 370

miles (600

km)Oil level indicator fault
It is indicated by " OIL- -" flashing.
Contact the dealer network or a qualified
workshop.
In the event of a
fault with the electric indicator,
the oil level is no longer monitored.
If the system is faulty, you must check the
engine oil level using the manual dipstick
located under the bonnet.
For more information on Checking levels ,
refer to the corresponding section.
When driving, this message is displayed every
30
seconds until the AdBlue level has been
topped up.
Go to a
member of the dealer network or
a
qualified workshop to have the AdBlue
®
topped up.
You can also top up the tank yourself.
Other wise you will not be able to restart the
vehicle.
When switching on the ignition, this warning
lamp comes on, accompanied by an audible
signal and the display of a

message (e.g. "Top
up emissions additive: Starting prevented in
900


miles") indicating the remaining range
expressed in miles or kilometres.
When driving, the message is displayed every
185

miles (300

km) until the level is topped up. When switching on the ignition, this warning
lamp flashes and the Service warning lamp
comes on, accompanied by an audible signal
and the display of a

message (e.g. "Top up
emissions additive: Starting prevented in
350


miles") indicating the remaining range
expressed in miles or kilometres.
01
Instruments

29
For more information on the AdBlue®
(BlueHDi engines) , and in particular on
topping up, refer to the corresponding
section.
Breakdown due to a

lack of AdBlue
®
The AdBlue® tank is empty: the starting
inhibition system required by legislation
prevents starting of the engine.
To be able to start the engine, we
recommend that you call on a
dealer
or a

qualified workshop for the top-up
required.
If you carry out the top-up yourself, it
is essential to add at least 3.8
litres of
AdBlue
® to the tank.
In the event of a fault with the SCR
e missions control system
A system that prevents engine starting is
activated automatically from 685
miles
(1,100
km) after confirmation of a fault with
the SCR emissions control system.
Have the system checked by the dealer
network or a
qualified workshop as soon
as possible.
In the event of the detection of a
faultIf it is a
temporary fault, the alert
disappears during the next journey,
after self-diagnostic checks of the SCR
emissions control system.
When switching on the ignition, this warning
lamp flashes and the Service warning lamp
comes on, together with an audible signal and
the display of the message "Top up emissions
additive: Starting prevented". These warning lamps come on, accompanied
by an audible signal and the display of the
message "Emissions fault".
The alert is triggered while driving as soon
as the fault is detected for the first time, then
when switching on the ignition for subsequent
journeys, while the fault persists.During the permitted driving phase
(between 685
and 0 miles (1,100 km and
0


km))
If a
fault with the SCR system is confirmed
(after 30
miles (50 km) covered with the
permanent display of the message signalling
a
fault), these warning lamps come on and the
UREA warning lamp flashes, associated with
an audible signal and the display of a
message
(e.g. "Emissions fault: Starting prevented in
190


miles") indicating the remaining range
expressed in miles or kilometres.
While driving, the message is displayed every
30 seconds while the fault with the SCR emission
control system persists.
The alert is repeated when switching on the ignition.
You should go to a
network dealer or a qualified
workshop as soon as possible.
Other wise you will not be able to restart the vehicle.
01
Instruments

30
Starting preventedYou have exceeded the authorised driving
limit: the starting prevention system does
not allow the engine to be started.
To be able to restart the engine, you must
call on a
member of the dealer network or
a


qualified workshop.
Distance recorders
The total and trip distances are displayed for
thirty seconds when the ignition is switched off,
when the driver's door is opened and when the
vehicle is locked or unlocked. When travelling abroad, you may need
to change the unit of distance: the speed
display must be expressed in the official
unit of the country (km or mile). The
change of units is done via the screen
configuration menu, with the vehicle
stationary.
Total distance recorder
It measures the total distance travelled by the
vehicle since its first registration.
Trip distance recorder
It measures the distance travelled since it was
reset by the driver.
F

W
ith the ignition on, press the button until
zeroes appear.
Each time the ignition is switched on, these
warning lamps come on and the UREA
warning lamp flashes, accompanied by an
audible signal and the display of the message
"Emissions fault: Starting prevented".
Lighting dimmer control
System that allows the brightness of the
instruments and controls to be manually
adjusted to suit the ambient light level.
01
Instruments
