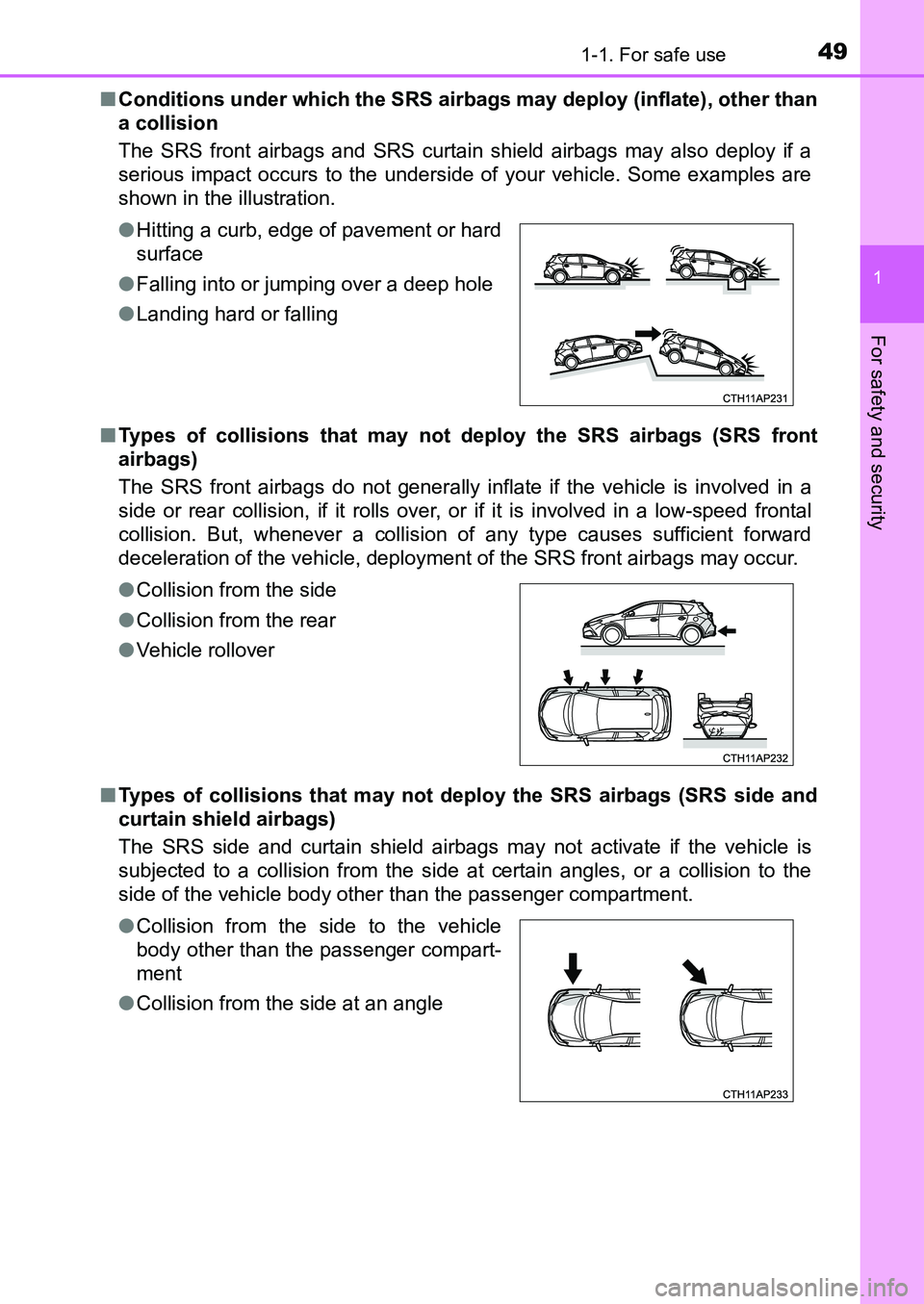

491-1. For safe use
1
For safety and security
UK AURIS_HB_EE (OM12K97E)■Conditions under which the SRS airbags may deploy (inflate), other than
a collision
The SRS front airbags and SRS curtain shield airbags may also deploy if a
serious impact occurs to the underside of your vehicle. Some examples are
shown in the illustration.
■Types of collisions that may not deploy the SRS airbags (SRS front
airbags)
The SRS front airbags do not generally inflate if the vehicle is involved in a
side or rear collision, if it rolls over, or if it is involved in a low-speed frontal
collision. But, whenever a collision of any type causes sufficient forward
deceleration of the vehicle, deployment of the SRS front airbags may occur.
■Types of collisions that may not deploy the SRS airbags (SRS side and
curtain shield airbags)
The SRS side and curtain shield airbags may not activate if the vehicle is
subjected to a collision from the side at certain angles, or a collision to the
side of the vehicle body other than the passenger compartment. ●Hitting a curb, edge of pavement or hard
surface
●Falling into or jumping over a deep hole
●Landing hard or falling
●Collision from the side
●Collision from the rear
●Vehicle rollover
●Collision from the side to the vehicle
body other than the passenger compart-
ment
●Collision from the side at an angle
UK AURIS_HB_OM_Europe_OM12K97E.book 49 ページ ２０１６年６月２７日　月曜日　午後５時４２分

501-1. For safe use
UK AURIS_HB_EE (OM12K97E)The SRS side airbags do not generally inflate if the vehicle is involved in a
frontal or rear collision, if it rolls over, or if it is involved in a low-speed side
collision.
The SRS curtain shield airbags do not generally inflate if the vehicle is
involved in a rear collision, if it rolls over, or if it is involved in a low-speed side
or low-speed frontal collision.
■When to contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional
In the following cases, the vehicle will require inspection and/or repair. Con-
tact any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional as soon as possible.
●Any of the SRS airbags have been inflated. ●Collision from the front
●Collision from the rear
●Vehicle rollover
●Collision from the rear
●Vehicle rollover
●The front of the vehicle is damaged or
deformed, or was involved in an acci-
dent that was not severe enough to
cause the SRS front airbags to inflate.
UK AURIS_HB_OM_Europe_OM12K97E.book 50 ページ ２０１６年６月２７日　月曜日　午後５時４２分

511-1. For safe use
1
For safety and security
UK AURIS_HB_EE (OM12K97E)●A portion of a door or its surrounding
area is damaged or deformed, or the
vehicle was involved in an accident that
was not severe enough to cause the
SRS side and curtain shield airbags to
inflate.
●Vehicles without an SRS driver’s knee
airbag: The pad section of the steering
wheel or dashboard near the front pas-
senger airbag is scratched, cracked, or
otherwise damaged.
Vehicles with an SRS driver’s knee
airbag: The pad section of the steering
wheel, dashboard near the front passen-
ger airbag or lower portion of the instru-
ment panel is scratched, cracked, or
otherwise damaged.
●The surface of the seats with the side
airbag is scratched, cracked, or other-
wise damaged.
●The portion of the front pillars, rear pil-
lars or roof side rail garnishes (padding)
containing the curtain shield airbags
inside is scratched, cracked, or other-
wise damaged.
UK AURIS_HB_OM_Europe_OM12K97E.book 51 ページ ２０１６年６月２７日　月曜日　午後５時４２分

521-1. For safe use
UK AURIS_HB_EE (OM12K97E)
“PASSENGER AIR BAG” indi-
cator
Vehicles without a smart entry &
start system: The “PASSENGER
AIR BAG” and “ON” indicator light
turns on when the airbag system is
on, and about after 60 seconds
they go off (only when the engine
switch is in the “ON” position).
Vehicles with a smart entry & start
system: The “PASSENGER AIR
BAG” and “ON” indicator light turns
on when the airbag system is on,
and about after 60 seconds they go
off (only when the engine switch is
in IGNITION ON mode).
Airbag manual on-off switch
Airbag manual on-off system
This system deactivates the front passenger airbag.
Only deactivate the airbag when using a child restraint system
on the front passenger seat.
1
2
UK AURIS_HB_OM_Europe_OM12K97E.book 52 ページ ２０１６年６月２７日　月曜日　午後５時４２分

531-1. For safe use
1
For safety and security
UK AURIS_HB_EE (OM12K97E)
Vehicles without a smart entry &
start system: Insert the key into
the cylinder and turn it to the
“OFF” position.
The “OFF” indicator light turns on
(only when the engine switch is in
the “ON” position).
Vehicles with a smart entry & start
system: Insert the mechanical key
into the cylinder and turn it to the
“OFF” position.
The “OFF” indicator light turns on (only when the engine switch is in IGNI-
TION ON mode).
■“PASSENGER AIR BAG” indicator information
If any of the following problems occur, it is possible that there is a malfunction
in the system. Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
●Neither “ON” nor “OFF” comes on.
●The indicator light does not change when the airbag manual on-off switch is
switched to “ON” or “OFF”.
Deactivating the front seat passenger airbag
WARNING
■When installing a child restraint system
For safety reasons, always install a child restraint system in a rear seat. In
the event that the rear seat cannot be used, the front seat can be used as
long as the airbag manual on-off system is set to “OFF”.
If the airbag manual on-off system is left on, the strong impact of the airbag
deployment (inflation) may cause serious injury or even death.
■When a child restraint system is not installed on the front passenger
seat
Ensure that the airbag manual on-off system is set to “ON”.
If it is left off, the airbag may not deploy in the event of an accident, which
may result in serious injury or even death.
UK AURIS_HB_OM_Europe_OM12K97E.book 53 ページ ２０１６年６月２７日　月曜日　午後５時４２分

541-1. For safe use
UK AURIS_HB_EE (OM12K97E)
●It is recommended that children sit in the rear seats to avoid acci-
dental contact with the shift lever, wiper switch, etc.
●Use the rear door child-protector lock or the window lock switch to
avoid children opening the door while driving or operating the
power window accidentally.
●Do not let small children operate equipment which may catch or
pinch body parts, such as the power window, hood, back door,
seats, etc.
Safety information for children
Observe the following precautions when children are in the vehi-
cle.
Use a child restraint system appropriate for the child, until the
child becomes large enough to properly wear the vehicle’s seat
belt.
WARNING
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.
UK AURIS_HB_OM_Europe_OM12K97E.book 54 ページ ２０１６年６月２７日　月曜日　午後５時４２分

551-1. For safe use
1
For safety and security
UK AURIS_HB_EE (OM12K97E)
Studies have shown that installing a child restraint on a rear seat is
much safer than installing one on the front passenger seat.
●Choose a child restraint system that suits your vehicle and is appro-
priate to the age and size of the child.
●For installation details, follow the instructions provided with the child
restraint system.
General installation instructions are provided in this manual.
(P. 64)
●If child restraint system regulations exist in the country where you
reside, please contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional for the child
restraint system installation.
●Toyota recommends that you use a child restraint system which
conforms to the regulation ECE No.44.
Child restraint systems
Toyota strongly urges the use of child restraint systems.
Points to remember
UK AURIS_HB_OM_Europe_OM12K97E.book 55 ページ ２０１６年６月２７日　月曜日　午後５時４２分

561-1. For safe use
UK AURIS_HB_EE (OM12K97E)
Child restraint systems are classified into the following 5 groups
according to the regulation ECE No.44:
Group 0: Up to 10 kg (22 lb.) (0 - 9 months)
Group 0
+: Up to 13 kg (28 lb.) (0 - 2 years)
Group I: 9 to 18 kg (20 to 39 lb.) (9 months - 4 years)
Group II: 15 to 25 kg (34 to 55 lb.) (4 years - 7 years)
Group III: 22 to 36 kg (49 to 79 lb.) (6 years - 12 years)
In this owner’s manual, the following 3 types of popular child restraint
systems that can be secured with the seat belts are explained:
Types of child restraints
Baby seatChild seat
Equal to Group 0 and 0
+ of ECE
No.44Equal to Group 0+ and I of ECE
No.44
Junior seat
Equal to Group II and III of ECE
No.44
