2017 TOYOTA AURIS Owners Manual (in English)

651-1. For safe use
1
For safety and security
UK AURIS_HB_EE (OM12K97E)■
Rear-facing  Baby seat/child seat
Place the child restraint sys-
tem on the rear seat facing
the rear of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Install a locking clip near the
tab of the lap and shoulder
belt by inserting the lap and
shoulder webbing through
the recesses of the locking
clip. Buckle the belt again. If
the belt has any slack,
release the buckle and rein-
stall the locking clip.
Installing child restraints using a seat belt
1
2
3
UK AURIS_HB_OM_Europe_OM12K97E.book 65 ページ ２０１６年６月２７日　月曜日　午後５時４２分

661-1. For safe use
UK AURIS_HB_EE (OM12K97E)■
Forward-facing  Child seat
Place the child restraint sys-
tem on the seat facing the
front of the vehicle.
If your child restraint system
interferes with a head restraint
and cannot be installed properly,
install the child restraint system
after removing the head
restraint. (P. 172)
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Install a locking clip near the
tab of the lap and shoulder
belt by inserting the lap and
shoulder webbing through
the recesses of the locking
clip. Buckle the belt again. If
the belt has any slack,
release the buckle and rein-
stall the locking clip.
1
2
3
UK AURIS_HB_OM_Europe_OM12K97E.book 66 ページ ２０１６年６月２７日　月曜日　午後５時４２分

671-1. For safe use
1
For safety and security
UK AURIS_HB_EE (OM12K97E)■
Junior seat
Place the child restraint system on the seat facing the front of the
vehicle.
If your child restraint system interferes with a head restraint and cannot
be installed properly, install the child restraint system after removing the
head restraint. (P. 172)
Sit the child in the child
restraint system. Fit the seat
belt to the child restraint sys-
tem according to the manu-
facturer’s instructions and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Check that the shoulder belt is correctly positioned over the child’s
shoulder and that the lap belt is as low as possible. (P. 38)
1
High back typeBooster type
2
UK AURIS_HB_OM_Europe_OM12K97E.book 67 ページ ２０１６年６月２７日　月曜日　午後５時４２分

681-1. For safe use
UK AURIS_HB_EE (OM12K97E)
Push the buckle release button
and fully retract the seat belt.
Removing a child restraint installed with a seat belt
UK AURIS_HB_OM_Europe_OM12K97E.book 68 ページ ２０１６年６月２７日　月曜日　午後５時４２分

691-1. For safe use
1
For safety and security
UK AURIS_HB_EE (OM12K97E)
Adjust the head restraint to the
uppermost position.
If your child restraint system inter-
feres with a head restraint and can-
not be installed properly, install the
child restraint system after remov-
ing the head restraint. (P. 172)
If the child restraint has a top strap, remove the luggage cover.
(P. 435)
Latch the buckles onto the exclusive fixing bars.
Insert the ISOFIX connectors
into the gap until they latch onto
the exclusive fixing bars.
If the child restraint has a top strap, the top strap should be latched onto
the anchor bracket.
Run the top strap under the head restraint.
Installation with ISOFIX rigid anchors
1
2
3
UK AURIS_HB_OM_Europe_OM12K97E.book 69 ページ ２０１６年６月２７日　月曜日　午後５時４２分

701-1. For safe use
UK AURIS_HB_EE (OM12K97E)
Adjust the head restraint to the
uppermost position.
If your child restraint system inter-
feres with a head restraint and can-
not be installed properly, install the
child restraint system after remov-
ing the head restraint. (P. 172)
Secure the child restraint sys-
tem using the seat belt or
ISOFIX rigid anchors.
Remove the luggage cover. (P. 435)
Latch the hook onto the anchor
bracket and tighten the top
strap.
Run the top strap under the head
restraint.
Make sure the top strap is securely
latched.
Child restraint systems with a top strap
1
2
3
4
UK AURIS_HB_OM_Europe_OM12K97E.book 70 ページ ２０１６年６月２７日　月曜日　午後５時４２分

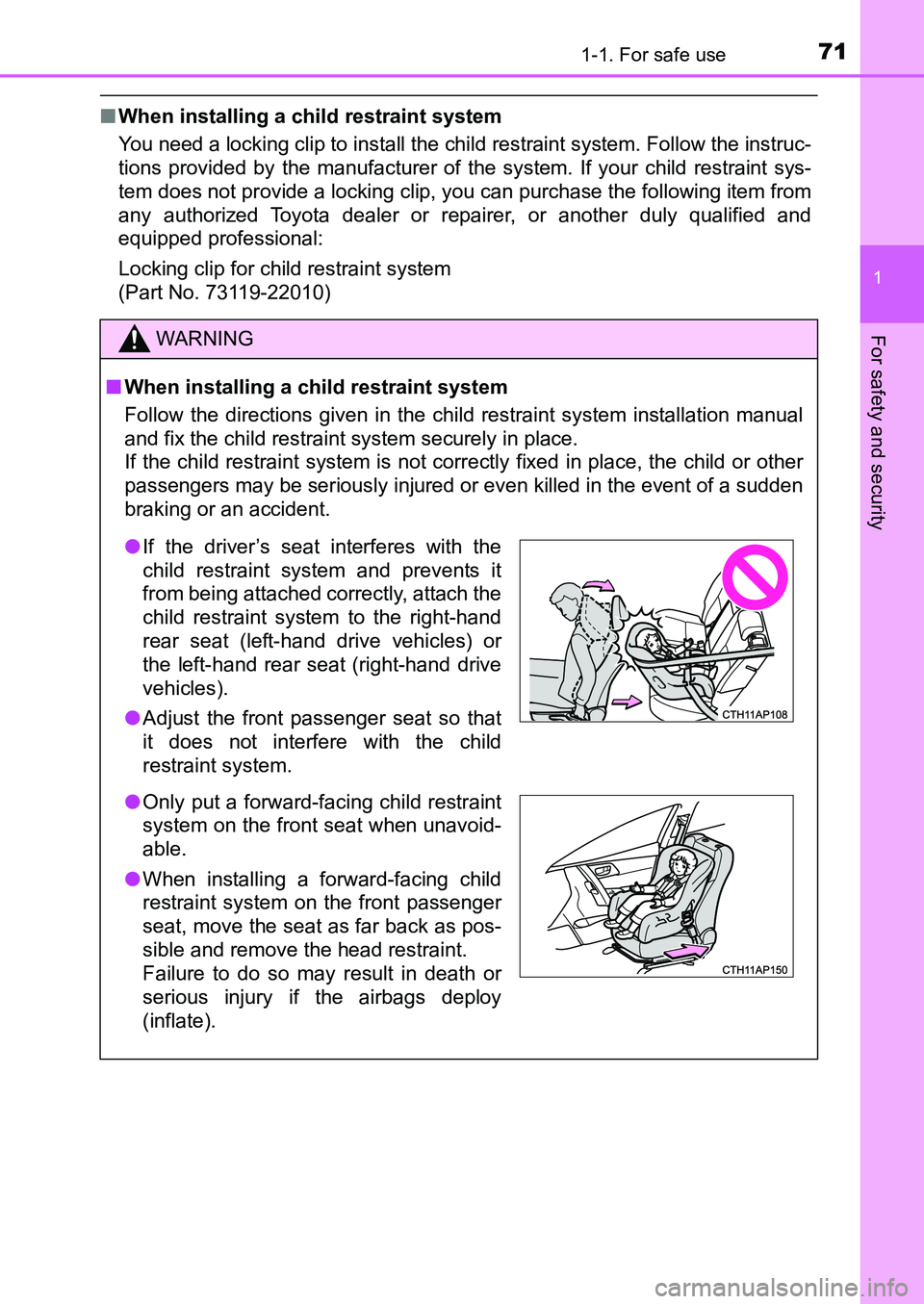

711-1. For safe use
1
For safety and security
UK AURIS_HB_EE (OM12K97E)
■When installing a child restraint system
You need a locking clip to install the child restraint system. Follow the instruc-
tions provided by the manufacturer of the system. If your child restraint sys-
tem does not provide a locking clip, you can purchase the following item from
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional:
Locking clip for child restraint system
(Part No. 73119-22010)
WARNING
■When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of a sudden
braking or an accident.
●If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach the
child restraint system to the right-hand
rear seat (left-hand drive vehicles) or
the left-hand rear seat (right-hand drive
vehicles).
●Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
●Only put a forward-facing child restraint
system on the front seat when unavoid-
able.
●When installing a forward-facing child
restraint system on the front passenger
seat, move the seat as far back as pos-
sible and remove the head restraint.
Failure to do so may result in death or
serious injury if the airbags deploy
(inflate).
UK AURIS_HB_OM_Europe_OM12K97E.book 71 ページ ２０１６年６月２７日　月曜日　午後５時４２分

721-1. For safe use
UK AURIS_HB_EE (OM12K97E)
WARNING
■When installing a child restraint system
●Never use a rear-facing child restraint
system on the front passenger seat
when the airbag manual on-off switch is
on. (P. 52)
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.
●There is a label(s) on the passenger
side sun visor, indicating it is forbidden
to attach a rear-facing child restraint
system to the front passenger seat.
Details of the label(s) are shown in the
illustration below.
