2017 TOYOTA AURIS Owners Manual (in English)

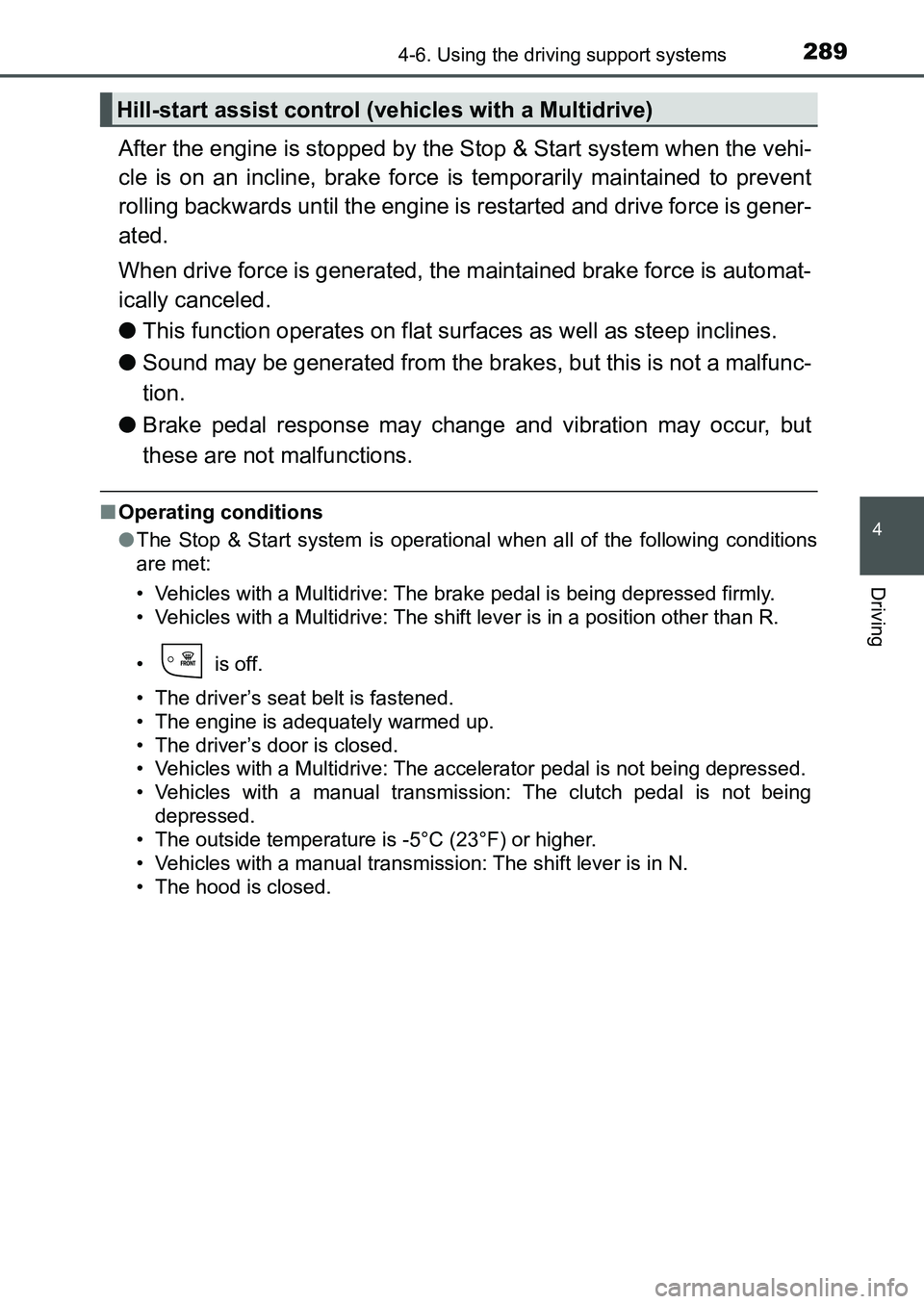

2894-6. Using the driving support systems
UK AURIS_HB_EE (OM12K97E)
4
Driving
After the engine is stopped by the Stop & Start system when the vehi-
cle is on an incline, brake force is temporarily maintained to prevent
rolling backwards until the engine is restarted and drive force is gener-
ated.
When drive force is generated, the maintained brake force is automat-
ically canceled.
●This function operates on flat surfaces as well as steep inclines.
●Sound may be generated from the brakes, but this is not a malfunc-
tion.
●Brake pedal response may change and vibration may occur, but
these are not malfunctions.
■Operating conditions
●The Stop & Start system is operational when all of the following conditions
are met:
• Vehicles with a Multidrive: The brake pedal is being depressed firmly.
• Vehicles with a Multidrive: The shift lever is in a position other than R.
• is off.
• The driver’s seat belt is fastened.
• The engine is adequately warmed up.
• The driver’s door is closed.
• Vehicles with a Multidrive: The accelerator pedal is not being depressed.
• Vehicles with a manual transmission: The clutch pedal is not being
depressed.
• The outside temperature is -5°C (23°F) or higher.
• Vehicles with a manual transmission: The shift lever is in N.
• The hood is closed.
Hill-start assist control (vehicles with a Multidrive)
UK AURIS_HB_OM_Europe_OM12K97E.book 289 ページ ２０１６年６月２７日　月曜日　午後５時４２分

2904-6. Using the driving support systems
UK AURIS_HB_EE (OM12K97E)●In the following situations the engine may not be stopped by the Stop & Start
system. This is not a malfunction of the Stop & Start system.
• The air conditioning system is being used when the ambient temperature
is high or low.
• The battery is not sufficiently charged or is undergoing a periodic
recharge.
• The brake booster vacuum is low.
• Vehicles with a Multidrive: The vehicle is stopped on a steep incline.
• The steering wheel is being operated.
• Due to traffic or other circumstances the vehicle is stopped repeatedly.
• The vehicle is being driven in a high altitude area.
• Engine coolant temperature or transmission fluid temperature is
extremely low or high.
• The battery fluid temperature is extremely low or high.
• The battery was recently replaced or the battery terminals were recently
disconnected.
• Vehicles with a power heater: The power heater is being used.
●In the following situations, the engine will restart automatically if the engine
is stopped by the Stop & Start system. (To enable stopping of the engine by
the Stop & Start system, drive the vehicle.)
• The air conditioning system is turned on.
• is turned on.
• The steering wheel is operated.
• Vehicles with a Multidrive: The shift lever is shifted to R from D or M.
• Vehicles with a Multidrive: The shift lever is shifted to D, M or R from P or
N.
• The driver’s seat belt is unfastened.
• The driver’s door is opened.
• Vehicles with a Multidrive: The accelerator pedal is depressed.
• The Stop & Start cancel switch is pressed.
• The vehicle starts to roll on an incline.
• Vehicles with a power heater: The power heater is turned on.
●In the following situations, the engine may restart automatically if the engine
is stopped by the Stop & Start system. (To enable stopping of the engine by
the Stop & Start system, drive the vehicle.)
• The brake pedal is pumped or strongly depressed.
• The air conditioning system is being used.
• The battery is not sufficiently charged.
UK AURIS_HB_OM_Europe_OM12K97E.book 290 ページ ２０１６年６月２７日　月曜日　午後５時４２分

2914-6. Using the driving support systems
UK AURIS_HB_EE (OM12K97E)
4
Driving
■Hood
●Vehicles with a Multidrive: If the hood is opened while the engine is stopped
by the Stop & Start system with the shift lever in D or M, the engine will stall
and will not be able to be restarted by the automatic engine start function. In
this case, restart the engine using the normal engine starting procedure.
(P. 209, 213)
●Vehicles with a Multidrive: If the hood is opened while the engine is stopped
by the Stop & Start system with the shift lever in P or N, the engine will be
restarted automatically.
●Vehicles with a manual transmission: If the hood is opened while the engine
is stopped by the Stop & Start system, the engine will stall and will not be
able to be restarted by the automatic engine start function. In this case,
restart the engine using the normal engine starting procedure.
(P. 209, 213)
●If the hood is closed after the engine is started with the hood open, the Stop
& Start system will not operate. Close the hood, turn the engine switch off,
wait 30 seconds or more, and then start the engine.
■When to use the Stop & Start system
●Vehicles with a manual transmission: If the engine is stopped by the Stop &
Start system and the shift lever is shifted into a position other than N with the
clutch pedal released, a buzzer will sound and Stop & Start indicator will
flash. This indicates that the engine is only stopped by the Stop & Start sys-
tem, not that the engine has been turned off completely.
●Use the Stop & Start system when stopping the vehicle temporarily at red
lights, intersections, etc. When stopping the vehicle for a longer period of
time, stop the engine completely.
●When the system does not operate, is canceled, or is malfunctioning, warn-
ing messages (vehicles with a 2-ring meter only) and a warning buzzer are
used to inform the driver. (P. 294)
●Vehicles with a smart entry & start system: If the engine switch is pressed
when the engine is stopped by the Stop & Start system, the engine will stall
and will not be able to be restarted by the automatic engine start function. In
this case, restart the engine using the normal engine starting procedure.
(P. 209, 213)
●When the engine is restarted by the Stop & Start system, the power outlet
may be temporarily unusable, but this is not a malfunction.
●Installation and removal of electrical components and wireless devices may
affect the Stop & Start system. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for details.
UK AURIS_HB_OM_Europe_OM12K97E.book 291 ページ ２０１６年６月２７日　月曜日　午後５時４２分

2924-6. Using the driving support systems
UK AURIS_HB_EE (OM12K97E)■If the windshield is fogged up while the engine is stopped by the Stop &
Start system
Turn on. (The engine will start due to the automatic engine start func-
tion.): P. 413
If the windshield fogs up frequently, press the Stop & Start cancel switch to
disable the system.
■Air conditioning system while the engine is stopped by the Stop & Start
system
While the engine is stopped by the Stop & Start system, the air conditioning
system (cooling, heating and dehumidifying functions) is canceled and will
only blow air or will stop blowing air. In order to prevent the air conditioning
system from being canceled, disable the Stop & Start system by pressing the
Stop & Start cancel switch.
■Changing the idling stop time with the air conditioning system on
The length of time the Stop & Start system will operate when the air condition-
ing system is on can be changed by performing the following operation. (The
length of time the Stop & Start system will operate when the air conditioning
system is off cannot be changed.)
Vehicles with a 3-ring meter
●Setting by pressing and holding the Stop & Start cancel switch
Vehicles with a 2-ring meter
●Setting by pressing and holding the Stop & Start cancel switch
Each time the Stop & Start cancel switch is pressed and held for 3 seconds
or more, the system switches between standard and extended. The system
status can be confirmed on the multi-information display (Settings
display) screen. (P. 1 1 3 )
●Settings from the (Settings display) screen of the multi-information
display
P. 1 1 3 Each time the Stop & Start cancel
switch is pressed and held for 3 sec-
onds or more, the length of the opera-
tion time will be changed. The current
setting will be displayed on the multi-
information display.
Standard
Extended
1
2
UK AURIS_HB_OM_Europe_OM12K97E.book 292 ページ ２０１６年６月２７日　月曜日　午後５時４２分

2934-6. Using the driving support systems
UK AURIS_HB_EE (OM12K97E)
4
Driving
■The Stop & Start system protection function
●Vehicles without a smart entry & start system: When an excessively loud
sound is being projected by the audio system, the audio system may be
automatically cut off in order to reduce battery consumption. If it occurs, turn
the engine switch off, wait for 3 seconds or longer and then turn it to “ACC”
or “ON” position to re-enable the audio system.
●Vehicles with a smart entry & start system: When an excessively loud sound
is being projected by the audio system, the audio system may be automati-
cally cut off in order to reduce battery consumption. If it occurs, turn the
engine switch off, wait for 3 seconds or longer and then turn it to ACCES-
SORY mode or IGNITION ON mode to re-enable the audio system.
●The audio system may not be activated when the battery terminals are dis-
connected and then reconnected. If it occurs, turn the engine switch off and
then repeat the following operation twice to activate the audio system nor-
mally.
• Vehicles without a smart entry & start system: Turn the engine switch to
“ON” position and then to OFF.
• Vehicles with a smart entry & start system: Turn the engine switch to
IGNITION ON mode and then to OFF.
■Replacing the battery
P. 598
■Displaying the Stop & Start system status
P. 1 1 1
UK AURIS_HB_OM_Europe_OM12K97E.book 293 ページ ２０１６年６月２７日　月曜日　午後５時４２分

2944-6. Using the driving support systems
UK AURIS_HB_EE (OM12K97E)■Multi-information display messages (vehicles with a 2-ring meter)
If the following situations, and a message may be displayed on the
multi-information display.
●When the engine cannot be stopped by the Stop & Start system
MessageDetails
“Depress brake
firmly to activate.”
The brake pedal is not depressed
enough.
If the brake pedal is depressed further, the
system will operate.
“For climate con-
trol.”
• The air conditioning system is being
used when the ambient temperature is
high or low.
If the difference between the set tempera-
ture and cabin temperature is small, the
system will be enabled.
• is ON.
UK AURIS_HB_OM_Europe_OM12K97E.book 294 ページ ２０１６年６月２７日　月曜日　午後５時４２分

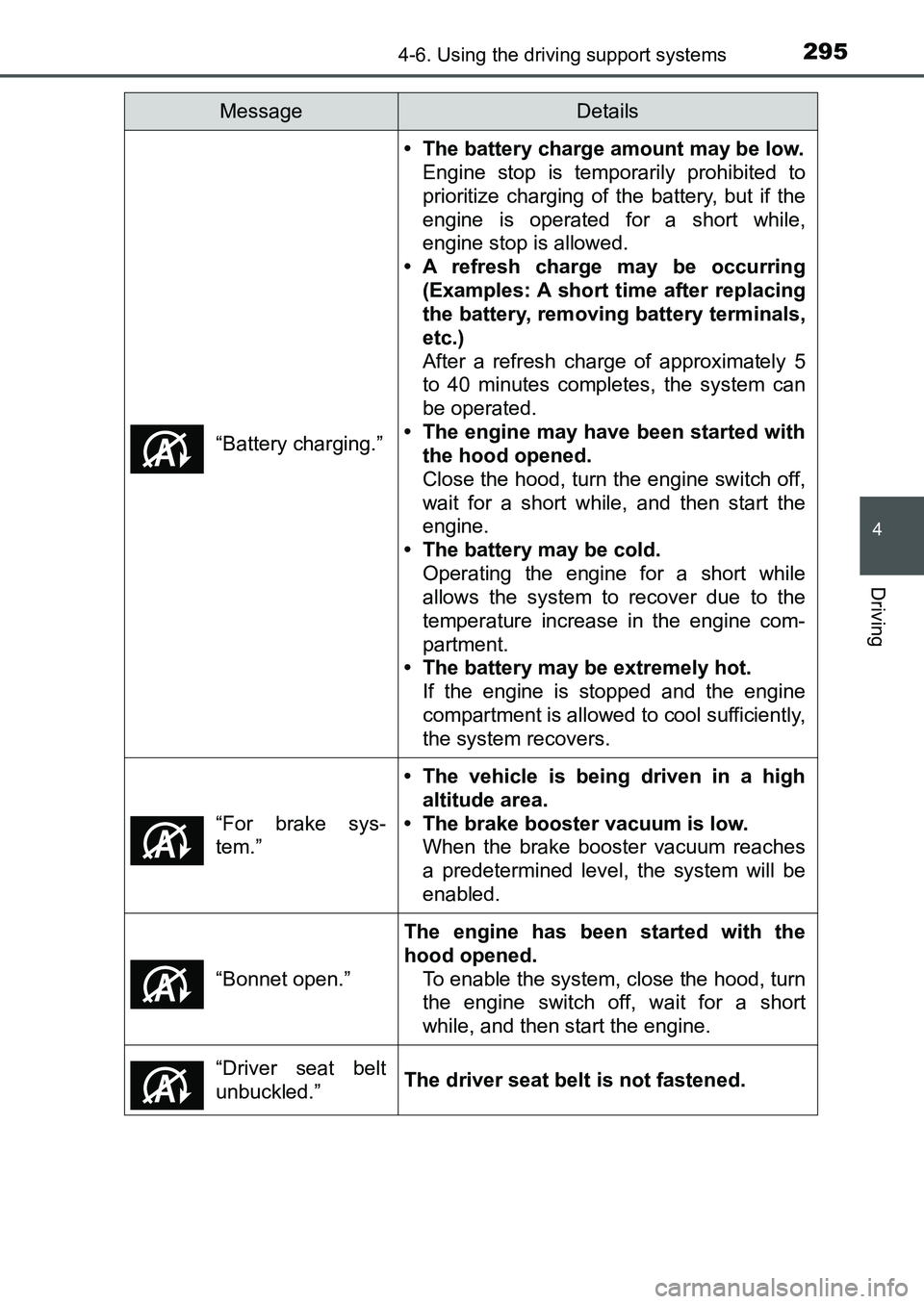

2954-6. Using the driving support systems
UK AURIS_HB_EE (OM12K97E)
4
Driving
“Battery charging.”
• The battery charge amount may be low.
Engine stop is temporarily prohibited to
prioritize charging of the battery, but if the
engine is operated for a short while,
engine stop is allowed.
• A refresh charge may be occurring
(Examples: A short time after replacing
the battery, removing battery terminals,
etc.)
After a refresh charge of approximately 5
to 40 minutes completes, the system can
be operated.
• The engine may have been started with
the hood opened.
Close the hood, turn the engine switch off,
wait for a short while, and then start the
engine.
• The battery may be cold.
Operating the engine for a short while
allows the system to recover due to the
temperature increase in the engine com-
partment.
• The battery may be extremely hot.
If the engine is stopped and the engine
compartment is allowed to cool sufficiently,
the system recovers.
“For brake sys-
tem.”
• The vehicle is being driven in a high
altitude area.
• The brake booster vacuum is low.
When the brake booster vacuum reaches
a predetermined level, the system will be
enabled.
“Bonnet open.”
The engine has been started with the
hood opened.
To enable the system, close the hood, turn
the engine switch off, wait for a short
while, and then start the engine.
“Driver seat belt
unbuckled.”
The driver seat belt is not fastened.
MessageDetails
UK AURIS_HB_OM_Europe_OM12K97E.book 295 ページ ２０１６年６月２７日　月曜日　午後５時４２分

2964-6. Using the driving support systems
UK AURIS_HB_EE (OM12K97E)●When the engine automatically restarts while stopped by the Stop & Start
system
●Vehicles with a manual transmission: When the engine cannot be restarted
by the Stop & Start system“Non-dedicated
battery.”
(8NR-FTS engine
only)
A non-dedicated battery for the Stop &
Start system may have been installed.
The Stop & Start system does not operate.
Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional.
MessageDetails
MessageDetails
“For climate con-
trol.”
• The air conditioning system has been
turned on or is being used.
• has been turned on.
“For brake sys-
tem.”
The brake pedal has been depressed fur-
ther or pumped.
The system will be enabled after the
engine runs and the brake booster vac-
uum reaches a predetermined level.
“Battery charging.”
The battery charge amount may be low.
The engine is restarted to prioritize battery
charging. Operating the engine for a short
while allows the system to recover.
“Steering wheel
turned.”
The steering wheel was operated.
“Bonnet open.”
The hood has been opened.
“Driver seat belt
unbuckled.”
The driver seat belt has been unfastened.
MessageDetails
“Stop & Start sys-
tem active. Shift to
N and depress
clutch to restart.”
The shift lever has been shifted from N to
another position with the clutch pedal
released.
To restart the engine, shift the shift lever to
N and then depress the clutch pedal.
UK AURIS_HB_OM_Europe_OM12K97E.book 296 ページ ２０１６年６月２７日　月曜日　午後５時４２分
