2017 TOYOTA AURIS Owners Manual (in English)

4015-10. Bluetooth®
UK AURIS_HB_EE (OM12K97E)
5
Audio system
UK AURIS_HB_OM_Europe_OM12K97E.book 401 ページ ２０１６年６月２７日　月曜日　午後５時４２分

4025-10. Bluetooth®
UK AURIS_HB_EE (OM12K97E)
WARNING
■While driving
Do not operate the portable audio player, cellular phone or connect a device
to the Bluetooth
® system.
■Caution regarding interference with electronic devices
●Your audio unit is fitted with Bluetooth
® antennas. People with implantable
cardiac pacemakers, cardiac resynchronization therapy-pacemakers or
implantable cardioverter defibrillators should maintain a reasonable dis-
tance between themselves and the Bluetooth
® antennas. The radio waves
may affect the operation of such devices.
●Before using Bluetooth
® devices, users of any electrical medical device
other than implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should con-
sult the manufacturer of the device for information about its operation
under the influence of radio waves. Radio waves could have unexpected
effects on the operation of such medical devices.
NOTICE
■When leaving the vehicle
Do not leave your portable audio player or cellular phone in the vehicle. The
inside of the vehicle may become hot, causing damage to the portable
audio player or cellular phone.
UK AURIS_HB_OM_Europe_OM12K97E.book 402 ページ ２０１６年６月２７日　月曜日　午後５時４２分

403
6Interior features
UK AURIS_HB_EE (OM12K97E)6-1. Using the air
conditioning system
and defogger
Heater system ................... 404
Automatic air conditioning
system ............................. 409
Power heater ..................... 417
Seat heaters ...................... 419
6-2. Using the interior lights
Interior lights list................. 421
• Interior lights .................. 422
• Vanity lights ................... 422
• Personal lights ............... 423
6-3. Using the storage
features
List of storage
features ........................... 425
• Glove box ...................... 426
• Console box .................. 426
• Bottle holders ................ 427
• Cup holders ................... 428
• Auxiliary boxes .............. 429
Luggage compartment
features ........................... 4316-4. Other interior features
Other interior features ........ 437
• Sun visors...................... 437
• Vanity mirrors ................ 437
• Clock ............................. 438
• Portable ashtray ............ 438
• Power outlets................. 439
• Armrest .......................... 440
• Assist grips .................... 441
• Coat hooks .................... 441
• Panoramic roof
shade............................. 442
UK AURIS_HB_OM_Europe_OM12K97E.book 403 ページ ２０１６年６月２７日　月曜日　午後５時４２分

404
UK AURIS_HB_EE (OM12K97E)
6-1. Using the air conditioning system and defogger
Heater system
: If equipped
Heater controls
UK AURIS_HB_OM_Europe_OM12K97E.book 404 ページ ２０１６年６月２７日　月曜日　午後５時４２分

4056-1. Using the air conditioning system and defogger
UK AURIS_HB_EE (OM12K97E)
6
Interior features

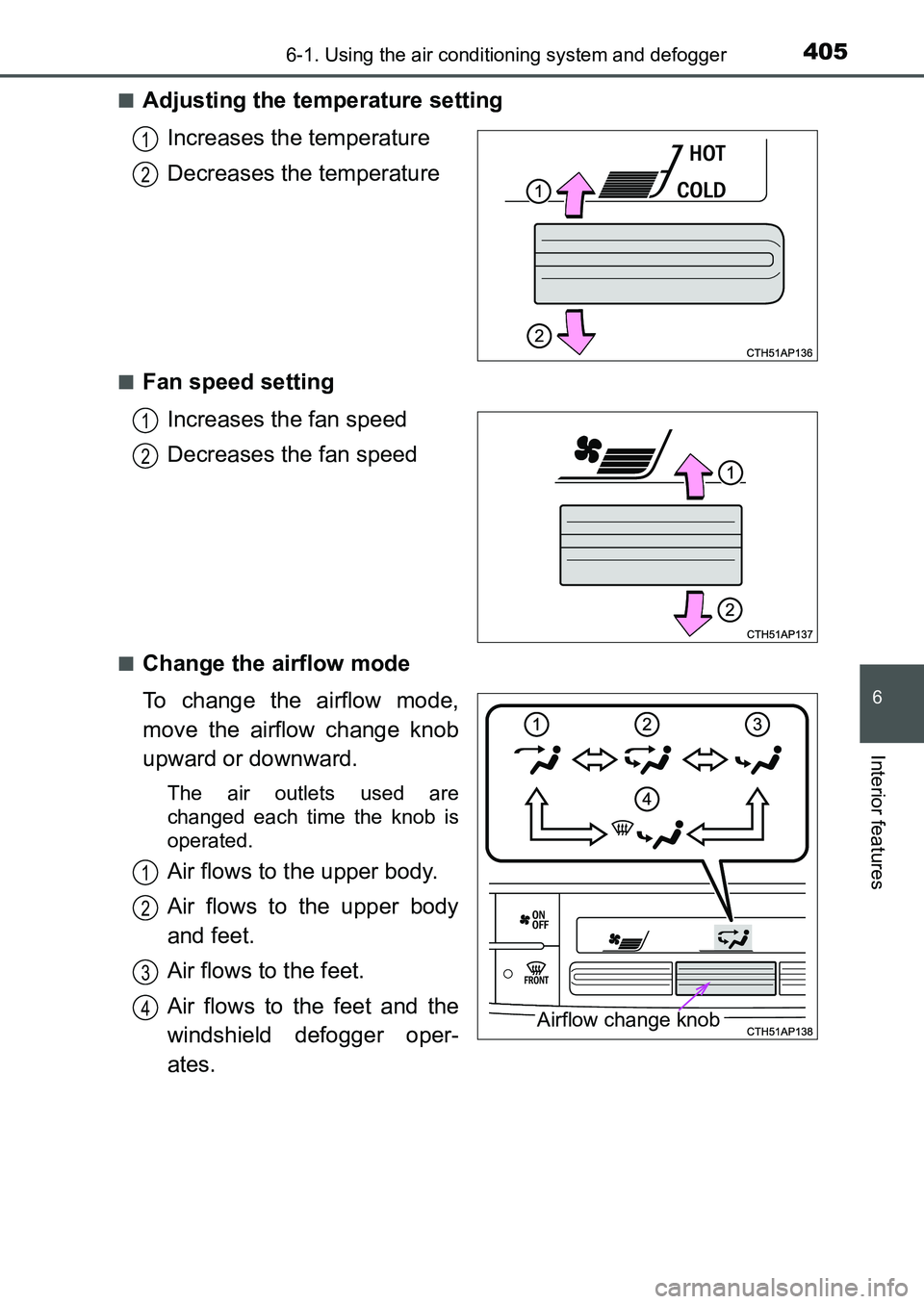

■Adjusting the temperature setting
Increases the temperature
Decreases the temperature
■Fan speed setting
Increases the fan speed
Decreases the fan speed
■Change the airflow mode
To change the airflow mode,
move the airflow change knob
upward or downward.
The air outlets used are
changed each time the knob is
operated.
Air flows to the upper body.
Air flows to the upper body
and feet.
Air flows to the feet.
Air flows to the feet and the
windshield defogger oper-
ates.
1
2
1
2
Airflow change knob
1
2
3
4
UK AURIS_HB_OM_Europe_OM12K97E.book 405 ページ ２０１６年６月２７日　月曜日　午後５時４２分

4066-1. Using the air conditioning system and defogger
UK AURIS_HB_EE (OM12K97E)■
Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and recir-
culated air mode (indicator on) each time is pressed.
■
Defogging the windshield
Defoggers are used to defog the windshield and front side win-
dows.
Press .
The dehumidification function operates and fan speed increases.
Set the outside/recirculated air mode button to the outside air mode if
the recirculated air mode is used. (It may switch automatically.)
To defog the windshield and the front side windows early, turn the air
flow and temperature up.
To return to the previous mode, press again when the windshield
is defogged.
■
Defogging the rear window and outside rear view mirrors
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Press .
The defoggers will automatically turn off after a period of time.
Other functions
UK AURIS_HB_OM_Europe_OM12K97E.book 406 ページ ２０１６年６月２７日　月曜日　午後５時４２分

4076-1. Using the air conditioning system and defogger
UK AURIS_HB_EE (OM12K97E)
6
Interior features
■Location of air outlets
The air outlets and air volume
change according to the
selected airflow mode.
(P. 405)
: Some models
■Adjusting the position of and opening and closing the air out-
lets
Front center outlets
Direct air flow to the left or
right, up or down.
Turn the knob up to open the
vent and down to close the
vent.
Front side outlets
Direct air flow to the left or right,
up or down.
Air outlets
1
2
UK AURIS_HB_OM_Europe_OM12K97E.book 407 ページ ２０１６年６月２７日　月曜日　午後５時４２分

4086-1. Using the air conditioning system and defogger
UK AURIS_HB_EE (OM12K97E)
Open the vent
Close the vent
■Fogging up of the windows
The windows may fog up if the recirculated air mode is used.
■Outside/recirculated air mode
When driving on dusty roads such as tunnels or in heavy traffic, set the out-
side/recirculated air mode button to the recirculated air mode. This is effective
in preventing outside air from entering the vehicle interior.
■Air conditioning filter
P. 503
1
2
WARNING
■To prevent the windshield from fogging up
■To prevent burns
Do not touch the rear view mirror surfaces when the outside rear view mirror
defoggers are on.
NOTICE
■To prevent battery discharge
Do not leave the heater system on longer than necessary when the engine
is stopped.
Do not place anything on the instrument
panel which may cover the air outlets.
Otherwise, air flow may be obstructed,
preventing the windshield defoggers from
defogging.
