2017 PEUGEOT 4008 Owners Manual

247
4008_EN_CHAP10B_MITSU6_ED01-2016
AUDIO-TELEMATIC TOUCH
SCREEN SYSTEM
the system is protected in such a way that it will only
operate in your vehicle.01 First steps - Control panel
For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.
CONTENTS
03

General
operation
04
Navigation
05

Media
06


Settings
07

Information p.
p.
p.
p.
p.
p.
p. 248
249
251
252
268
282
284
02

Steering
mounted controls p.
288
08
BLUETOOTH
® streaming - telephone

01
248
4008_EN_CHAP10B_MITSU6_ED01-2016
PWR/VOL:
-
audio system on/of
f.
-

volume adjustment for the audio and
telephone functions.
Short press: change the audio source.
Long press: CD / MP3 /

u SB, SD, for fast
forward or rewind.
Long press: RADIO, automatic frequency
search down/up. FOLDER: allows selection of a folder or a
manual search for a radio station.
OPEN: Allows the screen panel to be opened or closed to insert
or remove a CD or SD cards. ZOOM: zoom the map in or out.
Allows the colour map screen the be switched
between day and night mode according to the
state of the vehicle's lighting.
Move a finger over the screen to operate
the system.
u

se the buttons offered on the screen. For safety reasons, the driver
must only carry out operations
which require prolonged
attention with the vehicle
stationary. Insert the SD card containing
the navigation mapping data into
the left-hand slot.
Insert the SD card containing
the audio data into the right-
hand slot.
FIRST STEPS

02
249
4008_EN_CHAP10B_MITSU6_ED01-2016
Increase / reduce audio volume.Search for a higher / lower radio frequency.
Previous/next CD track.
CD fast forward/back.
Long press: audio system on / off.
Short press: selection of the source in the
following order (in a loop):
CD, SD,
u SB/iPod, Bluetooth, A u X, FM,
M W, LW.
STEERING MOUNTED CONTROLS

250
4008_EN_CHAP10B_MITSU6_ED01-2016

03
251
4008_EN_CHAP10B_MITSU6_ED01-2016
Description of the controls - Menus
SETTINGS: used to manage the
different adjustments. DESTINATION: used to set
navigation options and select the
destination.
NAVI MENU: used for adjustments
to the navigation system.
MODE: used to select the audio
source.
INFO: used to check information.
AUDIO: display the screen for the
last audio source used.
MAP: used to display the current
position of your vehicle on the map.
GENERAL
OPERATION

04
252
4008_EN_CHAP10B_MITSU6_ED01-2016

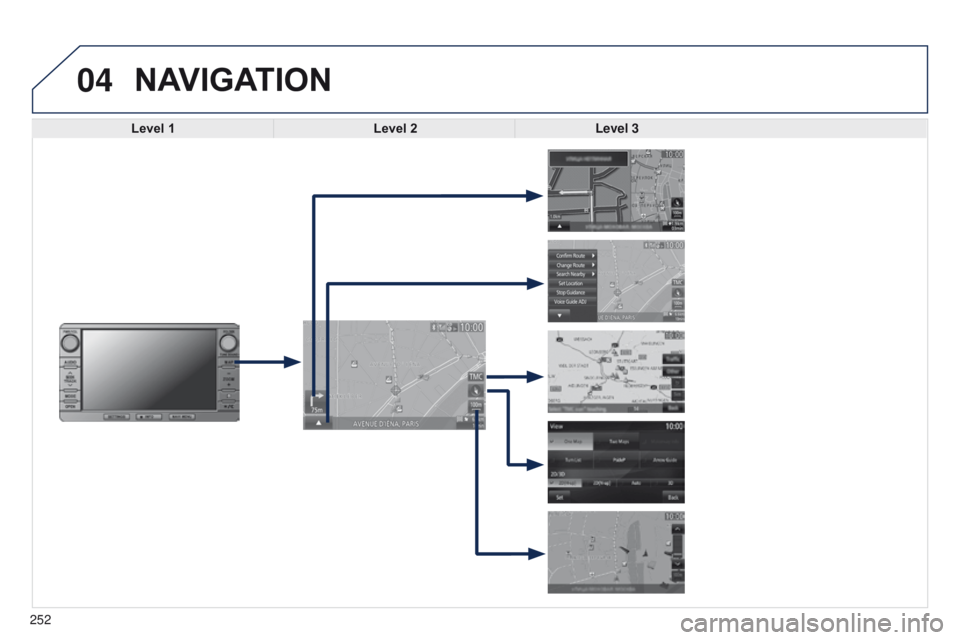

NAVIGATION
Level 1Level 2Level 3

253
4008_EN_CHAP10B_MITSU6_ED01-2016

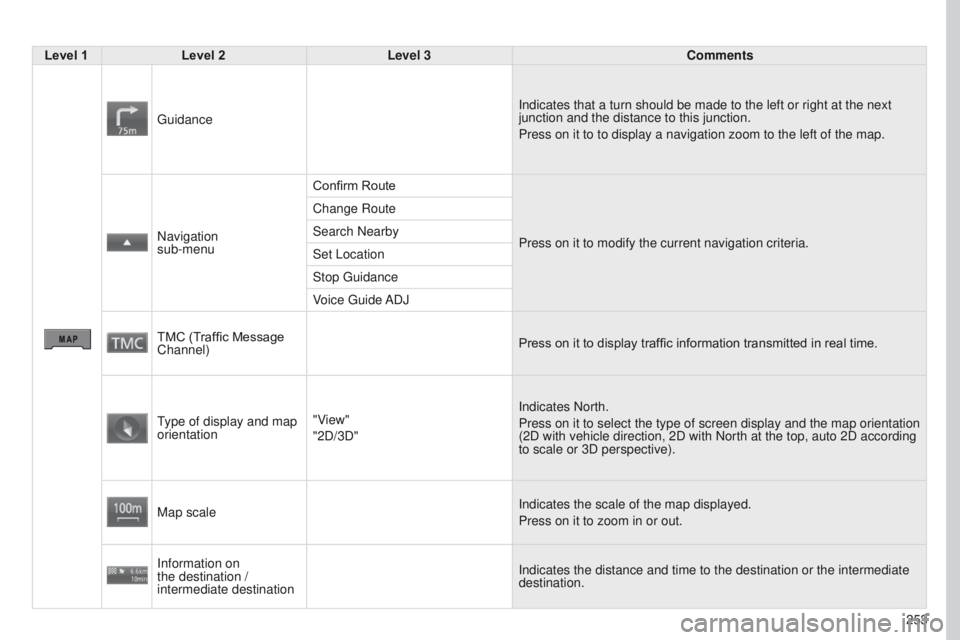

Level 1Level 2 Level 3 Comments
g

uidance Indicates that a turn should be made to the left or right at the next
junction and the distance to this junction.
Press on it to to display a navigation zoom to the left of the map.
Navigation
sub-menu Confirm Route
Press on it to modify the current navigation criteria.
Change Route
Search Nearby
Set Location
Stop
g uidance
Voice
g

uide ADJ
TMC (Traffic Message
Channel) Press on it to display traffic information transmitted in real time.
type of display and map
orientation "V

iew"
"2D/3D" Indicates North.
Press on it to select the type of screen display and the map orientation\

(2D with vehicle direction, 2D with North at the top, auto 2D according\

to scale or 3D perspective).
Map scale Indicates the scale of the map displayed.
Press on it to zoom in or out.
Information on
the destination /
intermediate destination Indicates the distance and time to the destination or the intermediate
destination.

04
254
4008_EN_CHAP10B_MITSU6_ED01-2016

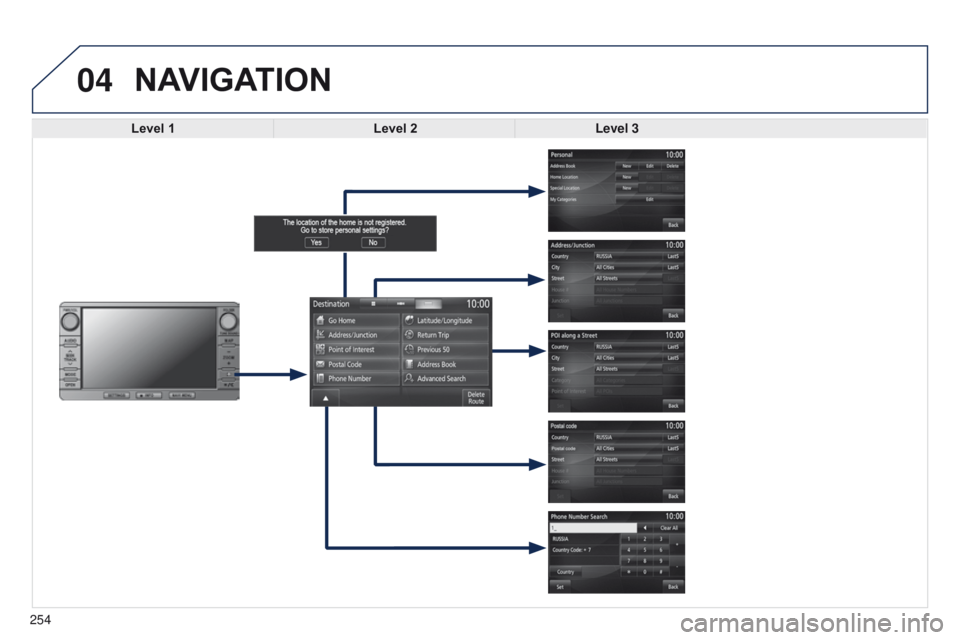

NAVIGATION
Level 1Level 2Level 3
